Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#24719) — 393 parça

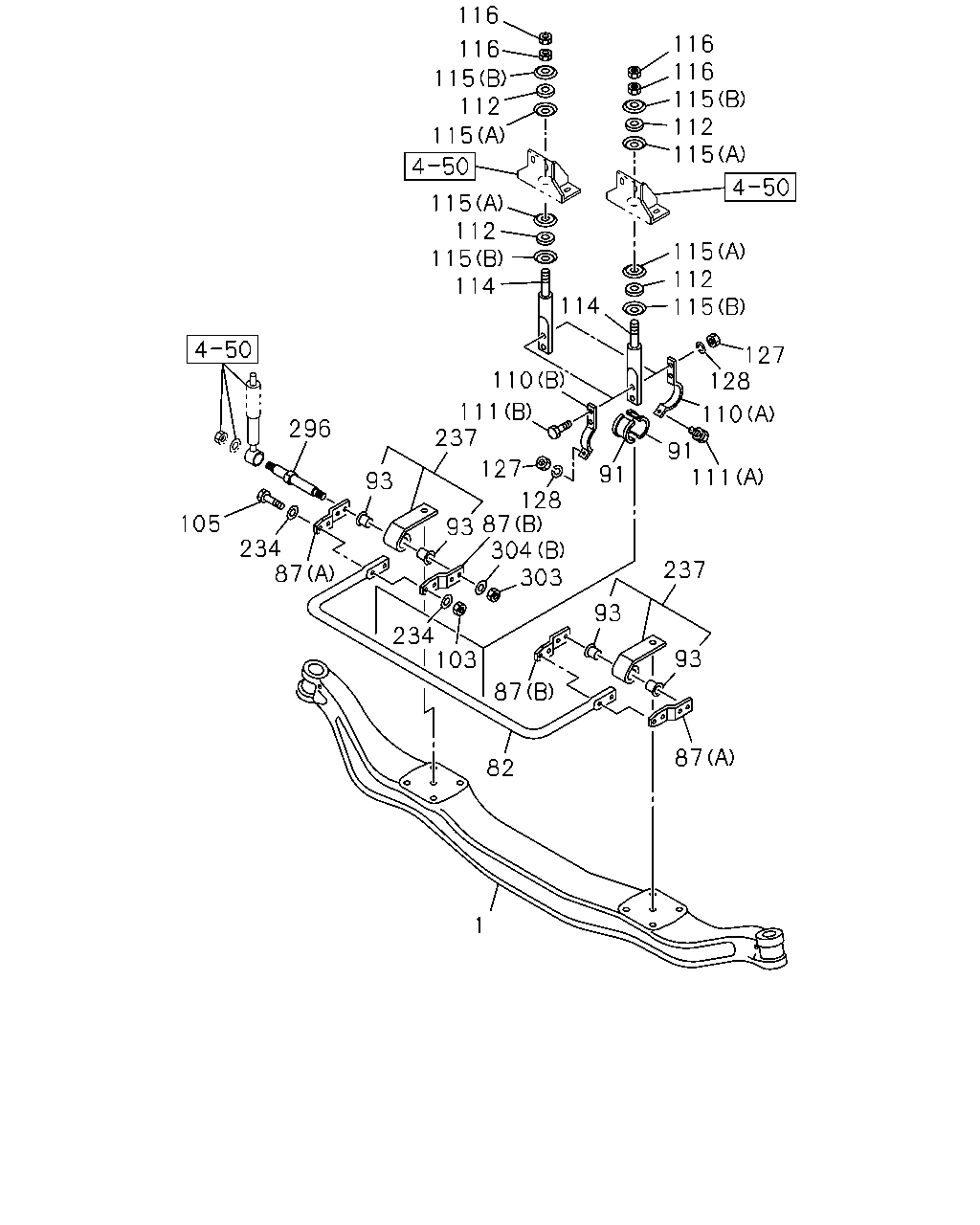

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 127 128 110 111 237 110 296 91 111 128 93 87 304 303 127 91 93 105 234 87 237 93 234 103 93 87 87 82 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0204-
1	AXLE; FRT	1-43111-113-1	01	1	9811-0203
82	BAR; STAB,FRT SUSP	1-51771-113-0	01	1	9811-
87	BRACKET; STABILIZER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98012-958-0	02	1	1001-
87	BRACKET; STABILIZER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98012-959-0	02	1	1001-
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	9811-0912
87	BRACKET; STABILIZER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-51781-083-1	02	1	1001-
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	9811-0912
87	BRACKET; STABILIZER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-51781-084-1	02	1	1001-
91	BUSHING; RUBBER,STAB BAR	1-51779-084-0	04	1	9811-
93	BUSHING; STABILIZER	1-51689-015-2	04	1	9811-
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	9811-0512
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0601-
105	BOLT; BRKT FIX M14X70	9-91061-470-0	04	1	9811-0206
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0207-0910
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	9811-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	9811-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	9811-0910
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	9811-0910
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-
112	BUSHING; ROD	9-51631-050-0	04	1	9811-
114	ROD; STAB BAR	1-51773-084-0	02	1	9811-
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.8	1-51631-022-0	04	1	9811-
115	WASHER; CENTER,STAB TO FRAME (B) ID=14.5	9-51631-051-0	04	1	9811-
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	9811-0512
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-
127	NUT; CLAMP M12	9-99110-412-0	06	1	9811-0512
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-
128	WASHER; LK,CLAMP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	0-91510-812-0	06	1	1001-
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	9811-0603
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912
128	WASHER; LK,CLAMP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	0-91510-512-0	06	1	1001-
234	WASHER; STAB ID=15	9-09651-069-0	08	1	9811-0910
234	WASHER; STAB ID=15	8-98010-627-0	08	1	0911-
237	SUPPORT; STAB BAR	1-51681-724-0	02	1	9811-0209
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0210-
296	PIN; STAB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98013-020-1	02	1	0908-
296	PIN; STAB	1-51682-150-0	02	1	9811-0907
296	PIN; STAB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-51682-150-0	02	1	0908-
303	NUT; PIN M20	9-99110-520-0	02	1	9811-0512
303	NUT; PIN M20	0-91110-520-0	02	1	0601-
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0204-0704
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9811-0203
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21	0-91614-520-0	02	1	0908-0909
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0910-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	9811-0907
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=21	9-09164-520-0	02	1	0908-0909

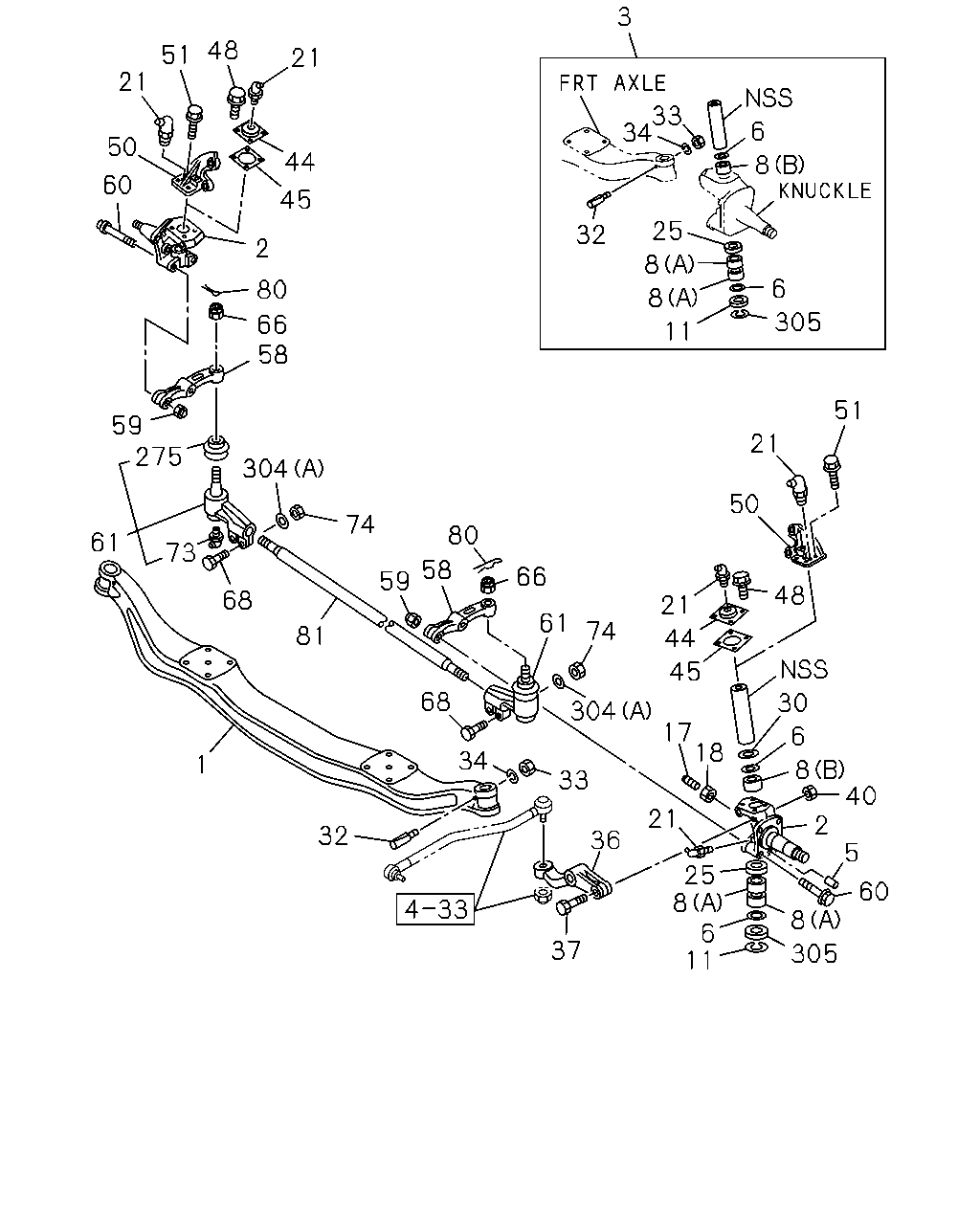

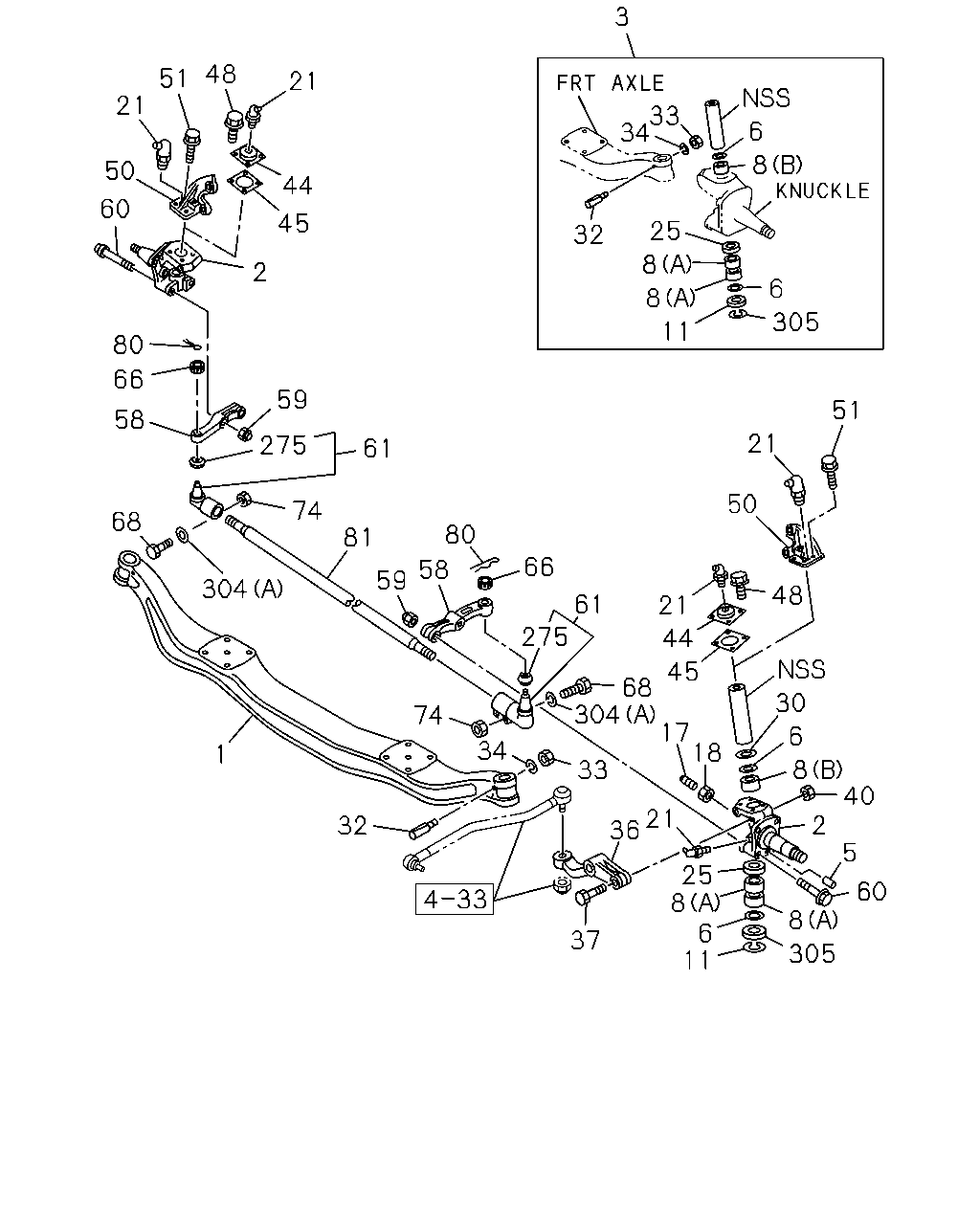

3 48 51 21 21 33 34 6 8 50 44 60 45 25 32 8 2 6 8 305 11 80 66 59 51 58 21 275 61 50 74 68 80 81 66 58 59 304 48 61 21 275 44 45 68 304 17 18 30 74 34 6 1 8 40 33 21 36 2 32 5 25 8 6 11 60 8 37 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0204-
1	AXLE; FRT	1-43111-113-1	01	1	9811-0203
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	0204-0706
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0707-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	0204-0706
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0707-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9811-0203
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9811-0203
3	KING PIN SET	1-87830-738-5	02	1	0204-
3	KING PIN SET	1-87830-738-0	02	1	9811-0203
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0204-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9811-0203
6	SEAL; KING PIN	9-09926-024-0	04	1	0204-
6	SEAL; KING PIN	9-09926-024-0	04	1	9811-0203
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0204-
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0204-
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	9811-0201
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	9811-0201
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0202-0203
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0202-0203
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0204-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9811-0203
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0204-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9811-0203
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0204-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9811-0203
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0204-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9811-0203
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0204-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9811-0203
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0202-0203
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0204-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9811-0203
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0204-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9811-0203
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0204-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9811-0203
36	ARM; KNUCKLE	1-43133-063-3	01	1	0204-
36	ARM; KNUCKLE	1-43133-063-1	01	1	9811-0203
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	0204-0704
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	0204-0704
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9811-0201
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9811-0201
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	0202-0203
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	0202-0203
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0204-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9811-0203
44	COVER; KING PIN	1-43175-014-1	02	1	9811-0201
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	0202-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	9811-0201
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	0202-
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	9811-0201
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	0202-0512
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28051-216-0	08	1	0601-
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-3	01	1	0202-
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-3	01	1	0202-
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60 FLANGE	0-28081-260-0	02	1	0202-0512
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60 FLANGE	0-28051-260-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X25 FLANGE	0-28681-225-0	06	1	0202-0512
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X25 FLANGE	0-28651-225-0	06	1	0601-
58	ARM; TIE ROD	1-43134-042-3	01	1	0204-0706
58	ARM; TIE ROD	1-43134-042-3	01	1	0707-
58	ARM; TIE ROD	1-43135-042-3	01	1	0204-0706
58	ARM; TIE ROD	1-43135-042-3	01	1	0707-
58	ARM; TIE ROD	1-43135-042-1	01	1	9811-0201
58	ARM; TIE ROD	1-43134-042-1	01	1	9811-0201
58	ARM; TIE ROD	1-43135-042-1	01	1	0202-0203
58	ARM; TIE ROD	1-43134-042-1	01	1	0202-0203
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0204-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9811-0203
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0204-0704
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9811-0203
61	ROD END; TIE ROD	1-43150-801-0	01	1	0204-0706
61	ROD END; TIE ROD	1-43150-801-0	01	1	0707-1009
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0204-0706
61	ROD END; TIE ROD	1-43150-802-0	01	1	0707-1009
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-737-1	01	1	9811-9812
61	ROD END; TIE ROD	1-43150-802-0	01	1	9901-0201
61	ROD END; TIE ROD	1-43150-736-1	01	1	9811-9812
61	ROD END; TIE ROD	1-43150-801-0	01	1	9901-0201
61	ROD END; TIE ROD	1-43150-802-0	01	1	0202-0203
61	ROD END; TIE ROD	1-43150-801-0	01	1	0202-0203
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0204-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9811-0203
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0204-0704
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9811-0203
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0204-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9811-0203
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0204-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9811-0203
81	ROD; TIE	1-43151-119-0	01	1	0204-1009
81	ROD; TIE	8-98172-133-0	01	1	1010-1109
81	ROD; TIE	8-98193-965-0	01	1	1110-
81	ROD; TIE	1-43151-119-0	01	1	9811-0203
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0204-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9811-9812
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-0203
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0204-0704
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9811-0203
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21	0-91614-520-0	02	1	0908-0909
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0910-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	9811-0907
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=21	9-09164-520-0	02	1	0908-0909
305	COVER; KNUCKLE	1-43175-021-0	02	1	0204-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-
305	COVER; KNUCKLE	1-43175-021-0	02	1	9811-0203

3 48 51 21 21 33 34 6 50 44 8 60 45 25 32 2 8 6 80 8 305 66 58 11 51 59 275 21 304 50 74 80 61 73 58 66 59 48 68 21 61 74 81 44 45 68 30 304 17 18 6 34 1 8 40 33 21 2 32 36 5 25 8 6 11 60 8 37 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0204-
1	AXLE; FRT	1-43111-113-1	01	1	9811-0203
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	0204-0706
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0707-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	0204-0706
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0707-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9811-0203
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9811-0203
3	KING PIN SET	1-87830-738-5	02	1	0204-
3	KING PIN SET	1-87830-738-0	02	1	9811-0203
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0204-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9811-0203
6	SEAL; KING PIN	9-09926-024-0	04	1	0204-
6	SEAL; KING PIN	9-09926-024-0	04	1	9811-0203
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0204-
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0204-
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	9811-0201
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	9811-0201
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0202-0203
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0202-0203
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0204-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9811-0203
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0204-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9811-0203
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0204-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9811-0203
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0204-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9811-0203
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0204-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9811-0203
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0204-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9811-0201
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0202-0203
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0202-0203
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0204-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9811-0203
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0204-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9811-0203
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0204-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9811-0203
36	ARM; KNUCKLE	1-43133-063-3	01	1	0204-
36	ARM; KNUCKLE	1-43133-063-1	01	1	9811-0203
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	0204-0704
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	0204-0704
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9811-0201
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9811-0201
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	0202-0203
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	0202-0203
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0204-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9811-0203
44	COVER; KING PIN	1-43175-014-1	02	1	9811-0201
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	0202-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	9811-0201
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	0202-
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	9811-0201
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	0202-0512
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28051-216-0	08	1	0601-
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-3	01	1	0202-
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-3	01	1	0202-
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60 FLANGE	0-28081-260-0	02	1	0202-0512
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60 FLANGE	0-28051-260-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X25 FLANGE	0-28681-225-0	06	1	0202-0512
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X25 FLANGE	0-28651-225-0	06	1	0601-
58	ARM; TIE ROD	1-43134-042-3	01	1	0204-0706
58	ARM; TIE ROD	1-43134-042-3	01	1	0707-
58	ARM; TIE ROD	1-43135-042-3	01	1	0204-0706
58	ARM; TIE ROD	1-43135-042-3	01	1	0707-
58	ARM; TIE ROD	1-43135-042-1	01	1	9811-0201
58	ARM; TIE ROD	1-43134-042-1	01	1	9811-0201
58	ARM; TIE ROD	1-43135-042-1	01	1	0202-0203
58	ARM; TIE ROD	1-43134-042-1	01	1	0202-0203
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0204-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9811-0203
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0204-0704
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9811-0203
61	ROD END; TIE ROD	1-43150-801-0	01	1	0204-0706
61	ROD END; TIE ROD	1-43150-801-0	01	1	0707-1009
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0204-0706
61	ROD END; TIE ROD	1-43150-802-0	01	1	0707-1009
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-737-1	01	1	9811-9812
61	ROD END; TIE ROD	1-43150-802-0	01	1	9901-0201
61	ROD END; TIE ROD	1-43150-736-1	01	1	9811-9812
61	ROD END; TIE ROD	1-43150-801-0	01	1	9901-0201
61	ROD END; TIE ROD	1-43150-802-0	01	1	0202-0203
61	ROD END; TIE ROD	1-43150-801-0	01	1	0202-0203
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0204-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9811-0203
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0204-0704
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9811-0203
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0204-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9811-0203
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0204-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9811-0203
81	ROD; TIE	1-43151-119-0	01	1	0204-1009
81	ROD; TIE	8-98172-133-0	01	1	1010-1109
81	ROD; TIE	8-98193-965-0	01	1	1110-
81	ROD; TIE	1-43151-119-0	01	1	9811-0203
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0204-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9811-9812
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-0203
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0204-0704
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9811-0203
304	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21	0-91614-520-0	02	1	0908-0909
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0910-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	9811-0907
304	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=21	9-09164-520-0	02	1	0908-0909
305	COVER; KNUCKLE	1-43175-021-0	02	1	0204-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-
305	COVER; KNUCKLE	1-43175-021-0	02	1	9811-0203

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
