◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10896 - FTR BUS CHASSIS LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#24718) — 114 parça

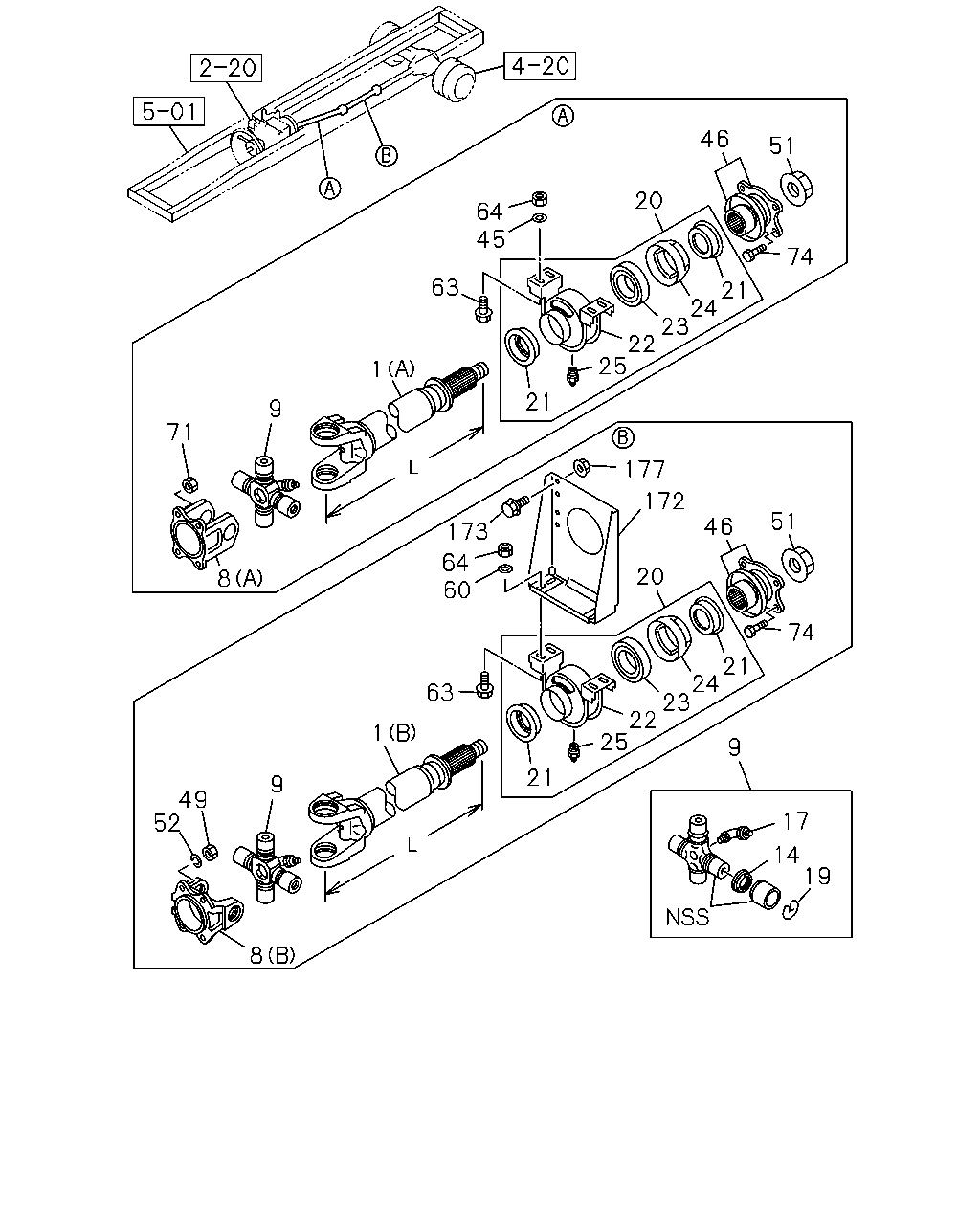

çizim 23233
46 51 20 64 45 74 63 21 24 23 22 25 1 21 9 71 177 172 51 46 173 64 60 20 8 74 21 24 23 22 25 63 1 9 21 9 49 52 17 14 19 8
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 9811-
1 SHAFT; PROP
(B) L=816 		1-37151-390-1 01 1 9811-
1 SHAFT; PROP
(A) L=621 		1-37151-483-1 01 1 9811-
8 YOKE; FLANGE,PROP SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9811-1111
8 YOKE; FLANGE,PROP SHAFT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 1ST 		1-37211-054-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 9811-
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 9811-
9 JOURNAL ASM; PROP SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 1ST 		8-98048-925-0 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 9811-1111
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 1ST 		1-37300-102-1 AR 1 1112-
14 COVER; DUST,SPIDER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98020-800-0 08 1 1506-
14 COVER; DUST,SPIDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 1ST 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9812-1111
14 COVER; DUST,SPIDER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-37319-012-0 08 1 1506-
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1112-
14 COVER; DUST,SPIDER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 1ST 		1-37319-012-0 04 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9811-0512
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9811-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9811-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9811-
20 BEARING ASM; CTR,PROP SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 1ST 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9811-1111
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9811-1111
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 1ST 		1-37510-105-0 01 1 1112-
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9811-
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9811-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9811-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9811-
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9811-
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9811-
24 RETAINER; CENTER BRG,1ST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 1ST 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9811-1111
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9811-1111
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 1ST 		1-37529-068-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9811-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9811-
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9811-0605
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606-
46 FLANGE; SPLINED,PROP SHAFT,1ST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 1ST 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9811-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9811-1111
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 1ST 		1-37245-071-0 01 1 1112-
49 NUT; YOKE
M14 		9-99110-514-0 04 1 9811-0512
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0601-
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9811-
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9811-
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9811-0603
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604-
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9811-0605
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9811-0512
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601-
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9811-0602
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9811-0602
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9811-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9811-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9811-
172 BRACKET; CENTER BRG 1-37515-071-2 01 1 9811-
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9811-0201
173 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE 		0-28681-030-0 04 1 0202-0512
173 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
173 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE 		0-28681-025-0 04 1 0202-0512
173 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE 		0-28651-025-0 04 1 0601-
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 9811-0602
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603-

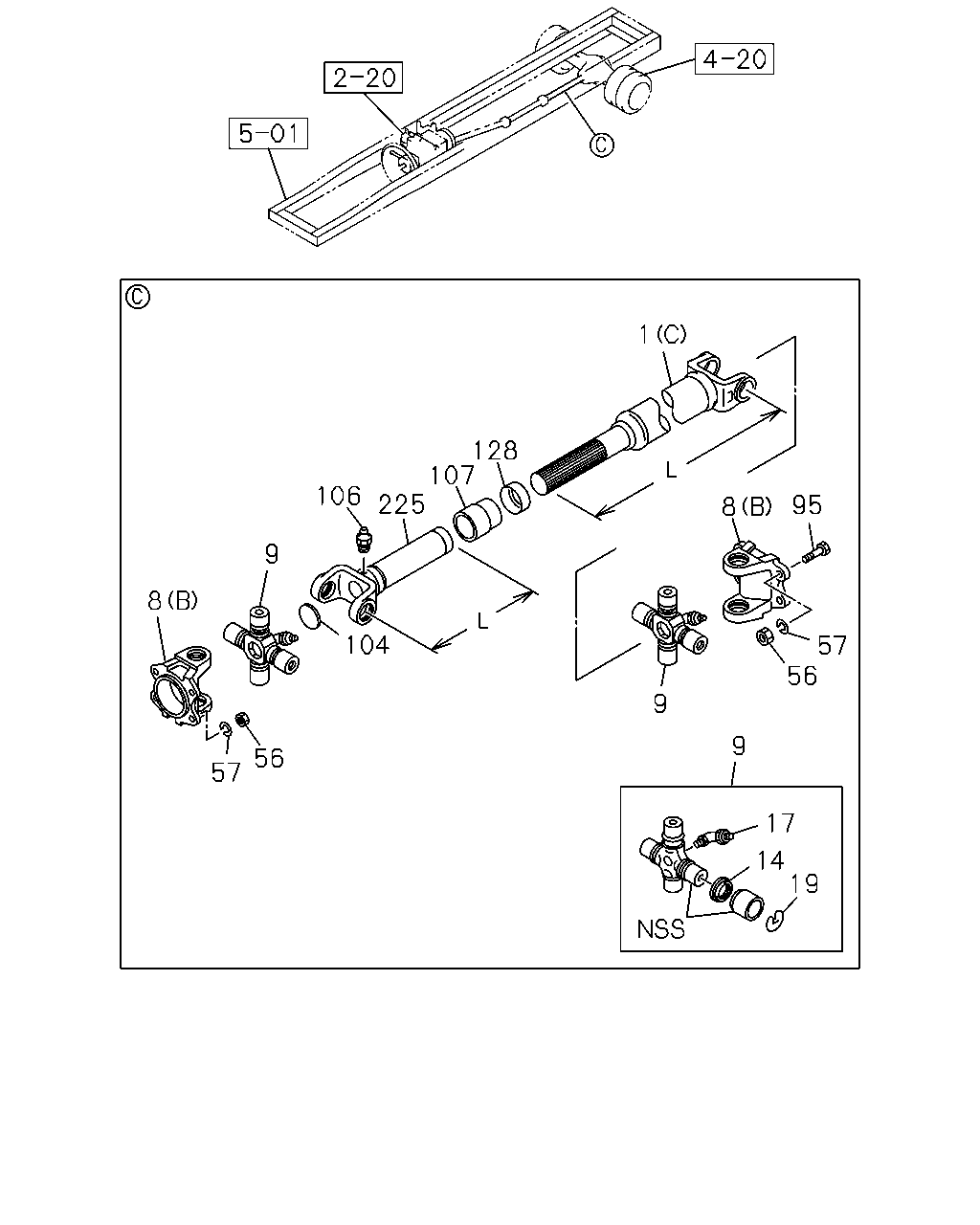

çizim 82623
1 128 107 225 106 95 8 9 8 104 57 56 9 9 56 57 17 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 9811-
1 SHAFT; PROP
(B) L=816 		1-37151-390-1 01 1 9811-
1 SHAFT; PROP
(A) L=621 		1-37151-483-1 01 1 9811-
8 YOKE; FLANGE,PROP SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9811-1111
8 YOKE; FLANGE,PROP SHAFT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 1ST 		1-37211-054-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 9811-
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 9811-
9 JOURNAL ASM; PROP SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 1ST 		8-98048-925-0 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 9811-1111
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 1ST 		1-37300-102-1 AR 1 1112-
14 COVER; DUST,SPIDER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98020-800-0 08 1 1506-
14 COVER; DUST,SPIDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 1ST 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 9812-1111
14 COVER; DUST,SPIDER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-37319-012-0 08 1 1506-
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1112-
14 COVER; DUST,SPIDER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 1ST 		1-37319-012-0 04 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 9811-0512
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9811-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9811-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9811-
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9811-0512
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601-
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9811-0603
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604-
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9811-
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9811-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 9811-
128 SEAL; SLEEVE 1-37247-015-0 01 1 9811-9811
128 SEAL; SLEEVE 1-37247-024-0 01 1 9812-
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9811-9811
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9812-9902
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9903-
