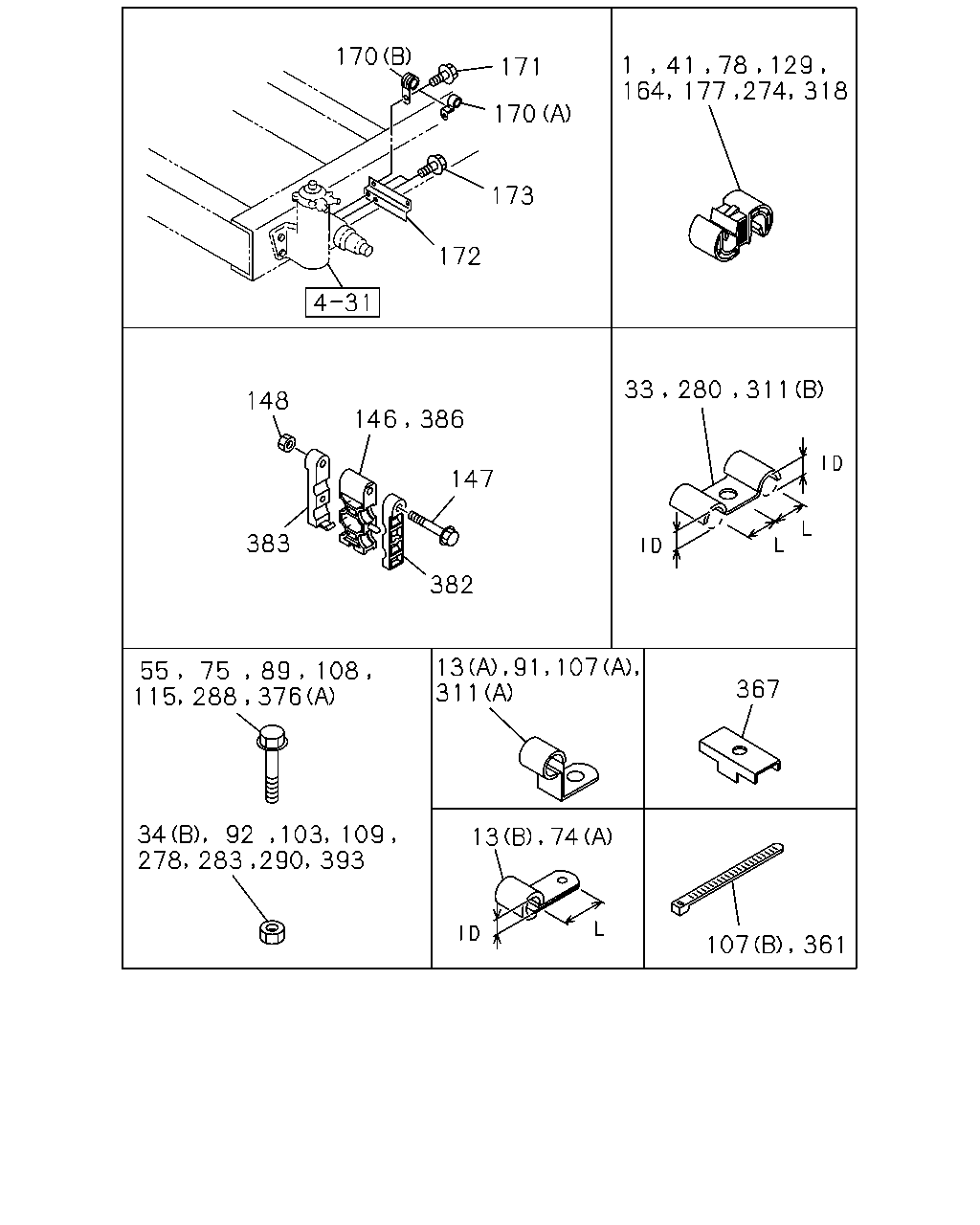

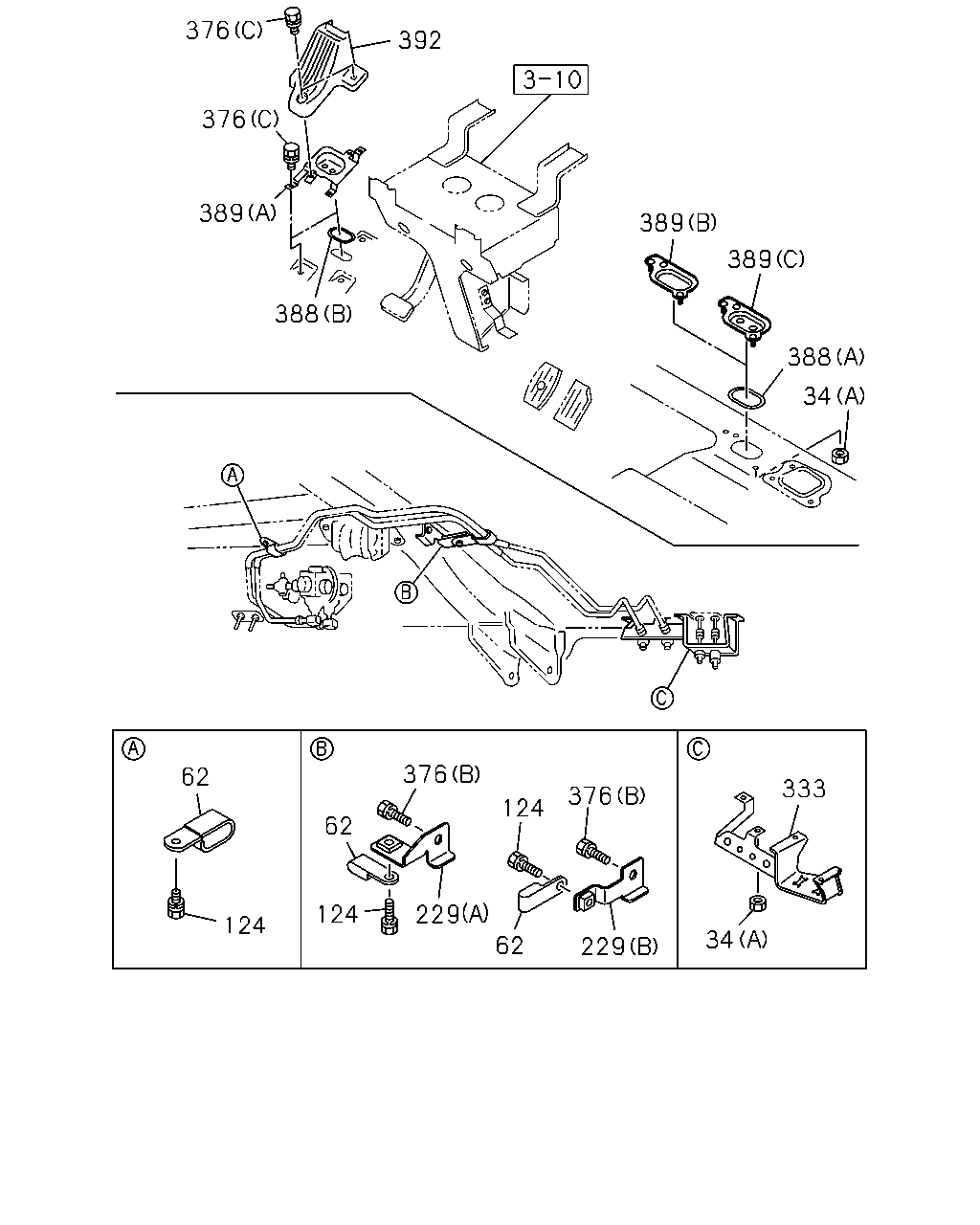

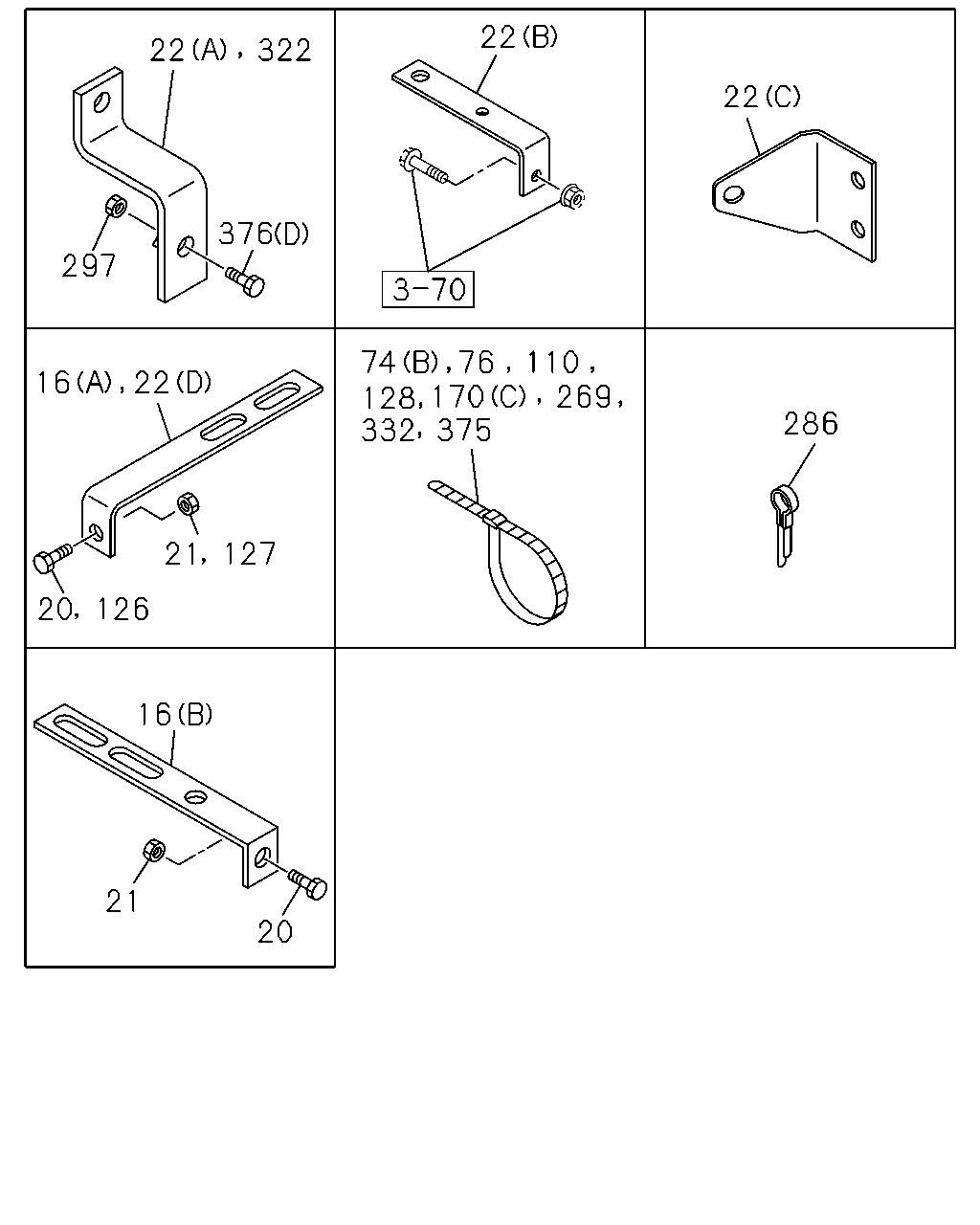

3-78 — FIXING PARTS; AIR PIPING (#24717) — 206 parça

170 1 171 170 173 172 280 311 148 146 147 383 382 13 107 311 75 108 367 103 33 386 41 78 129 164 177 274 318 89 55 115 288 376 91 13 74 107 361 109 393 290 92 283 34 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9811-0201
1	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	0202-
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9811-
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	9811-0606
13	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	9811-0606
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-
33	CLIP; BOLT ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9811-
33	CLIP; BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0202-
34	NUT; BRKT (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9811-
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91150-108-0	01	1	0202-0602
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	01	1	0603-
41	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	03	1	0202-
41	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15 & 15	1-09709-282-1	01	1	0202-
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	04	1	0202-0512
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	04	1	0601-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=28	1-09700-872-0	01	1	0202-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	05	1	0202-
75	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-0201
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28050-816-0	01	1	0601-
75	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9811-0201
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	0202-0512
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	01	1	0601-
75	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	03	1	9811-0201
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	0202-0512
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	03	1	0601-
75	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	0202-0512
75	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	01	1	0601-
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	03	1	0202-
89	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-0201
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28050-816-0	01	1	0601-
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	5-09700-351-0	04	1	0202-0707
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
92	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0202-0602
92	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-
103	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0202-0602
103	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0202-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0202-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0202-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	01	1	0202-
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	04	1	0202-0512
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	04	1	0601-
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	0202-0602
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	0603-
115	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0201
115	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	0202-0512
115	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0601-
129	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9811-0201
129	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 10.0	1-09709-274-1	01	1	0202-
146	CLIP; AIR PIPE ID=10	1-09709-242-0	01	1	9811-0201
146	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10	1-09709-242-0	01	1	0202-
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	03	1	9811-0201
147	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X70 FLANGE	0-28080-870-0	03	1	0202-0512
147	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X70 FLANGE	0-28050-870-0	03	1	0601-
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9811-0201
148	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0202-0602
148	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	03	1	0603-
164	CLIP; AIR PIPE ID=10 & 15	1-09709-279-1	01	1	9811-0201
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 15	1-09709-279-1	01	1	0202-
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9811-0201
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0202-
170	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	9811-0201
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=26 L=27	1-09701-006-0	01	1	0202-
170	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-09707-126-0	01	1	0202-
171	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9811-0201
171	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	02	1	0202-0512
171	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28050-816-0	02	1	0601-
172	BRACKET; TUBE CLIP	1-47477-650-0	01	1	9811-0201
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47477-650-0	01	1	0202-
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9811-0201
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 FLANGE	0-28181-016-0	02	1	0202-0512
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 FLANGE	0-28151-016-0	02	1	0601-
173	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	01	1	0202-0512
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	01	1	0601-
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	9811-0201
177	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-277-1	01	1	0202-
274	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9811-0201
274	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	0202-
274	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	9811-0201
274	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 10.0	1-09709-274-1	02	1	0202-
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9811-0201
278	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0202-0602
278	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-
280	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9811-0201
280	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0202-
283	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	9811-0201
283	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	0202-0602
283	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	04	1	0603-
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	03	1	9811-0201
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	03	1	0202-0512
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	03	1	0601-
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	03	1	0202-0512
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	03	1	0601-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	9811-0602
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
311	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9811-0201
311	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	04	1	0202-
311	CLIP; AIR PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9811-0201
311	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0202-
318	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9811-0201
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 10.0	1-09709-274-1	01	1	0202-
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	03	1	9811-0201
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 15	1-09709-276-1	03	1	0202-
361	CLIP; FLEX HOSE,AIR PRESS GAGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=140	5-09707-031-1	01	1	0202-
367	BRACKET ASM	1-47475-427-1	01	1	9811-0201
367	BRACKET ASM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	01	1	0202-
367	BRACKET ASM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	02	1	0202-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
376	BOLT; BRKT (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-0201
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X45 FLANGE	0-28080-845-0	01	1	0202-0512
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X45 FLANGE	0-28050-845-0	01	1	0601-
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9811-0201
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X30 FLANGE	0-28680-830-0	01	1	0202-0512
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0202-0904
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0905-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X45 FLANGE	0-28080-845-0	02	1	0202-0512
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0202-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0202-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	9811-0201
382	CLIP; UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-241-0	03	1	0202-
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	9811-0201
383	CLIP; LWR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-241-0	03	1	0202-
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	9811-0201
386	CLIP; CENTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10	1-09709-242-0	03	1	0202-
393	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	9811-0201
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0202-0602
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-

376 392 376 389 389 389 388 388 34 376 62 333 376 124 62 124 229 124 34 62 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9811-
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91150-108-0	01	1	0202-0602
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	01	1	0603-
62	CLIP; AIR PIPE ID=13X2 L=20	9-09535-236-0	02	1	9811-0606
62	CLIP; AIR PIPE ID=13X2 L=20	0-95325-236-0	02	1	0607-
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9811-0904
124	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0905-
229	BRACKET; PIPE CLIP (A)	1-79738-819-0	01	1	9811-0201
229	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-79738-819-0	01	1	0202-
229	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-79738-858-0	01	1	0202-
333	BRACKET; BRK AIR PIPE	1-79738-804-4	01	1	9811-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
376	BOLT; BRKT (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-0201
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X45 FLANGE	0-28080-845-0	01	1	0202-0512
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X45 FLANGE	0-28050-845-0	01	1	0601-
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9811-0201
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X30 FLANGE	0-28680-830-0	01	1	0202-0512
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0202-0904
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0905-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X45 FLANGE	0-28080-845-0	02	1	0202-0512
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0202-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0202-
388	SEAL (A) L=280	1-79738-793-1	01	1	9811-0201
388	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=215	1-79738-794-1	01	1	0202-
388	SEAL (A) L=280	1-79738-793-1	01	1	0202-
389	BRACKET; UNION (B)	1-79738-811-1	01	1	9811-0201
389	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-79738-811-1	01	1	0202-
389	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-79738-790-1	01	1	0202-
389	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-79738-839-0	01	1	0202-
392	COVER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-73996-264-1	01	1	0202-

22 22 322 22 297 110 269 332 375 16 22 286 21 127 20 126 16 21 20 74 76 128 170 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP PROVISIONAL PACKAGE SPEC<BCC> (A) L=150 H=30	1-47477-629-2	03	1	0707-
16	BRACKET; PIPE CLIP PROVISIONAL PACKAGE SPEC<BCC> (B) L=225	1-47477-646-3	02	1	0707-
20	BOLT; CLIP PROVISIONAL PACKAGE SPEC<BCC> M8X20 FLANGE	0-28650-820-0	06	1	0707-
21	NUT; CLIP PROVISIONAL PACKAGE SPEC<BCC> M8 FLANGE	0-91180-108-0	06	1	0707-
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-881-0	01	1	0202-
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47476-699-2	01	1	0202-
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=150 H=30	1-47477-629-2	01	1	0202-
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=60 H=30	1-47477-716-1	01	1	0202-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=28	1-09700-872-0	01	1	0202-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	05	1	0202-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	04	1	0202-
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	0202-
126	BOLT; CLIP BRKT PROVISIONAL PACKAGE SPEC<BCC> M8X25 FLANGE	0-28650-825-0	05	1	0707-
127	NUT; CLIP BRKT PROVISIONAL PACKAGE SPEC<BCC> M8 FLANGE	0-91180-108-0	05	1	0707-
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	18	1	0202-
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9811-0201
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0202-
170	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	9811-0201
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=26 L=27	1-09701-006-0	01	1	0202-
170	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=250	1-09707-126-0	01	1	0202-
269	CLIP; BAND,NYLON TUBE PROVISIONAL PACKAGE SPEC<BCC> L=140	5-09707-031-1	32	1	0707-
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14 L=44	9-09917-427-0	01	1	0202-
297	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	0202-0602
297	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	0603-
322	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47479-071-0	01	1	0202-
332	CLIP; BAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	03	1	0202-
375	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	0202-
375	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	0202-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
376	BOLT; BRKT (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-0201
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X45 FLANGE	0-28080-845-0	01	1	0202-0512
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X45 FLANGE	0-28050-845-0	01	1	0601-
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9811-0201
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X30 FLANGE	0-28680-830-0	01	1	0202-0512
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0202-0904
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0905-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X45 FLANGE	0-28080-845-0	02	1	0202-0512
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0202-
376	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0202-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
