3-77 — BRAKE PIPING; AIR,REAR (#24716) — 124 parça

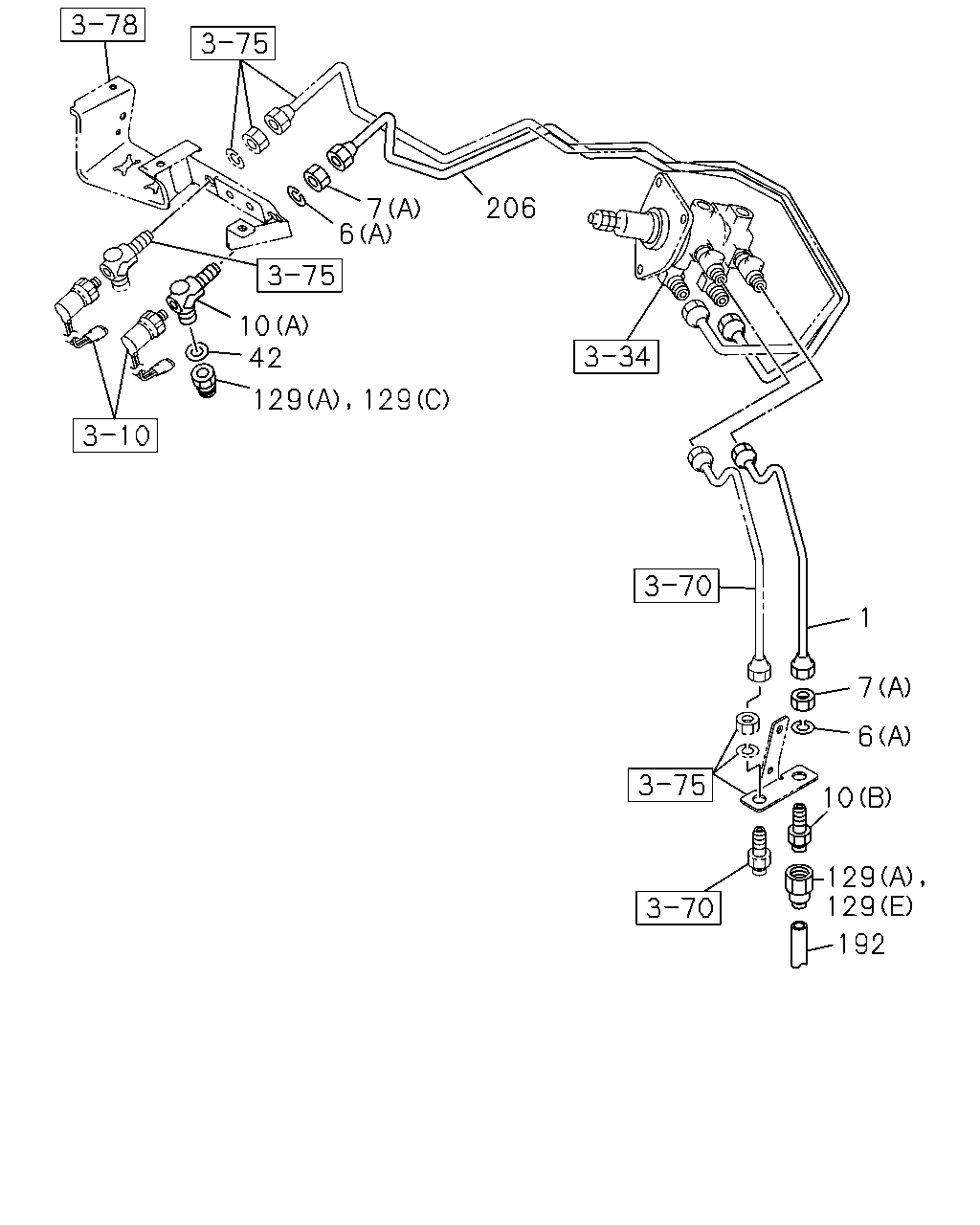

çizim 79880
206 7 6 10 42 129 129 1 7 6 10 129 129 192
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,FLEX HOSE TO BRK VLV 1-49116-436-1 01 1 9811-0201
1 PIPE; AIR,FLEX HOSE TO BRK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49116-436-1 01 1 0202-
1 PIPE; AIR,FLEX HOSE TO BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=423 		1-49113-428-2 01 1 0202-
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 9811-0201
6 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 02 1 0202-0603
6 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 02 1 0604-
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0202-0603
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604-
7 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 9811-0201
7 NUT; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 		9-99111-416-0 02 1 0202-0512
7 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601-
7 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 02 1 0202-0512
7 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		0-91111-520-0 02 1 0601-
7 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		9-99111-516-0 02 1 0202-0512
10 CONNECTOR; FLEX HOSE
(B) 		1-09654-324-0 01 1 9811-0201
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-09654-324-0 01 1 0202-
10 CONNECTOR; FLEX HOSE
(A) 		1-09656-700-0 01 1 9811-0201
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-09656-700-0 01 1 0202-
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 STRAIGHT 		1-09654-380-0 01 1 0202-
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16X2 & PT1/4 3WAY 		1-09656-329-1 01 1 0202-
42 GASKET; CONNECTOR
ID=11 OD=18 		9-09572-510-0 02 1 9811-0201
42 GASKET; CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18 		9-09572-510-0 02 1 0202-
129 CONNECTOR; NYLON TUBE
(A) 		1-09660-728-1 01 1 9811-0201
129 CONNECTOR; NYLON TUBE
(A) 		1-09660-728-1 01 1 9811-0201
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-09660-728-1 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-09660-728-1 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & M20 STRAIGHT 		1-09661-381-0 02 1 0202-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9811-0201
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0202-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0202-0212
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0301-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202-
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=1145 		1-49116-438-0 01 1 9811-0201
206 PIPE; AIR,BRK VLV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1145 		1-49116-438-0 01 1 0202-
206 PIPE; AIR,BRK VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1267 		1-49121-665-0 01 1 0202-

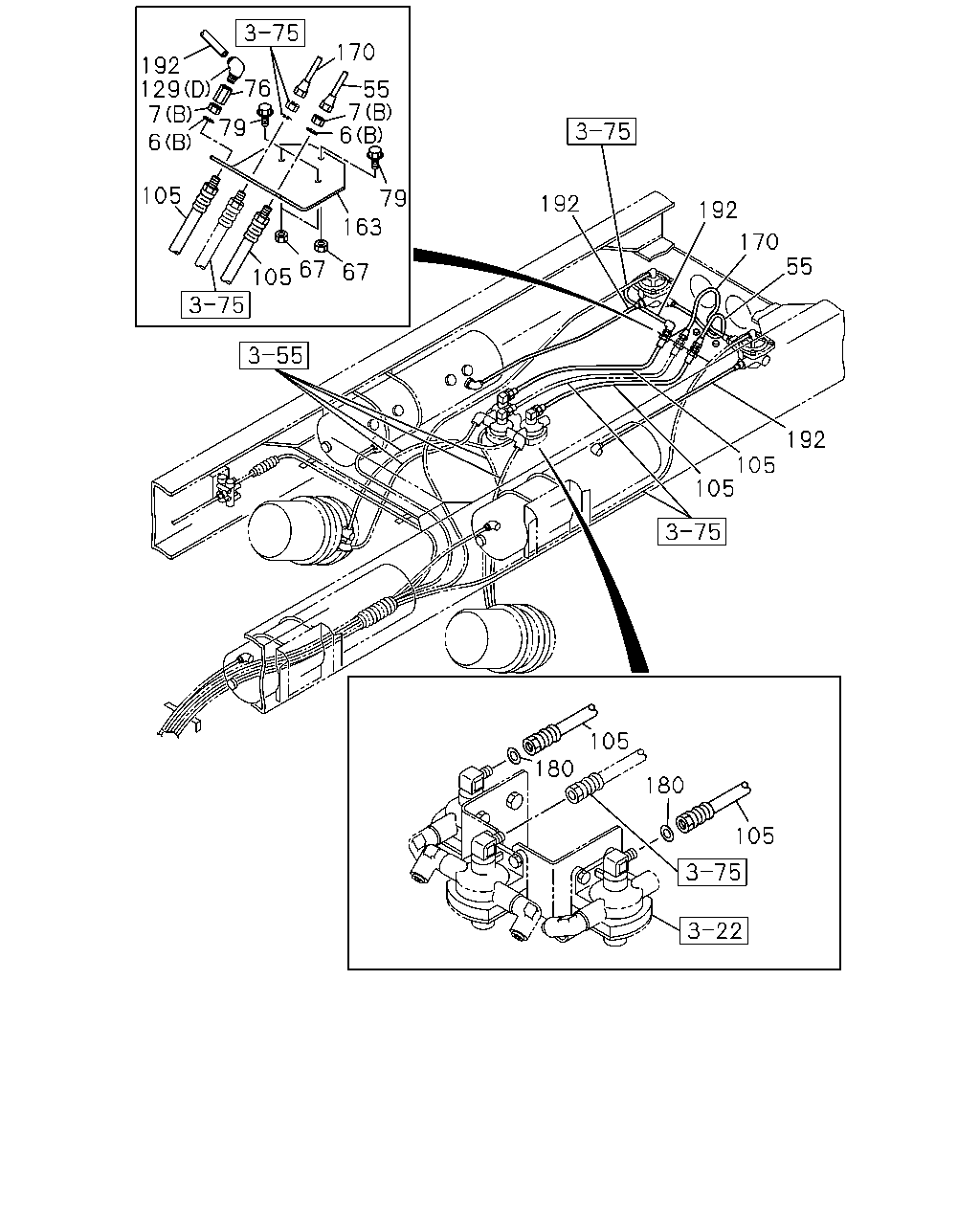

çizim 79968
170 192 129 7 6 76 55 7 6 79 105 79 192 192 163 170 55 67 105 67 192 105 105 180 105 180 105
BalonParca AdiParca NoAdetTipApplied Date
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 9811-0201
6 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 02 1 0202-0603
6 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 02 1 0604-
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0202-0603
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604-
7 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 9811-0201
7 NUT; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 		9-99111-416-0 02 1 0202-0512
7 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601-
7 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 02 1 0202-0512
7 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		0-91111-520-0 02 1 0601-
7 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 		9-99111-516-0 02 1 0202-0512
55 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=426 		1-49118-958-0 01 1 0202-
67 NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 03 1 0202-0602
67 NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 03 1 0603-
76 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0202-
79 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28680-825-0 03 1 0202-0512
79 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
105 HOSE; FLEX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610 		0-07807-610-1 02 1 0202-0605
105 HOSE; FLEX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610 		0-57807-610-1 02 1 0606-
129 CONNECTOR; NYLON TUBE
(A) 		1-09660-728-1 01 1 9811-0201
129 CONNECTOR; NYLON TUBE
(A) 		1-09660-728-1 01 1 9811-0201
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-09660-728-1 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-09660-728-1 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & M20 STRAIGHT 		1-09661-381-0 02 1 0202-
163 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-997-1 01 1 0202-
170 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=510 		1-49118-957-0 01 1 0202-
180 GASKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 02 1 0202-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9811-0201
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0202-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0202-0212
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0301-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202-

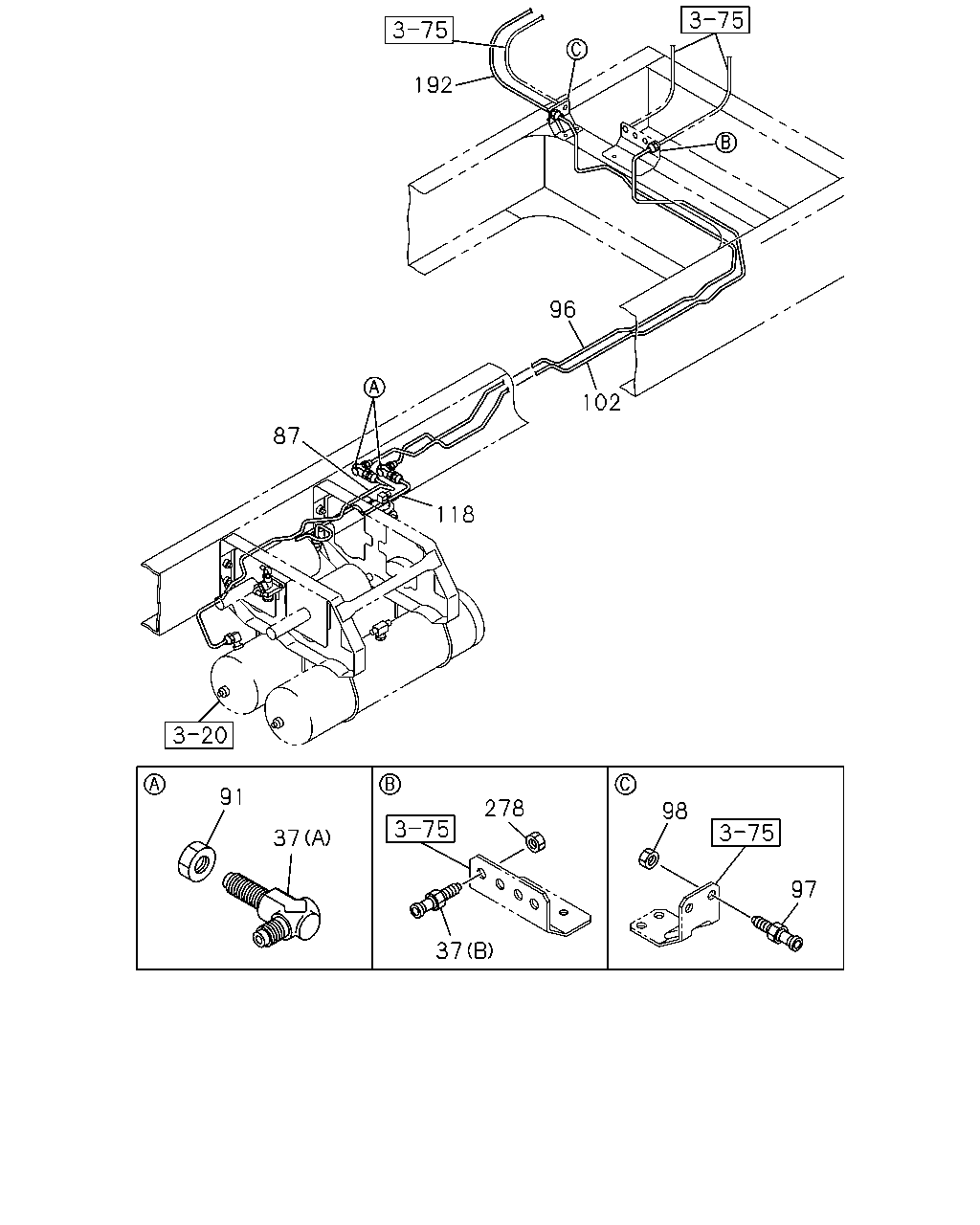

çizim 80225
192 96 102 87 118 91 278 98 37 97 37
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(B) 		1-09660-807-2 01 1 9811-0201
37 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-09660-807-2 01 1 0202-
37 UNION; AIR PIPE
(A) M16 ELBOW 		9-09235-210-1 02 1 9811-0201
37 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 ELBOW 		9-09235-210-1 02 1 0202-0607
37 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 ELBOW 		0-92135-210-0 02 1 0608-
87 PIPE; AIR,AIR TANK TO UNION 1-49116-276-0 01 1 9811-0201
87 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49116-276-0 01 1 0202-
91 NUT; PIPE UNION
M16 		9-99111-416-0 02 1 9811-0201
91 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 		9-99111-416-0 02 1 0202-0512
91 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 		0-91111-516-0 02 1 0601-
96 PIPE; AIR,UNION TO UNION
L=2919 SERVICED BY L=3300 		1-47426-426-0 01 1 9811-0201
96 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2919 SERVICED BY L=3300 		1-47426-426-0 01 1 0202-
97 UNION; AIR PIPE 1-09660-807-2 01 1 9811-0201
97 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-09660-807-2 01 1 0202-
98 NUT; PIPE UNION
M16 		9-99111-416-0 01 1 9811-0201
98 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 		9-99111-416-0 01 1 0202-0512
98 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 		0-91111-516-0 01 1 0601-
102 PIPE; AIR,UNION TO UNION
L=2641 SERVICED BY L=2900 		1-47426-425-0 01 1 9811-0201
102 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2641 SERVICED BY L=2900 		1-47426-425-0 01 1 0202-
118 PIPE; AIR,UNION TO AIR MASTER 1-49114-892-0 01 1 9811-0201
118 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-892-0 01 1 0202-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9811-0201
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0202-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0202-0212
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0301-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202-
278 NUT; UNION
M16 		9-99111-416-0 01 1 9811-0201
278 NUT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 		9-99111-416-0 01 1 0202-0512
278 NUT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 		0-91111-516-0 01 1 0601-

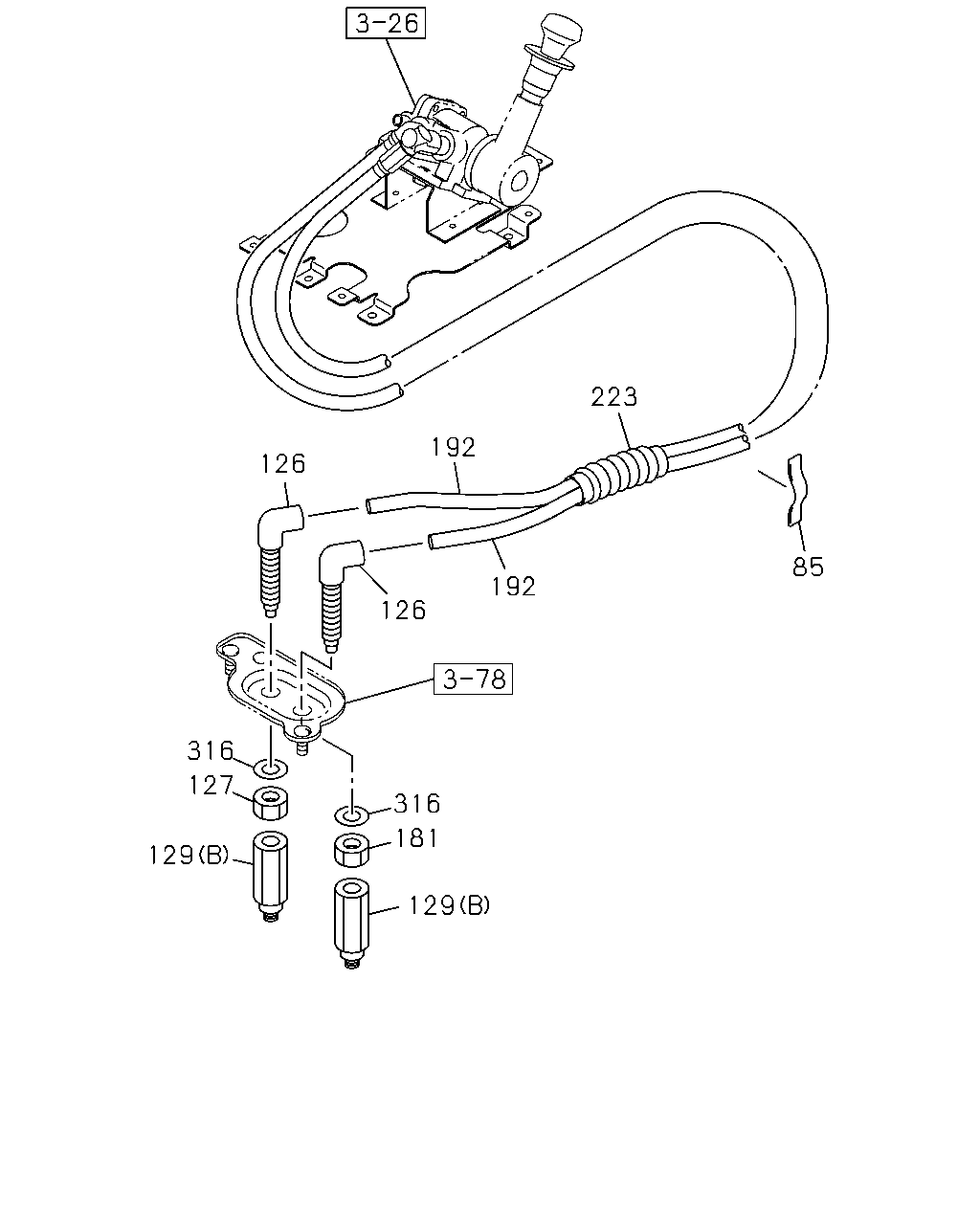

çizim 80327
223 192 126 85 192 126 316 127 316 181 129 129
BalonParca AdiParca NoAdetTipApplied Date
85 GASKET; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X40 		1-72498-022-1 05 1 0202-
126 UNION; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0202-
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 		9-99111-420-0 01 1 0202-0512
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 		0-91111-520-0 01 1 0601-
129 CONNECTOR; NYLON TUBE
(A) 		1-09660-728-1 01 1 9811-0201
129 CONNECTOR; NYLON TUBE
(A) 		1-09660-728-1 01 1 9811-0201
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-09660-728-1 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-09660-728-1 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0202-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & M20 STRAIGHT 		1-09661-381-0 02 1 0202-
181 NUT; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 		9-99111-420-0 01 1 0202-0512
181 NUT; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 		0-91111-520-0 01 1 0601-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9811-0201
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0202-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0202-0212
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0301-
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202-
223 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=15 		1-87410-102-0 01 1 0202-
316 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=21 		9-09160-520-0 02 1 0202-0605
316 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=21 		0-91610-520-0 02 1 0606-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
