3-10 — BRAKE PEDAL AND CONTROL (#24715) — 31 parça

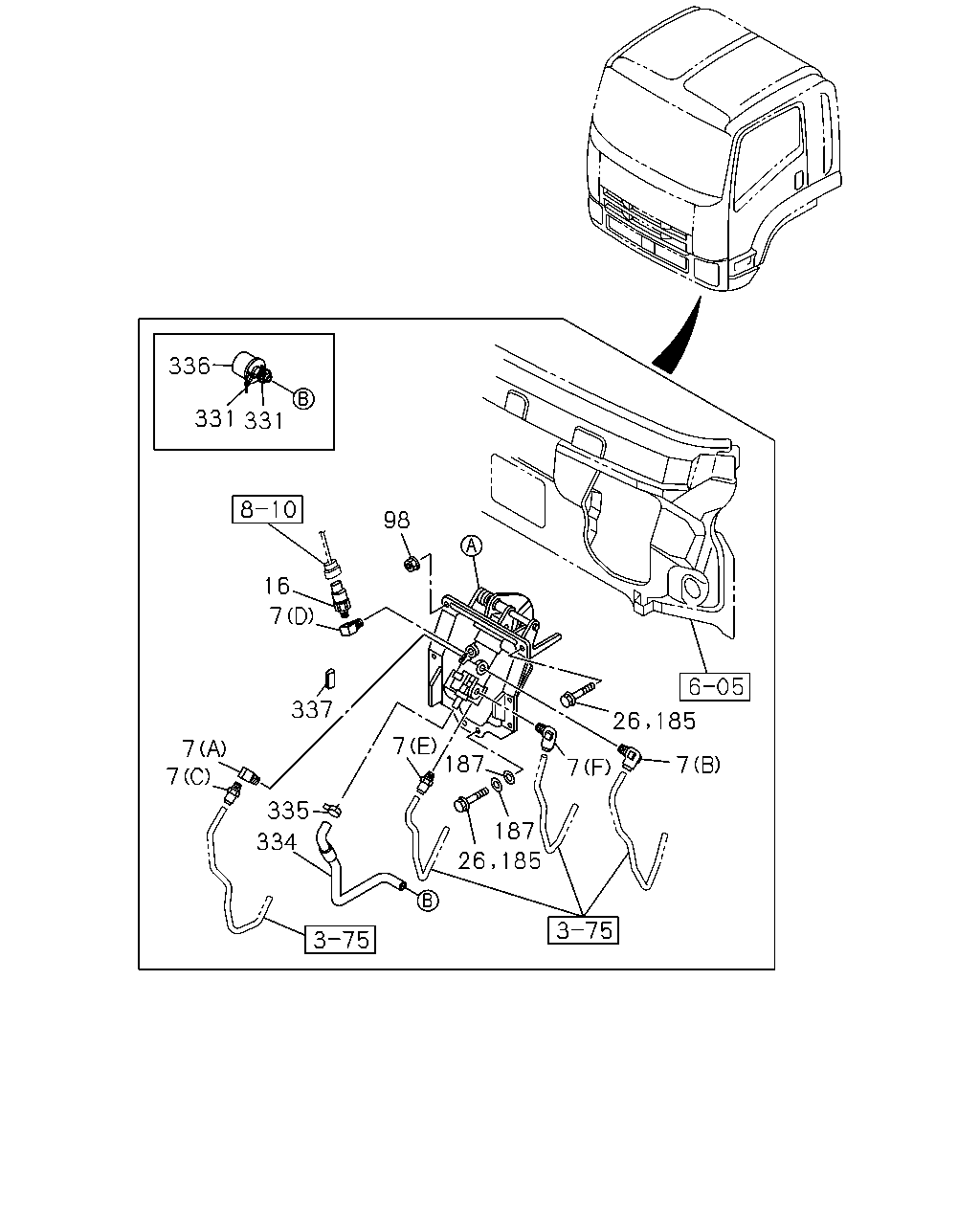

çizim 60600
336 331 331 98 16 7 337 7 187 7 7 7 7 335 187 334 26 185 26 185
BalonParca AdiParca NoAdetTipApplied Date
7 CONNECTOR; BRK VALVE
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0809-
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
7 CONNECTOR; BRK VALVE
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0809-
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809-
7 CONNECTOR; BRK VALVE
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-
16 SWITCH; STOP LAMP 8-98010-857-0 01 1 0809-
26 BOLT; PEDAL
M8X25 FLANGE 		8-98057-109-0 07 1 0809-0908
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 0809-
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 0909-
187 WASHER; PL,BRKT
ID=8.4 OD=26 		0-91614-808-0 04 1 0809-
331 CLIP; BAND
L=197 		1-83574-032-0 02 1 0809-
334 HOSE; AIR,BRK 8-98017-119-3 01 1 0809-
335 CLAMP; HOSE
ID=24 		8-98025-921-0 01 1 0809-
336 SILENCER; AIR 1-48199-544-0 01 1 0809-
337 PROTECTOR; AIR BRK
L=30 L=50 		8-94270-377-1 01 1 0809-

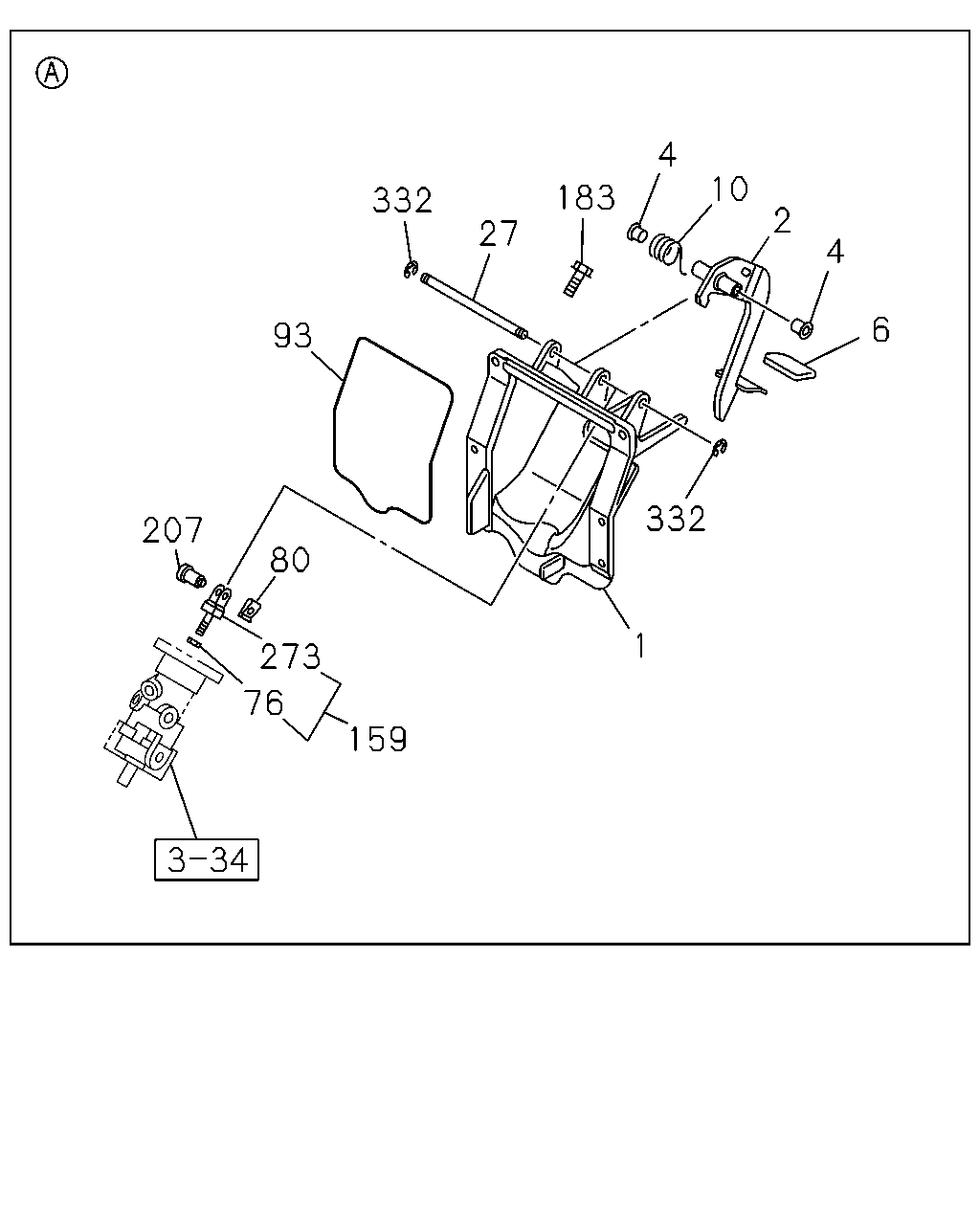

çizim 60652
4 10 183 332 2 27 4 6 93 332 207 80 1 273 76 159
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL 8-98071-972-1 01 1 0809-
2 PEDAL; BRK 8-98064-200-0 01 1 0809-
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0809-
6 COVER; BRK PEDAL 8-98056-865-0 01 1 0809-
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 0809-
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 0809-
76 NUT; PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0809-
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 0809-
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 0809-
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 0809-
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 0809-
207 PIN; JOINT,BRK PEDAL LINK 8-97387-230-0 01 1 0809-1007
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1008-
273 ROD; PULL 8-98057-233-0 01 1 0809-
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 0809-
