◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#24709) — 17 parça

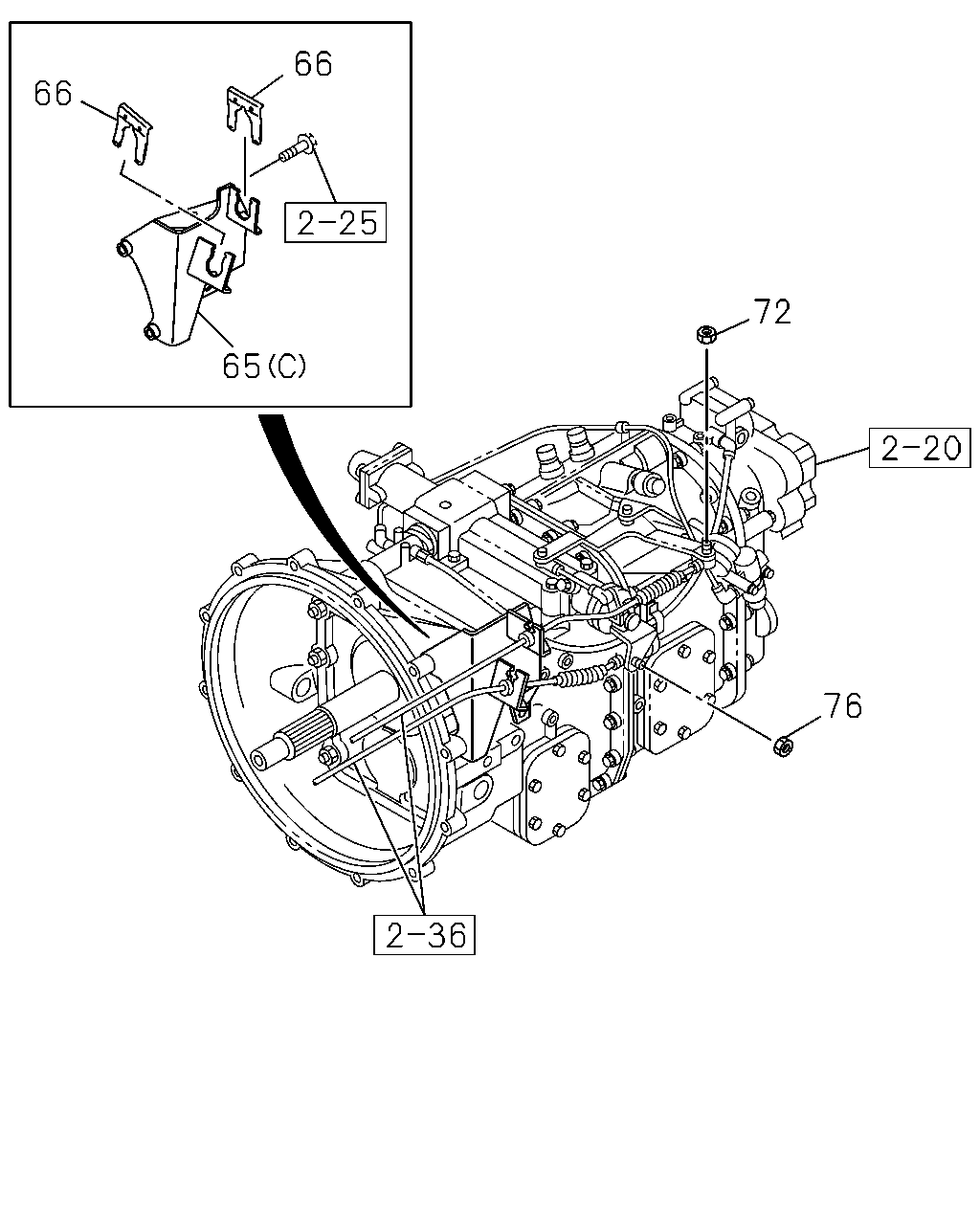

çizim 60558
66 66 72 65 76
BalonParca AdiParca NoAdetTipApplied Date
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98131-609-0 01 1 0809-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 0809-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 0809-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0809-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0809-
76 NUT; BALL JOINT,SELECT WIRE
FULLER FSO5206B OD M/T(Y4V) M8 FLANGE 		1-09440-049-0 01 1 0809-
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0809-
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 0809-

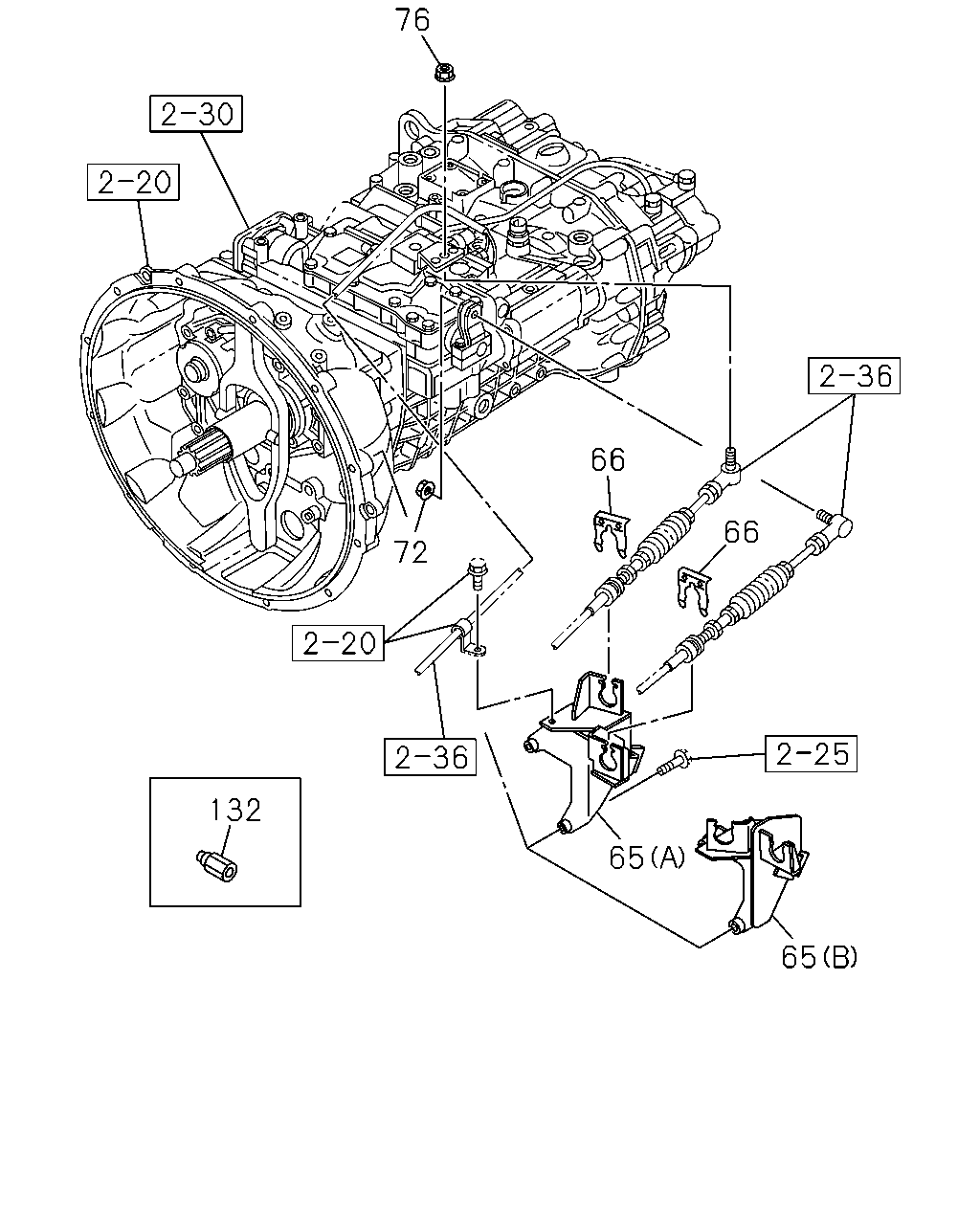

çizim 60627
76 66 66 72 132 65 65
BalonParca AdiParca NoAdetTipApplied Date
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (C) 		8-98131-609-0 01 1 0809-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 0809-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 0809-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0809-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0809-
76 NUT; BALL JOINT,SELECT WIRE
FULLER FSO5206B OD M/T(Y4V) M8 FLANGE 		1-09440-049-0 01 1 0809-
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 0809-
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 0809-
132 CONNECTOR; FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
