◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#24708) — 101 parça

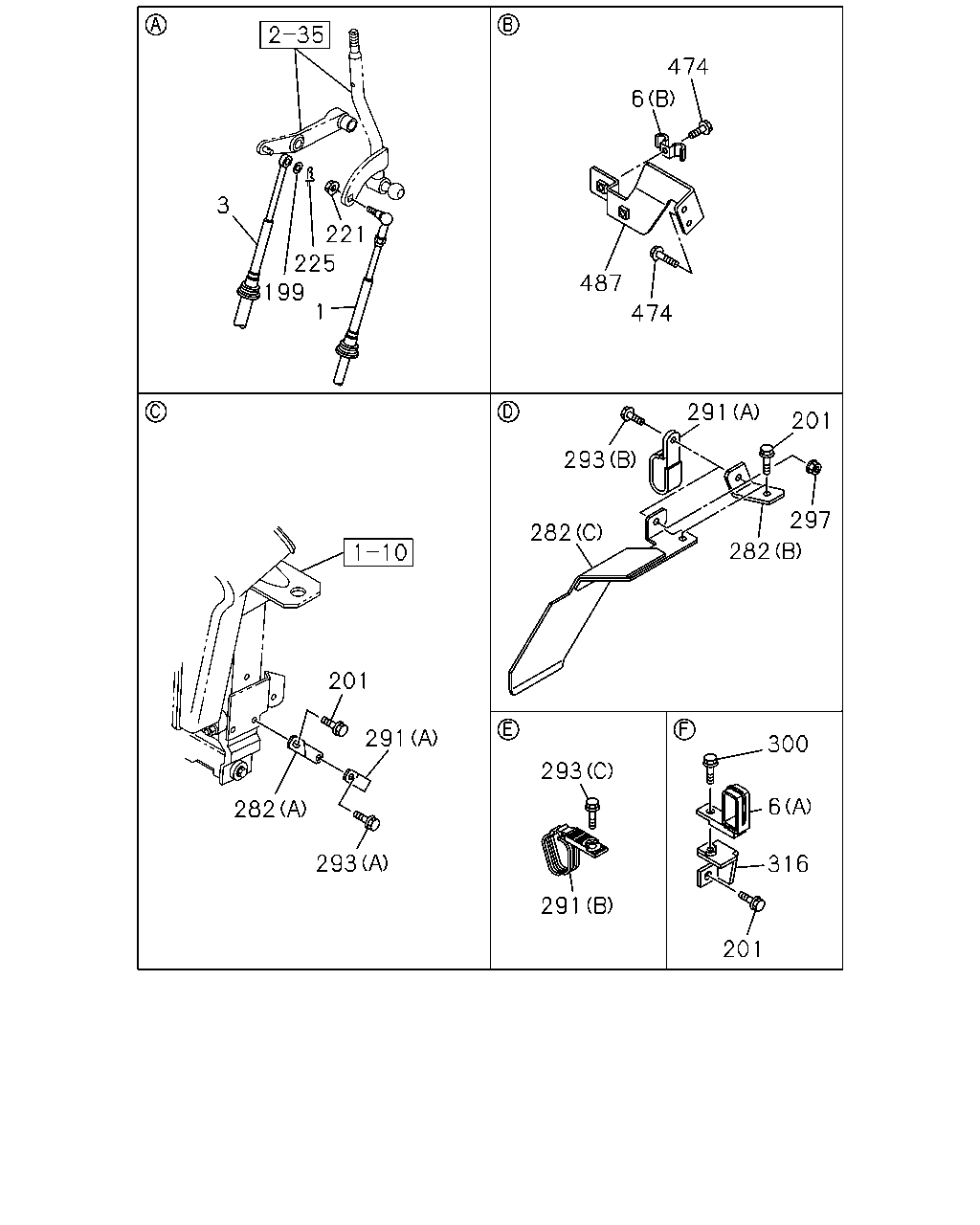

çizim 60958
474 6 3 221 225 487 199 1 474 291 201 293 297 282 282 201 291 300 293 6 282 293 316 291 201
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3515 		8-98070-452-8 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3500 		8-98095-771-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3580 		8-98070-455-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3680 		8-98095-773-6 01 1 0809-
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0809-
6 CLIP; CABLE
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0809-
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 0809-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0809-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0809-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0809-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 0809-
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L) (A) 		8-98010-418-0 01 1 0809-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0809-1103
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
316 BRACKET; CLIP 8-98086-439-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0809-
487 BRACKET; CONT CABLE 8-98021-924-1 01 1 0809-

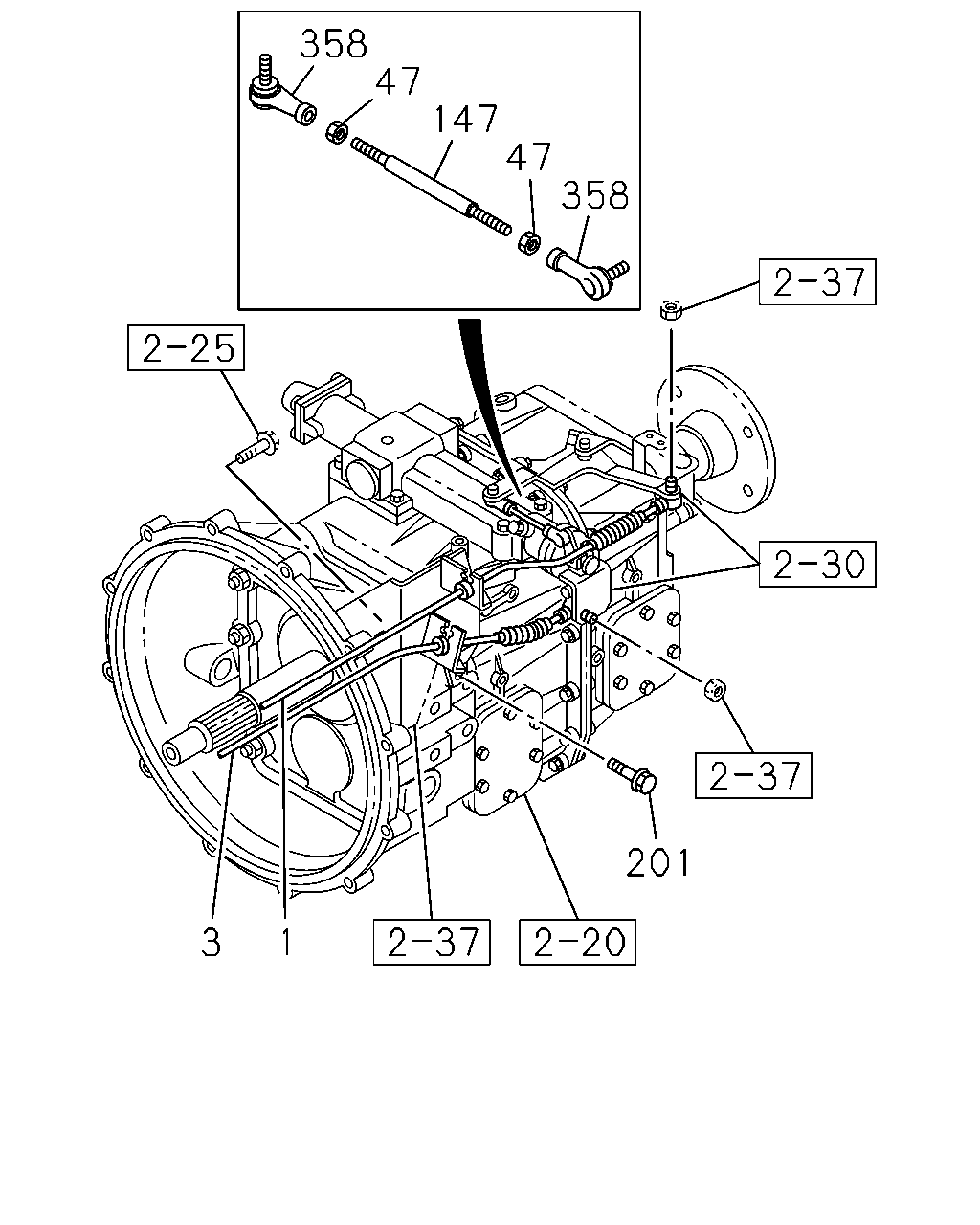

çizim 60971
358 47 147 47 358 201 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3515 		8-98070-452-8 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3500 		8-98095-771-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3580 		8-98070-455-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3680 		8-98095-773-6 01 1 0809-
47 NUT; LK,LINK ROD
FULLER FSO5206B OD M/T(Y4V) M8 		0-91111-508-0 02 1 0809-
147 ROD; LINK
FULLER FSO5206B OD M/T(Y4V) 		0-84000-808-0 01 1 0809-
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 0809-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0809-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
358 ROD END; SCREW
FULLER FSO5206B OD M/T(Y4V) L=45.5 		1-09760-118-1 02 1 0809-

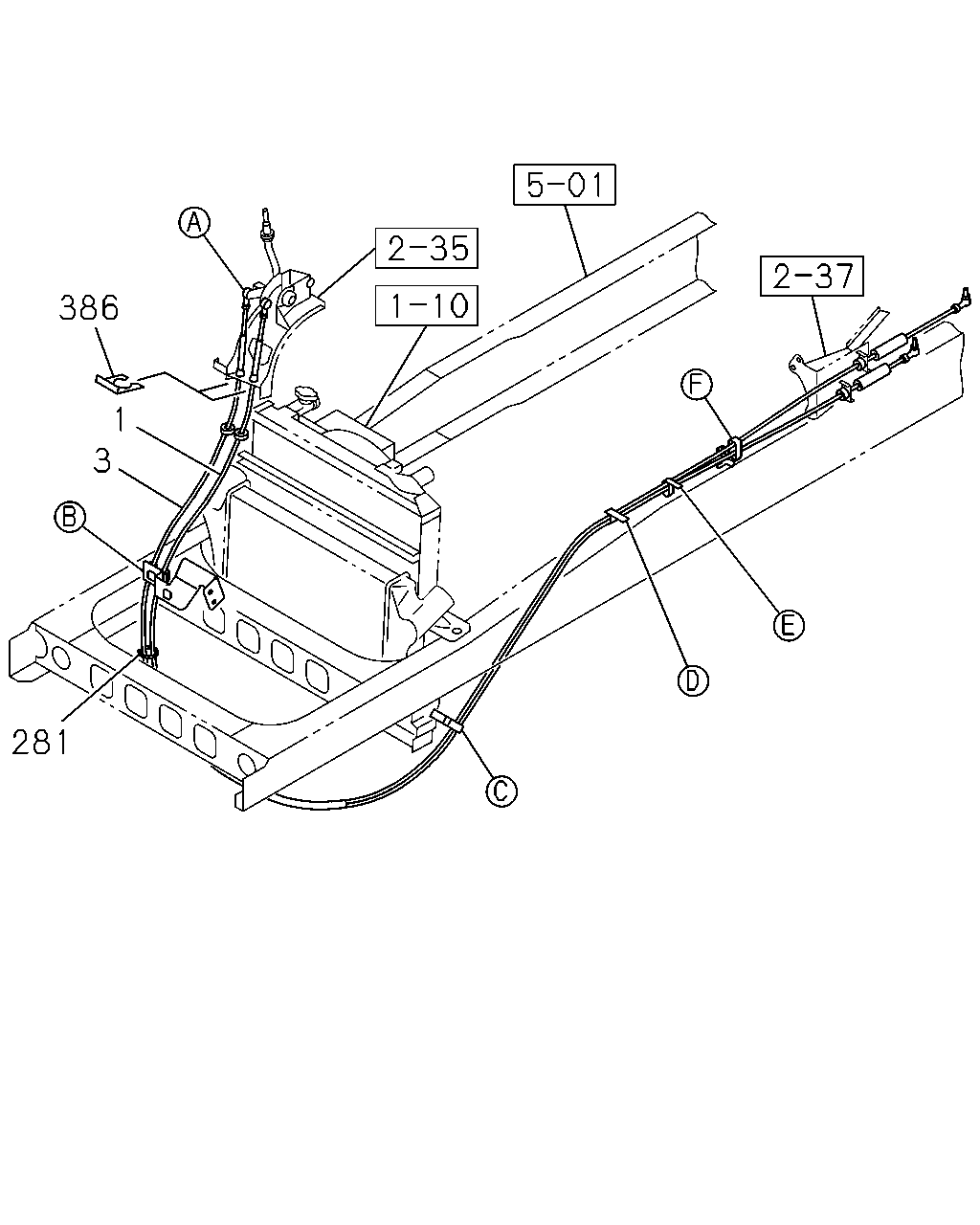

çizim 101659
386 1 3 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3515 		8-98070-452-8 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3500 		8-98095-771-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3580 		8-98070-455-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3680 		8-98095-773-6 01 1 0809-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0809-0810
281 CLIP; BAND
6HK1-TCS ENG(80L) L=300 		1-09707-001-1 01 1 0809-0810
281 CLIP; BAND
6HK1-TCS ENG(80L) L=300 		1-09707-001-1 01 1 0811-
281 CLIP; BAND
6HK1-TCS ENG(80L) L=300 		1-09707-001-1 01 1 0811-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0809-

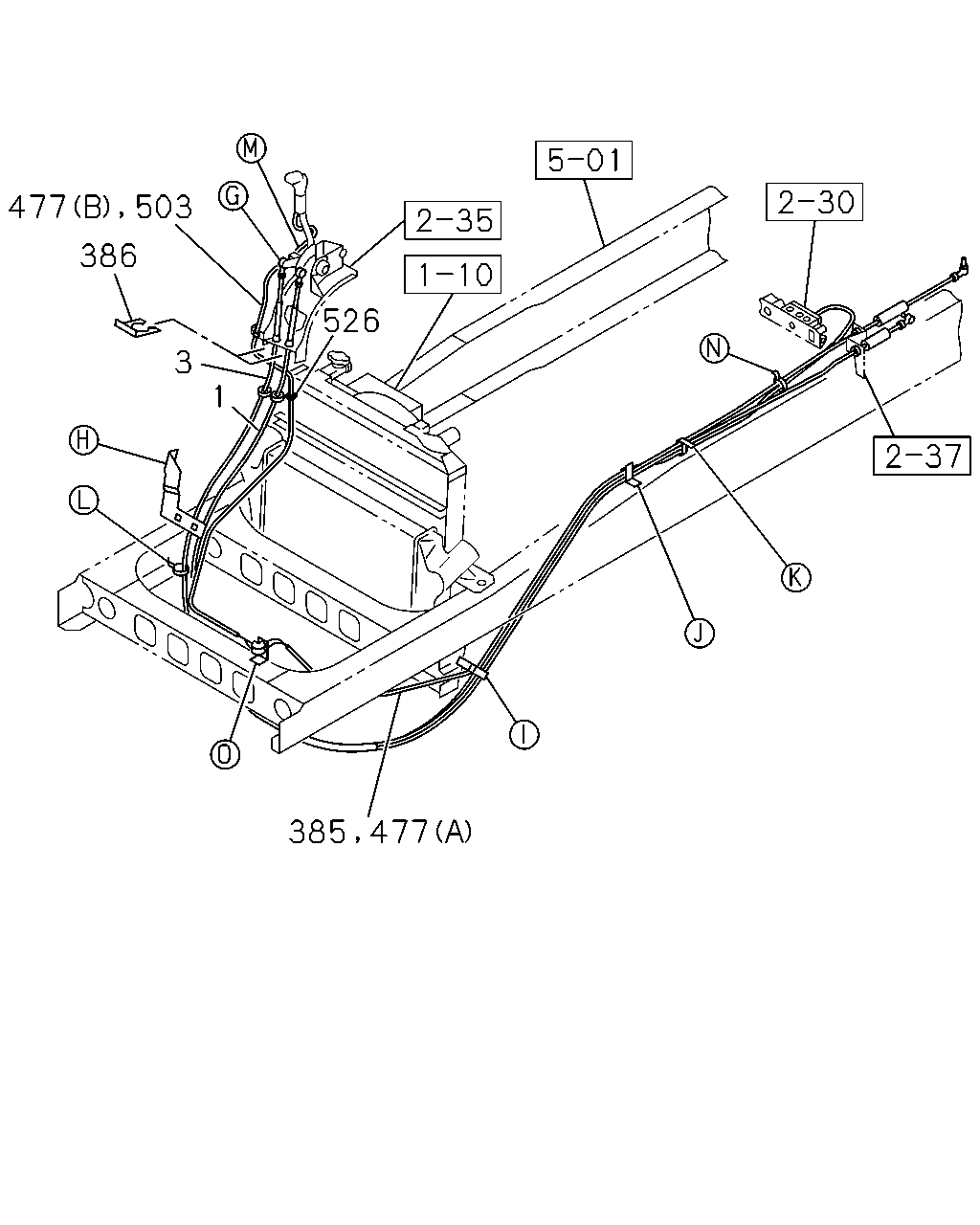

çizim 101685
386 526 3 1 385 477 477 503
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3515 		8-98070-452-8 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3500 		8-98095-771-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3580 		8-98070-455-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3680 		8-98095-773-6 01 1 0809-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0809-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0809-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0809-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0809-
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 0809-

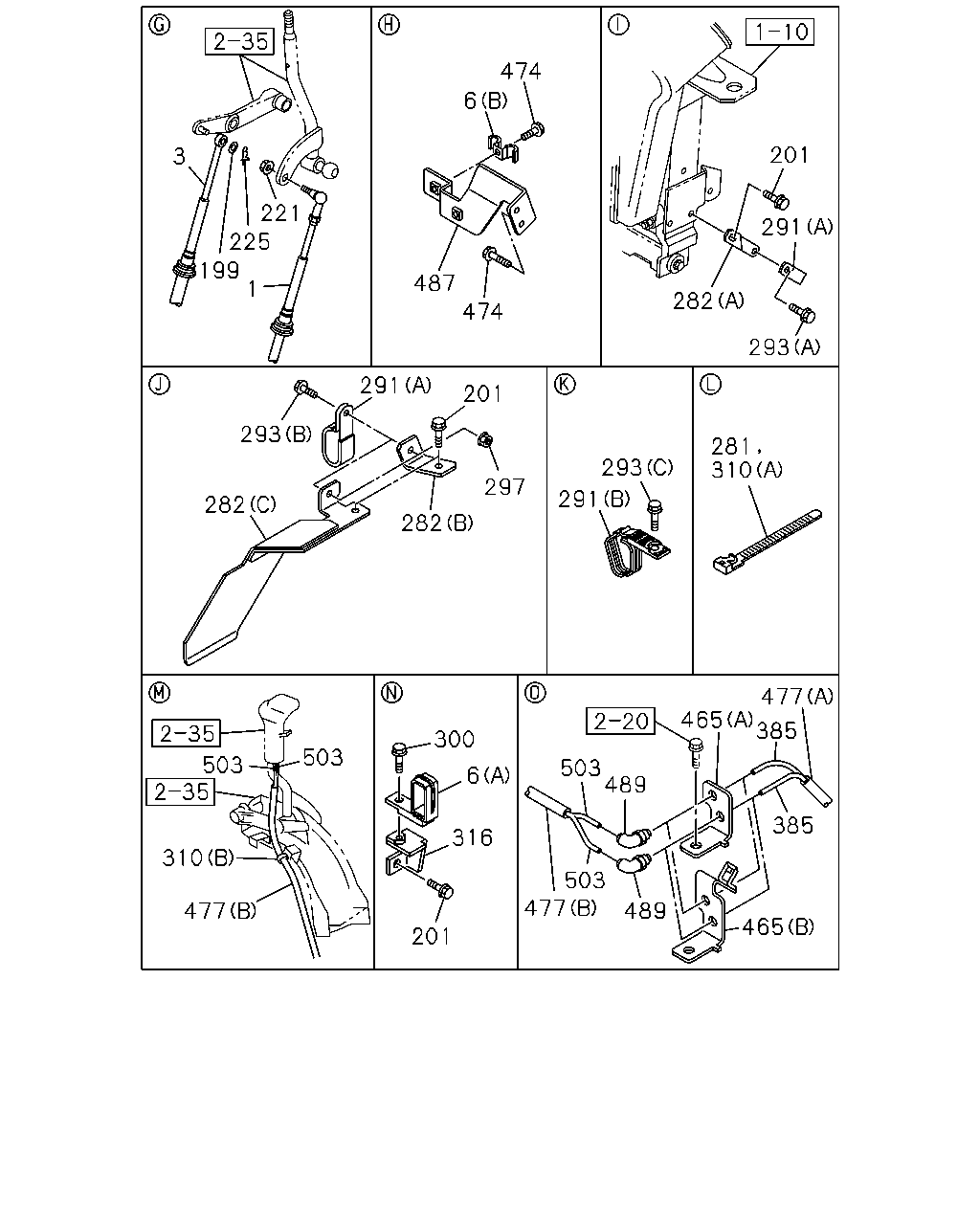

çizim 101717
474 6 201 3 221 291 225 199 487 1 282 474 293 291 201 293 281 310 293 297 291 282 282 477 385 465 300 503 503 503 489 6 385 316 310 503 477 489 477 465 201
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3515 		8-98070-452-8 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3500 		8-98095-771-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3580 		8-98070-455-7 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3680 		8-98095-773-6 01 1 0809-
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0809-
6 CLIP; CABLE
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0809-
201 BOLT; BRKT
M12X35 FLANGE 		0-28151-235-0 01 1 0809-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0809-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0809-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0809-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0809-0810
281 CLIP; BAND
6HK1-TCS ENG(80L) L=300 		1-09707-001-1 01 1 0809-0810
281 CLIP; BAND
6HK1-TCS ENG(80L) L=300 		1-09707-001-1 01 1 0811-
281 CLIP; BAND
6HK1-TCS ENG(80L) L=300 		1-09707-001-1 01 1 0811-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) (A) 		8-98098-265-2 01 1 0809-
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L) (A) 		8-98010-418-0 01 1 0809-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0809-1103
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 0809-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 0809-
316 BRACKET; CLIP 8-98086-439-0 01 1 0809-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98085-414-0 01 1 0809-0809
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98129-543-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0809-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0809-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0809-
487 BRACKET; CONT CABLE 8-98021-924-1 01 1 0809-
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 0809-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
