◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#24705) — 198 parça

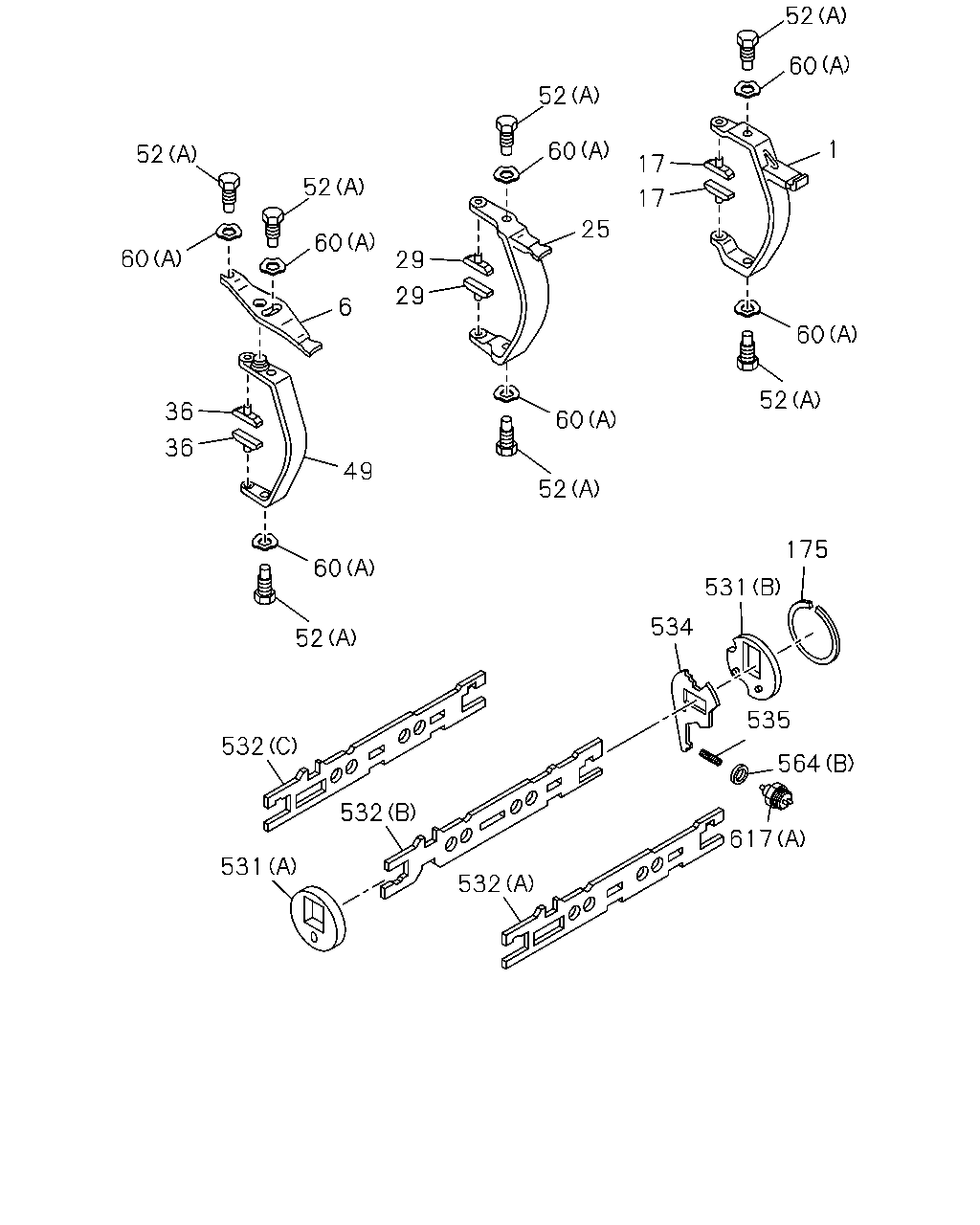

çizim 60633
52 52 1 52 17 52 17 25 60 29 29 6 60 52 36 60 36 49 52 175 60 531 534 52 535 532 564 532 617 531 532
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-645-0 01 1 0809-1305
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1306-
6 LEVER; RELAY 1-33511-641-0 01 1 0809-1305
6 LEVER; RELAY 1-33511-658-0 01 1 1306-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 0809-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 0809-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0809-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 0809-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 0809-
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 0809-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 0809-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0809-1305
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0809-1305
175 RING; STOPPER,SHIFT LEVER 1-33539-088-0 01 1 0809-1305
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1306-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 0809-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 0809-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 0809-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 0809-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 0809-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 0809-
535 SPRING; LEVER 1-33539-049-0 01 1 0809-
564 SEAL; RING
(B) 		1-33549-444-0 01 1 0809-1305
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1306-
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 0809-
617 PLUG
(B) 		1-33119-171-0 01 1 0809-1305
617 PLUG
(B) 		1-33119-619-0 01 1 1306-
617 PLUG
(A) 		1-34129-061-0 01 1 0809-1305
617 PLUG
(A) 		1-33539-109-0 01 1 1306-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

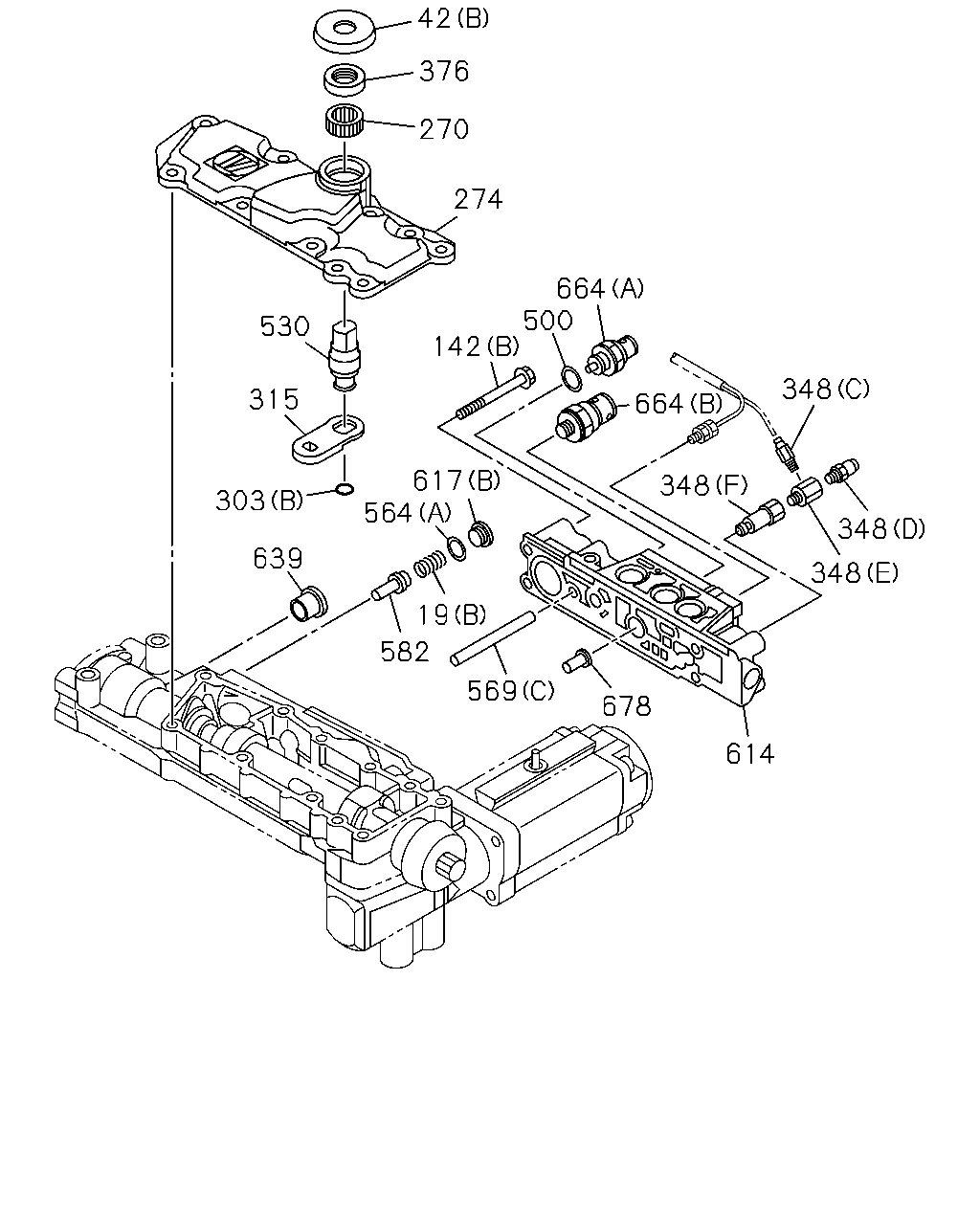

çizim 60638
42 376 270 274 530 315 303 639 617 564 19 582 569 678 614 664 664 348 348 348 348 500 142
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-089-0 01 1 0809-
19 SPRING; COIL COMP
(B) 		1-33539-090-0 01 1 0809-
42 CAP; QUAD BOX
(A) 		1-33549-456-0 01 1 0809-1305
42 CAP; QUAD BOX
(A) 		1-33549-548-0 01 1 1306-
42 CAP; QUAD BOX
(B) 		1-33549-463-0 01 1 0809-1305
42 CAP; QUAD BOX
(B) 		1-33549-619-0 01 1 1306-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 0809-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 13 1 0809-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 13 1 1306-
270 BEARING; NEEDLE,QUAD BOX 1-33549-459-0 01 1 0809-
274 COVER; SHAFT,QUAD BOX 1-33549-477-0 01 1 0809-
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0809-
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 0809-
315 LEVER; SELECT 1-33549-458-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(A) 		1-09654-396-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(B) 		1-09660-466-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-174-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(D) 		1-09661-481-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(E) 		8-94338-417-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(F) 		8-98068-125-0 01 1 0809-
376 SEAL; OIL 1-33549-462-0 01 1 0809-
500 GASKET; SW 1-33119-249-0 01 1 0809-
530 SHAFT; SELECT 1-33549-460-0 01 1 0809-
564 SEAL; RING
(B) 		1-33549-444-0 01 1 0809-1305
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1306-
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 0809-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 0809-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 0809-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 0809-
582 BOLT; SPRING GUIDE 1-33549-471-0 01 1 0809-
614 VALVE ASM 1-33549-464-0 01 1 0809-1305
614 VALVE ASM 1-33549-549-0 01 1 1306-
617 PLUG
(B) 		1-33119-171-0 01 1 0809-1305
617 PLUG
(B) 		1-33119-619-0 01 1 1306-
617 PLUG
(A) 		1-34129-061-0 01 1 0809-1305
617 PLUG
(A) 		1-33539-109-0 01 1 1306-
639 CAP 1-33549-465-0 01 1 0809-1305
639 CAP 1-33549-576-0 01 1 1306-
664 SWITCH
(A) 		1-33549-469-0 01 1 0809-1305
664 SWITCH
(A) 		1-33119-627-0 01 1 1306-
664 SWITCH
(B) 		1-33549-470-0 01 1 0809-
678 TAPPET 1-33549-466-0 01 1 0809-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

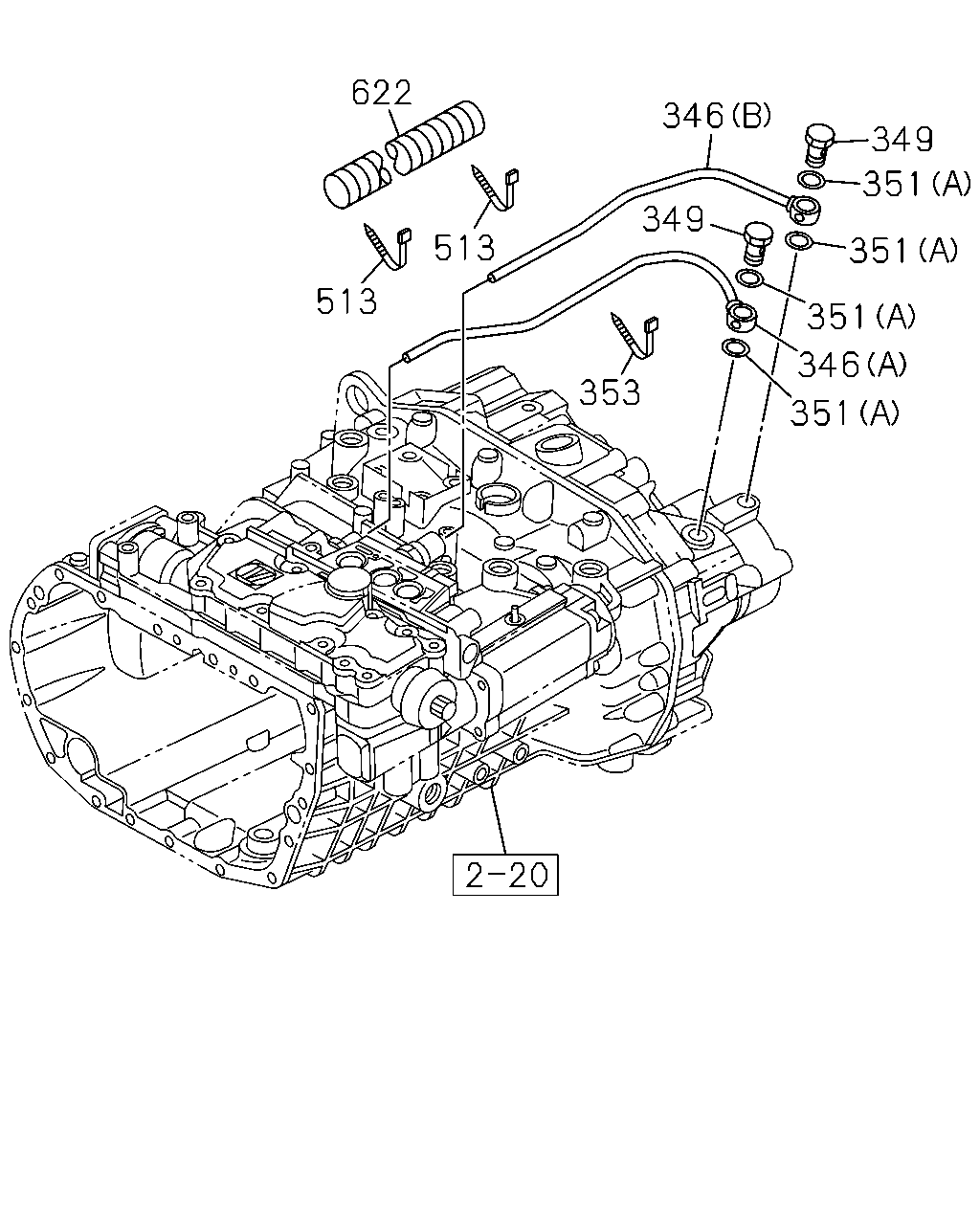

çizim 60649
622 346 349 351 349 513 351 513 351 346 353 351
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-473-0 01 1 0809-
346 HOSE; AIR
(B) 		1-33549-474-0 01 1 0809-
349 BOLT; EYE,AIR HOSE 1-33549-155-0 02 1 0809-1305
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 02 1 1306-
351 GASKET; CONNECTOR
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0809-
351 GASKET; CONNECTOR
(C) ID=12.2 		1-09630-084-0 02 1 0809-1312
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 02 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 0809-1305
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1306-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 0809-1305
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1306-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 0809-
622 TUBE; CORRUGATE 1-83129-021-0 01 1 0809-1004
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1005-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

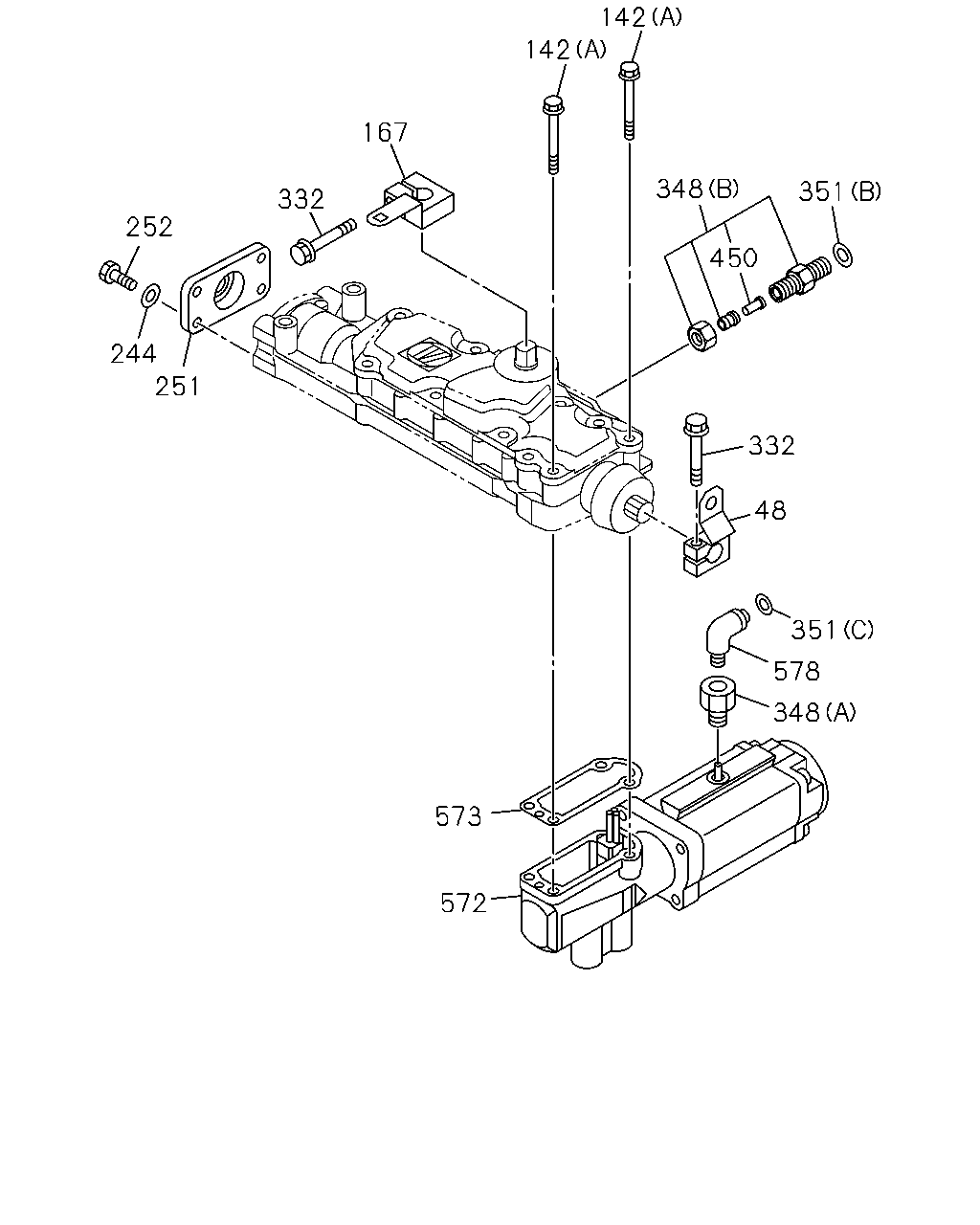

çizim 60934
142 142 167 348 351 332 252 450 244 251 332 48 351 578 348 573 572
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-827-1 01 1 0809-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 0809-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 13 1 0809-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 13 1 1306-
167 LEVER; SELECT,EXTERNAL 1-33651-831-1 01 1 0809-
244 WASHER; LK,COVER 1-33549-159-0 04 1 0809-1305
244 WASHER; LK,COVER 1-33549-583-0 04 1 1306-
251 COVER; SIDE 1-33549-478-0 01 1 0809-1305
251 COVER; SIDE 1-33549-590-0 01 1 1306-
252 BOLT; SIDE COVER 1-33119-296-0 04 1 0809-1305
252 BOLT; SIDE COVER
M8X20 		1-33549-591-0 04 1 1306-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 02 1 0809-
348 CONNECTOR; AIR HOSE
(A) 		1-09654-396-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(B) 		1-09660-466-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-174-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(D) 		1-09661-481-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(E) 		8-94338-417-0 01 1 0809-
348 CONNECTOR; AIR HOSE
(F) 		8-98068-125-0 01 1 0809-
351 GASKET; CONNECTOR
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0809-
351 GASKET; CONNECTOR
(C) ID=12.2 		1-09630-084-0 02 1 0809-1312
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 02 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 04 1 0809-1305
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1306-
450 INSERT; SHIFT ARM
ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0809-
572 SERVO UNIT; GEAR SHIFT 1-33549-331-0 01 1 0809-
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 0809-
578 CONNECTOR
DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0809-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

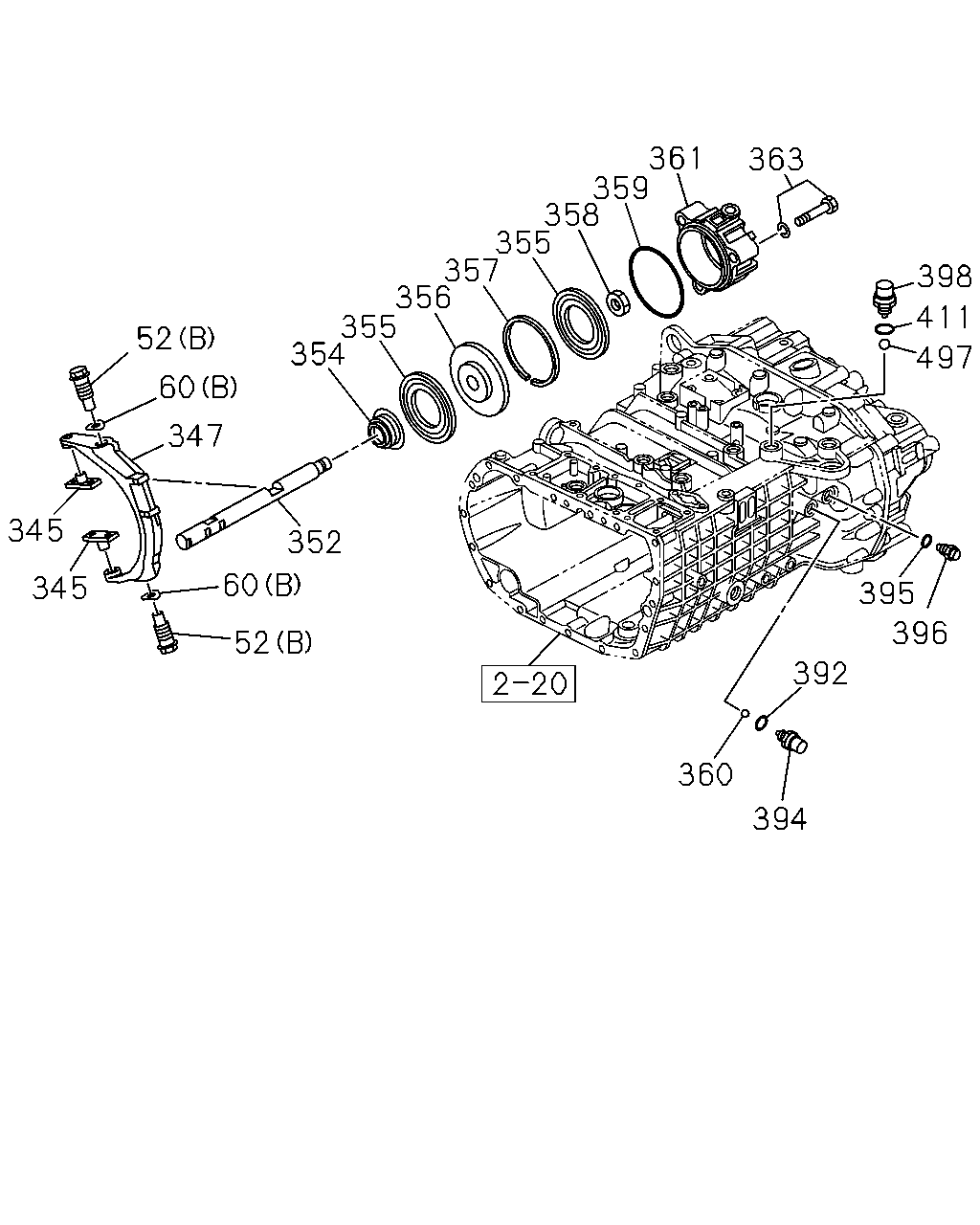

çizim 60957
361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 345 352 60 345 395 396 52 392 360 394
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 0809-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 0809-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0809-1305
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0809-1305
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 0809-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 0809-
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 0809-1305
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1306-
354 SEAL; AIR CYL 1-33519-045-0 01 1 0809-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 0809-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 0809-1305
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 0809-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 0809-1305
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL 1-33519-093-0 01 1 0809-
360 BALL; AIR CYL 1-33119-252-0 01 1 0809-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 0809-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 0809-1305
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 0809-
394 SWITCH; RANGE CHANGE 1-33549-469-0 01 1 0809-1305
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1306-
395 GASKET; PLUNGER 1-33519-171-0 01 1 0809-1305
395 GASKET; PLUNGER 1-33549-497-0 01 1 1306-
396 PLUNGER; SHIFT ROD 1-33519-073-0 01 1 0809-1305
396 PLUNGER; SHIFT ROD 1-33519-189-0 01 1 1306-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 0809-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 0809-
497 BALL; SWITCH 1-33119-252-0 01 1 0809-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

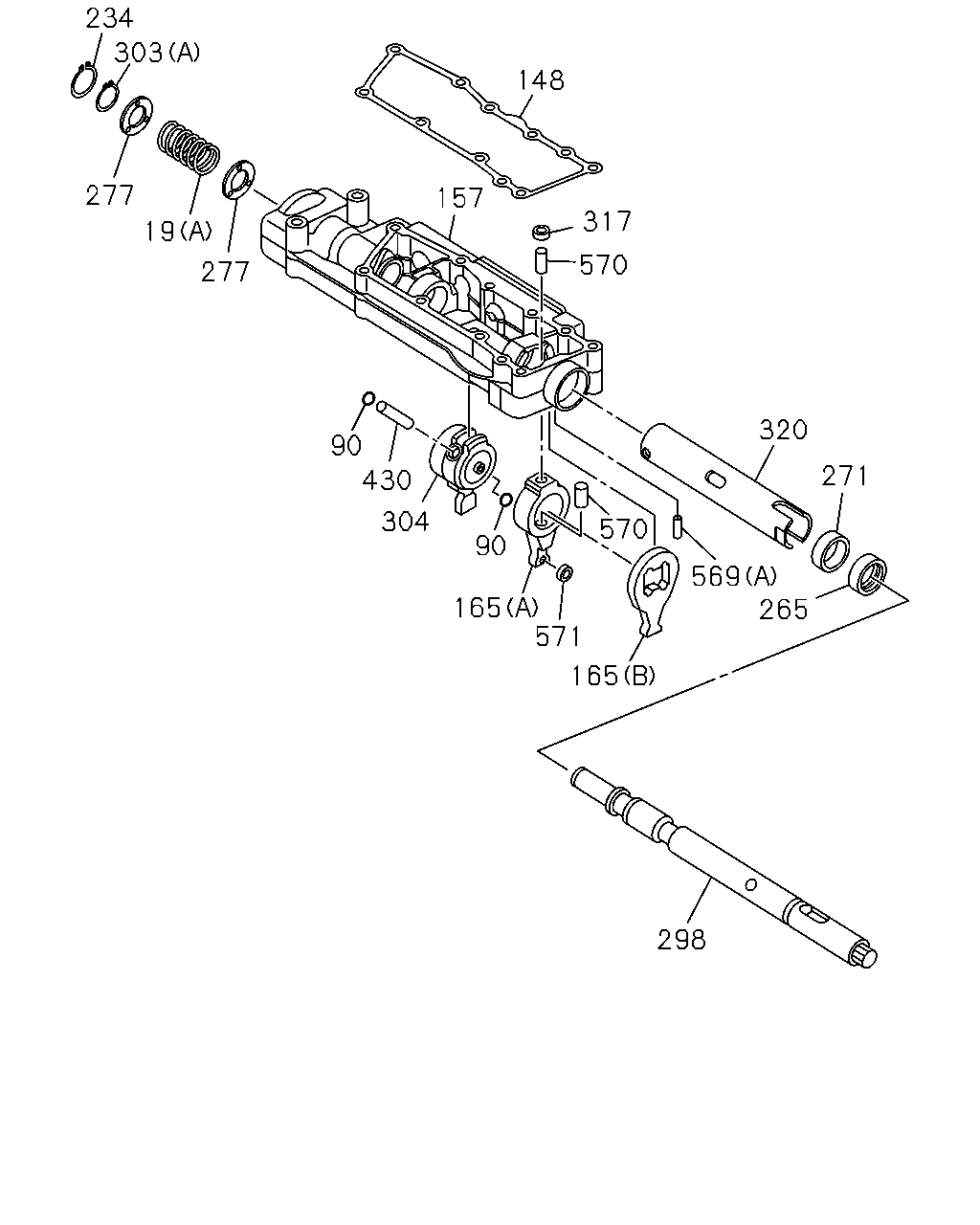

çizim 60985
234 303 148 277 157 317 19 570 277 320 90 271 430 304 570 90 569 265 165 571 165 298
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-089-0 01 1 0809-
19 SPRING; COIL COMP
(B) 		1-33539-090-0 01 1 0809-
90 RING; SNAP,SHIFT ROD 1-33529-109-0 01 1 0809-
148 GASKET; QUAD BOX 1-33544-056-0 01 1 0809-
157 BOX; QUAD,TRANS 1-33549-445-0 01 1 0809-
165 LEVER; SHIFT
(B) 		1-33549-325-0 01 1 0809-
165 LEVER; SHIFT
(A) 		1-33549-450-0 01 1 0809-
234 RING; SNAP 1-44519-224-0 01 1 0809-
265 SEAL; OIL,SHIFT 1-33549-544-0 01 1 0809-
271 BUSHING; QUAD BOX 1-33549-318-0 01 1 0809-
277 PLATE; SPRING SEAT 1-33539-039-0 02 1 0809-1305
277 PLATE; SPRING SEAT 1-33539-107-0 02 1 1306-
298 SHAFT; SHIFT LEVER 1-33522-204-0 01 1 0809-
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 0809-
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 0809-
304 BLOCK; SHIFT SHAFT 1-33549-448-0 01 1 0809-
317 BUSHING; LEVER 1-33549-322-0 01 1 0809-
320 SHAFT; LEVER 1-33549-447-0 01 1 0809-
430 PIN; SPR,SHIFT ROD 1-33549-449-0 01 1 0809-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 0809-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 0809-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 0809-
570 PIN; SHIFT LEVER 1-33549-451-0 02 1 0809-1305
570 PIN; SHIFT LEVER 1-33529-117-0 02 1 1306-
571 ROLLER; LEVER 1-33549-324-0 01 1 0809-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

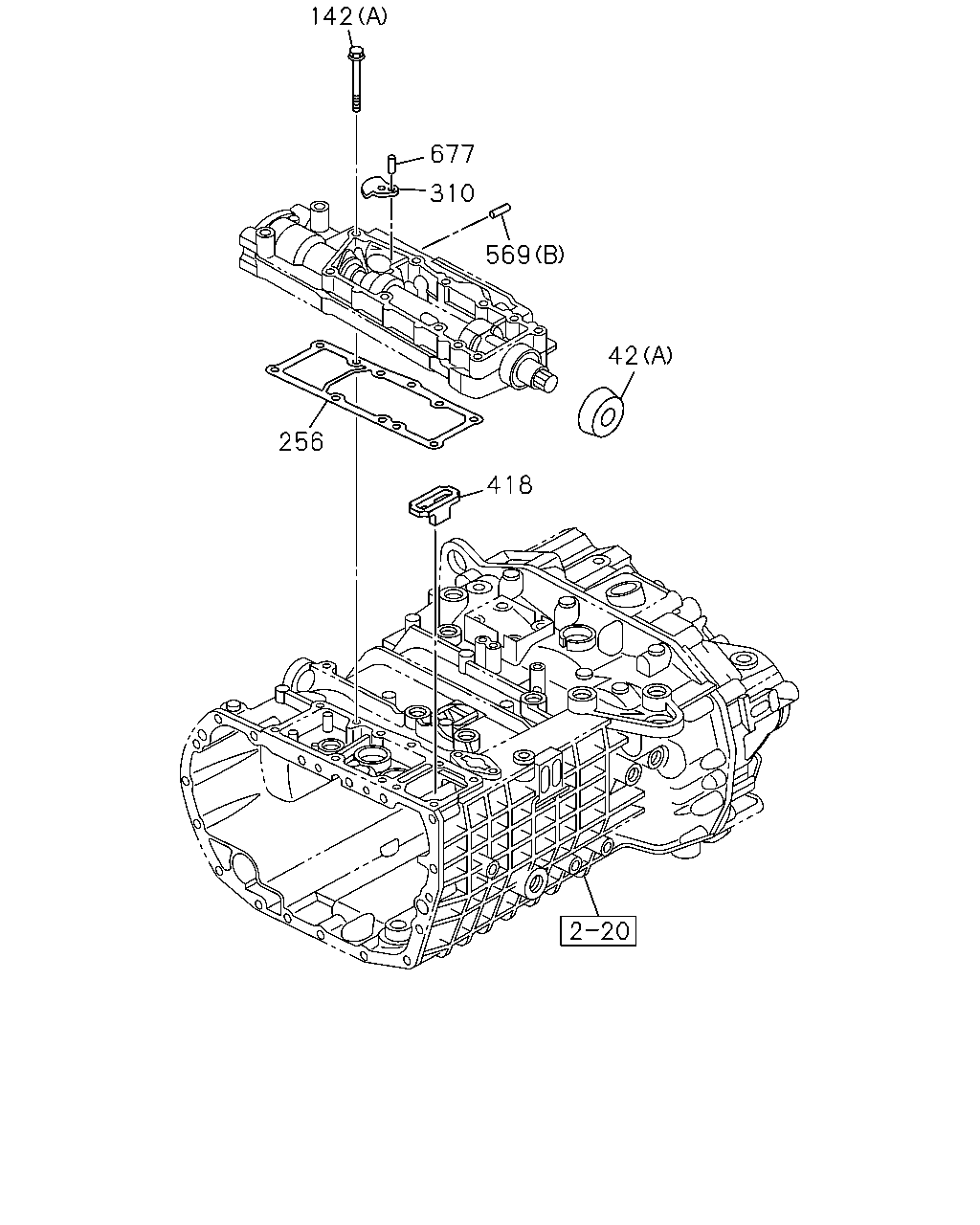

çizim 101636
142 677 310 569 42 256 418
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
(A) 		1-33549-456-0 01 1 0809-1305
42 CAP; QUAD BOX
(A) 		1-33549-548-0 01 1 1306-
42 CAP; QUAD BOX
(B) 		1-33549-463-0 01 1 0809-1305
42 CAP; QUAD BOX
(B) 		1-33549-619-0 01 1 1306-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 0809-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 13 1 0809-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 13 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-062-0 01 1 0809-
310 PLATE; LOCK,SHIFT LEVER 1-33549-453-0 01 1 0809-
418 PIECE; DIST,QUAD BOX 1-33549-454-0 01 1 0809-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 0809-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 0809-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 0809-
677 PIN; PLATE 1-33549-452-0 01 1 0809-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

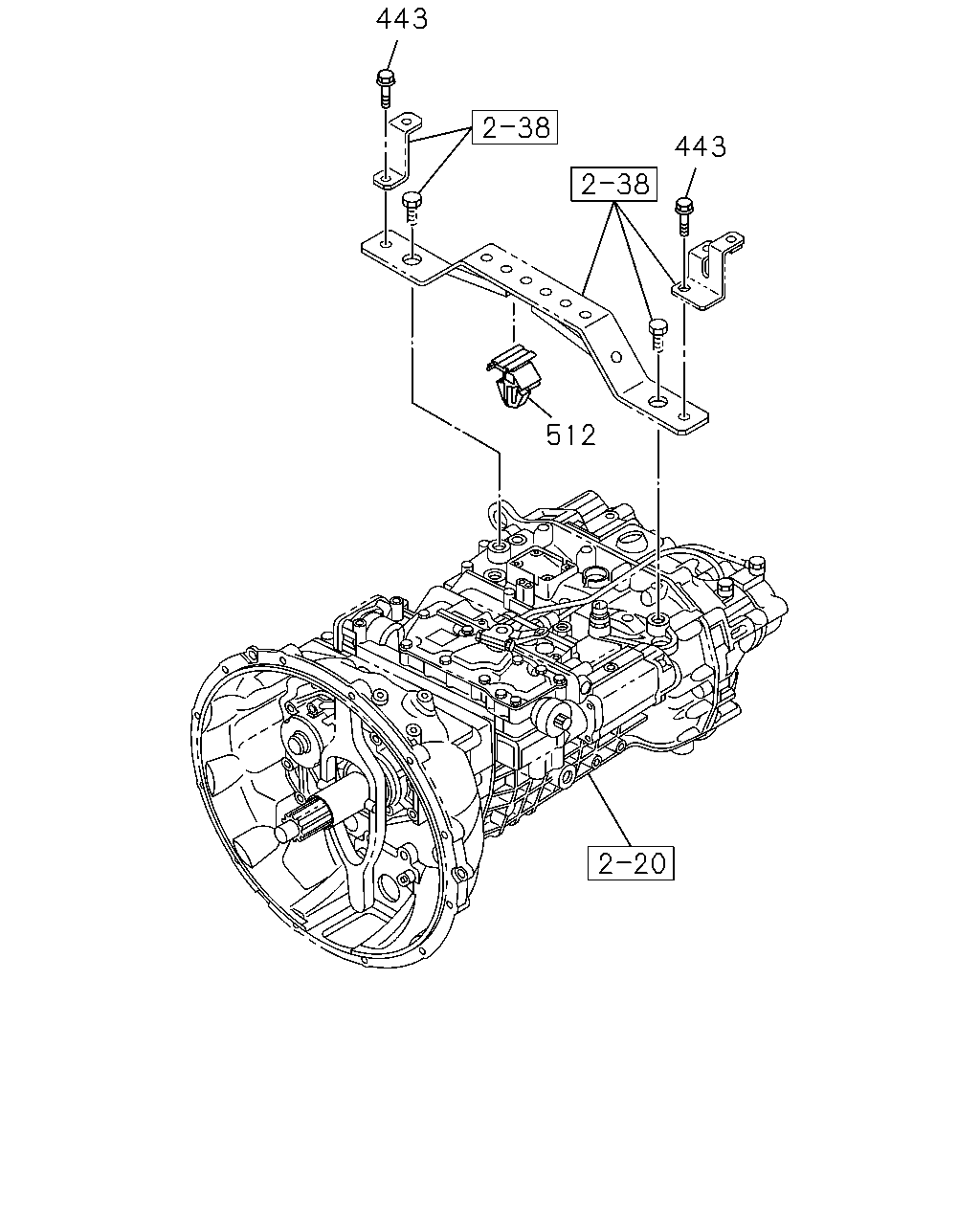

çizim 101670
443 443 512
BalonParca AdiParca NoAdetTipApplied Date
443 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 05 1 0809-
733 REPAIR KIT 1-33549-617-0 01 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
