3-05 — REAR WHEEL BRAKE (#2470) — 221 parça

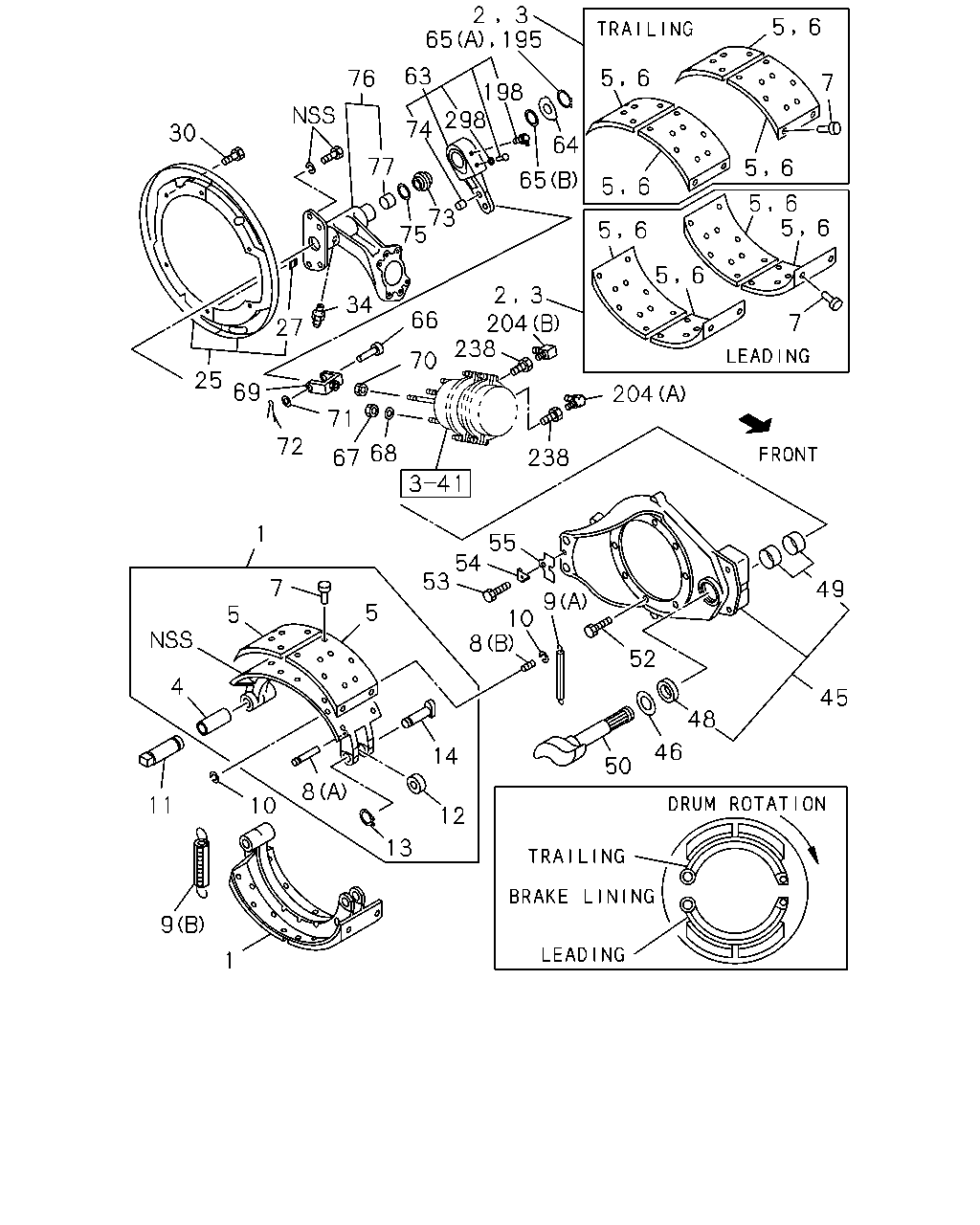

65 195 5 6 63 5 6 76 7 198 298 74 30 64 77 5 6 65 5 6 5 73 75 6 5 6 6 5 204 238 34 66 7 27 70 25 69 204 71 72 68 238 67 1 55 54 53 7 49 9 5 5 10 8 52 4 45 48 46 14 50 8 11 10 12 13 9 1 2 3 2 3 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-969-0	01	1	9002-9509
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9510-
1	SHOE; BRK,RR TRAILING	1-47110-970-0	01	1	9002-9509
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9510-
1	SHOE; BRK,RR LEADING	1-47110-967-0	01	1	9002-9509
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9510-
1	SHOE; BRK,RR TRAILING	1-47110-968-0	01	1	9002-9509
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9510-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	01	1	9510-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	01	1	9510-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	01	1	9510-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9307-9509
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9307-9509
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-88310-341-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9307-9509
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9307-9509
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-88310-342-0	01	1	9510-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9002-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	04	1	9002-9509
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9510-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	04	1	9002-9509
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9510-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	04	1	9510-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	04	1	9510-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-47125-413-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	04	1	9002-9509
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	04	1	9002-9509
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-47125-414-0	04	1	9510-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-9509
7	RIVET; LINING,RR BRK 6RB1TC-N ENG(29L) NYLON TUBE AIR PIPING<Z29> L=18.5	1-09732-034-0	AR	1	9510-
7	RIVET; LINING,RR BRK EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> L=17	1-09732-027-0	AR	1	9510-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9002-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9002-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9002-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9002-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9002-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9002-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9002-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9002-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9002-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9002-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9002-9501
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9002-9204
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	9002-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9002-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9002-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	9002-9509
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	9510-
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	9002-
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	9002-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	02	1	9002-9204
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9205-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	02	1	9002-9109
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9110-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9002-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	01	1	9002-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	01	1	9002-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	9002-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9002-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	9002-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9002-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9002-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9002-
69	JOINT; JAW	1-09768-060-0	02	1	9002-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9002-
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9002-9401
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9402-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9002-
73	COLLAR; FELT RING,CM/SHF	1-47143-003-0	02	1	9002-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9002-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9002-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	01	1	9002-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	01	1	9002-
77	BUSHING	1-47146-003-1	02	1	9002-
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	9002-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-
204	CONNECTOR; SPR CHAMBER (A),(B)	1-09650-325-1	02	1	9002-9306
204	CONNECTOR; SPR CHAMBER BRAKE POWER CHAMBER FORWARD<BCQ> (A) EMERGENCY	1-09660-570-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER BRAKE POWER CHAMBER FORWARD<BCQ> (B) SERVICE	1-09660-574-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) SERVICE PT3/8 & M27 ELBOW	1-09650-118-1	02	1	9307-9509
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) SERVICE PT3/8 & M27 ELBOW	1-09650-118-1	02	1	9510-
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) EMERGENCY	1-09660-109-1	01	1	9307-9307
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) EMERGENCY M20 & PT3/8 ELBOW	1-09660-686-0	01	1	9308-9509
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> (A) EMERGENCY M20 & PT3/8 ELBOW	1-09660-686-0	01	1	9510-
238	ADAPTER; SPR CHAMBER FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 37/6 18.5"(W3F),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/7 18.5"(W3Q) P90 PROP SHAFT(C5T) BRAKE POWER CHAMBER FORWARD<BCQ> PT3/8	1-09664-210-0	04	1	9307-9509
238	ADAPTER; SPR CHAMBER FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M) P115 PROP SHAFT(C5X) BRAKE POWER CHAMBER FORWARD<BCQ> PT3/8	1-09664-210-0	04	1	9307-9509
238	ADAPTER; SPR CHAMBER BRAKE POWER CHAMBER FORWARD<BCQ> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT3/8	1-09664-210-0	04	1	9510-
298	GASKET ID=23.3	9-09561-223-0	02	1	9307-

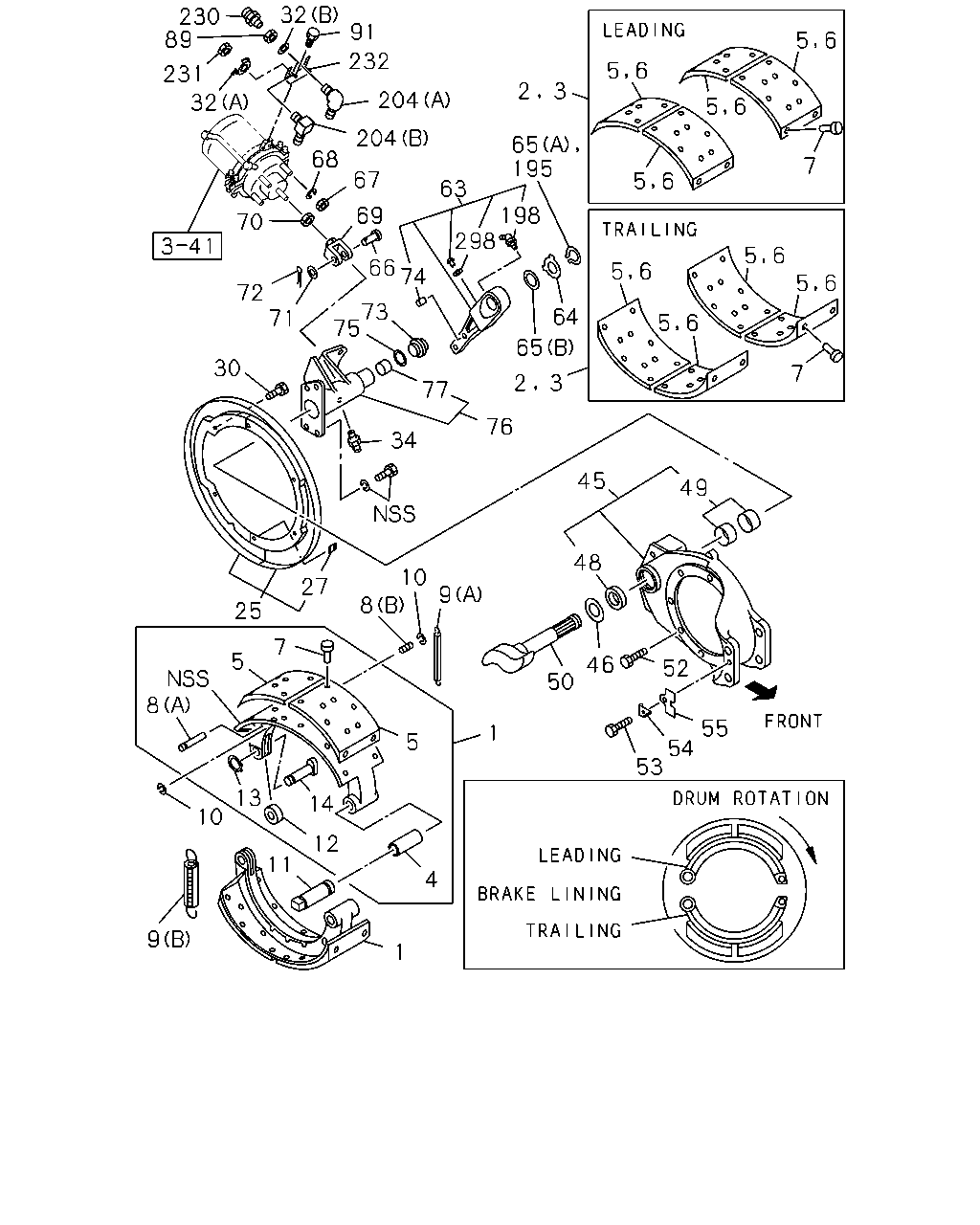

32 230 89 91 232 231 2 3 204 32 204 65 195 68 7 67 63 198 298 69 70 66 74 72 71 73 75 64 65 30 7 2 3 77 76 34 45 49 48 10 8 27 9 25 7 52 5 46 8 50 55 54 53 1 5 13 14 10 12 11 4 9 1 5 6 5 6 5 6 5 6 5 6 5 6 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-969-0	01	1	9002-9509
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9510-
1	SHOE; BRK,RR TRAILING	1-47110-970-0	01	1	9002-9509
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9510-
1	SHOE; BRK,RR LEADING	1-47110-967-0	01	1	9002-9509
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9510-
1	SHOE; BRK,RR TRAILING	1-47110-968-0	01	1	9002-9509
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9510-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	01	1	9510-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	01	1	9510-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	01	1	9510-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9307-9509
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9307-9509
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	01	1	9510-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-88310-341-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9307-9509
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9307-9509
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	01	1	9510-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-88310-342-0	01	1	9510-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9002-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	04	1	9002-9509
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9510-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	04	1	9002-9509
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9510-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	04	1	9510-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	04	1	9510-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-47125-413-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	04	1	9002-9509
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	04	1	9002-9509
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	04	1	9510-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-47125-414-0	04	1	9510-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-9509
7	RIVET; LINING,RR BRK 6RB1TC-N ENG(29L) NYLON TUBE AIR PIPING<Z29> L=18.5	1-09732-034-0	AR	1	9510-
7	RIVET; LINING,RR BRK EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> L=17	1-09732-027-0	AR	1	9510-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9002-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9002-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9002-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9002-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9002-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9002-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9002-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9002-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9002-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9002-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9002-9501
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9002-9204
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-
32	WASHER; LK EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A)	1-48255-005-0	01	1	9307-9509
32	WASHER; LK EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> (A)	1-48255-005-0	01	1	9510-
32	WASHER; LK EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) ID=21 TOOTH LK INT	9-09151-220-0	01	1	9307-9509
32	WASHER; LK EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) ID=21 TOOTH LK INT	9-09151-220-0	01	1	9510-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	9002-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9002-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9002-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	9002-9509
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	9510-
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	9002-
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	9002-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	02	1	9002-9204
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9205-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	02	1	9002-9109
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9110-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9002-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	01	1	9002-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	01	1	9002-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	9002-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9002-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	9002-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9002-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9002-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9002-
69	JOINT; JAW	1-09768-060-0	02	1	9002-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9002-
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9002-9401
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9402-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9002-
73	COLLAR; FELT RING,CM/SHF	1-47143-003-0	02	1	9002-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9002-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9002-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	01	1	9002-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	01	1	9002-
77	BUSHING	1-47146-003-1	02	1	9002-
89	NUT; CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M20	9-99111-420-0	02	1	9307-9509
89	NUT; CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> M20	9-99111-420-0	02	1	9510-
91	BOLT; CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X12 W/LK WASHER	0-50040-812-0	02	1	9307-9509
91	BOLT; CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> M8X12 W/LK WASHER	0-50040-812-0	02	1	9510-
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	9002-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-
204	CONNECTOR; SPR CHAMBER (A),(B)	1-09650-325-1	02	1	9002-9306
204	CONNECTOR; SPR CHAMBER BRAKE POWER CHAMBER FORWARD<BCQ> (A) EMERGENCY	1-09660-570-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER BRAKE POWER CHAMBER FORWARD<BCQ> (B) SERVICE	1-09660-574-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) SERVICE PT3/8 & M27 ELBOW	1-09650-118-1	02	1	9307-9509
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B) SERVICE PT3/8 & M27 ELBOW	1-09650-118-1	02	1	9510-
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) EMERGENCY	1-09660-109-1	01	1	9307-9307
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) EMERGENCY M20 & PT3/8 ELBOW	1-09660-686-0	01	1	9308-9509
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> (A) EMERGENCY M20 & PT3/8 ELBOW	1-09660-686-0	01	1	9510-
230	NIPPLE; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M20 & PT1/4	9-09902-386-0	01	1	9307-9509
230	NIPPLE; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> M20 & PT1/4	9-09902-386-0	01	1	9510-
231	NUT; CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M27	9-09840-286-0	02	1	9307-9509
231	NUT; CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> M27	9-09840-286-0	02	1	9510-
232	BRACKET; FLEX HOSE,CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>	1-47465-696-1	01	1	9307-9509
232	BRACKET; FLEX HOSE,CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47465-696-1	01	1	9510-
298	GASKET ID=23.3	9-09561-223-0	02	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
