6-47 — MUD GUARD AND INSULATOR (#247) — 151 parça

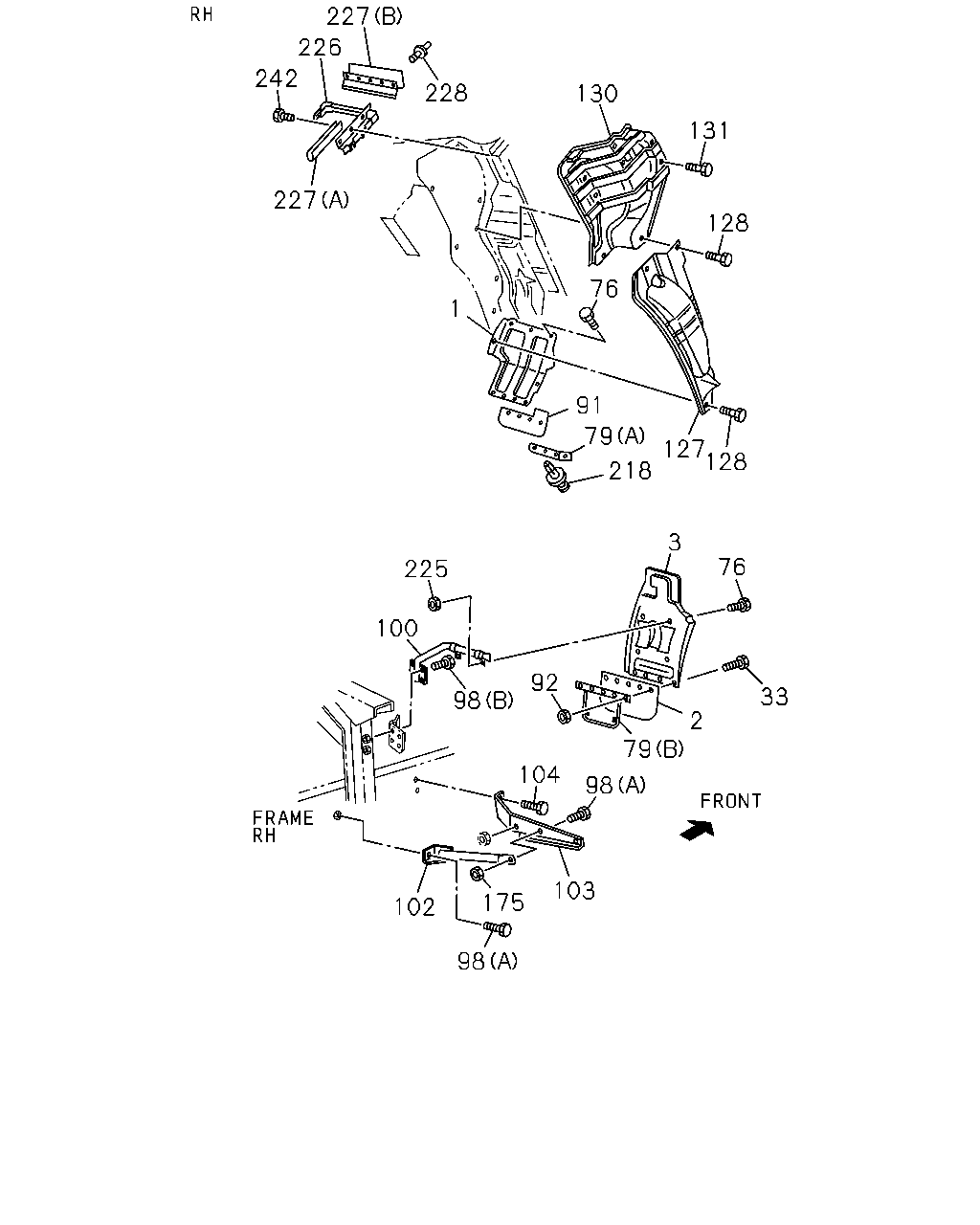

227 226 242 228 130 131 227 128 76 1 91 79 127 128 218 3 76 225 100 92 33 98 2 79 104 98 103 175 102 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-630-3	01	1	9212-
1	GUARD; MUD,FRT	1-79938-629-3	01	1	9212-
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79930-825-0	01	1	9212-9307
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79930-530-1	01	1	9212-9307
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79930-530-2	02	1	9308-
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4>	1-79930-484-1	01	1	9212-
2	COVER; MUD,TIRE RR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4>	1-79930-484-1	01	1	9212-
2	COVER; MUD,TIRE RR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-79930-693-0	01	1	9212-
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-775-0	01	1	9212-
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-711-1	01	1	9212-
3	GUARD; MUD,RR EXC. FRONT FENDER WIDE<SA4>	1-79938-732-1	01	1	9212-
3	GUARD; MUD,RR EXC. FRONT FENDER WIDE<SA4>,BRAKE SYSTEM HEAVY DUTYVAR2(WG3)	1-79938-753-4	01	1	9212-
3	GUARD; MUD,RR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4>	1-79938-873-0	01	1	9212-
33	BOLT; MUD COVER FRONT FENDER WIDE<SA4> M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	9212-
33	BOLT; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	9212-
33	BOLT; MUD COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X16 W/LK&PL WASHER	1-09980-492-0	09	1	9212-
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9212-
76	BOLT; MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9212-
76	BOLT; MUD GUARD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9212-
76	BOLT; MUD GUARD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9212-
79	RETAINER; MUD COVER AIR CON MANUAL CONTROL(C60) (A)	1-79930-501-1	02	1	9212-
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79930-824-0	01	1	9212-9307
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79930-521-0	01	1	9212-9307
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79930-986-0	02	1	9308-9401
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79931-131-0	02	1	9402-
79	RETAINER; MUD COVER EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	01	1	9212-9412
79	RETAINER; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	01	1	9212-9412
79	RETAINER; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	02	1	9501-9502
79	RETAINER; MUD COVER EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	01	1	9503-
79	RETAINER; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	01	1	9503-
79	RETAINER; MUD COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=509	1-79930-695-1	01	1	9212-
91	COVER; MUD,FRT AIR CON MANUAL CONTROL(C60) 160X350	1-79930-503-1	02	1	9212-
92	NUT; MUD COVER FRONT FENDER WIDE<SA4> M6	9-09110-406-0	10	1	9212-
92	NUT; MUD COVER EXC. FRONT FENDER WIDE<SA4> M6	9-09110-406-0	09	1	9212-9304
92	NUT; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> M6	9-09110-406-0	08	1	9305-
92	NUT; MUD COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6	9-09110-406-0	09	1	9305-
98	BOLT; STAY TO BRKT FRONT FENDER WIDE<SA4> (A) M8X25 FLANGE	0-28080-825-0	02	1	9212-
98	BOLT; STAY TO BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8X25 FLANGE	0-28080-825-0	02	1	9212-
98	BOLT; STAY TO BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X25 FLANGE	0-28081-025-0	04	1	9212-
98	BOLT; STAY TO BRKT FRONT FENDER WIDE<SA4> (B) M10X25 FLANGE	0-28081-025-0	04	1	9212-
100	STAY; UPR,MUD GUARD FRONT FENDER WIDE<SA4>	1-53497-332-1	01	1	9212-
100	STAY; UPR,MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4>	1-53497-482-0	01	1	9212-
102	STAY; LWR,MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-360-1	01	1	9212-
103	BRACKET ASM; RR MUD FLAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-380-1	01	1	9212-
104	BOLT; BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X30 FLANGE	0-28081-030-0	02	1	9212-
104	BOLT; BRKT FRONT FENDER WIDE<SA4> M10X30 FLANGE	0-28081-030-0	02	1	9212-
127	APRON; FRT ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-032-1	01	1	9212-
127	APRON; FRT ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-416-1	01	1	9212-
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9212-
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9212-
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9212-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-036-2	01	1	9212-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-387-1	01	1	9212-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9212-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9212-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9212-
175	NUT; STAY FIX BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
218	FASTENER; RUBBER AIR CON MANUAL CONTROL(C60)	1-09470-001-0	08	1	9212-
225	NUT; MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-9304
225	NUT; MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	04	1	9305-
226	SUPPORT; SEAL,MUD GUARD	1-79938-733-1	01	1	9212-
226	SUPPORT; SEAL,MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-79938-768-1	01	1	9212-
227	SEAL; MUD GUARD (A) L=285	1-79938-739-0	01	1	9212-
227	SEAL; MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=342	1-79938-765-0	01	1	9212-
227	SEAL; MUD GUARD (B) L=342	1-79938-765-0	01	1	9212-
227	SEAL; MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-79938-675-1	01	1	9212-
228	FASTENER; MUD GUARD SEAL BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	5-09989-002-0	07	1	9212-
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	07	1	9212-
242	BOLT; SUPPORT MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9212-
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9212-

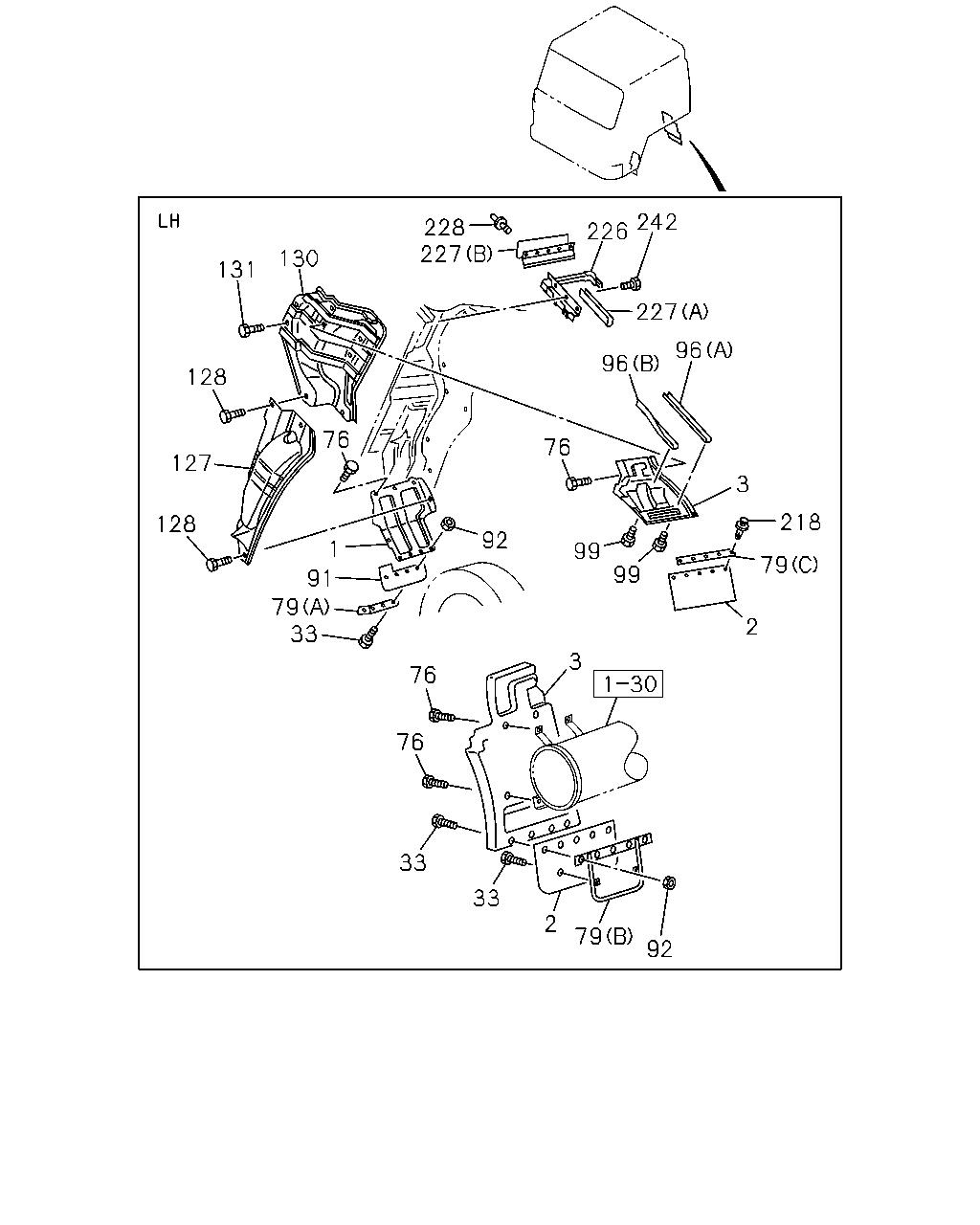

242 226 228 227 130 131 227 96 96 128 76 76 127 3 218 128 1 92 99 79 99 91 79 33 2 3 76 76 33 33 2 79 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-630-3	01	1	9212-
1	GUARD; MUD,FRT	1-79938-629-3	01	1	9212-
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79930-825-0	01	1	9212-9307
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79930-530-1	01	1	9212-9307
2	COVER; MUD,TIRE RR FRONT FENDER WIDE<SA4>	1-79930-530-2	02	1	9308-
2	COVER; MUD,TIRE RR EXC. FRONT FENDER WIDE<SA4>	1-79930-484-1	01	1	9212-
2	COVER; MUD,TIRE RR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4>	1-79930-484-1	01	1	9212-
2	COVER; MUD,TIRE RR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-79930-693-0	01	1	9212-
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-775-0	01	1	9212-
3	GUARD; MUD,RR FRONT FENDER WIDE<SA4>	1-79938-711-1	01	1	9212-
3	GUARD; MUD,RR EXC. FRONT FENDER WIDE<SA4>	1-79938-732-1	01	1	9212-
3	GUARD; MUD,RR EXC. FRONT FENDER WIDE<SA4>,BRAKE SYSTEM HEAVY DUTYVAR2(WG3)	1-79938-753-4	01	1	9212-
3	GUARD; MUD,RR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4>	1-79938-873-0	01	1	9212-
33	BOLT; MUD COVER FRONT FENDER WIDE<SA4> M6X16 W/LK&PL WASHER	1-09980-492-0	14	1	9212-
33	BOLT; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	9212-
33	BOLT; MUD COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X16 W/LK&PL WASHER	1-09980-492-0	09	1	9212-
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9212-
76	BOLT; MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9212-
76	BOLT; MUD GUARD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9212-
76	BOLT; MUD GUARD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9212-
79	RETAINER; MUD COVER AIR CON MANUAL CONTROL(C60) (A)	1-79930-501-1	02	1	9212-
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79930-824-0	01	1	9212-9307
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79930-521-0	01	1	9212-9307
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79930-986-0	02	1	9308-9401
79	RETAINER; MUD COVER FRONT FENDER WIDE<SA4> (B)	1-79931-131-0	02	1	9402-
79	RETAINER; MUD COVER EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	01	1	9212-9412
79	RETAINER; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	01	1	9212-9412
79	RETAINER; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	02	1	9501-9502
79	RETAINER; MUD COVER EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	01	1	9503-
79	RETAINER; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> (C) L=468	1-79930-487-2	01	1	9503-
79	RETAINER; MUD COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=509	1-79930-695-1	01	1	9212-
91	COVER; MUD,FRT AIR CON MANUAL CONTROL(C60) 160X350	1-79930-503-1	02	1	9212-
92	NUT; MUD COVER FRONT FENDER WIDE<SA4> M6	9-09110-406-0	10	1	9212-
92	NUT; MUD COVER EXC. FRONT FENDER WIDE<SA4> M6	9-09110-406-0	09	1	9212-9304
92	NUT; MUD COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> M6	9-09110-406-0	08	1	9305-
92	NUT; MUD COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6	9-09110-406-0	09	1	9305-
96	STAY; MUD GUARD EXC. FRONT FENDER WIDE<SA4>,BRAKE SYSTEM HEAVY DUTYVAR2(WG3) (A)	1-79938-737-0	01	1	9212-
96	STAY; MUD GUARD EXC. FRONT FENDER WIDE<SA4>,BRAKE SYSTEM HEAVY DUTYVAR2(WG3) (B)	1-79938-738-0	01	1	9212-
99	BOLT; STAY TO MUD GUARD EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9212-
127	APRON; FRT ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-032-1	01	1	9212-
127	APRON; FRT ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-416-1	01	1	9212-
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9212-
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9212-
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9212-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-036-2	01	1	9212-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-387-1	01	1	9212-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9212-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9212-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9212-
218	FASTENER; RUBBER AIR CON MANUAL CONTROL(C60)	1-09470-001-0	08	1	9212-
226	SUPPORT; SEAL,MUD GUARD	1-79938-733-1	01	1	9212-
226	SUPPORT; SEAL,MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-79938-768-1	01	1	9212-
227	SEAL; MUD GUARD (A) L=285	1-79938-739-0	01	1	9212-
227	SEAL; MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=342	1-79938-765-0	01	1	9212-
227	SEAL; MUD GUARD (B) L=342	1-79938-765-0	01	1	9212-
227	SEAL; MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-79938-675-1	01	1	9212-
228	FASTENER; MUD GUARD SEAL BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	5-09989-002-0	07	1	9212-
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	07	1	9212-
242	BOLT; SUPPORT MUD GUARD BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9212-
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9212-

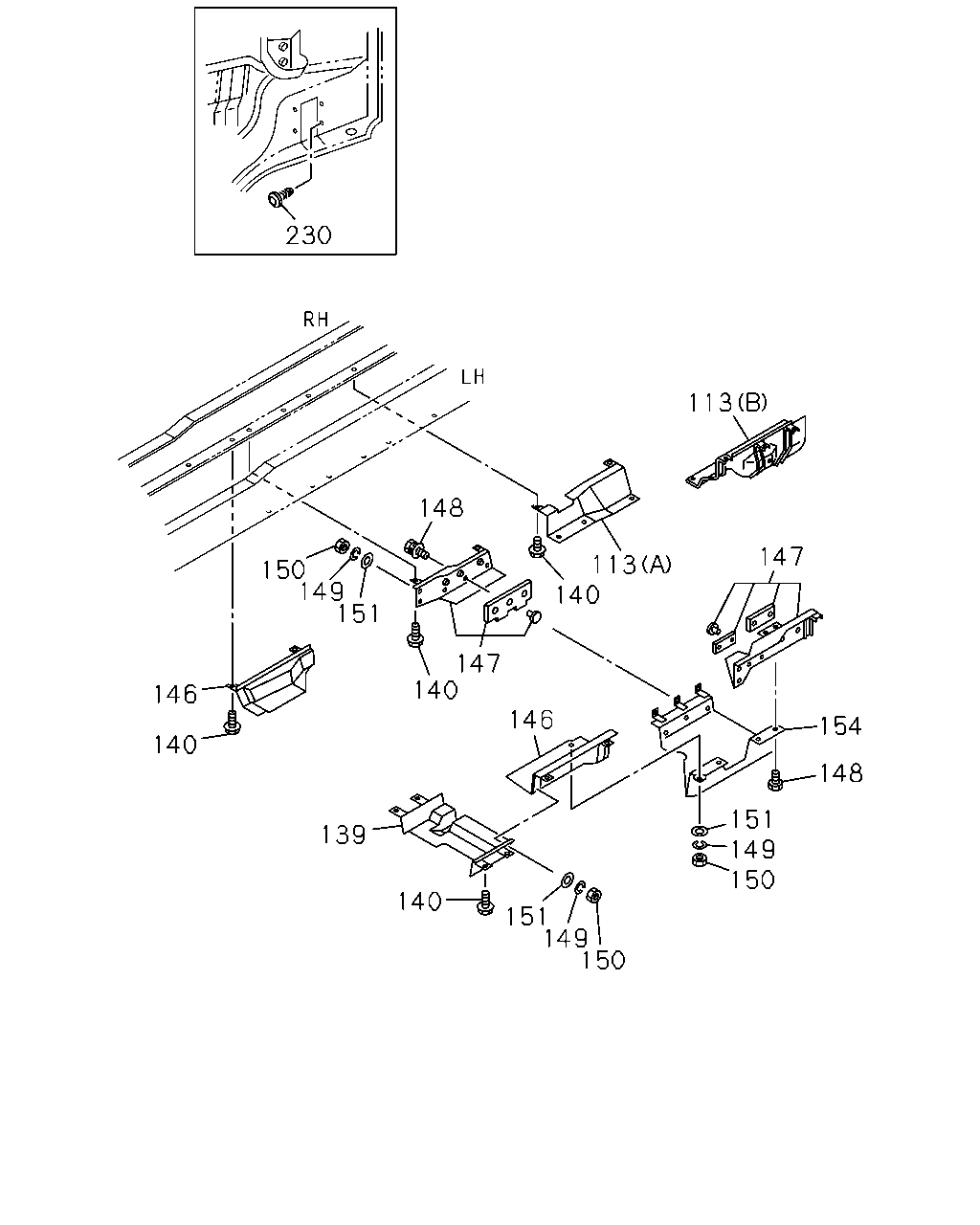

230 113 148 147 113 140 150 149 151 147 140 146 146 154 140 148 151 149 150 139 140 151 149 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK> (B)	1-53192-174-2	01	1	9212-
113	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-53192-071-1	01	1	9212-
139	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-088-1	01	1	9212-
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28080-820-0	02	1	9212-
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28280-825-0	04	1	9405-
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28280-825-0	12	1	9212-9404
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28280-825-0	05	1	9405-9502
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28280-825-0	03	1	9503-
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28280-825-0	07	1	9405-
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X18	1-09030-034-1	02	1	9503-
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-212-0	01	1	9212-
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT VAR2<TAK>	1-53191-870-2	01	1	9212-
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT VAR2<TAK>	1-53191-876-5	01	1	9212-
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT VAR2<TAK>	1-53191-872-3	01	1	9212-
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	09	1	9212-
149	WASHER; LK,SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.2	9-09150-508-0	04	1	9212-
150	NUT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	04	1	9212-
151	WASHER; PL,SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=22	9-09160-708-0	04	1	9212-
154	PANEL; SIDE,UNDER ENG CTR ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-070-3	01	1	9212-
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	05	1	9212-
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9212-
