◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶

2-05 — CLUTCH PIPING (#24695) — 122 parça

109 47 153 131 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0809-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0809-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0809-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0809-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0809-0907
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-

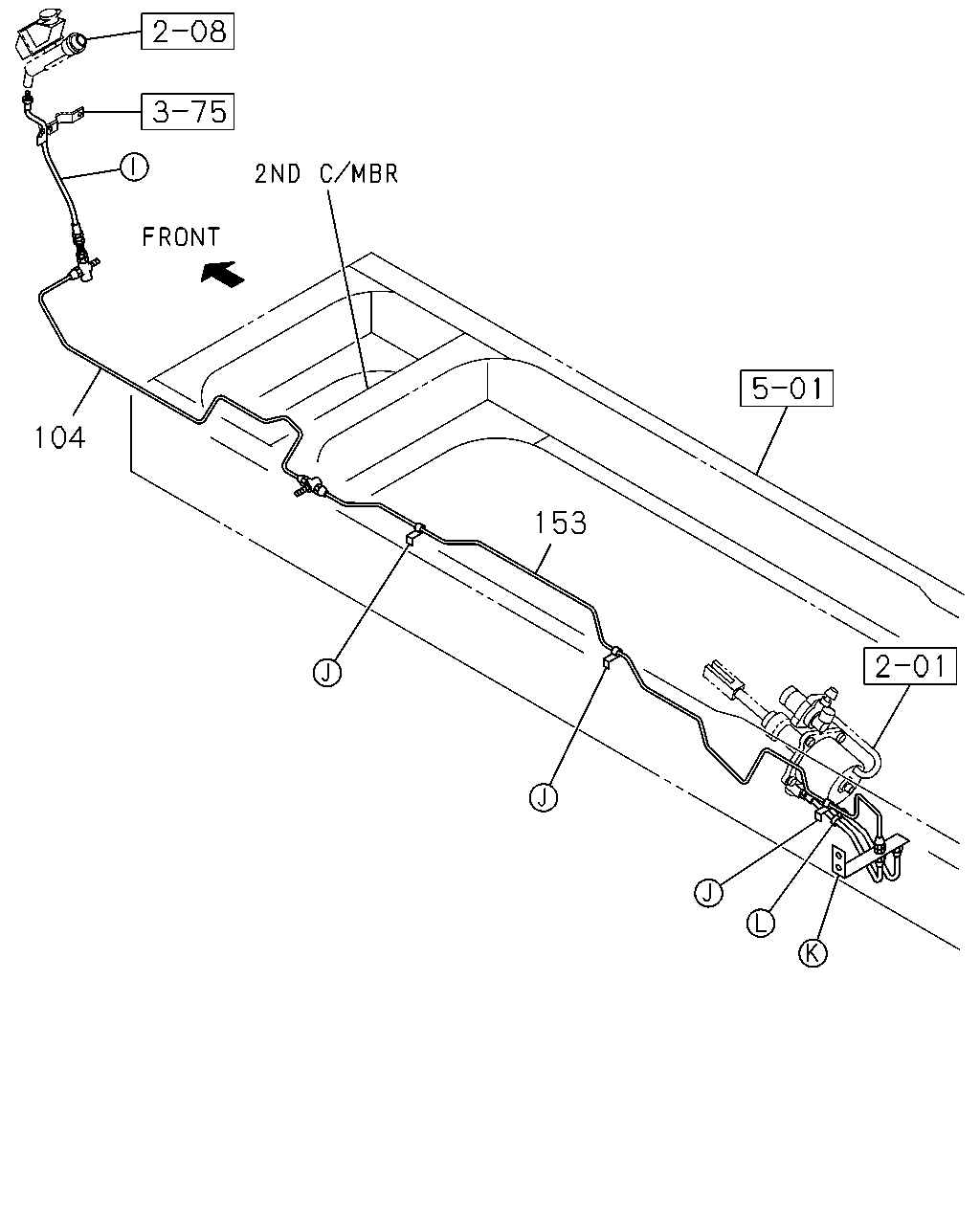

104 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0809-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0809-0810
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0809-0907
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-

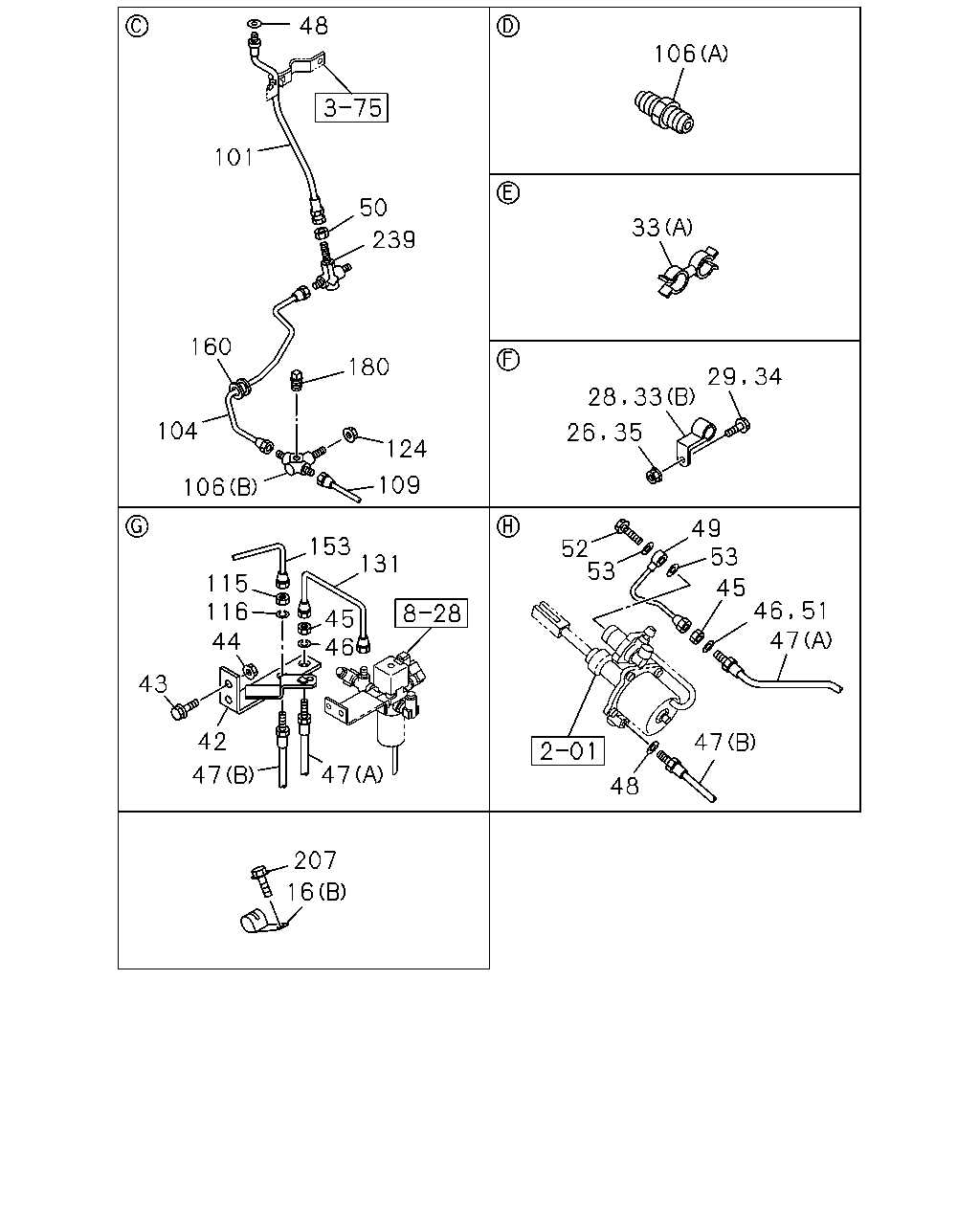

48 106 101 50 33 239 160 180 104 124 109 106 49 53 153 52 53 131 115 116 44 45 45 46 47 43 42 47 47 47 48 207 16 28 33 26 35 46 51 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0809-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0809-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0809-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0809-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0809-0811
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	0812-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0809-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0809-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0809-
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0809-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0809-
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0809-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0809-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0809-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0809-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0809-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0809-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0809-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0809-1009
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0809-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0809-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0809-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0809-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0809-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0809-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0809-
50	NUT; UNION M12	0-91111-512-0	01	1	0809-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1012-
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0809-
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=530	8-98072-348-0	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0809-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0809-0810
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M14 STRAIGHT	0-92113-008-0	01	1	0809-
106	UNION; OIL PIPE (A) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0809-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	0809-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0809-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0809-1011
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0809-0907
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
180	PLUG; PIPE PT1/4	9-99204-513-0	01	1	0809-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0809-

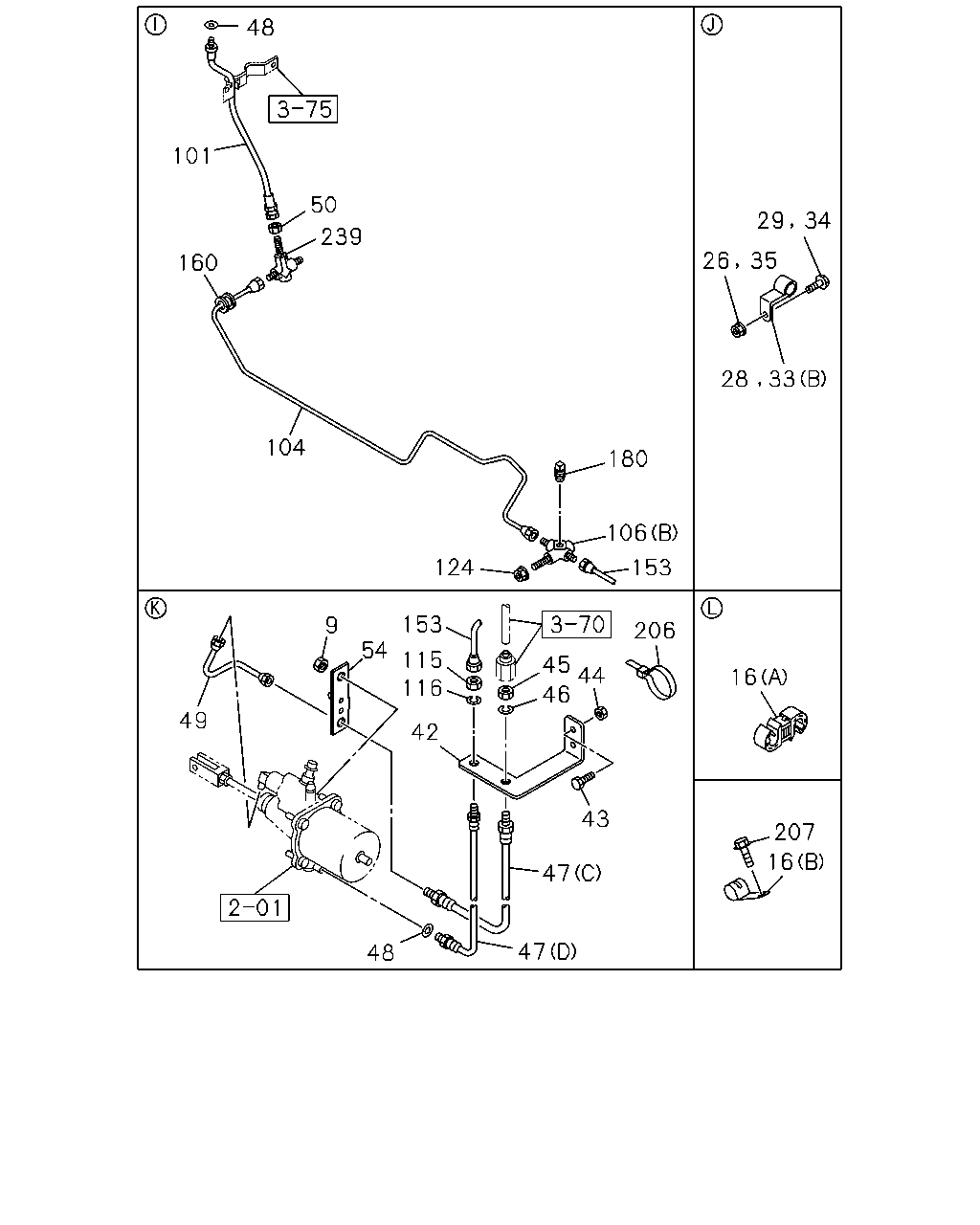

48 101 50 29 34 239 26 35 160 104 180 106 124 153 153 9 206 54 115 116 45 44 46 16 49 42 43 207 16 47 47 48 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	0809-
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0809-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0809-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0809-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0809-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0809-0811
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	0812-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0809-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0809-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0809-
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0809-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0809-
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0809-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0809-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0809-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0809-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0809-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0809-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0809-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0809-1009
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0809-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0809-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0809-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0809-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0809-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0809-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0809-
50	NUT; UNION M12	0-91111-512-0	01	1	0809-
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	0809-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=530	8-98072-348-0	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0809-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0809-0810
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M14 STRAIGHT	0-92113-008-0	01	1	0809-
106	UNION; OIL PIPE (A) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0809-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0809-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0809-1011
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0809-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0809-0907
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0809-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
180	PLUG; PIPE PT1/4	9-99204-513-0	01	1	0809-
206	CLIP; TUBE FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350	1-09707-183-0	01	1	0812-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0809-
