Isuzu WW
▶
TRUCKS
▶
FVR
▶
11141 - FVR-LHD(EUROPE)EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01B - CLUTCH
▶
2-01B — CLUTCH
(#24693) — 56 parça
◀

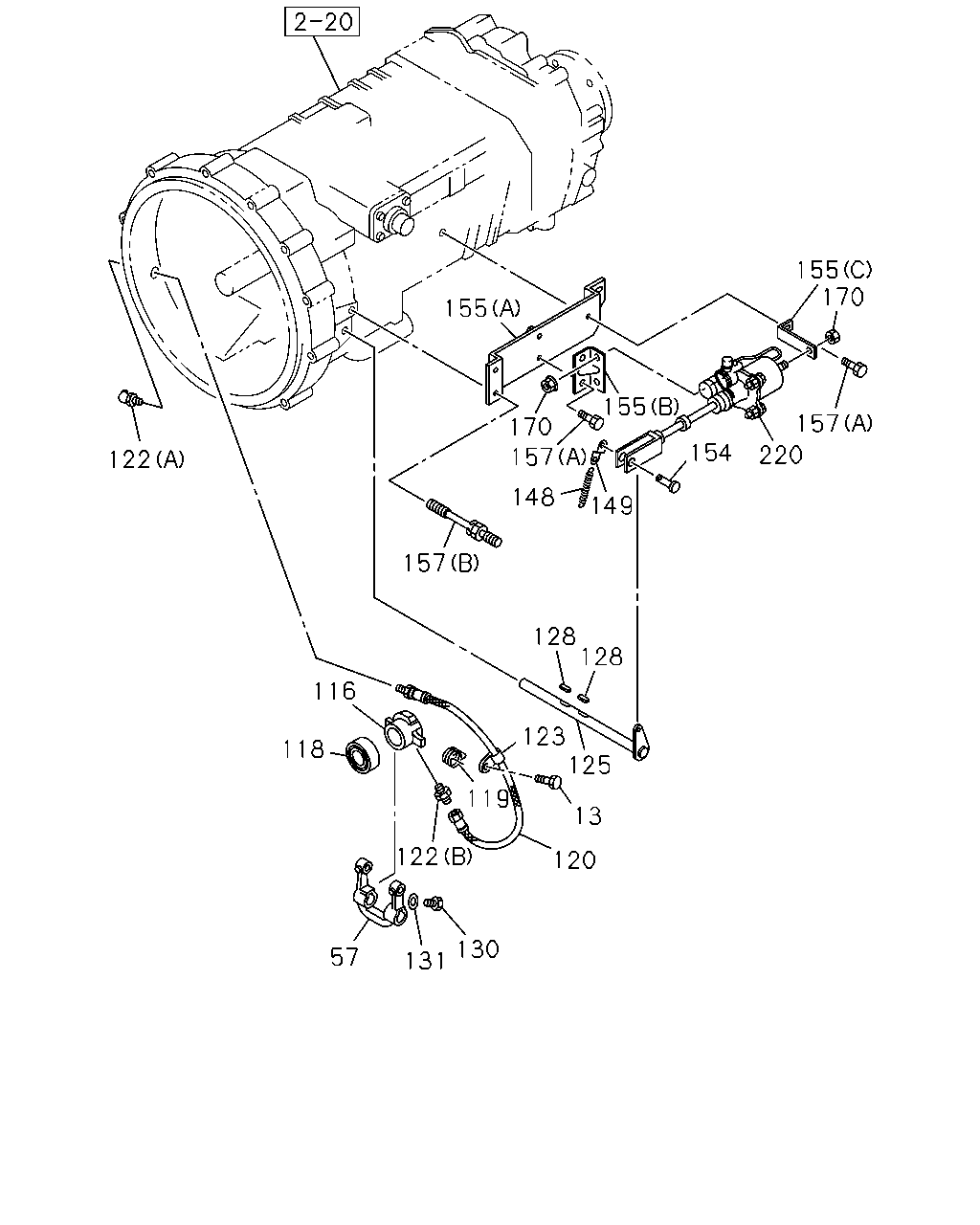

[201B] BOOSTER AND BRACKET (27 parça)

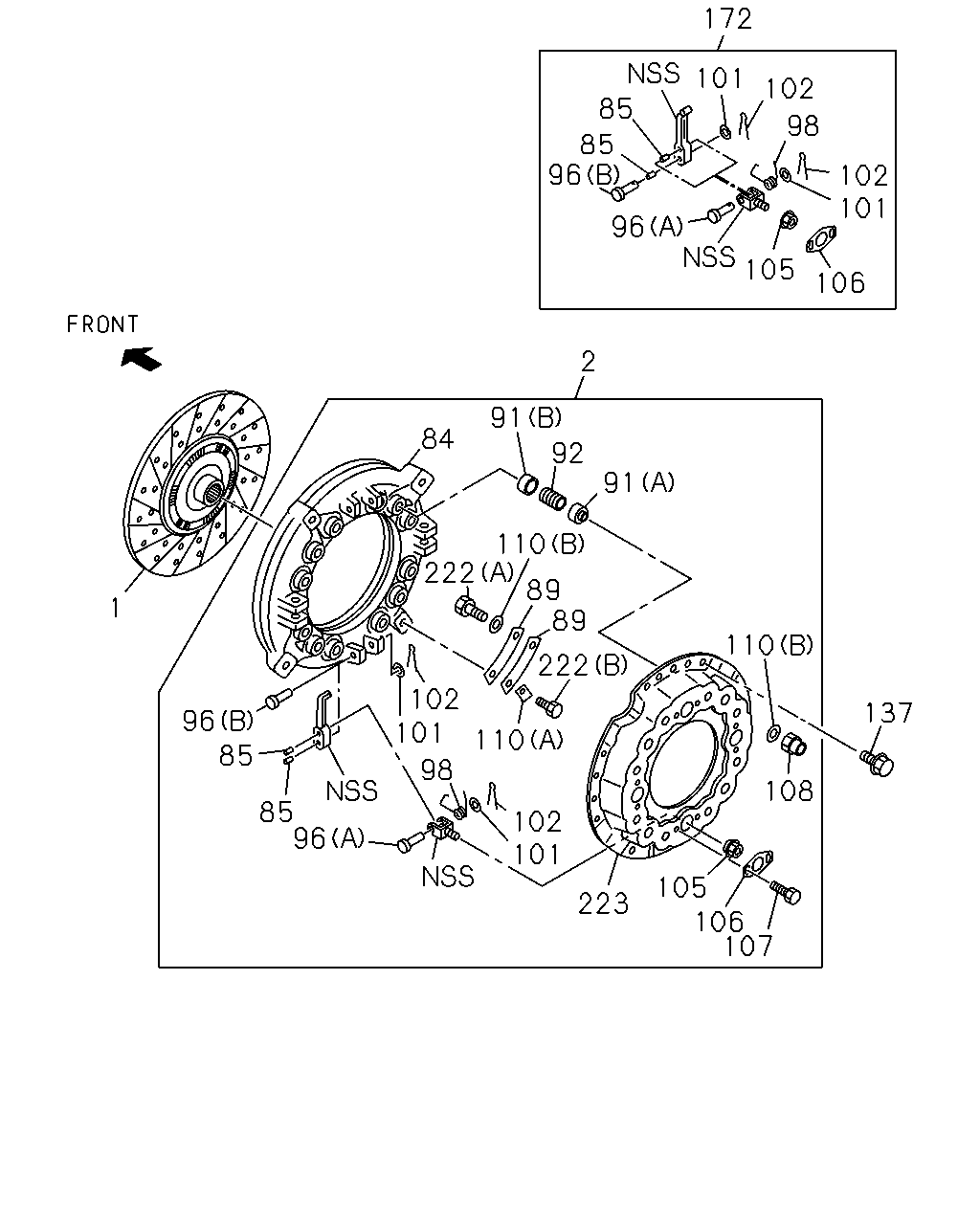

[201B] DISC AND PLATE (29 parça)
▶
155
170
155
155
157
170
157
149
154
220
122
148
157
128
128
116
123
125
118
119
13
122
120
130
57
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0809-
57
FORK; SHIFT,CLU
1-31341-036-0
01
1
0809-
116
BLOCK; SHIFT,CLU
1-31321-077-1
01
1
0809-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
0809-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
0809-
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
0809-
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
0809-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0809-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
0809-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT
0-90301-410-0
01
1
0809-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
0809-
125
SHAFT; CLU
1-31342-300-0
01
1
0809-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0809-
130
SCREW; SHIFT FORK
9-06120-816-0
01
1
0809-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0809-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0809-
149
EYE; SPRING,RETURN SPRING
1-31426-041-0
01
1
0809-
154
PIN; JAW JOINT
1-31424-009-0
01
1
0809-
155
BRACKET; MINIPACK
(B)
1-31429-066-0
01
1
0809-
155
BRACKET; MINIPACK
(C)
1-31429-322-0
01
1
0809-
155
BRACKET; MINIPACK
(A)
1-31429-390-0
01
1
0809-
157
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
04
1
0809-
157
BOLT; BRKT
(A) M12X20 FLANGE
0-28151-220-0
01
1
0809-
157
BOLT; BRKT
(B) M10X18,M12X25 L=54.7
1-09029-087-0
01
1
0809-
170
NUT; BOOSTER FIX
M8 FLANGE
0-91180-208-0
03
1
0809-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-087-0
01
1
0809-1412
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-525-1
01
1
0809-
172
101
102
85
98
85
96
102
101
96
105
106
2
91
84
92
91
110
222
89
89
1
222
110
102
101
137
96
85
110
98
108
85
96
102
101
105
106
107
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
6HK1-TCC ENG(81L) 15" CLUTCH(RE9) BEST VALUE PARTS
1-87610-119-0
01
1
0809-1410
1
DISC; CLUTCH
6HK1-TCS ENG(80L) 15" CLUTCH(RE9) 15"
1-31240-977-1
01
1
0809-1110
1
DISC; CLUTCH
6HK1-TCC ENG(81L) 15" CLUTCH(RE9) 15"
1-31240-851-2
01
1
0809-
2
PLATE ASM; PRESSURE,CLU
6HK1-TCS ENG(80L) 15" CLUTCH(RE9)
1-31220-380-2
01
1
0809-
2
PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L) 15" CLUTCH(RE9)
1-31220-377-2
01
1
0809-
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
0809-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
0809-
89
PLATE; STRAP
1-31229-050-0
16
1
0809-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
0809-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
0809-
92
SPRING; CLU
6HK1-TCS ENG(80L) 15" CLUTCH(RE9)
1-31214-053-0
12
1
0809-
92
SPRING; CLU
6HK1-TCC ENG(81L) 15" CLUTCH(RE9)
1-31214-066-0
12
1
0809-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
0809-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
0809-
98
SPRING; RETURN
1-31233-003-0
04
1
0809-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
0809-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
0809-
105
NUT; SUPPORT
1-31235-014-0
04
1
0809-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0809-
107
BOLT; LK PLATE
1-31239-061-0
08
1
0809-
108
NUT; STRAP
1-09449-036-0
04
1
0809-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
0809-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
0809-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
0809-
172
LEVER KIT; RELEASE,CLU
6HK1-TCS ENG(80L) 15" CLUTCH(RE9)
1-87831-172-1
01
1
0809-
172
LEVER KIT; RELEASE,CLU
6HK1-TCC ENG(81L) 15" CLUTCH(RE9)
1-87831-170-1
01
1
0809-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
0809-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
0809-
223
COVER; CLU
1-31211-019-1
01
1
0809-
