1-56 — EXHAUST BRAKE SYSTEM (#24691) — 86 parça

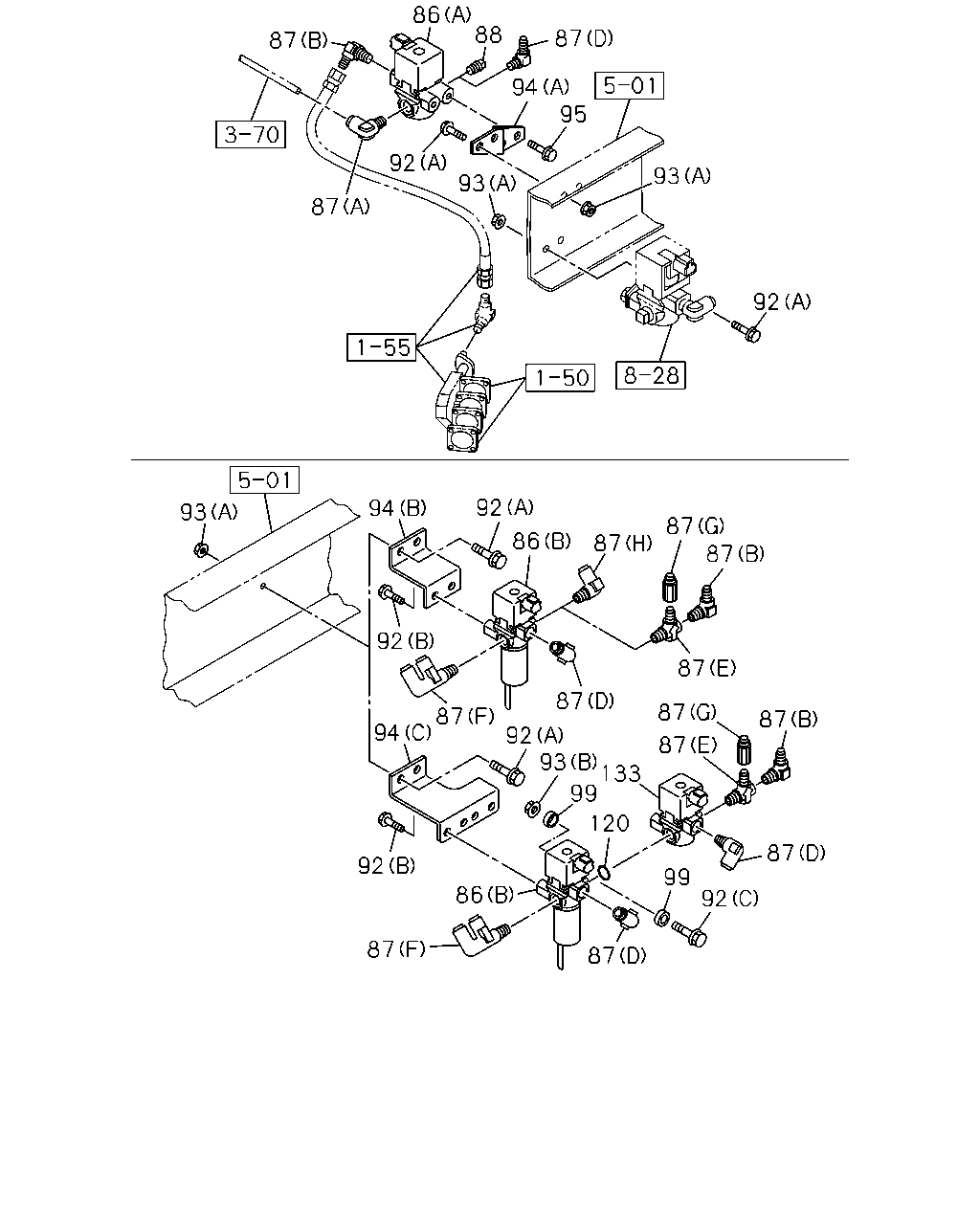

çizim 60616
86 88 87 87 94 95 92 93 93 87 92 92 94 93 87 87 86 87 92 87 87 87 87 94 87 92 93 133 99 87 120 87 92 99 86 92 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
(B) 		8-97633-075-0 01 1 1112- ●
86 VALVE; MAG,EXH BRK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-97633-075-0 01 1 1112- ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0809- ● ●
87 CONNECTOR
(H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ●
87 CONNECTOR
(F) 		8-98179-708-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		8-98179-708-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1111 ●
87 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ● ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1111 ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 PLUG
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PT1/4 		9-99204-513-0 01 1 0809- ● ●
88 PLUG
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PT1/4 		9-99204-513-0 01 1 0809- ● ●
92 BOLT; MAG VLV
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
92 BOLT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
92 BOLT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0809- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0809- ● ●
93 NUT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) 		8-98057-863-0 01 1 0809- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		1-47471-374-1 01 1 0809-1004 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98154-633-0 01 1 1005-1111 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98154-633-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
99 WASHER; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ●
120 GASKET; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ●
133 VALVE; MAG,PTO CONT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ●

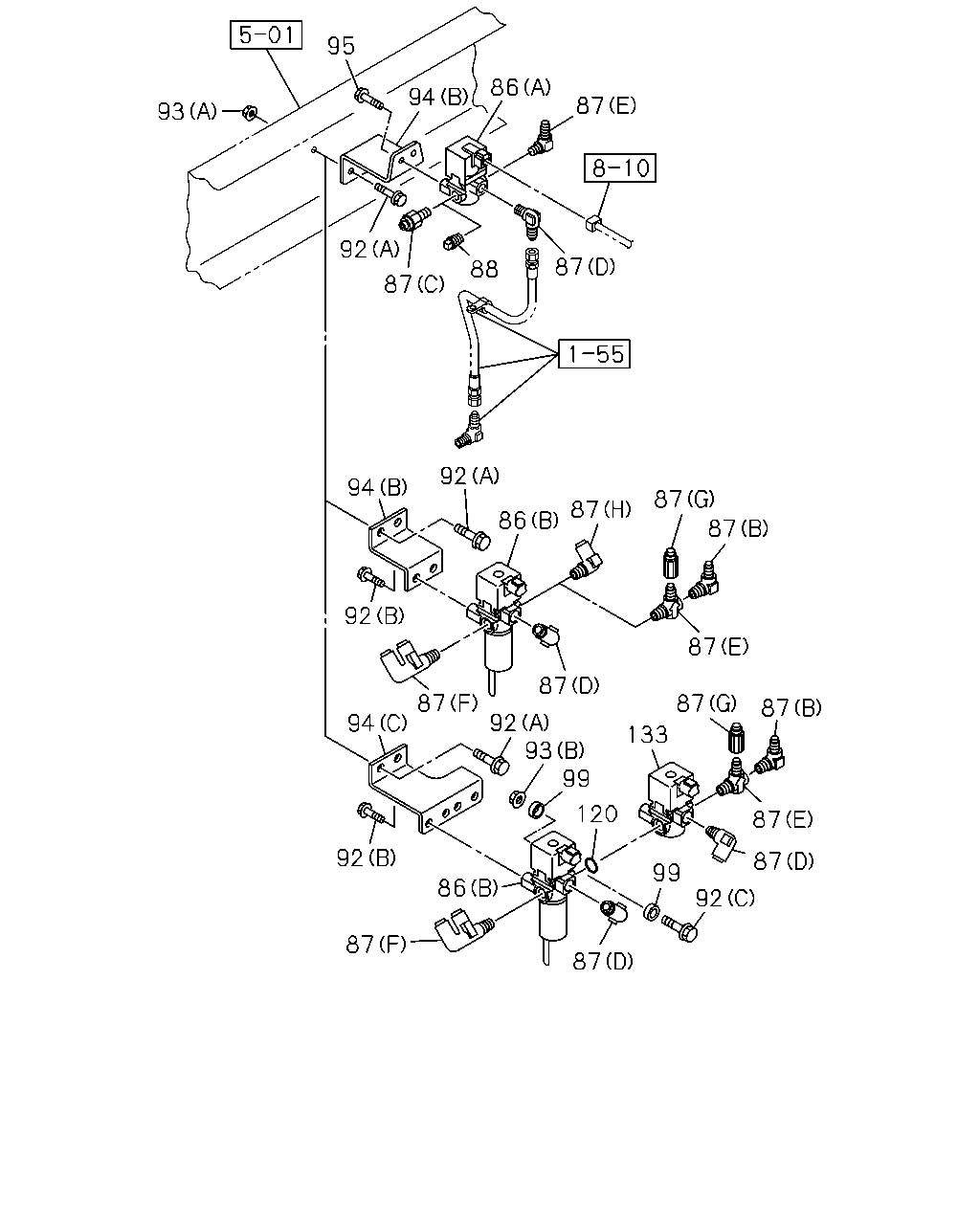

çizim 61014
95 86 94 87 93 92 87 88 87 92 94 87 87 87 86 92 87 87 87 94 87 87 92 93 99 133 120 87 92 87 99 86 92 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
(B) 		8-97633-075-0 01 1 1112- ●
86 VALVE; MAG,EXH BRK
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-97633-075-0 01 1 1112- ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0809- ● ●
87 CONNECTOR
(H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ●
87 CONNECTOR
(F) 		8-98179-708-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		8-98179-708-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1111 ●
87 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1111 ● ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0809-1111 ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-1111 ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
88 PLUG
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PT1/4 		9-99204-513-0 01 1 0809- ● ●
88 PLUG
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PT1/4 		9-99204-513-0 01 1 0809- ● ●
92 BOLT; MAG VLV
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
92 BOLT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
92 BOLT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0809- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0809- ● ●
93 NUT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0809- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) 		8-98057-863-0 01 1 0809- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		1-47471-374-1 01 1 0809-1004 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98154-633-0 01 1 1005-1111 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98154-633-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
99 WASHER; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ●
120 GASKET; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ●
133 VALVE; MAG,PTO CONT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ●
