Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#2469) — 208 parça

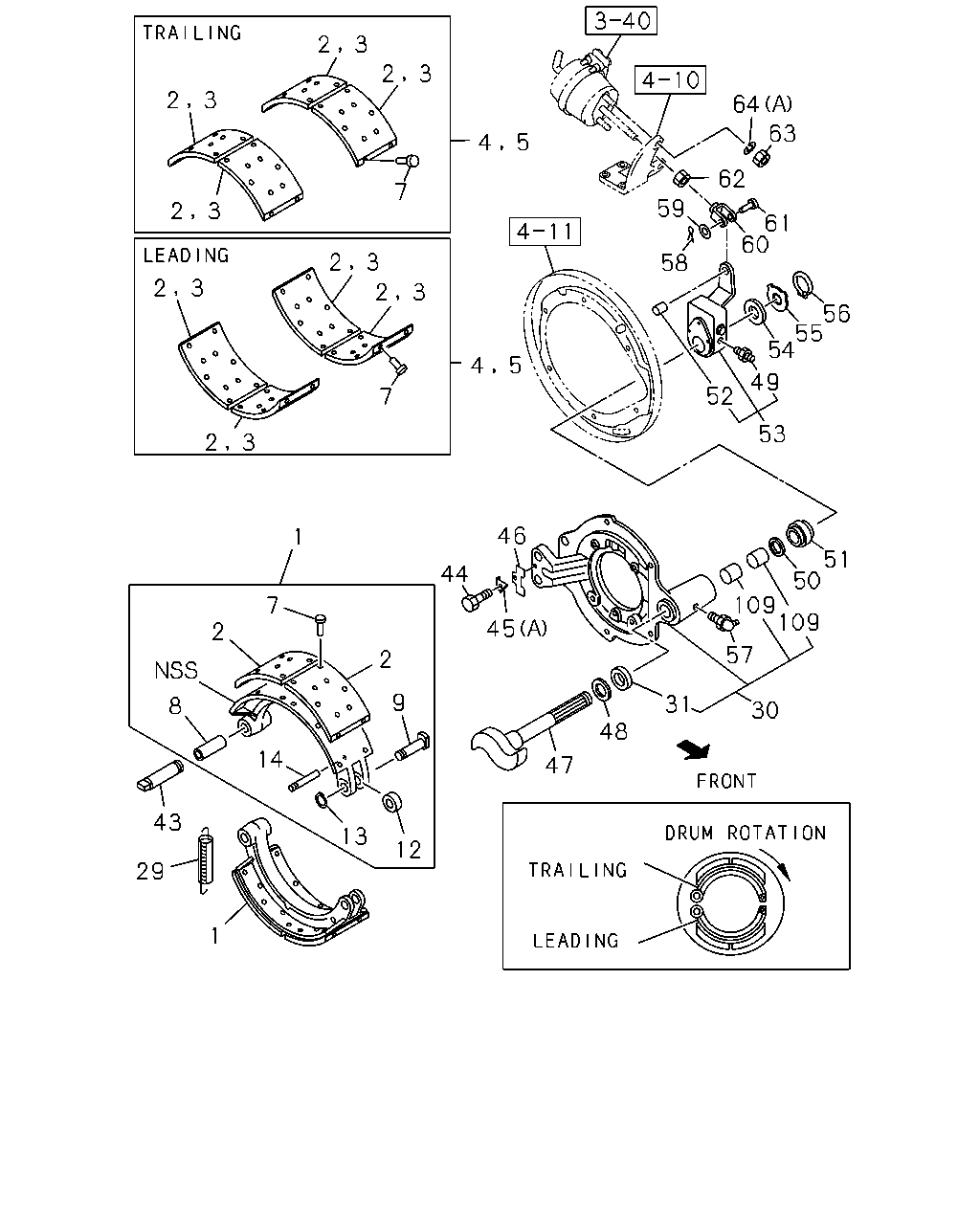

2 3 74 2 3 2 3 5 4 74 7 2 3 133 64 63 2 3 2 5 4 3 61 59 62 3 2 56 60 7 58 109 51 55 54 52 2 3 131 49 50 46 53 45 44 1 109 7 57 2 2 31 30 9 8 48 47 14 43 12 13 29 1 45 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT LEADING	1-47110-965-0	01	1	9002-9509
1	SHOE; BRK,FRT EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-965-0	01	1	9510-
1	SHOE; BRK,FRT TRAILING	1-47110-966-0	01	1	9002-9509
1	SHOE; BRK,FRT EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-966-0	01	1	9510-
1	SHOE; BRK,FRT LEADING	1-47110-963-0	01	1	9002-9509
1	SHOE; BRK,FRT EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-963-0	01	1	9510-
1	SHOE; BRK,FRT TRAILING	1-47110-964-0	01	1	9002-9509
1	SHOE; BRK,FRT EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-964-0	01	1	9510-
1	SHOE; BRK,FRT BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-113-0	01	1	9510-
1	SHOE; BRK,FRT BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-114-0	01	1	9510-
1	SHOE; BRK,FRT BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-111-0	01	1	9510-
1	SHOE; BRK,FRT BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-112-0	01	1	9510-
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-771-0	04	1	9002-9509
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-771-0	04	1	9510-
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-814-0	04	1	9002-9509
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-814-0	04	1	9510-
2	LINING; FRT BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-955-0	04	1	9510-
2	LINING; FRT BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-961-0	04	1	9510-
2	LINING; FRT BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-47125-411-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-772-0	04	1	9002-9509
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-772-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-815-0	04	1	9002-9509
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-815-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-956-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-962-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-47125-412-0	04	1	9510-
4	LINING SET; FRT BRK,STANDARD LEADING	1-88302-923-0	01	1	9307-9509
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-923-0	01	1	9510-
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88302-931-0	01	1	9307-9509
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-931-0	01	1	9510-
4	LINING SET; FRT BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-051-0	01	1	9510-
4	LINING SET; FRT BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-053-0	01	1	9510-
4	LINING SET; FRT BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-88310-339-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88302-924-0	01	1	9307-9509
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-924-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88302-932-0	01	1	9307-9509
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-932-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-052-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-054-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-88310-340-0	01	1	9510-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9002-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9002-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	9002-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	9002-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9002-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9002-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	9002-
30	BRACKET; ANCHOR,FRT	1-47137-119-1	01	1	9002-9312
30	BRACKET; ANCHOR,FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-119-3	01	1	9401-
30	BRACKET; ANCHOR,FRT	1-47137-118-1	01	1	9002-9312
30	BRACKET; ANCHOR,FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-118-3	01	1	9401-
30	BRACKET; ANCHOR,FRT INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-268-2	01	1	9401-
30	BRACKET; ANCHOR,FRT INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-267-2	01	1	9401-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	9002-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9002-
44	BOLT; LOCK,ANCHOR PIN M10X16	9-02041-016-0	02	1	9002-9204
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9205-
45	WASHER; LK (A)	1-47133-007-0	02	1	9002-9109
45	WASHER; LK (A)	1-47133-011-0	02	1	9110-
45	WASHER; LK INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) ID=14.2	9-09150-514-0	04	1	9401-
46	PLATE; LOCK	1-47133-005-0	02	1	9002-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	9002-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	9002-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	9002-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-9312
49	NIPPLE; GREASE,SLACK ADJ EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	01	1	9401-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-9312
49	NIPPLE; GREASE,SLACK ADJ EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9401-
49	NIPPLE; GREASE,SLACK ADJ INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	9401-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	9002-
51	COLLAR; RING,CM/SHF	1-47143-003-0	02	1	9002-
52	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9002-
52	BUSHING; SLACK ADJ INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47146-003-1	02	1	9510-
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	9002-9312
53	ADJUSTER ASM; SLACK EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48270-044-0	01	1	9401-
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	9002-9312
53	ADJUSTER ASM; SLACK EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48270-043-0	01	1	9401-
53	ADJUSTER ASM; SLACK INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48270-078-0	01	1	9401-
53	ADJUSTER ASM; SLACK INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48270-077-0	01	1	9401-
54	SPACER; CM/SHF	1-47143-004-0	02	1	9002-
55	PLATE; STOPPER,CM/SHF	1-47149-021-0	02	1	9002-9312
55	PLATE; STOPPER,CM/SHF EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47149-021-0	02	1	9401-
55	PLATE; STOPPER,CM/SHF INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47149-053-0	02	1	9401-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	9002-
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-9312
57	NIPPLE; GREASE,ANCHOR BRKT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	9401-
57	NIPPLE; GREASE,ANCHOR BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9401-
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	9002-
59	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9002-9401
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9402-
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	9002-
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	9002-
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9002-
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9002-9509
63	NUT; POWER CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> M16	9-99110-416-0	04	1	9002-9509
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9510-
64	WASHER; LK,POWER CHAMBER (A) ID=16.2	9-09150-516-0	04	1	9002-9509
64	WASHER; LK,POWER CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) ID=16.2	9-09150-516-0	04	1	9002-9509
64	WASHER; LK,POWER CHAMBER (A) ID=16.2	9-09150-516-0	04	1	9510-
64	WASHER; LK,POWER CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) ID=14.2	9-09150-514-0	04	1	9401-
74	CONNECTOR; FRT BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> LH & RH EMERGENCY M20 & PT3/8	1-09660-731-0	03	1	9401-
74	CONNECTOR; FRT BRK INTERNATIONAL STANDARD ISO 10STUD<B3V> RH SERVICE	1-09660-732-0	01	1	9401-
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	9002-
131	BRACKET; POWER CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-152-1	01	1	9401-
131	BRACKET; POWER CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-151-1	01	1	9401-
133	BOLT; BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V> M14X40	0-20801-440-0	08	1	9401-9409
133	BOLT; BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V> M14X60	0-20801-460-0	08	1	9410-

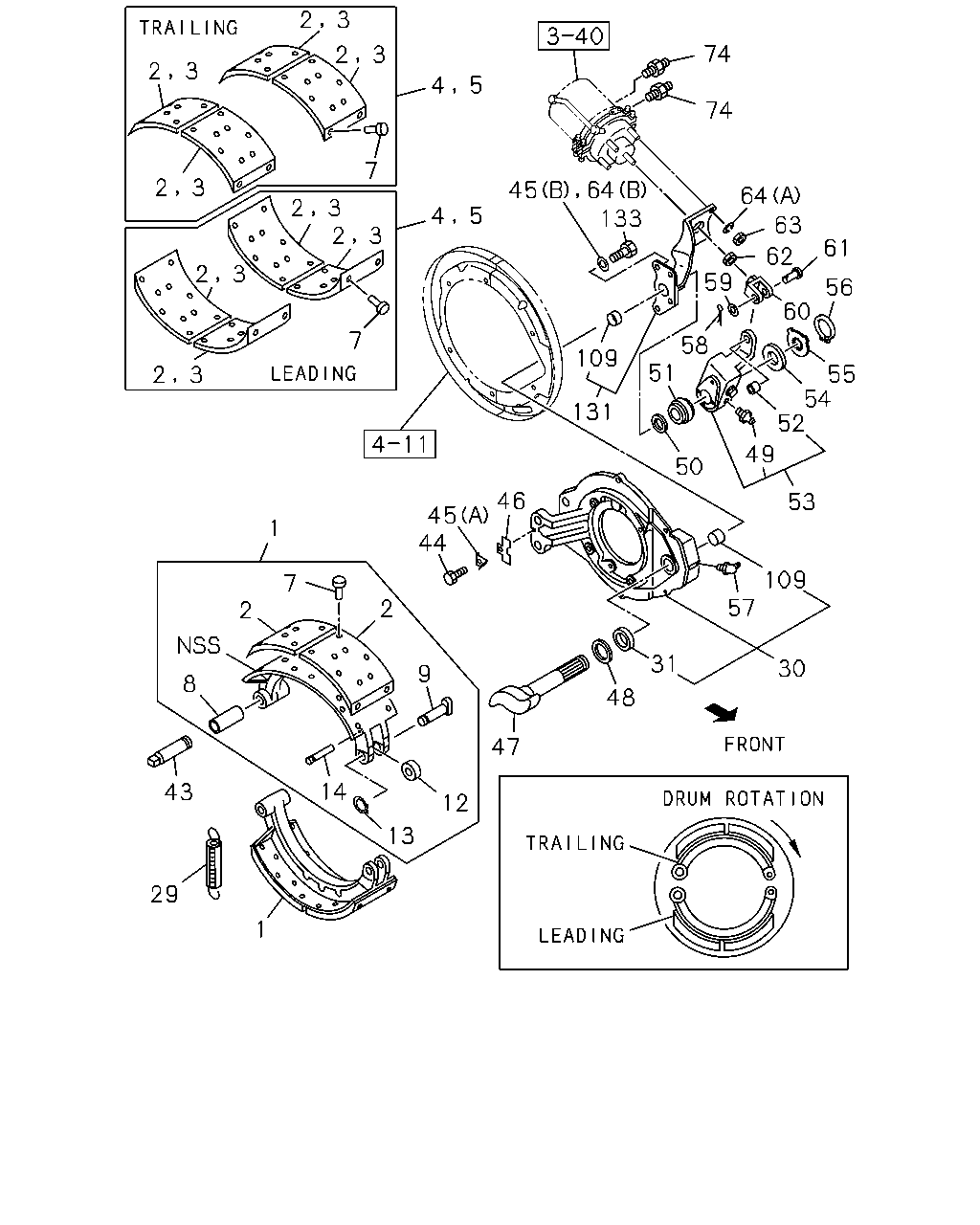

2 3 2 3 3 2 64 63 5 4 62 59 7 2 3 61 60 2 3 58 2 3 2 3 56 55 54 5 4 49 52 7 53 3 2 46 1 51 50 44 109 109 7 45 2 57 2 9 31 8 30 48 14 47 43 13 12 29 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT LEADING	1-47110-965-0	01	1	9002-9509
1	SHOE; BRK,FRT EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-965-0	01	1	9510-
1	SHOE; BRK,FRT TRAILING	1-47110-966-0	01	1	9002-9509
1	SHOE; BRK,FRT EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-966-0	01	1	9510-
1	SHOE; BRK,FRT LEADING	1-47110-963-0	01	1	9002-9509
1	SHOE; BRK,FRT EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-963-0	01	1	9510-
1	SHOE; BRK,FRT TRAILING	1-47110-964-0	01	1	9002-9509
1	SHOE; BRK,FRT EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-964-0	01	1	9510-
1	SHOE; BRK,FRT BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-113-0	01	1	9510-
1	SHOE; BRK,FRT BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-114-0	01	1	9510-
1	SHOE; BRK,FRT BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-111-0	01	1	9510-
1	SHOE; BRK,FRT BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-112-0	01	1	9510-
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-771-0	04	1	9002-9509
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-771-0	04	1	9510-
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-814-0	04	1	9002-9509
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-814-0	04	1	9510-
2	LINING; FRT BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-955-0	04	1	9510-
2	LINING; FRT BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-961-0	04	1	9510-
2	LINING; FRT BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-47125-411-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-772-0	04	1	9002-9509
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-772-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-815-0	04	1	9002-9509
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-815-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-956-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-962-0	04	1	9510-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-47125-412-0	04	1	9510-
4	LINING SET; FRT BRK,STANDARD LEADING	1-88302-923-0	01	1	9307-9509
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-923-0	01	1	9510-
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88302-931-0	01	1	9307-9509
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-931-0	01	1	9510-
4	LINING SET; FRT BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-051-0	01	1	9510-
4	LINING SET; FRT BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-053-0	01	1	9510-
4	LINING SET; FRT BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-88310-339-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88302-924-0	01	1	9307-9509
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-924-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88302-932-0	01	1	9307-9509
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-932-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-052-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-054-0	01	1	9510-
5	LINING SET; FRT BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE	1-88310-340-0	01	1	9510-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9002-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9002-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	9002-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	9002-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9002-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9002-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	9002-
30	BRACKET; ANCHOR,FRT	1-47137-119-1	01	1	9002-9312
30	BRACKET; ANCHOR,FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-119-3	01	1	9401-
30	BRACKET; ANCHOR,FRT	1-47137-118-1	01	1	9002-9312
30	BRACKET; ANCHOR,FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-118-3	01	1	9401-
30	BRACKET; ANCHOR,FRT INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-268-2	01	1	9401-
30	BRACKET; ANCHOR,FRT INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-267-2	01	1	9401-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	9002-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9002-
44	BOLT; LOCK,ANCHOR PIN M10X16	9-02041-016-0	02	1	9002-9204
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9205-
45	WASHER; LK (A)	1-47133-007-0	02	1	9002-9109
45	WASHER; LK (A)	1-47133-011-0	02	1	9110-
45	WASHER; LK INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) ID=14.2	9-09150-514-0	04	1	9401-
46	PLATE; LOCK	1-47133-005-0	02	1	9002-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	9002-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	9002-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	9002-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-9312
49	NIPPLE; GREASE,SLACK ADJ EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	01	1	9401-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9002-9312
49	NIPPLE; GREASE,SLACK ADJ EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9401-
49	NIPPLE; GREASE,SLACK ADJ INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	9401-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	9002-
51	COLLAR; RING,CM/SHF	1-47143-003-0	02	1	9002-
52	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9002-
52	BUSHING; SLACK ADJ INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47146-003-1	02	1	9510-
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	9002-9312
53	ADJUSTER ASM; SLACK EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48270-044-0	01	1	9401-
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	9002-9312
53	ADJUSTER ASM; SLACK EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48270-043-0	01	1	9401-
53	ADJUSTER ASM; SLACK INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48270-078-0	01	1	9401-
53	ADJUSTER ASM; SLACK INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48270-077-0	01	1	9401-
54	SPACER; CM/SHF	1-47143-004-0	02	1	9002-
55	PLATE; STOPPER,CM/SHF	1-47149-021-0	02	1	9002-9312
55	PLATE; STOPPER,CM/SHF EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47149-021-0	02	1	9401-
55	PLATE; STOPPER,CM/SHF INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47149-053-0	02	1	9401-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	9002-
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-9312
57	NIPPLE; GREASE,ANCHOR BRKT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	9401-
57	NIPPLE; GREASE,ANCHOR BRKT INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9401-
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	9002-
59	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9002-9401
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9402-
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	9002-
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	9002-
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9002-
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9002-9509
63	NUT; POWER CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> M16	9-99110-416-0	04	1	9002-9509
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9510-
64	WASHER; LK,POWER CHAMBER (A) ID=16.2	9-09150-516-0	04	1	9002-9509
64	WASHER; LK,POWER CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) ID=16.2	9-09150-516-0	04	1	9002-9509
64	WASHER; LK,POWER CHAMBER (A) ID=16.2	9-09150-516-0	04	1	9510-
64	WASHER; LK,POWER CHAMBER INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) ID=14.2	9-09150-514-0	04	1	9401-
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
