1-50 — EXHAUST PIPE AND SILENCER (#24689) — 515 parça

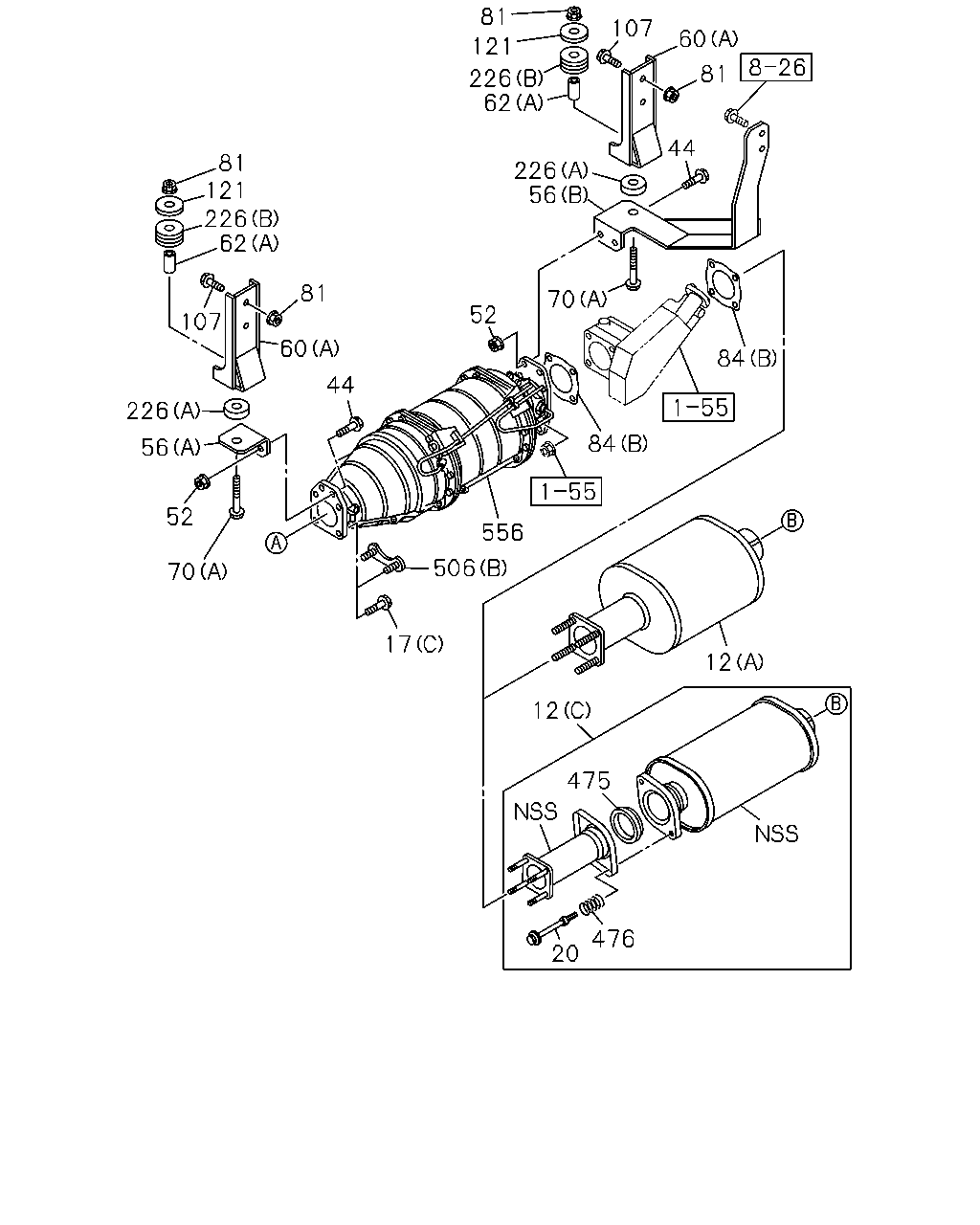

çizim 60598
81 121 226 226 56 44 81 60 107 62 70 84 52 81 60 226 56 52 70 17 506 556 12 12 475 84 81 121 226 62 107 44 476 20
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
WHEEL BASE 3900MM(39W) (B) 		8-98070-098-2 01 1 0809-
12 SILENCER ASM; EXH
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98041-925-1 01 1 0809-1301
12 SILENCER ASM; EXH
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (C) 		8-98234-507-0 01 1 1302-
17 BOLT; EXH PIPE
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
WHEEL BASE 3900MM(39W) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0809-
20 BOLT; FLANGE,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) 		8-98233-481-0 02 1 1302-
44 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M10X30 FLANGE 		0-28651-030-0 02 1 0809-0907
44 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M10X35 FLANGE 		0-28651-035-0 02 1 0908-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0809-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3900MM(39W) (C) 		8-98071-227-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3900MM(39W) (D) 		8-98071-231-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (E) L=204 		1-22131-520-1 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (F) 		8-98070-639-0 01 1 0809-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (H) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) L=94 		1-22131-575-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3900MM(39W) (C) 		8-98071-228-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3900MM(39W) (B) 		8-98072-708-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (D) 		8-98070-641-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) 		8-98098-129-0 01 1 0809-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 3900MM(39W) (A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
WHEEL BASE 3900MM(39W) (A) 		8-98060-852-0 02 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) L=22 		9-22159-024-0 01 1 0907-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-
70 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
70 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
81 NUT; BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 04 1 0809-0810
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0810
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-0810
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0809-
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0809-
107 BOLT; BRKT
WHEEL BASE 3900MM(39W) M10X40 FLANGE 		0-28651-040-0 02 1 0911-
107 BOLT; BRKT
WHEEL BASE 3900MM(39W) M10X40 FLANGE 		0-28651-040-0 02 1 0911-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-0910
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-0910
107 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X35 FLANGE 		0-28651-035-0 02 1 0911-
107 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X35 FLANGE 		0-28651-035-0 02 1 0911-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-
121 WASHER; PL,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) ID=8.4 OD=22 		1-09503-154-2 01 1 0906-
121 WASHER; PL,BRKT
WHEEL BASE 3900MM(39W) ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
WHEEL BASE 3900MM(39W) ID=8.4 OD=22 		1-09503-154-2 02 1 0906-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-94457-277-1 01 1 0906-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) 		8-94457-278-1 01 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (A) 		8-94457-277-1 02 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (B) 		8-94457-278-1 02 1 0906-
475 BEARING; SEAL,VIBNON,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) 		8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) 		8-98233-482-0 02 1 1302-
506 BRACKET; STUD
WHEEL BASE 3900MM(39W) (A) 		1-22134-214-0 02 1 0809-
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0809-1203
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97606-314-5 01 1 0809-1011
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97622-899-3 01 1 1012-
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97613-331-6 01 1 0809-1010
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97622-883-3 01 1 1011-

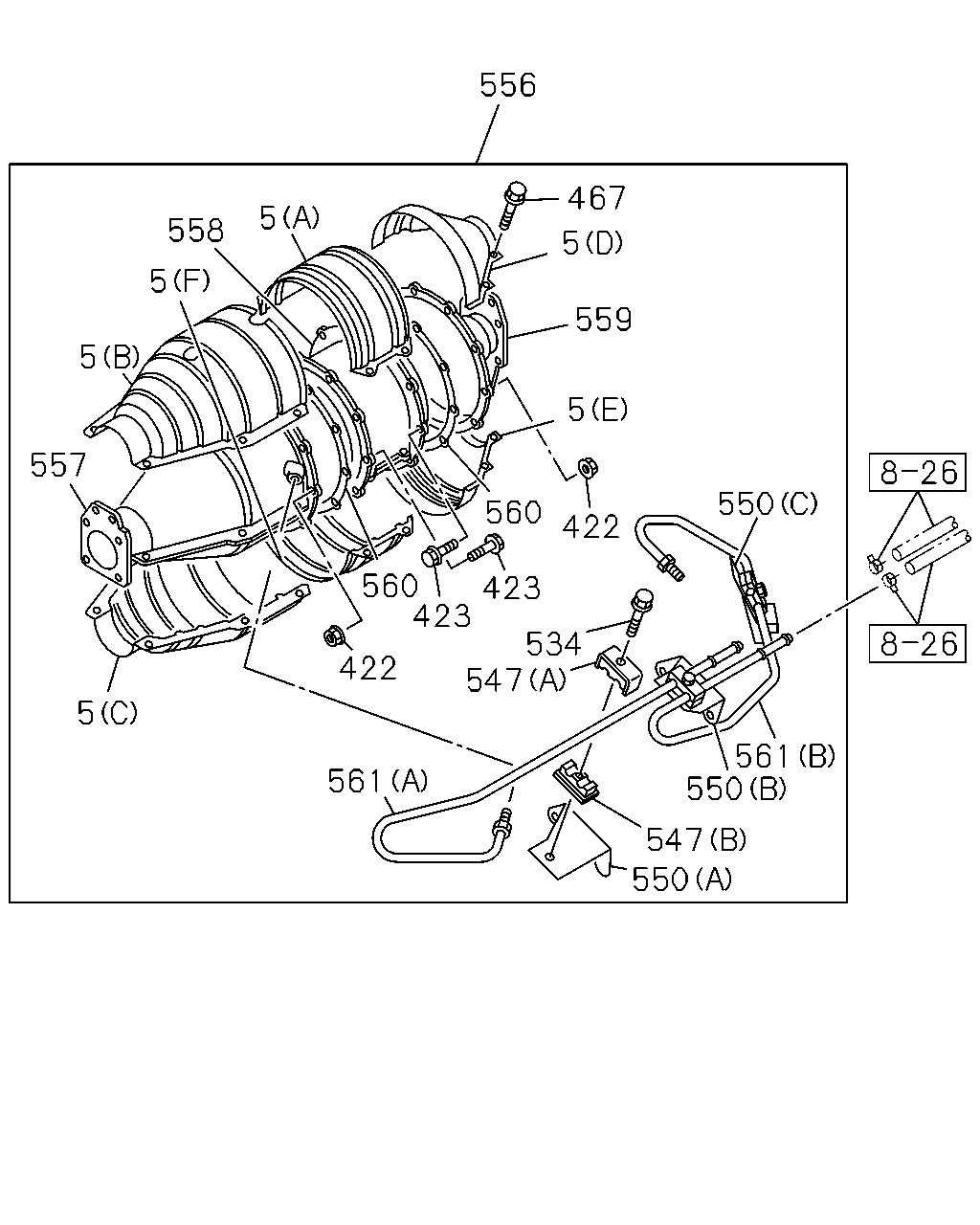

çizim 60629
556 467 5 558 5 5 559 5 5 557 550 560 422 560 423 423 534 547 422 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (B) 		8-97611-098-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (C) 		8-97611-099-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (A) 		8-97611-100-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (F) 		8-97611-101-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (D) 		8-97611-102-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (E) 		8-97611-103-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (A) 		8-97605-172-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (B) 		8-97611-086-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (C) 		8-97611-087-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (D) 		8-97611-088-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (E) 		8-97611-089-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (F) 		8-97613-390-0 01 1 0809-
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 0809-1406
5 PROTECTOR; HEAT
(G) 		8-98255-001-0 01 1 1407-
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0809-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0809-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0809-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0809-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0809-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0809-
550 BRACKET; DPD
6HK1-TCS ENG(80L) (A) 		8-97611-096-0 01 1 0809-
550 BRACKET; DPD
6HK1-TCS ENG(80L) (B) 		8-97611-097-0 01 1 0809-
550 BRACKET; DPD
6HK1-TCC ENG(81L) (A) 		8-97611-083-0 01 1 0809-
550 BRACKET; DPD
6HK1-TCC ENG(81L) (B) 		8-97611-084-0 01 1 0809-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0809-
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97606-314-5 01 1 0809-1011
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97622-899-3 01 1 1012-
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97613-331-6 01 1 0809-1010
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97622-883-3 01 1 1011-
557 CATALYST ASM
6HK1-TCS ENG(80L) 		8-97608-054-5 01 1 0809-
557 CATALYST ASM
6HK1-TCC ENG(81L) 		8-97608-055-7 01 1 0809-
558 FILTER ASM
6HK1-TCS ENG(80L) 		8-97608-056-2 01 1 0809-
558 FILTER ASM
6HK1-TCC ENG(81L) 		8-97608-057-3 01 1 0809-
559 COVER; RR
6HK1-TCS ENG(80L) 		8-97611-090-0 01 1 0809-1011
559 COVER; RR
6HK1-TCS ENG(80L) 		8-97622-903-0 01 1 1012-
559 COVER; RR
6HK1-TCC ENG(81L) 		8-97611-078-0 01 1 0809-1010
559 COVER; RR
6HK1-TCC ENG(81L) 		8-97622-887-0 01 1 1011-
560 GASKET; DPD
6HK1-TCS ENG(80L) 		8-97611-092-0 02 1 0809-
560 GASKET; DPD
6HK1-TCC ENG(81L) 		8-97611-080-0 02 1 0809-
561 PIPE; DPD
6HK1-TCS ENG(80L) (A) 		8-97611-093-0 01 1 0809-1011
561 PIPE; DPD
6HK1-TCS ENG(80L) (A) 		8-97622-904-0 01 1 1012-
561 PIPE; DPD
6HK1-TCS ENG(80L) (B) 		8-97611-094-0 01 1 0809-1011
561 PIPE; DPD
6HK1-TCS ENG(80L) (B) 		8-97622-905-0 01 1 1012-
561 PIPE; DPD
6HK1-TCC ENG(81L) (A) 		8-97611-081-0 01 1 0809-1010
561 PIPE; DPD
6HK1-TCC ENG(81L) (A) 		8-97622-888-0 01 1 1011-
561 PIPE; DPD
6HK1-TCC ENG(81L) (B) 		8-97611-082-0 01 1 0809-1010
561 PIPE; DPD
6HK1-TCC ENG(81L) (B) 		8-97622-889-0 01 1 1011-

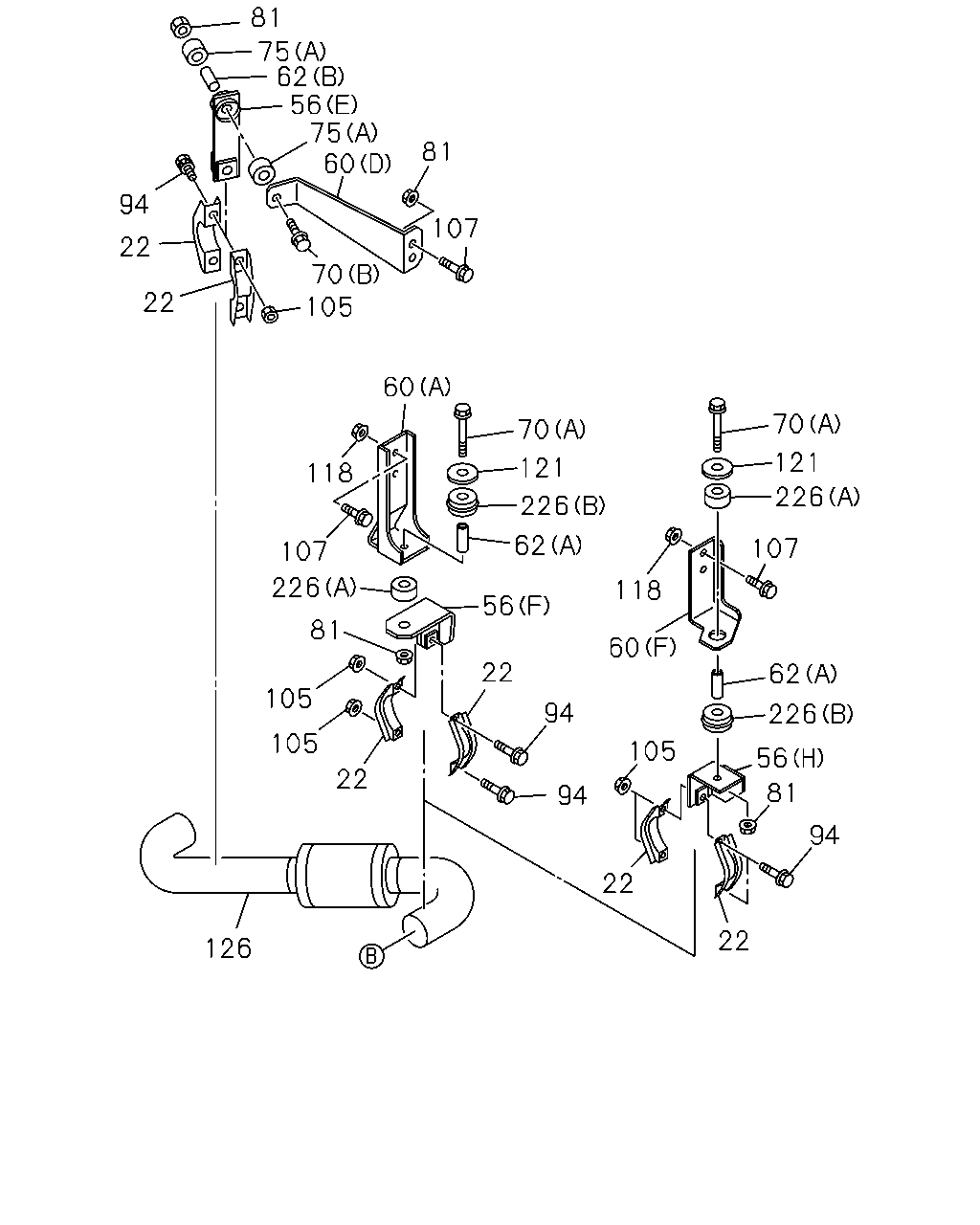

çizim 60812
94 22 22 105 70 60 75 107 81 56 81 70 75 62 60 118 70 226 62 56 22 94 105 94 22 105 81 105 226 121 22 126 22 94 56 81 62 226 107 121 118 60 226 107
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=80-84 		1-22133-233-0 02 1 0809-
22 CLAMP; EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) ID=80-84 		1-22133-233-0 02 1 0809-
22 CLAMP; EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) ID=80-84 		1-22133-233-0 02 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3900MM(39W) (C) 		8-98071-227-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3900MM(39W) (D) 		8-98071-231-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (E) L=204 		1-22131-520-1 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (F) 		8-98070-639-0 01 1 0809-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (H) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) L=94 		1-22131-575-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3900MM(39W) (C) 		8-98071-228-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3900MM(39W) (B) 		8-98072-708-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (D) 		8-98070-641-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) 		8-98098-129-0 01 1 0809-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 3900MM(39W) (A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
WHEEL BASE 3900MM(39W) (A) 		8-98060-852-0 02 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) L=22 		9-22159-024-0 01 1 0907-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-
70 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
70 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) OD=40 		1-22159-193-0 02 1 0809-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) OD=40 		1-22159-094-0 02 1 0809-
81 NUT; BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 04 1 0809-0810
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0810
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-0810
94 BOLT; CLAMP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10X40 FLANGE 		0-28651-040-0 02 1 0809-
94 BOLT; CLAMP
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X40 FLANGE 		0-28651-040-0 02 1 0809-
94 BOLT; CLAMP
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X40 FLANGE 		0-28651-040-0 02 1 0809-
105 NUT; CLAMP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-
105 NUT; CLAMP
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-
105 NUT; CLAMP
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-
107 BOLT; BRKT
WHEEL BASE 3900MM(39W) M10X40 FLANGE 		0-28651-040-0 02 1 0911-
107 BOLT; BRKT
WHEEL BASE 3900MM(39W) M10X40 FLANGE 		0-28651-040-0 02 1 0911-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-0910
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-0910
107 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X35 FLANGE 		0-28651-035-0 02 1 0911-
107 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X35 FLANGE 		0-28651-035-0 02 1 0911-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
118 NUT; SILENCER MTG BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 02 1 0809-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-
121 WASHER; PL,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) ID=8.4 OD=22 		1-09503-154-2 01 1 0906-
121 WASHER; PL,BRKT
WHEEL BASE 3900MM(39W) ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
WHEEL BASE 3900MM(39W) ID=8.4 OD=22 		1-09503-154-2 02 1 0906-
126 PIPE; EXH,RR
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) 		1-22126-646-2 01 1 0809-1301
126 PIPE; EXH,RR
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) 		8-98233-519-0 01 1 1302-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-94457-277-1 01 1 0906-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) 		8-94457-278-1 01 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (A) 		8-94457-277-1 02 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (B) 		8-94457-278-1 02 1 0906-

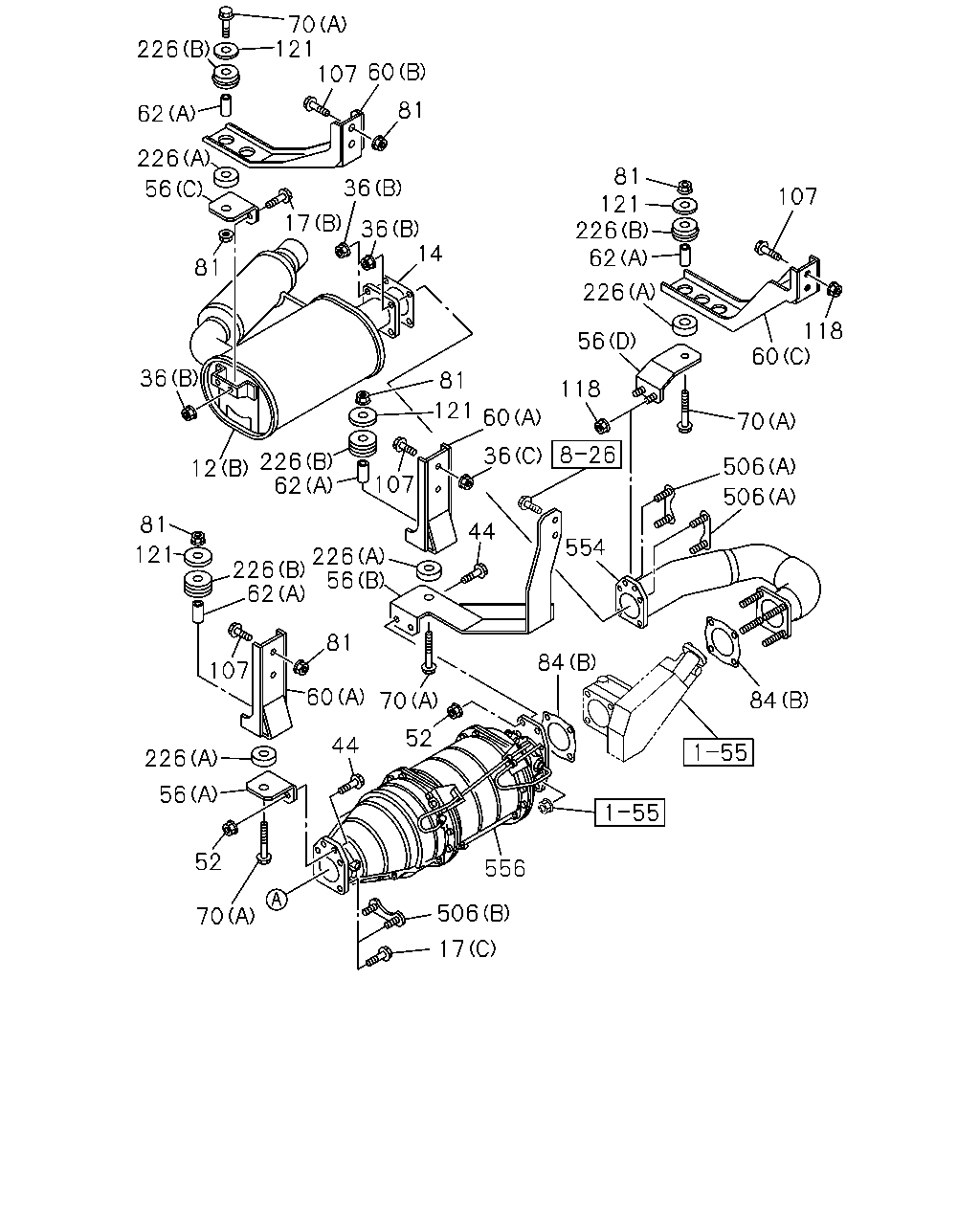

çizim 101633
70 121 107 226 60 81 62 226 81 121 226 62 36 56 107 17 36 14 81 226 118 60 56 36 81 118 121 60 70 36 226 62 506 12 107 506 81 554 44 121 226 226 56 62 81 84 107 60 84 70 52 44 226 56 52 556 506 70 17
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
WHEEL BASE 3900MM(39W) (B) 		8-98070-098-2 01 1 0809-
12 SILENCER ASM; EXH
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98041-925-1 01 1 0809-1301
12 SILENCER ASM; EXH
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (C) 		8-98234-507-0 01 1 1302-
14 GASKET; SILENCER TO EXH PIPE
WHEEL BASE 3900MM(39W) 		1-22116-042-0 01 1 0809-
17 BOLT; EXH PIPE
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
WHEEL BASE 3900MM(39W) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0809-
36 NUT; EXH PIPE
WHEEL BASE 3900MM(39W) (C) M10 FLANGE 		0-91180-210-0 02 1 0811-
36 NUT; EXH PIPE
WHEEL BASE 3900MM(39W) (B) M12 FLANGE 		0-91180-212-0 04 1 0809-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0809-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0809-
44 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M10X30 FLANGE 		0-28651-030-0 02 1 0809-0907
44 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M10X35 FLANGE 		0-28651-035-0 02 1 0908-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0809-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3900MM(39W) (C) 		8-98071-227-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3900MM(39W) (D) 		8-98071-231-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (E) L=204 		1-22131-520-1 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (F) 		8-98070-639-0 01 1 0809-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (H) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) L=94 		1-22131-575-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3900MM(39W) (C) 		8-98071-228-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3900MM(39W) (B) 		8-98072-708-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (D) 		8-98070-641-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) 		8-98098-129-0 01 1 0809-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 3900MM(39W) (A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
WHEEL BASE 3900MM(39W) (A) 		8-98060-852-0 02 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) L=22 		9-22159-024-0 01 1 0907-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-
70 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
70 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
81 NUT; BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 04 1 0809-0810
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0810
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-0810
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0809-
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0809-
107 BOLT; BRKT
WHEEL BASE 3900MM(39W) M10X40 FLANGE 		0-28651-040-0 02 1 0911-
107 BOLT; BRKT
WHEEL BASE 3900MM(39W) M10X40 FLANGE 		0-28651-040-0 02 1 0911-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-0910
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-0910
107 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X35 FLANGE 		0-28651-035-0 02 1 0911-
107 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X35 FLANGE 		0-28651-035-0 02 1 0911-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
118 NUT; SILENCER MTG BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 02 1 0809-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-
121 WASHER; PL,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) ID=8.4 OD=22 		1-09503-154-2 01 1 0906-
121 WASHER; PL,BRKT
WHEEL BASE 3900MM(39W) ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0809-0905
121 WASHER; PL,BRKT
WHEEL BASE 3900MM(39W) ID=8.4 OD=22 		1-09503-154-2 02 1 0906-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-94457-277-1 01 1 0906-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) 		8-94457-278-1 01 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0809-0905
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (A) 		8-94457-277-1 02 1 0906-
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0809-0905
226 RUBBER; CUSHION
WHEEL BASE 3900MM(39W) (B) 		8-94457-278-1 02 1 0906-
506 BRACKET; STUD
WHEEL BASE 3900MM(39W) (A) 		1-22134-214-0 02 1 0809-
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0809-1203
554 PIPE; EXH,SILENCER
WHEEL BASE 3900MM(39W) 		8-98085-262-0 01 1 0809-
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97606-314-5 01 1 0809-1011
556 DPD ASM
6HK1-TCS ENG(80L) 		8-97622-899-3 01 1 1012-
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97613-331-6 01 1 0809-1010
556 DPD ASM
6HK1-TCC ENG(81L) 		8-97622-883-3 01 1 1011-

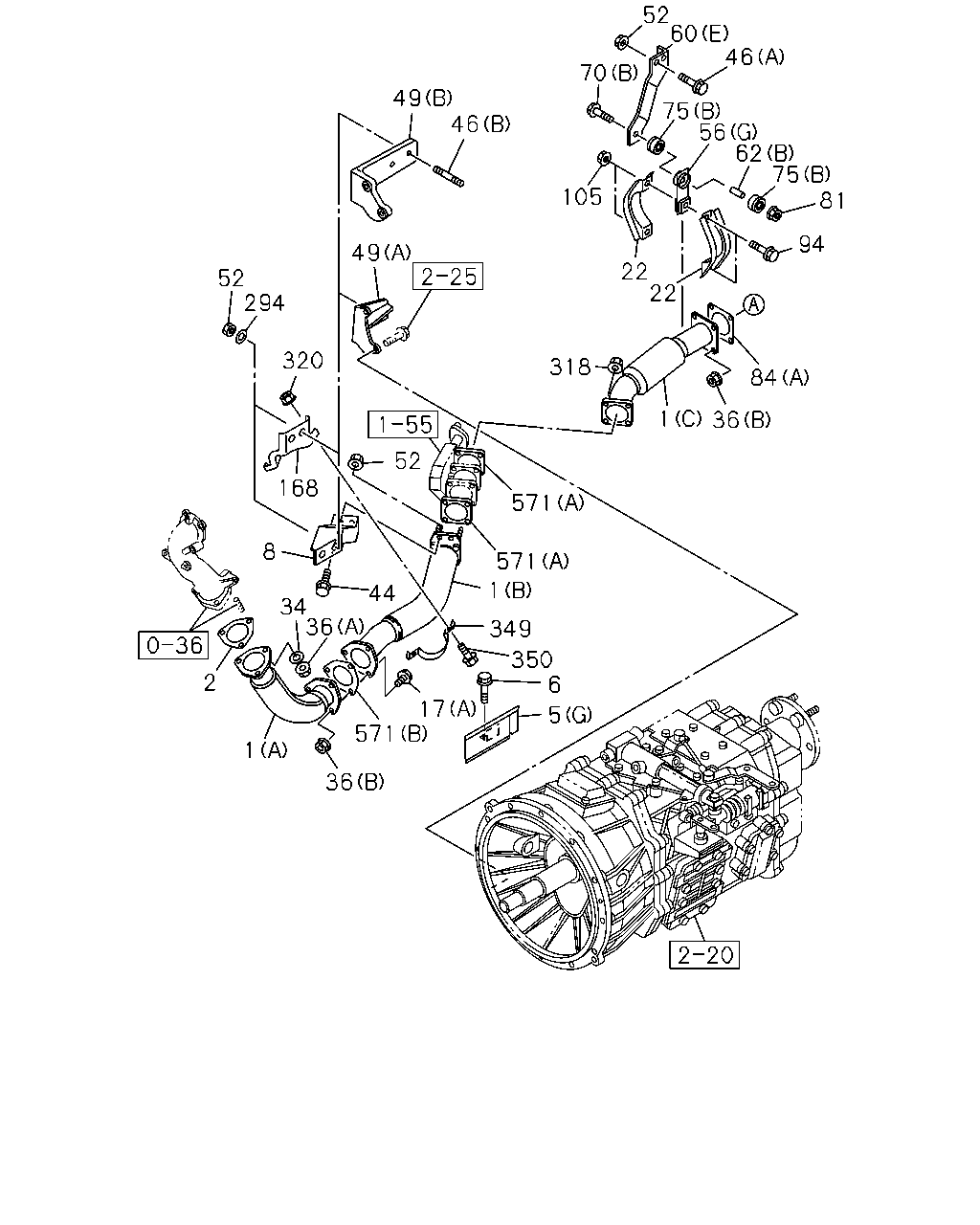

çizim 101889
52 294 320 168 8 34 2 1 36 571 17 36 44 52 571 571 1 349 350 6 5 318 22 22 1 36 84 94 81 75 62 56 75 46 60 52 70 105 49 46 49
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) 		8-98047-778-0 01 1 0809-1209
1 PIPE; EXH
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) 		8-98221-117-0 01 1 1210-
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98070-601-0 01 1 0809-1209
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98220-351-0 01 1 1210-
1 PIPE; EXH
6HK1-TCS ENG(80L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) 		1-22123-893-1 01 1 0809-
1 PIPE; EXH
6HK1-TCS ENG(80L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98097-603-0 01 1 0809-
1 PIPE; EXH
6HK1-TCC ENG(81L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) 		8-98070-119-0 01 1 0809-
1 PIPE; EXH
6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) 		8-98084-229-0 01 1 0809-
1 PIPE; EXH
(A) 		8-98061-088-1 01 1 0809-0902
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 0903-1209
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98043-481-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (B) 		8-97611-098-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (C) 		8-97611-099-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (A) 		8-97611-100-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (F) 		8-97611-101-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (D) 		8-97611-102-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCS ENG(80L) (E) 		8-97611-103-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (A) 		8-97605-172-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (B) 		8-97611-086-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (C) 		8-97611-087-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (D) 		8-97611-088-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (E) 		8-97611-089-0 01 1 0809-
5 PROTECTOR; HEAT
6HK1-TCC ENG(81L) (F) 		8-97613-390-0 01 1 0809-
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 0809-1406
5 PROTECTOR; HEAT
(G) 		8-98255-001-0 01 1 1407-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0809-
8 BRACKET; EXH PIPE
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) 		8-98069-914-0 01 1 0809-
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) 		8-98070-600-0 01 1 0809-1209
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) 		8-98120-522-0 01 1 1210-
17 BOLT; EXH PIPE
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
WHEEL BASE 3900MM(39W) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0809-
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=80-84 		1-22133-233-0 02 1 0809-
22 CLAMP; EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) ID=80-84 		1-22133-233-0 02 1 0809-
22 CLAMP; EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) ID=80-84 		1-22133-233-0 02 1 0809-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0809-
36 NUT; EXH PIPE
WHEEL BASE 3900MM(39W) (C) M10 FLANGE 		0-91180-210-0 02 1 0811-
36 NUT; EXH PIPE
WHEEL BASE 3900MM(39W) (B) M12 FLANGE 		0-91180-212-0 04 1 0809-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0809-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0809-
44 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M10X30 FLANGE 		0-28651-030-0 02 1 0809-0907
44 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M10X35 FLANGE 		0-28651-035-0 02 1 0908-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0809-
46 BOLT; BRKT,EXH PIPE
(B) M10X25 L=40 		0-44011-025-0 02 1 1210-
46 BOLT; BRKT,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
49 BRACKET; EXH PIPE TO TRANS
FULLER FSO5206B OD M/T(Y4V) (A) 		8-98069-908-0 01 1 0809-1209
49 BRACKET; EXH PIPE TO TRANS
FULLER FSO5206B OD M/T(Y4V) (B) 		8-98123-995-0 01 1 1210-
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) 		8-98069-944-1 01 1 0809-1209
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) 		8-98120-497-0 01 1 1210-
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) 		8-98069-900-0 01 1 0809-1209
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98124-769-0 01 1 1210-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3900MM(39W) (C) 		8-98071-227-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3900MM(39W) (D) 		8-98071-231-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (E) L=204 		1-22131-520-1 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (F) 		8-98070-639-0 01 1 0809-1301
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (H) 		8-98233-450-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) L=94 		1-22131-575-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (F) 		8-98233-451-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3900MM(39W) (C) 		8-98071-228-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3900MM(39W) (B) 		8-98072-708-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (D) 		8-98070-641-0 01 1 0809-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98070-628-0 01 1 0809-1301
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1302-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) 		8-98098-129-0 01 1 0809-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) 		8-98060-852-0 01 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 3900MM(39W) (A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0809-0905
62 TUBE; DIST,BRKT
WHEEL BASE 3900MM(39W) (A) 		8-98060-852-0 02 1 0906-
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) L=22 		9-22159-024-0 01 1 0907-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-
70 BOLT; BRKT
WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0809-0905
70 BOLT; BRKT
WHEEL BASE 3900MM(39W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-
70 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
70 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (A) OD=40 		1-22159-193-0 02 1 0809-
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) OD=40 		1-22159-094-0 02 1 0809-
81 NUT; BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 04 1 0809-0810
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0905
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
WHEEL BASE 3900MM(39W) M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0810
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-0810
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0809-
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0809-
94 BOLT; CLAMP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10X40 FLANGE 		0-28651-040-0 02 1 0809-
94 BOLT; CLAMP
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X40 FLANGE 		0-28651-040-0 02 1 0809-
94 BOLT; CLAMP
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10X40 FLANGE 		0-28651-040-0 02 1 0809-
105 NUT; CLAMP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-
105 NUT; CLAMP
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-
105 NUT; CLAMP
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		8-98071-144-0 01 1 0809-1209
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		8-98221-369-1 01 1 1210-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0809-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0809-
320 NUT; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91180-210-0 02 1 0809-
349 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		8-98058-351-0 01 1 0809-1209
349 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		8-98115-162-0 01 1 1210-
350 BOLT; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M10X30 FLANGE 		0-28651-030-0 02 1 0809-
571 GASKET
(A) 		1-22116-043-0 02 1 0809-
571 GASKET
(B) 		8-98043-481-0 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
