Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#24677) — 129 parça

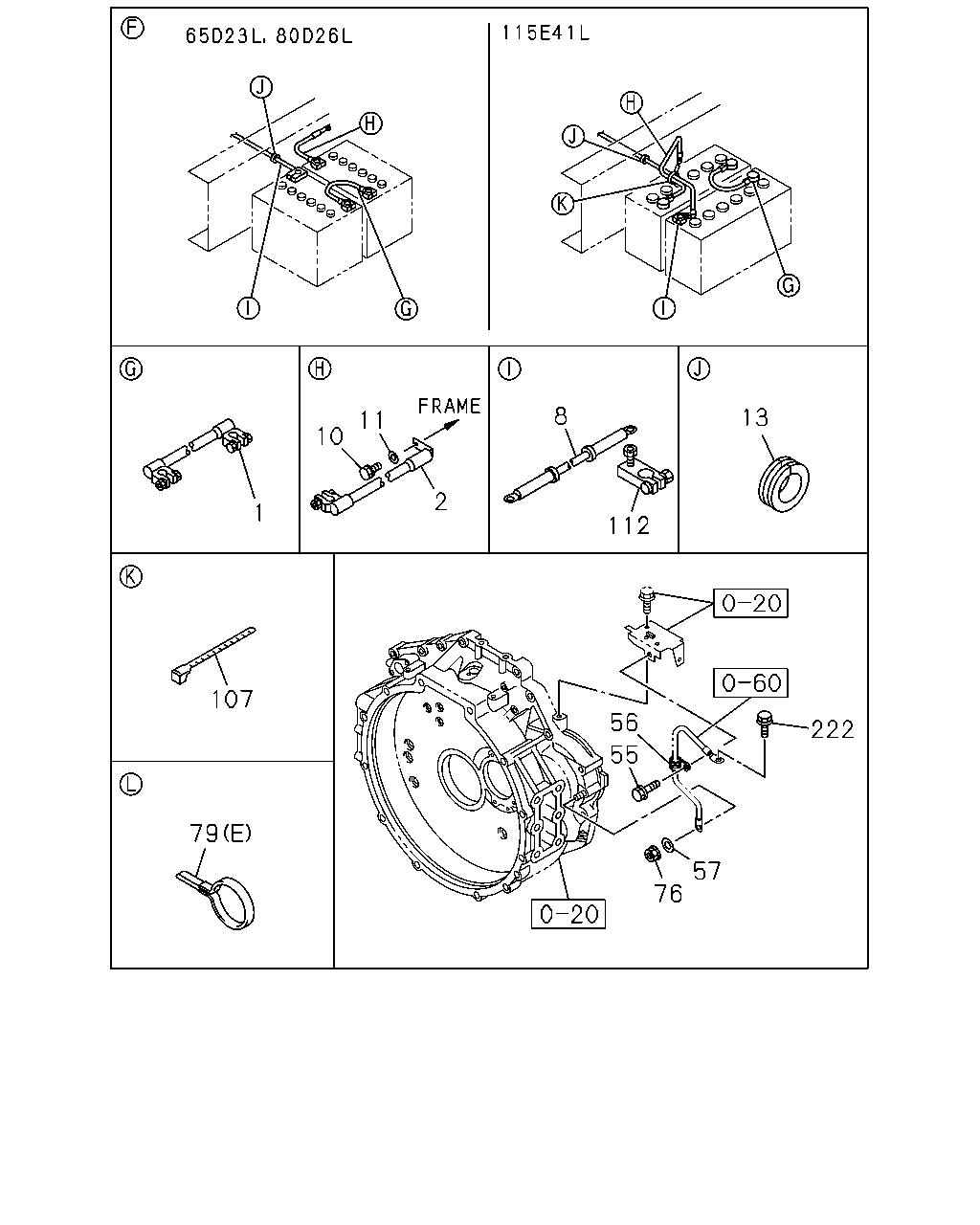

8 13 11 10 2 1 112 107 56 222 55 79 57 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	0809-
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	0809-
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=440	8-97615-309-1	01	1	0809-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3015	8-98150-693-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-402-0	01	1	1005-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA> L=3215	8-98150-699-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA>	8-98159-406-0	01	1	1005-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3065	8-98150-695-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-404-0	01	1	1005-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA> L=3265	8-98150-700-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA>	8-98159-407-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3050	8-98107-555-0	01	1	0809-0908
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3050	8-98107-555-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3050	8-98159-393-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA> L=3250	8-98123-185-0	01	1	0809-0908
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA> L=3250	8-98123-185-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA>	8-98159-398-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3100	8-98096-442-1	01	1	0809-0908
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3100	8-98096-442-1	01	1	0909-1004
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3100	8-98159-395-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA> L=3300	8-98123-186-0	01	1	0809-0908
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA> L=3300	8-98123-186-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA>	8-98159-399-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0809-1004
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA> L=1730	8-98123-184-0	01	1	0809-1004
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA>	8-98159-397-0	01	1	1005-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0809-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0809-
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	0809-
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	0809-
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	0809-
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0809-
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W) (C) ID=21 L=24	8-98019-191-0	01	1	0809-0809
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (C) ID=21 L=24	8-98019-191-0	01	1	0810-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	01	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	03	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	03	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=21 L=24	8-98019-191-0	02	1	0809-0809
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	0809-1004
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1005-
79	CLIP; BATTERY CABLE (E) ID=13-18 L=26	1-09709-293-0	02	1	0809-0810
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E) ID=13-18 L=26	1-09709-293-0	02	1	0811-
107	CLIP; BAND L=140	5-09707-031-1	01	1	0809-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	0809-1408
112	TERMINAL; BATTERY	8-98290-356-0	01	1	1409-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0809-

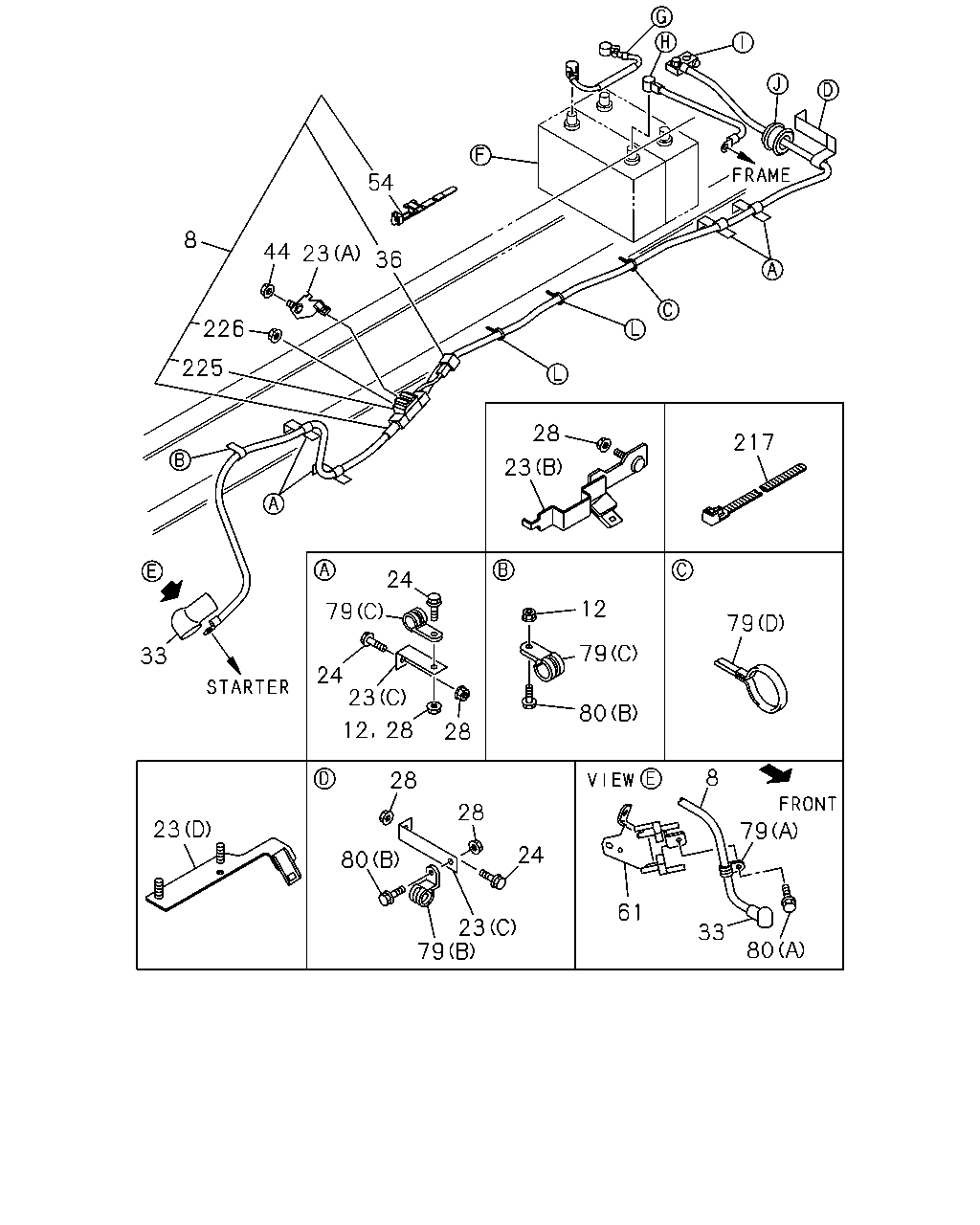

54 8 44 23 36 226 225 28 217 23 24 12 79 79 79 33 24 23 80 12 28 28 8 28 28 23 79 24 80 61 23 79 33 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3015	8-98150-693-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-402-0	01	1	1005-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA> L=3215	8-98150-699-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA>	8-98159-406-0	01	1	1005-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3065	8-98150-695-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-404-0	01	1	1005-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA> L=3265	8-98150-700-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA>	8-98159-407-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3050	8-98107-555-0	01	1	0809-0908
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3050	8-98107-555-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3050	8-98159-393-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA> L=3250	8-98123-185-0	01	1	0809-0908
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA> L=3250	8-98123-185-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA>	8-98159-398-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3100	8-98096-442-1	01	1	0809-0908
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3100	8-98096-442-1	01	1	0909-1004
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=3100	8-98159-395-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA> L=3300	8-98123-186-0	01	1	0809-0908
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA> L=3300	8-98123-186-0	01	1	0909-1004
8	CABLE; BATTERY,STARTER ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA>	8-98159-399-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0809-1004
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1005-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA> L=1730	8-98123-184-0	01	1	0809-1004
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA>	8-98159-397-0	01	1	1005-
12	NUT; BATTERY CABLE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91180-108-0	01	1	0810-
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	0809-
12	NUT; BATTERY CABLE CLIP WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	0809-
12	NUT; BATTERY CABLE CLIP WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M8 FLANGE	0-91180-108-0	02	1	0809-0809
12	NUT; BATTERY CABLE CLIP WHEEL BASE 3900MM(39W) M8 FLANGE	0-91180-108-0	02	1	0810-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W) (C) L=65	1-47479-064-1	01	1	0809-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W) (C) L=95	1-82699-085-0	01	1	0809-0809
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (C) L=95	1-82699-085-0	01	1	0810-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4600MM(46W) (C) L=95	1-82699-085-0	03	1	0809-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) L=95	1-82699-085-0	03	1	0809-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) L=95	1-82699-085-0	02	1	0809-0809
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	0809-
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98085-160-4	01	1	0809-1111
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98201-025-0	01	1	1112-
24	BOLT; BRKT TO FRAME WHEEL BASE 3900MM(39W) M8X25 FLANGE	0-28650-825-0	01	1	0809-
24	BOLT; BRKT TO FRAME WHEEL BASE 3900MM(39W) M8X30 FLANGE	0-28650-830-0	01	1	0809-0809
24	BOLT; BRKT TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M8X30 FLANGE	0-28650-830-0	01	1	0810-
24	BOLT; BRKT TO FRAME WHEEL BASE 4600MM(46W) M8X30 FLANGE	0-28650-830-0	03	1	0809-
24	BOLT; BRKT TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8X30 FLANGE	0-28650-830-0	03	1	0809-
24	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28650-830-0	02	1	0809-0809
28	NUT; BRKT TO FRAME WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	0809-
28	NUT; BRKT TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	03	1	0809-
28	NUT; BRKT TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) M8 FLANGE	0-91180-108-0	02	1	0809-0809
28	NUT; BRKT TO FRAME WHEEL BASE 3900MM(39W) M8 FLANGE	0-91180-108-0	02	1	0810-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0809-0809
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0810-1111
28	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91180-108-0	01	1	0810-1111
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-
28	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91180-108-0	01	1	1112-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-
33	CAP; INSULATOR	1-82699-431-0	01	1	0809-
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	0809-
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-
54	CLIP; BAND,BATTERY CABLE L=175	1-09707-176-1	01	1	0809-1004
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W) (C) ID=21 L=24	8-98019-191-0	01	1	0809-0809
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (C) ID=21 L=24	8-98019-191-0	01	1	0810-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	01	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	03	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	03	1	0809-
79	CLIP; BATTERY CABLE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=21 L=24	8-98019-191-0	02	1	0809-0809
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	0809-1004
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1005-
79	CLIP; BATTERY CABLE (E) ID=13-18 L=26	1-09709-293-0	02	1	0809-0810
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E) ID=13-18 L=26	1-09709-293-0	02	1	0811-
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M8X25 FLANGE	0-28650-825-0	01	1	0810-
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 4600MM(46W) (B) M8X25 FLANGE	0-28650-825-0	03	1	0809-
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M8X25 FLANGE	0-28650-825-0	03	1	0809-
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 3900MM(39W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0809
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 3900MM(39W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	0809-
217	CLIP; BAND,CABLE FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=250	5-09707-030-1	01	1	0908-
217	CLIP; BAND,CABLE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=250	5-09707-030-1	02	1	0810-
225	BLOCK; TERMINAL	8-98029-689-0	01	1	0809-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	0809-
