◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#2466) — 56 parça

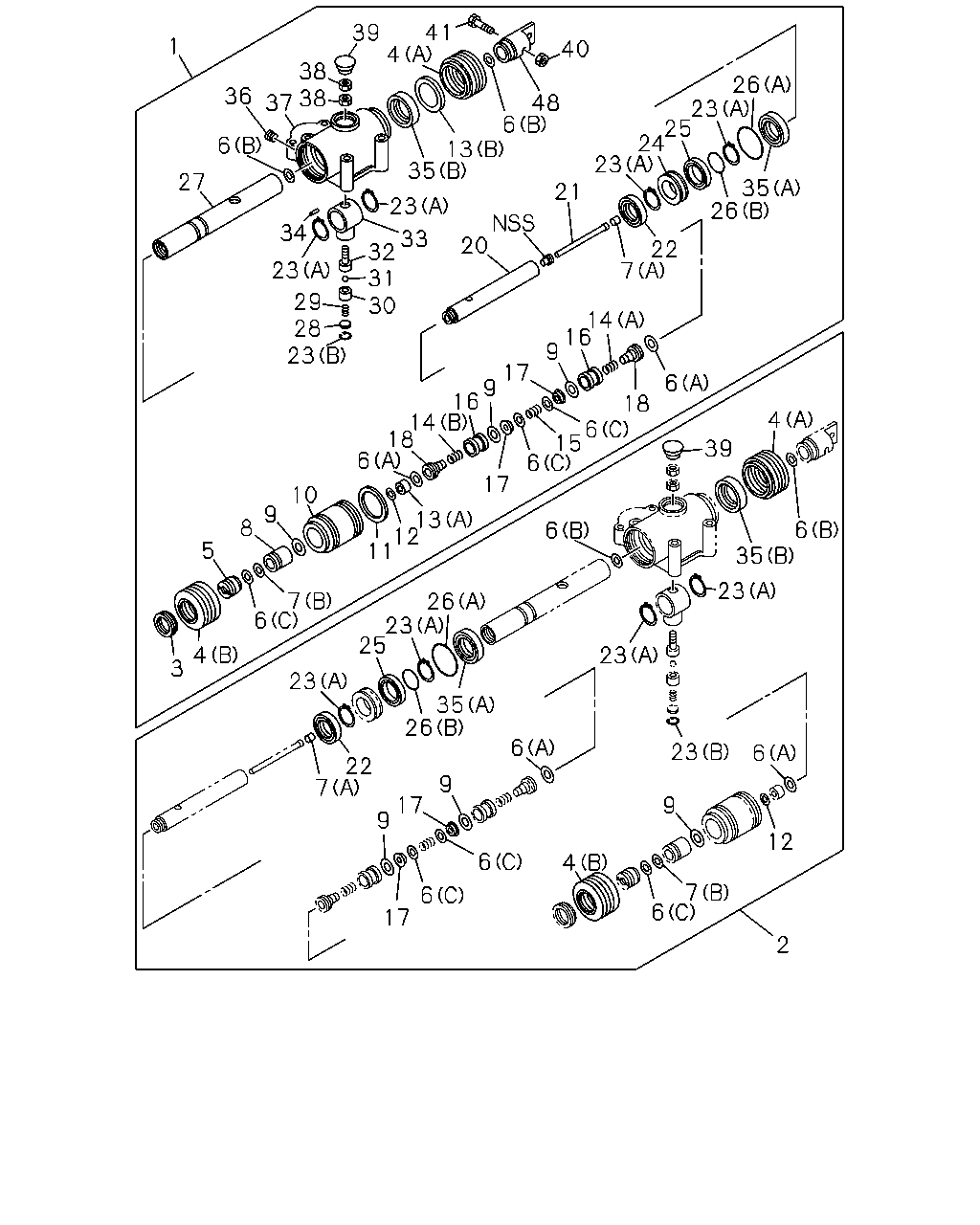

çizim 28530
39 4 41 1 40 26 23 25 24 23 38 38 37 36 48 6 13 35 6 27 35 26 21 23 20 34 33 32 31 30 22 7 23 29 28 23 14 16 9 17 9 16 14 18 6 6 18 6 15 6 4 39 17 10 9 13 12 11 8 6 35 6 5 23 7 6 26 23 25 4 3 23 23 35 26 6 23 6 22 7 9 17 9 9 12 6 4 7 6 6 17 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ASSISTOR ASM; POWER,SHIFT
10PD1 STD ENG(40L) ASSISTOR SHIFT CONTROL<WX8> 		1-33730-062-4 01 1 9002- ● ●
1 ASSISTOR ASM; POWER,SHIFT
6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> 		1-33730-063-2 01 1 9002- ●
2 REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-360-0 01 1 9002- ● ● ●
3 NUT; LK,ROD
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-025-0 01 1 9002- ● ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-030-0 01 1 9002- ● ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-038-0 01 1 9002- ● ● ●
5 CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-103-0 01 1 9002- ● ● ●
6 GASKET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-008-0 02 1 9002- ● ● ●
6 GASKET
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-013-0 03 1 9002- ● ● ●
6 GASKET
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-080-0 02 1 9002- ● ● ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-032-0 01 1 9002- ● ● ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-033-0 01 1 9002- ● ● ●
8 TUBE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-126-0 01 1 9002- ● ● ●
9 RING; SQUARE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-086-0 03 1 9002- ● ● ●
10 CYLINDER; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-352-0 01 1 9002- ● ● ●
11 PLATE; CYL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-108-0 01 1 9002- ● ● ●
12 RING; RET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-016-0 01 1 9002- ● ● ●
13 RETAINER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-015-0 01 1 9002- ● ● ●
13 RETAINER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-426-0 01 1 9002- ● ● ●
14 SPRING; VALVE LIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-009-0 01 1 9002- ● ● ●
14 SPRING; VALVE LIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-034-0 01 1 9002- ● ● ●
15 SPRING; VALVE SEAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-014-0 01 1 9002- ● ● ●
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-067-0 02 1 9002- ● ● ●
17 SEAL ASM; VALVE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-012-0 02 1 9002- ● ● ●
18 LIFTER; VALVE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-007-0 02 1 9002- ● ● ●
20 ROD ASM; W/CAP
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-101-0 01 1 9002- ● ● ●
21 PIPE; AIR,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> ID=7 L=113 		1-33739-006-0 01 1 9002-9306 ● ● ●
21 PIPE; AIR,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-048-0 01 1 9307- ● ● ●
22 SEAL; OIL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-353-0 01 1 9002- ● ● ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-022-0 04 1 9002- ● ● ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-47819-109-0 01 1 9002- ● ● ●
24 PISTON
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-349-0 01 1 9002-9109 ● ● ●
24 PISTON
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-499-0 01 1 9110- ● ● ●
25 RING; "X",PISTON
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-350-0 01 1 9002- ● ● ●
26 GASKET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-028-0 01 1 9002- ● ● ●
26 GASKET
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-129-0 01 1 9002- ● ● ●
27 ROD; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-355-0 01 1 9002- ● ● ●
28 PLATE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-094-0 01 1 9002- ● ● ●
29 SPRING; BALL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-095-0 01 1 9002- ● ● ●
30 PLUG
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-273-0 01 1 9002- ● ● ●
31 BALL; STEEL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-096-0 01 1 9002- ● ● ●
32 BOLT; STRIKER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-269-0 01 1 9002- ● ● ●
33 STRIKER; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-351-0 01 1 9002- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-271-0 01 1 9002- ● ● ●
35 GASKET; CUP
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-073-0 01 1 9002- ● ● ●
35 GASKET; CUP
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-075-0 01 1 9002- ● ● ●
36 SCREW; SET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-040-0 01 1 9002- ● ● ●
37 HOUSING; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-105-0 01 1 9002- ● ● ●
38 NUT; STRIKER BOLT
ASSISTOR SHIFT CONTROL<WX8> M10 		9-09110-510-0 02 1 9002-9306 ● ● ●
38 NUT; STRIKER BOLT
ASSISTOR SHIFT CONTROL<WX8> 		9-83315-080-0 02 1 9307- ● ● ●
39 COVER; RUBBER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-031-0 01 1 9002- ● ● ●
40 NUT; LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-363-0 01 1 9002- ● ● ●
41 BOLT; SET,LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-339-0 01 1 9002-9503 ● ● ●
41 BOLT; SET,LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-043-0 01 1 9504- ● ● ●
48 LEVER; CONT,CABLE
10PD1 STD ENG(40L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-358-0 01 1 9002- ● ●
48 LEVER; CONT,CABLE
6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-361-0 01 1 9012- ●
