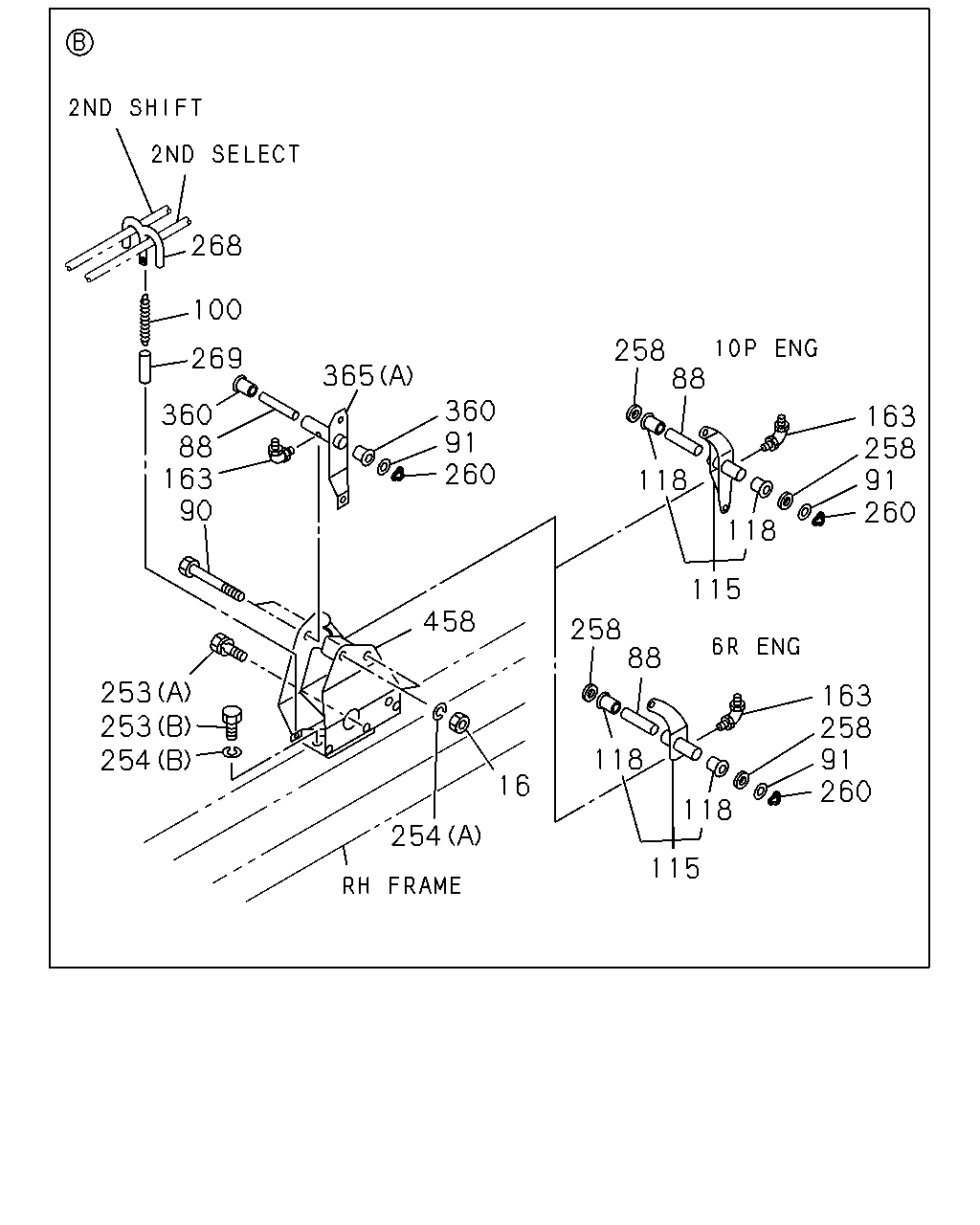

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#2464) — 104 parça

268 100 258 88 269 365 360 91 260 360 88 163 90 163 258 91 260 118 118 115 458 258 88 253 253 254 163 258 91 260 118 118 16 254 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	NUT; RELAY LEVER M14	9-99111-514-0	02	1	9002-	●	●	●	●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-074-0	02	1	9002-	●	●	●	●	●	●	●
90	SHAFT	1-33619-125-0	02	1	9002-	●	●	●	●	●	●	●
91	SHIM; RELAY LEVER	1-33659-092-0	02	1	9002-	●	●	●	●	●	●	●
100	SPRING 6RA1TC ENG(19L),6RB1TC-N ENG(29L)	1-09583-218-0	01	1	9002-	●				●
115	LEVER; RELAY,2ND SHIFT L TYPE ENG<90L>	1-33651-505-1	01	1	9002-	●		●	●	●	●	●
115	LEVER; RELAY,2ND SHIFT 10PD1 STD ENG(40L)	1-33651-504-1	01	1	9002-	●	●		●		●
118	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-	●	●	●	●	●	●	●
163	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9002-	●	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER L TYPE ENG<90L> (B) M14X40	9-92051-440-0	02	1	9002-9005	●		●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER L TYPE ENG<90L> (B) M14X40	0-20801-440-0	02	1	9006-	●		●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	9-92051-445-0	02	1	9002-9005	●	●		●		●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	0-20801-445-0	02	1	9006-	●	●		●		●
253	BOLT; BRKT,2ND RELAY LEVER NYLON TUBE AIR PIPING<Z29> (A) M10X35 W/LK&PL WASHER	9-01971-035-0	02	1	9002-9002	●		●
254	WASHER; LK,RELAY LEVER (A) ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●	●
254	WASHER; LK,RELAY LEVER (B) ID=14.2	9-09150-614-0	02	1	9002-	●	●	●	●	●	●	●
258	WASHER; RELAY LEVER	1-09509-041-0	02	1	9002-	●	●	●	●	●	●	●
260	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●	●	●	●	●
268	BRACKET; LINK ROD 6RA1TC ENG(19L),6RB1TC-N ENG(29L)	1-33657-216-0	01	1	9002-	●				●
269	COVER; SPR 6RA1TC ENG(19L),6RB1TC-N ENG(29L)	1-15669-002-0	01	1	9002-	●				●
360	BUSHING; RELAY LEVER L=24	5-33659-054-0	02	1	9002-	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-9008	●	●	●	●	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-249-4	01	1	9009-				●	●	●
365	LEVER; RELAY,SELECT 10PD1 STD ENG(40L) (A)	1-33651-249-4	01	1	9009-	●	●		●		●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	9002-9306	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-	●			●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	9002-9306	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-	●			●	●	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-295-1	01	1	9002-	●		●				●
458	BRACKET; 2ND RELAY LEVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-33657-210-4	01	1	9002-				●		●
458	BRACKET; 2ND RELAY LEVER 6RB1 STD ENG(07L)	1-33657-210-4	01	1	9002-					●
458	BRACKET; 2ND RELAY LEVER 10PD1 STD ENG(40L)	1-33657-210-4	01	1	9002-	●	●
458	BRACKET; 2ND RELAY LEVER 6RA1TC ENG(19L),6RB1TC-N ENG(29L)	1-33657-215-5	01	1	9002-	●				●
458	BRACKET; 2ND RELAY LEVER 6RB1 STD ENG(07L)	1-33657-221-5	01	1	9002-	●		●				●

303 325 300 325 366 366 366 366 366 366 387 386 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	G
300	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●		●
300	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●		●
300	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9303-9405	●		●
303	NUT; CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9405	●		●
310	CLIP; TUBE L TYPE ENG<90L> ID=13.5 & 11	1-09709-123-0	02	1	9002-9005	●		●	●
310	CLIP; TUBE ID=13.5 & 11	1-09709-123-0	02	1	9006-9007	●	●	●	●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●		●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9307-9405	●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) L=250	1-09707-126-0	01	1	9307-	●
366	TUBE; NYLON,FULLER CONT BLACK OD=1/8" L=30000	1-09368-255-0	AR	1	9002-9005	●	●	●	●
366	TUBE; NYLON,FULLER CONT WHITE OD=1/8" L=30000	1-09368-256-0	AR	1	9002-9306	●	●	●	●
366	TUBE; NYLON,FULLER CONT WHITE OD=3/8"L=30000	1-09369-315-0	AR	1	9002-9005	●	●	●	●
366	TUBE; NYLON,FULLER CONT RED OD=0.156 L=5800	1-33619-362-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT BLACK OD=0.156 L=5800	1-33619-371-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT BLUE OD=0.156 L=6350	1-33619-380-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT GREEN OD=0.156 L=5800	1-33619-389-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT YELLOW OD=0.156 L=4700	1-33619-394-0	01	1	9307-	●			●
366	TUBE; NYLON,FULLER CONT ORANGE OD=0.156 L=6250	1-33619-400-0	01	1	9307-	●			●
386	CLIP; CONT CABLE & TUBE L=140	5-09707-031-0	02	1	9002-9007	●	●	●
386	CLIP; CONT CABLE & TUBE L=140	5-09707-031-1	01	1	9008-	●	●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9002-9306	●	●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9307-	●			●

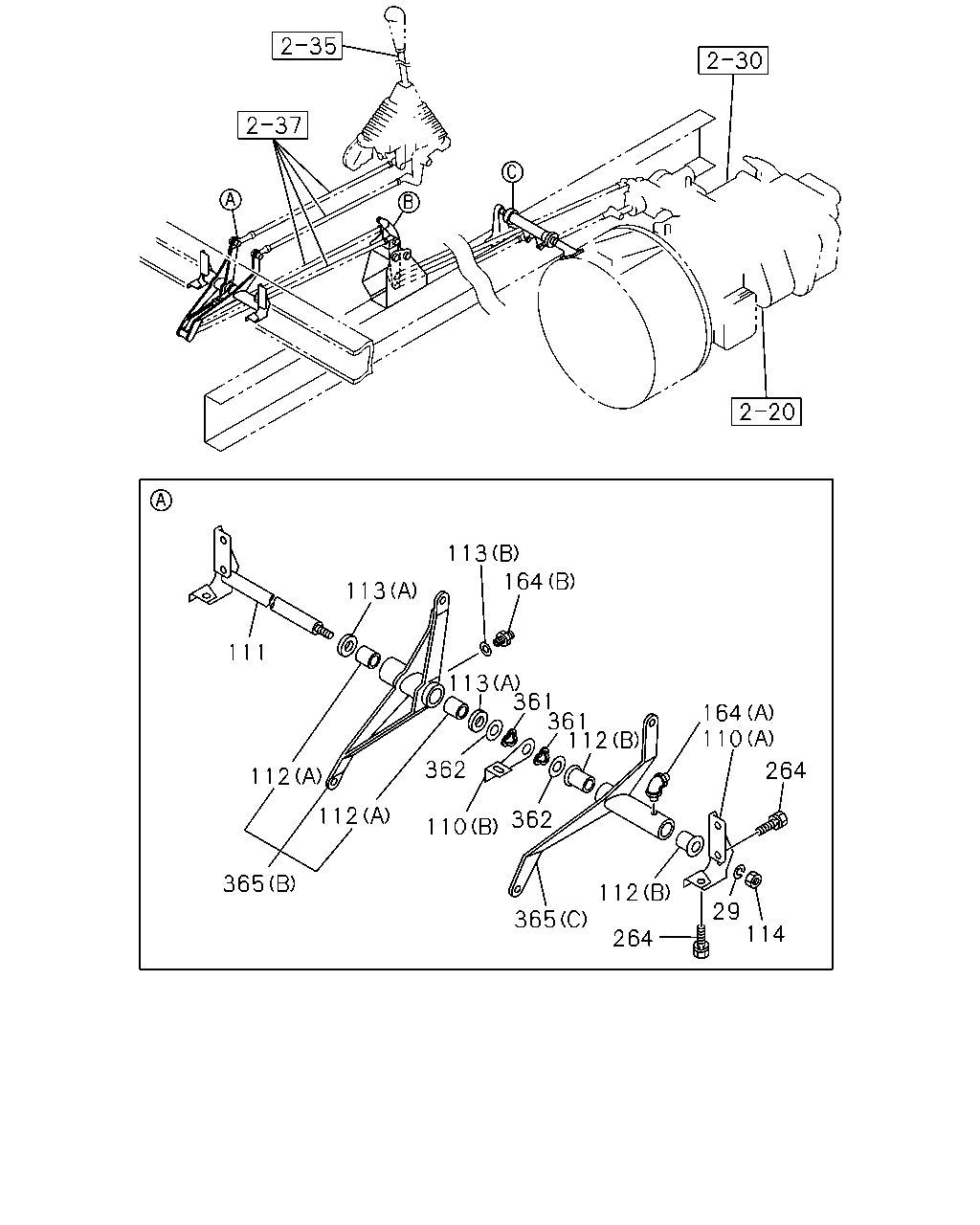

113 164 113 111 113 361 361 112 164 110 362 264 112 112 362 110 365 112 29 114 365 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
29	WASHER; LK,RELAY LEVER ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (A)	1-33657-180-1	01	1	9002-	●	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (B)	1-33657-184-2	01	1	9002-	●	●	●	●	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-123-1	01	1	9002-	●	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (A)	1-09330-050-0	02	1	9002-	●	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (B)	5-33659-054-0	02	1	9002-	●	●	●	●	●	●	●
113	WASHER; RELAY LEVER (A)	1-09509-041-0	02	1	9002-	●	●	●	●	●	●	●
113	WASHER; RELAY LEVER (B)	9-09160-506-0	01	1	9002-	●	●	●	●	●	●	●
114	NUT; RELAY LEVER M14	9-99110-414-0	01	1	9002-	●	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (B)	9-09031-006-0	01	1	9002-	●	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-	●	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-	●	●	●	●	●	●	●
361	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●	●	●	●	●
362	SHIM	1-33659-092-0	02	1	9002-	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-9008	●	●	●	●	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-249-4	01	1	9009-				●	●	●
365	LEVER; RELAY,SELECT 10PD1 STD ENG(40L) (A)	1-33651-249-4	01	1	9009-	●	●		●		●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	9002-9306	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-	●			●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	9002-9306	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-	●			●	●	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-295-1	01	1	9002-	●		●				●

35 34 46 71 33 162 34 243 71 46 34 242 34 35 46 34 33 162 243 34 46 71 34 71 34 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
33	BOLT; BRKT,3RD RELAY LEVER M14X45	9-92051-445-0	01	1	9002-9005	●	●	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	0-20801-445-0	01	1	9006-	●	●	●	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M12X45	9-01911-245-0	02	1	9002-9005	●		●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M12X45 W/LK WASHER	0-50041-245-0	01	1	9006-	●		●	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X35 W/LK WASHER	9-01911-035-0	01	1	9002-9002	●	●		●		●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X35 W/LK WASHER	0-50041-035-0	01	1	9003-9005	●	●		●		●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X45	9-01911-045-0	01	1	9002-9002	●	●		●		●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X45 W/LK WASHER	0-50041-045-0	01	1	9003-9205	●	●		●		●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X40 W/LK WASHER	0-50041-040-0	01	1	9206-	●	●		●		●
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	9002-	●	●	●	●	●	●	●
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	9002-	●	●	●	●	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-076-0	02	1	9002-	●	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (C)	1-33657-193-2	01	1	9002-	●		●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (D)	1-33657-198-1	01	1	9002-	●		●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (B)	1-33657-188-0	01	1	9002-	●	●		●		●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (A)	1-33657-223-0	01	1	9002-	●	●		●		●
162	LEVER; RELAY 10PD1 STD ENG(40L)	1-33651-271-2	01	1	9002-				●		●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-270-4	01	1	9002-				●	●	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-338-1	01	1	9002-	●		●				●
162	LEVER; RELAY 10PD1 STD ENG(40L)	1-33651-403-3	01	1	9002-	●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG L TYPE ENG<90L> M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●		●	●	●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG L TYPE ENG<90L> M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●		●	●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER 10PD1 STD ENG(40L) M8 FLANGE	5-09440-005-0	04	1	9002-	●	●		●		●
243	WASHER; LK,BRKT ID=14.2	9-09150-614-0	01	1	9002-	●	●	●	●	●	●	●
