◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#24634) — 72 parça

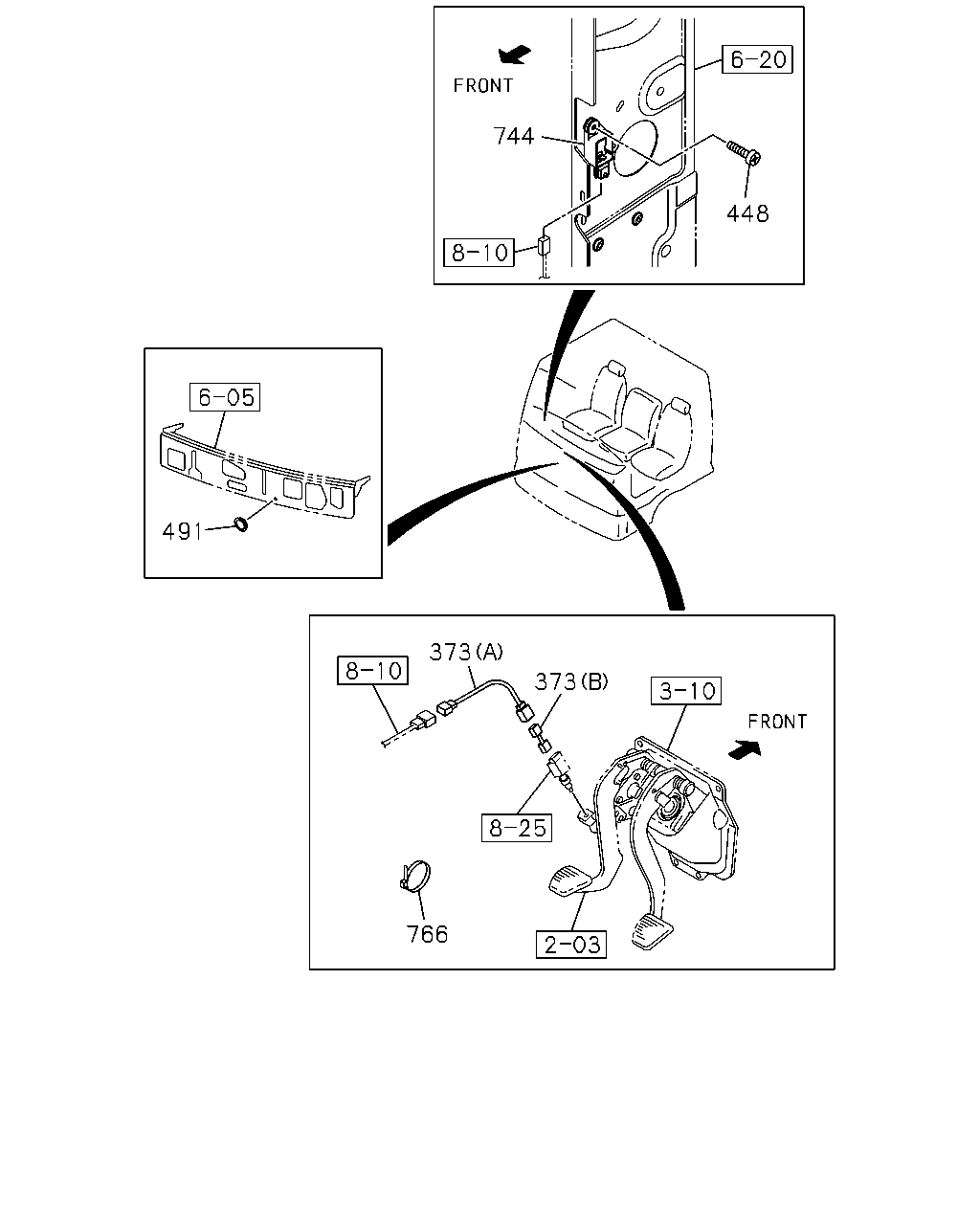

çizim 94961
744 448 491 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
(A) 		8-98059-419-1 01 1 0803-0806 ● ●
373 HARNESS; CLU SWITCH
MANUAL TRANSMISSION<X9C> (B) 		8-98105-661-0 01 1 0807-0809 ● ●
373 HARNESS; CLU SWITCH
(B) 		8-98105-661-0 01 1 0803-0806 ● ●
373 HARNESS; CLU SWITCH
(A) 		8-98059-419-2 01 1 0807- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0803- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0803- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0803- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0803-0805 ● ●
766 BAND; CLIP
L=140 		5-09707-031-1 01 1 0806- ● ●

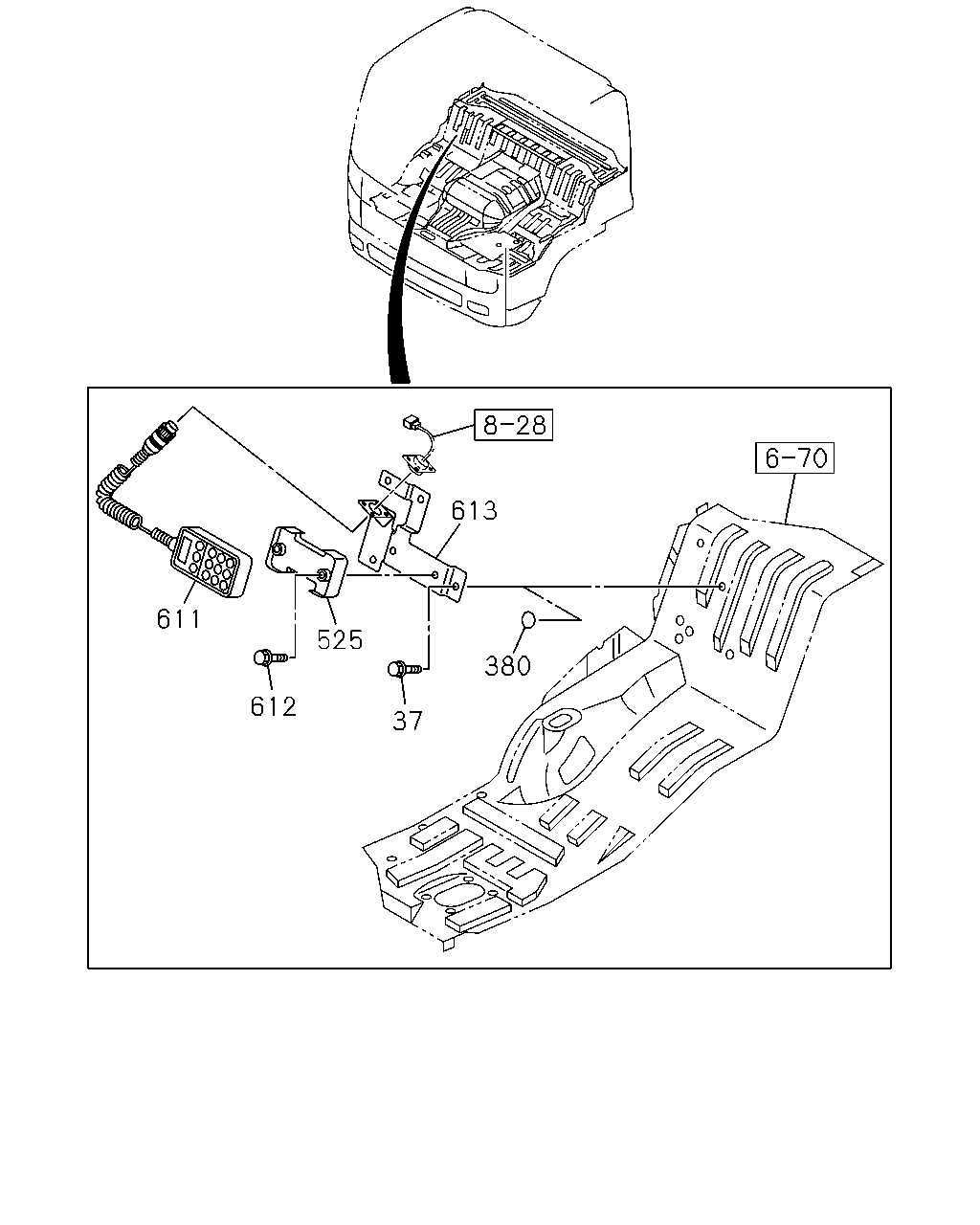

çizim 95232
613 611 525 380 612 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; BRKT FIX
M6X25 FLANGE 		0-28650-625-0 02 1 0803- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0803- ● ●
525 HOLDER; SW 1-82389-018-0 01 1 0803- ●
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 0803- ●
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 0803- ●
613 BRACKET; HOLDER,SW 8-97618-931-2 01 1 0803- ●

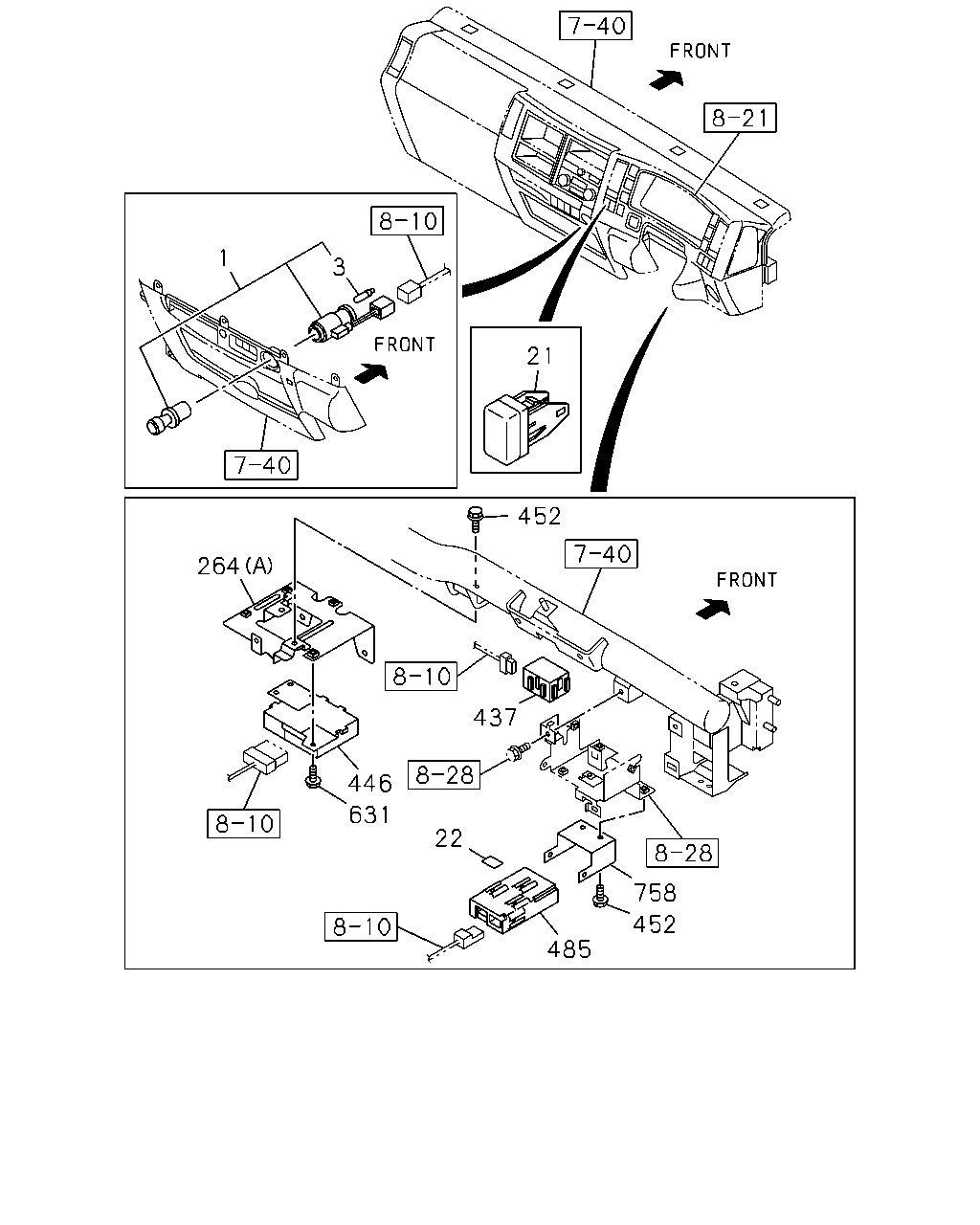

çizim 95238
1 3 21 452 264 437 446 631 22 758 452 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0803-0908 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0803-0908 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0803- ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 0806-0811 ● ●
22 SEAL; TAPE 1-80199-006-0 02 1 0812-1212 ● ●
22 SEAL; TAPE 8-98166-639-0 02 1 1301- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0803-0805 ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0803- ● ●
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0803- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-1 01 1 0803-0805 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0803-0805 ● ●
452 BOLT; BRKT
MZX6P M/T(RSW) M6X16 FLANGE 		0-28650-616-0 02 1 0803-0805 ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 0806- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-061-0 01 1 0803- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0803-0805 ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0803- ● ●

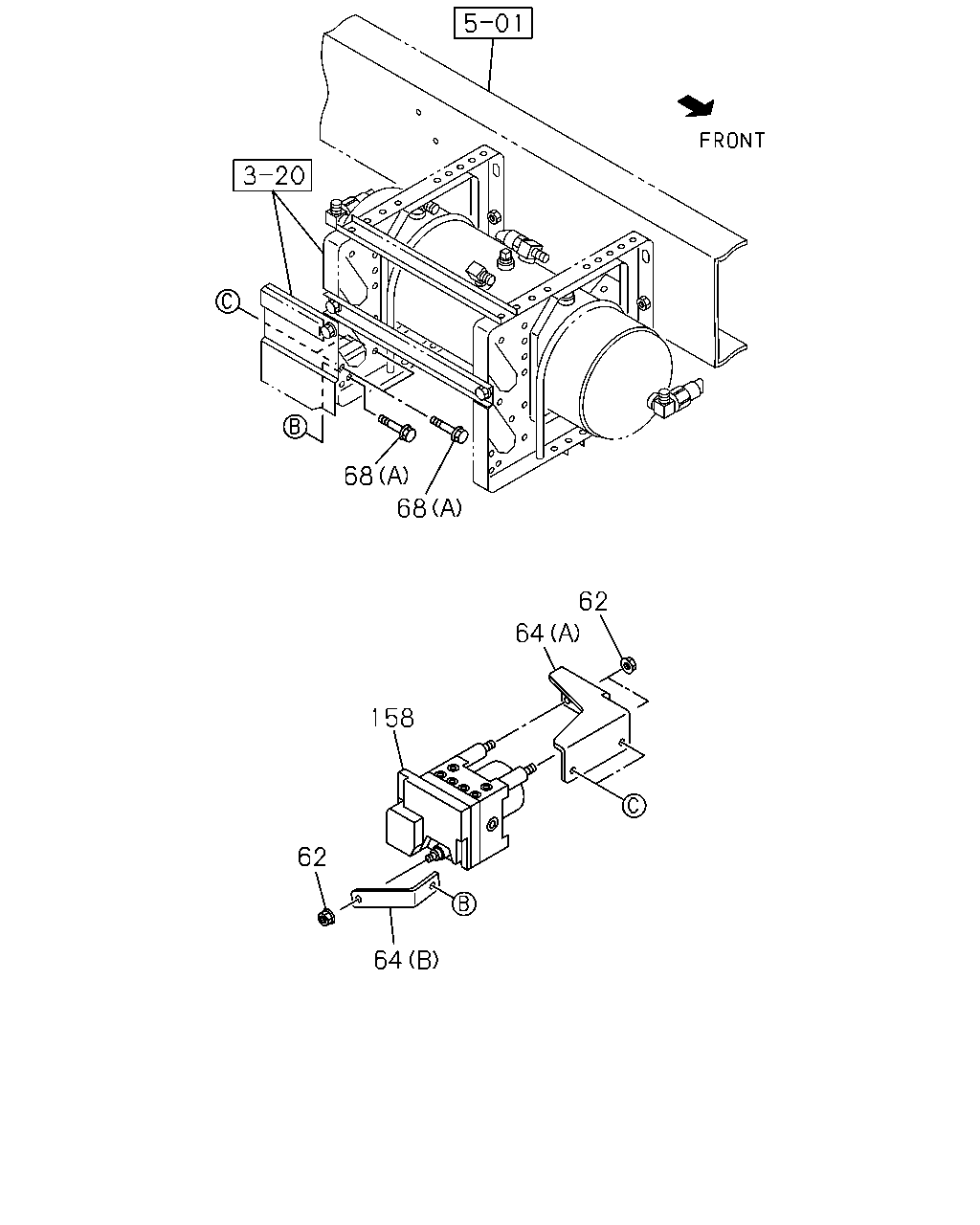

çizim 95256
68 68 62 64 158 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0803- ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 0803- ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 0803- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0803- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0803- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0803- ● ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98062-821-1 01 1 0803-0805 ● ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98062-820-1 01 1 0803-0805 ● ●
158 CONTROLLER; ABS 8-98062-820-1 01 1 0806-1006 ● ●
158 CONTROLLER; ABS 8-98157-996-1 01 1 1007- ● ●

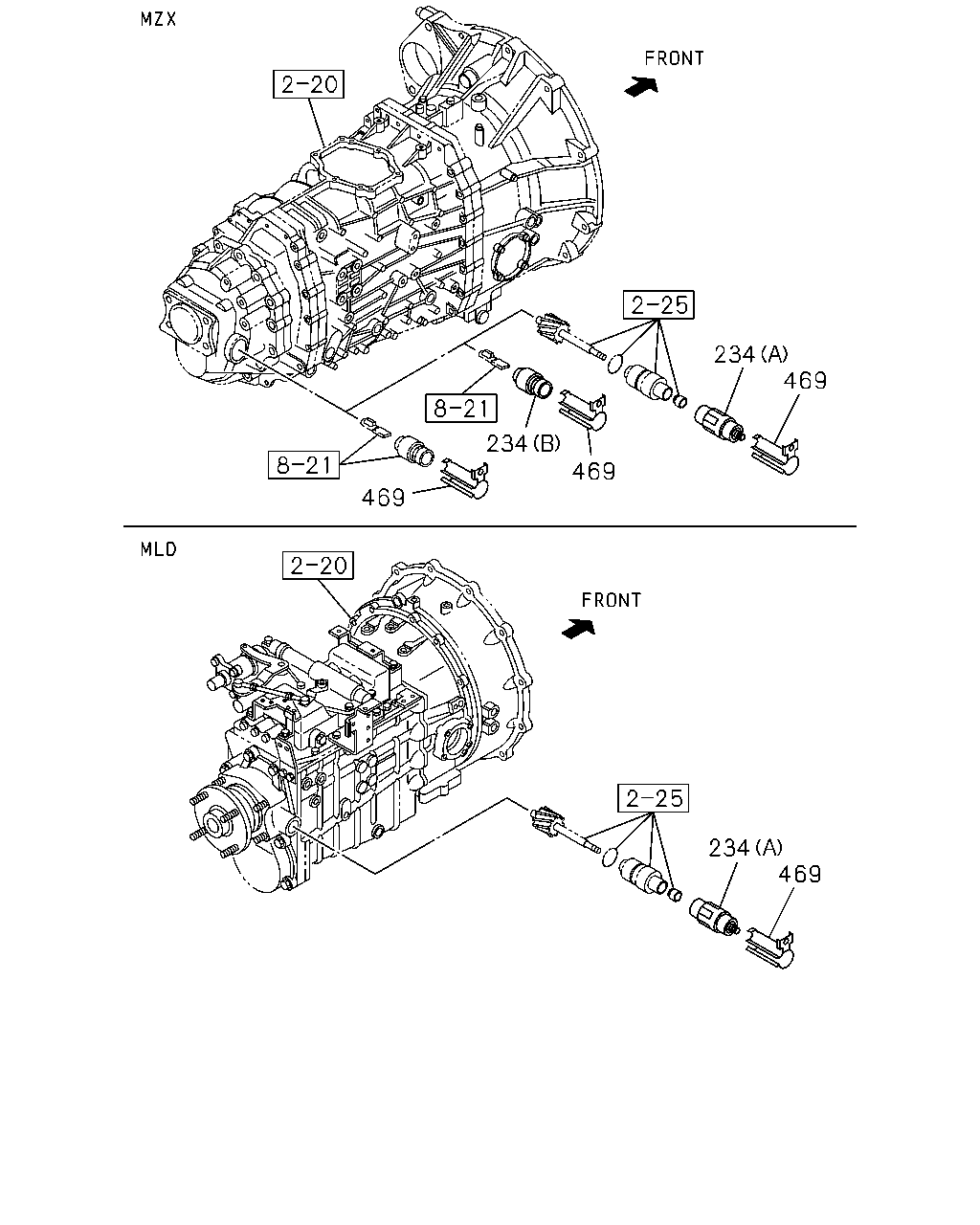

çizim 95887
234 469 234 469 469 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
(B) 		8-98035-238-0 01 1 0803-0803 ● ●
234 SENSOR; VEHICLE SPD
(A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0803- ● ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0803-0808 ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 0809- ● ●

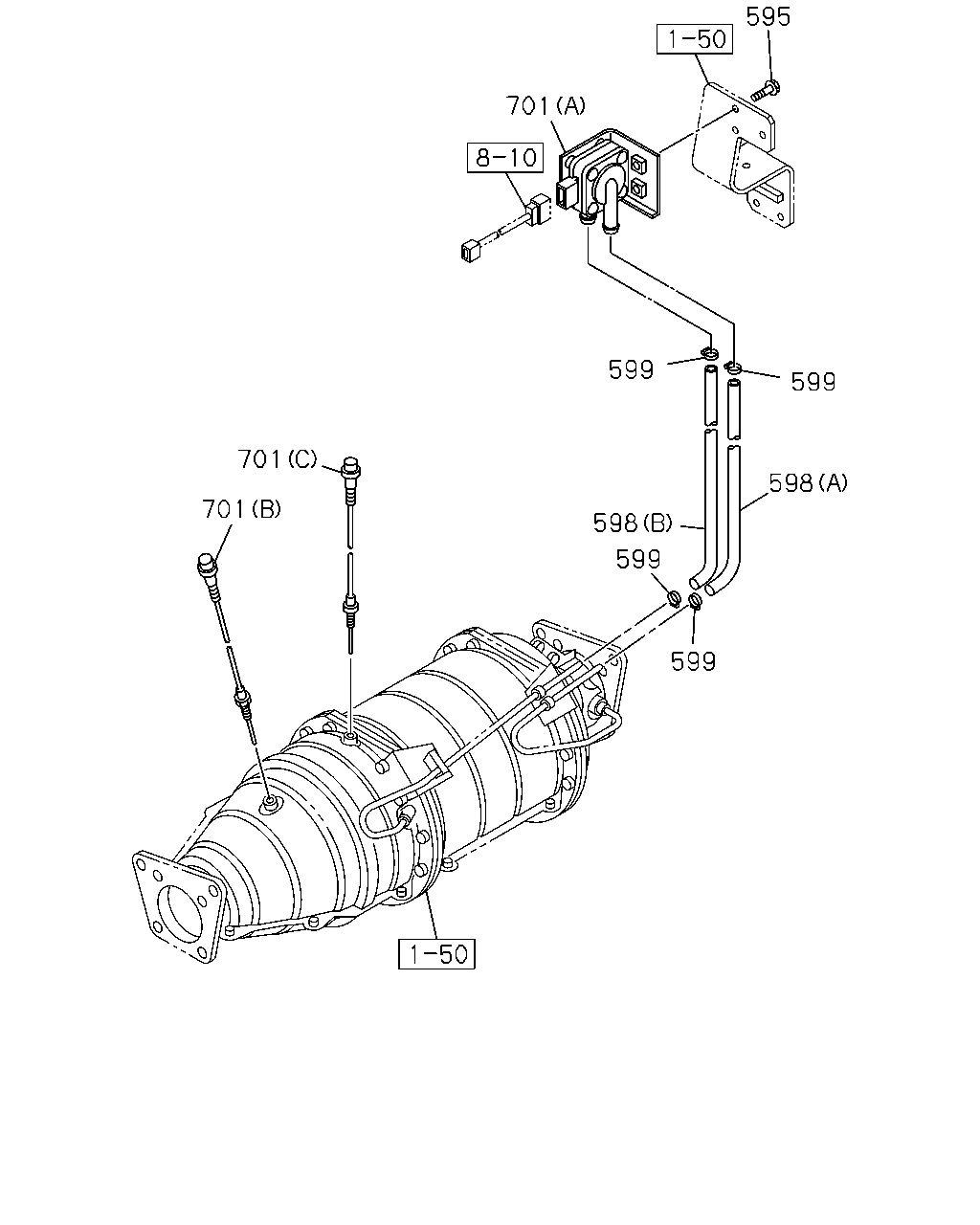

çizim 96145
595 701 599 599 701 598 701 598 599 599
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0803- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98060-176-1 01 1 0803- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-177-0 01 1 0803- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0803- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0803- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0803- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0803- ● ●

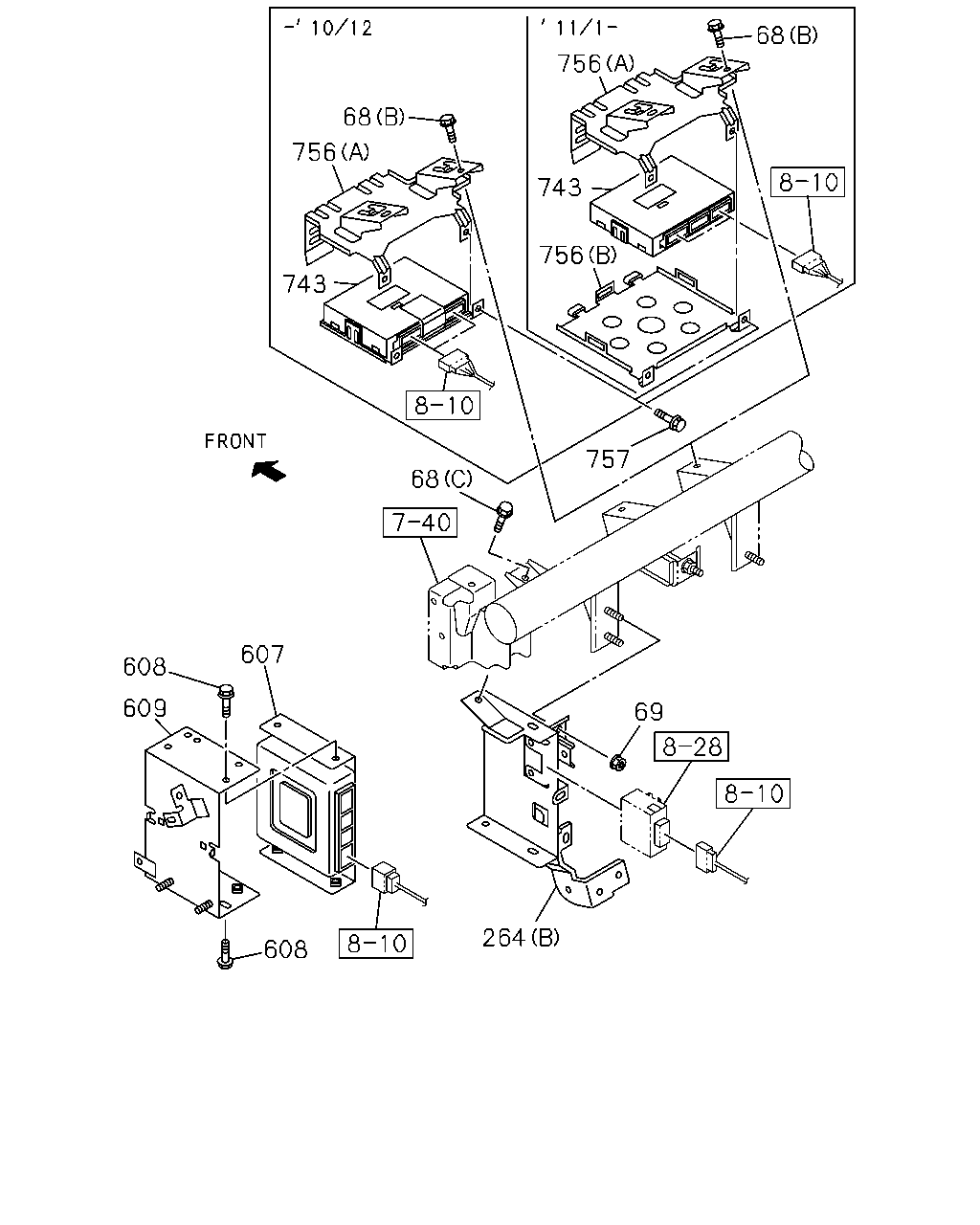

çizim 96306
68 756 68 756 743 756 743 757 68 607 608 609 69 264 608
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0803- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0803- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0803- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0803- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0803-0805 ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0803- ● ●
607 CONTROL UNIT; AIR SUSPENSION 8-98081-298-1 01 1 0803- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 04 1 0803- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0803- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0803-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309- ●
743 CONTROL UNIT; BCM 8-98102-484-0 01 1 0803-0901 ● ●
743 CONTROL UNIT; BCM 8-98125-904-0 01 1 0902-1005 ● ●
743 CONTROL UNIT; BCM 8-98155-169-1 01 1 1006-1007 ● ●
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM 8-98182-026-2 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0803- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0803- ● ●
