Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#24633) — 67 parça

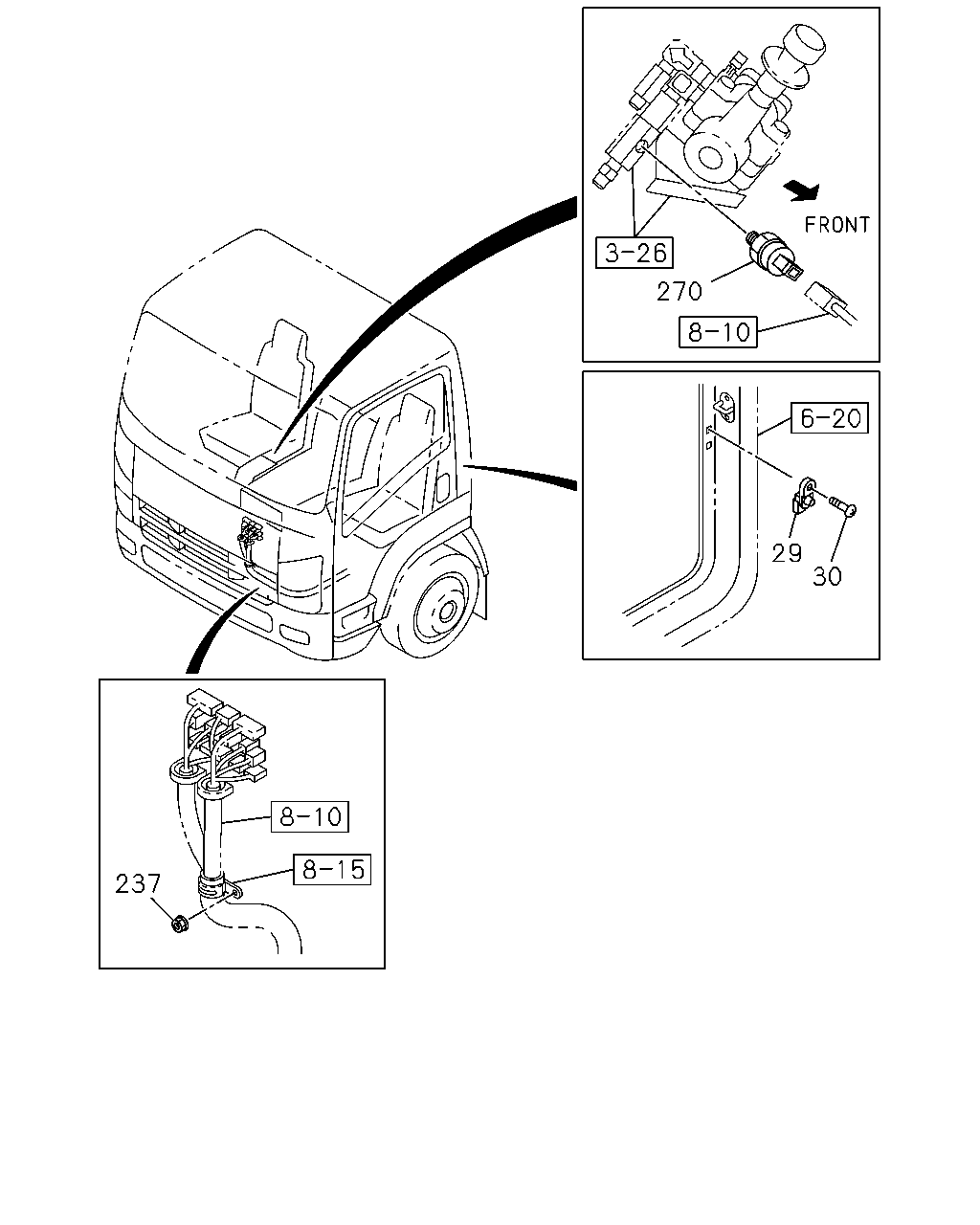

270 29 30 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0803-	●	●
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0803-	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0803-	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0803-	●	●
237	NUT M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
270	SWITCH; PRESS,WHEEL PARKING STAMP 2.0	8-98010-856-1	01	1	0803-	●	●

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●	●
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-	●	●

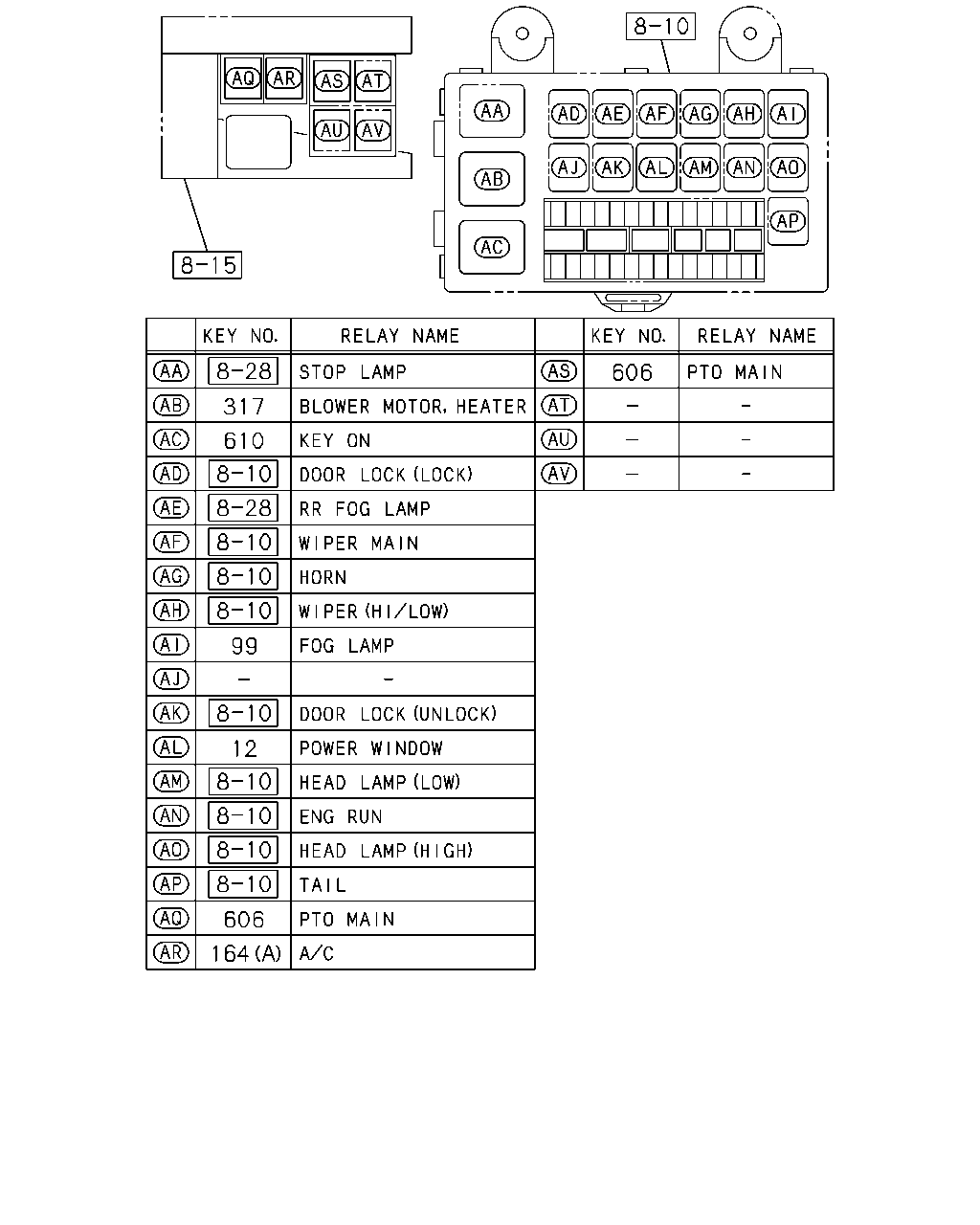

606 317 610 99 12 606 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●	●
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-	●	●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0806	●	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-	●	●

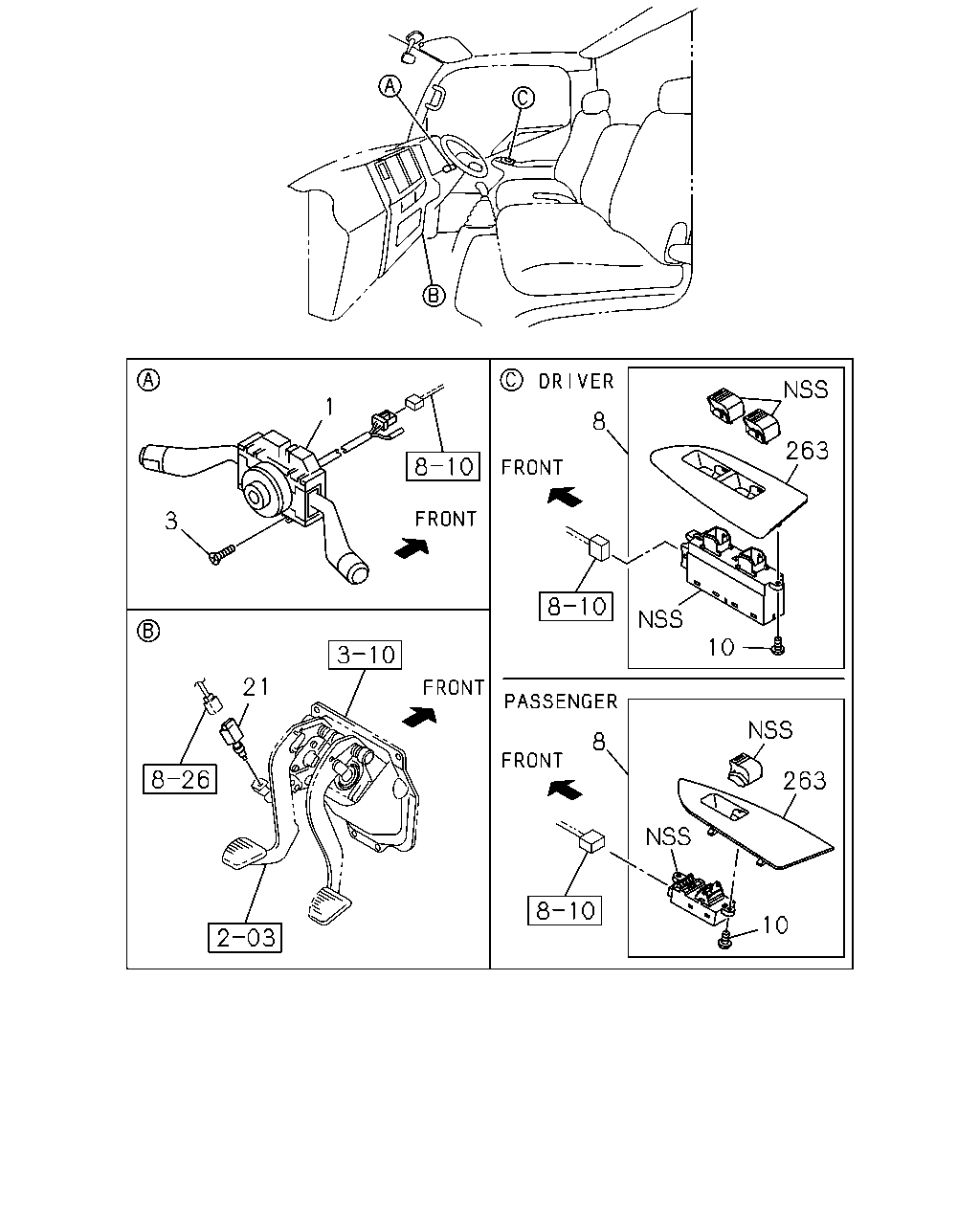

1 8 263 3 10 21 8 263 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98042-673-1	01	1	0803-0905	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98146-625-0	01	1	0906-1210	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98217-829-0	01	1	1211-1310	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98243-711-0	01	1	1311-	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98064-765-1	01	1	0803-0905	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98146-623-0	01	1	0906-1210	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98217-827-0	01	1	1211-1310	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98243-710-0	01	1	1311-	●	●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0803-	●	●
8	SWITCH; POWER WINDOW PASSENGER	8-97387-034-2	01	1	0803-	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98003-785-1	01	1	0803-0809	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98129-844-0	01	1	0810-1001	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98159-543-0	01	1	1002-	●	●
10	SCREW; POWER WINDOW SW	8-98153-865-0	03	1	0803-	●	●
21	SWITCH; CLU TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-94337-761-0	01	1	0803-	●	●
21	SWITCH; CLU EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97358-248-0	01	1	0803-	●	●
263	COVER; SW DRIVER	8-98153-836-0	01	1	0803-	●	●
263	COVER; SW PASSENGER	8-98153-841-0	01	1	0803-	●	●

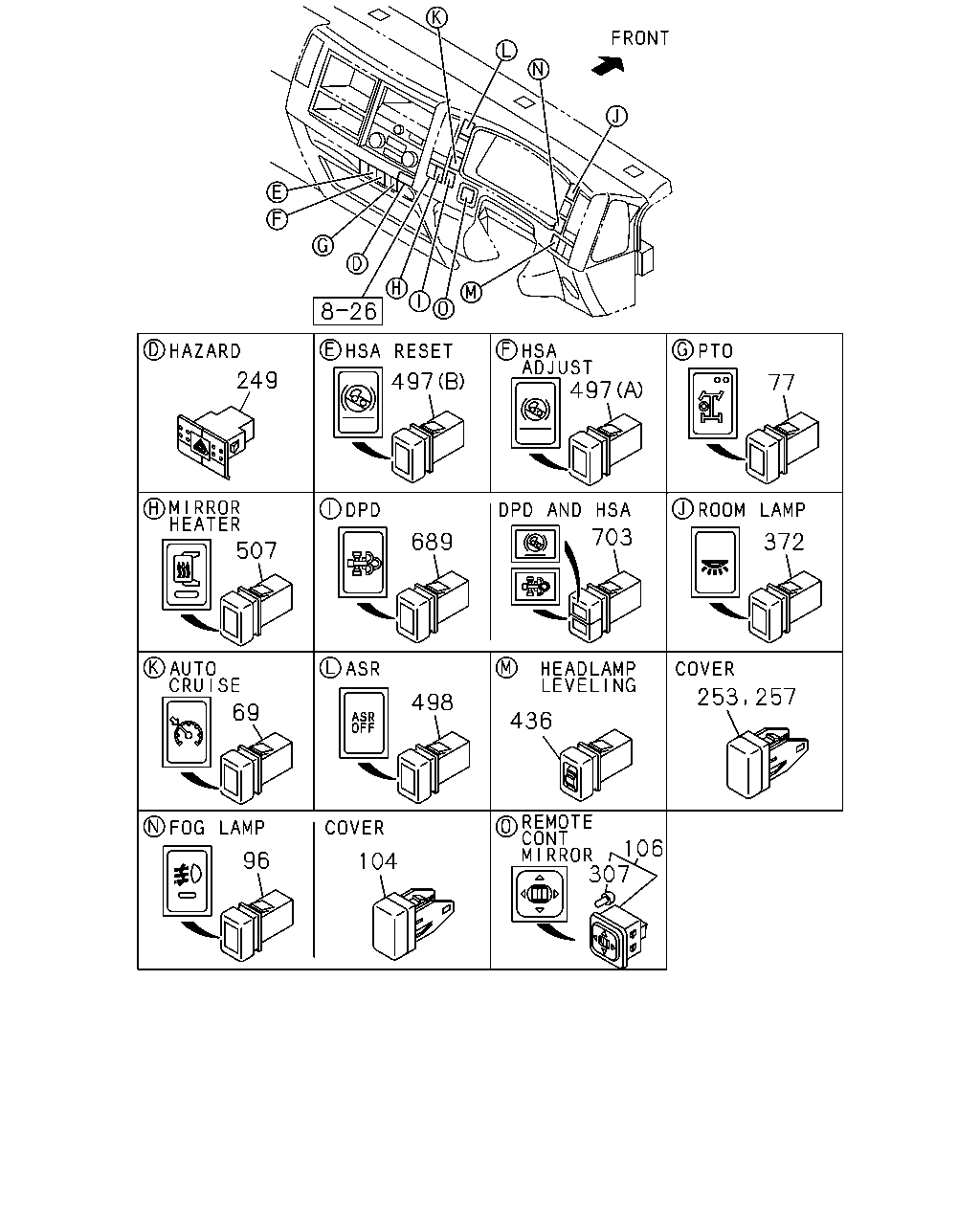

497 249 497 77 507 703 689 372 253 498 69 436 106 307 96 104 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	SWITCH; AUTO CRUISE AUTO CRUISE<K30>	8-98011-344-1	01	1	0803-	●	●
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97615-488-2	01	1	0803-	●	●
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0803-	●	●
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	0803-	●	●
106	SWITCH; REMOTE CONT MIRROR	8-97173-294-1	01	1	0803-	●	●
249	SWITCH; HAZARD	8-97386-922-1	01	1	0803-	●	●
253	COVER; SW HOLE	8-98025-954-1	02	1	0803-	●	●
253	COVER; SW HOLE EXC. AUTO CRUISE<K30>	8-98025-954-1	01	1	0803-0805	●	●
253	COVER; SW HOLE EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98025-954-1	01	1	0803-0805	●	●
253	COVER; SW HOLE EXC. AUTO CRUISE<K30>	8-98025-954-1	01	1	0806-	●	●
253	COVER; SW HOLE	8-98025-954-1	01	1	0806-	●	●
257	COVER; HOLE,SW	8-98025-954-1	03	1	0803-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>	8-98025-954-1	01	1	0803-0805	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>	8-98025-954-1	01	1	0803-0805	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC>	8-98025-954-1	01	1	0803-0805	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98025-954-1	01	1	0803-0805	●	●
257	COVER; HOLE,SW	8-98025-954-1	01	1	0803-0805	●
257	COVER; HOLE,SW	8-98025-954-1	01	1	0806-	●	●
257	COVER; HOLE,SW	8-98025-954-1	01	1	0806-	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC>	8-98025-954-1	01	1	0806-	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98025-954-1	01	1	0806-	●	●
257	COVER; HOLE,SW	8-98025-954-1	01	1	0806-	●
307	BULB ASM; SW 24V	8-98226-896-0	01	1	0803-	●	●
372	SWITCH; ROOM LAMP FLUORESCENT LAMP<6UC>	8-97386-917-2	01	1	0803-	●	●
436	SWITCH; HEADLAMP LEVELING	8-97386-981-2	01	1	0803-		●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A)	8-97386-967-2	01	1	0803-0805	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (B)	8-97386-985-1	01	1	0803-0805	●	●
498	SWITCH; ASR THROTTLE CONTROL SYSTEM(6XH)	8-97386-920-1	01	1	0803-0805	●	●
507	SWITCH; MIRROR HEATER	8-97386-924-3	01	1	0803-	●	●
689	SWITCH; DPD EXC. H.S.A SYSTEM<6EP>	8-97386-921-2	01	1	0803-0805	●	●
689	SWITCH; DPD	8-97386-921-2	01	1	0806-	●	●
703	SWITCH; DPD & HSA H.S.A SYSTEM<6EP>	8-98011-346-1	01	1	0803-0805	●	●
