◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#24632) — 27 parça

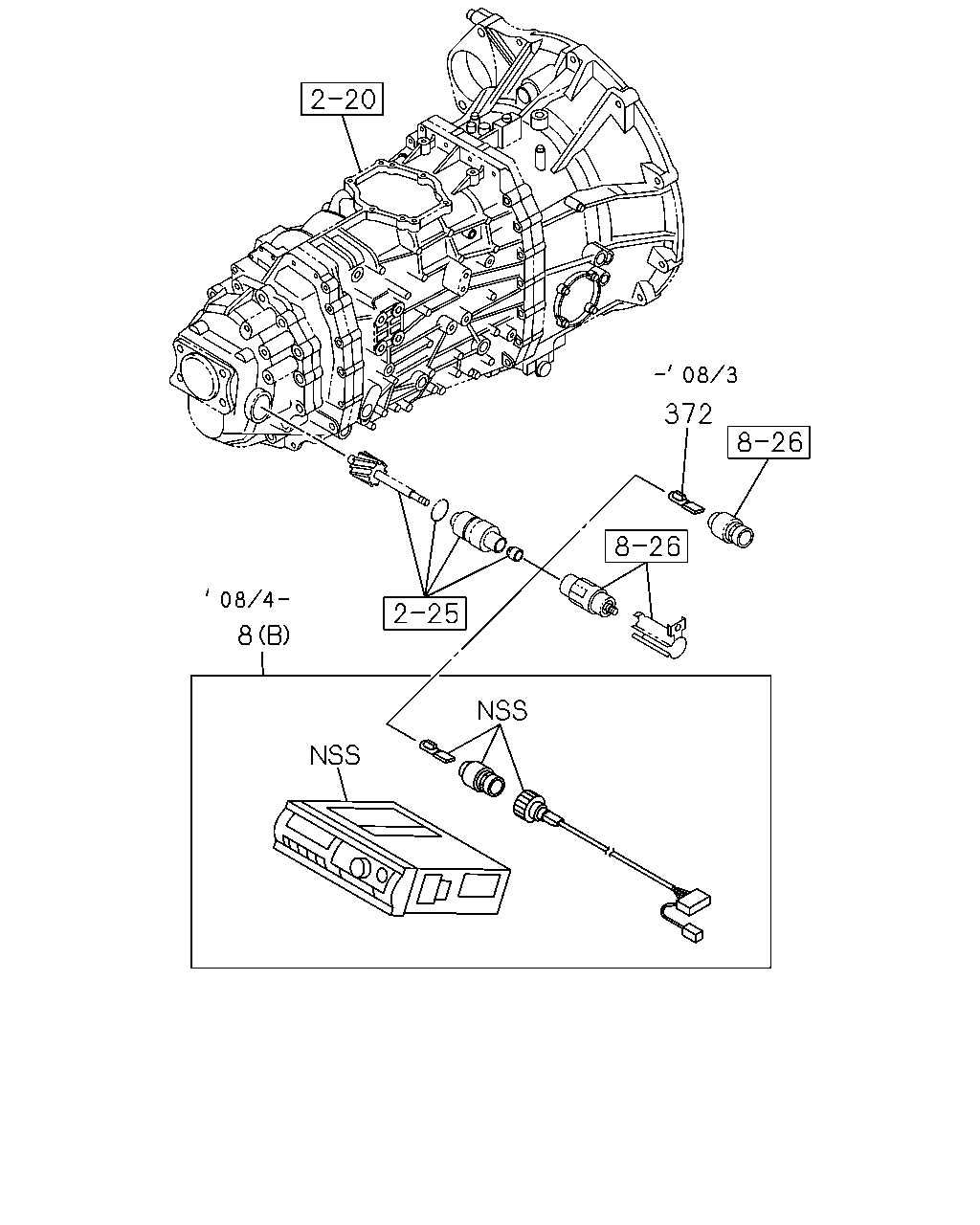

çizim 29002
372 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 TACHOGRAPH; CLUSTER METER
(A) 		8-98035-623-0 01 1 0803-0803 ● ●
8 TACHOGRAPH; CLUSTER METER
(B) 		8-98113-385-0 01 1 0804-1008 ● ●
8 TACHOGRAPH; CLUSTER METER
(B) 		8-98178-334-0 01 1 1009-1107 ● ●
8 TACHOGRAPH; CLUSTER METER
(B) 		8-98197-455-0 01 1 1108- ● ●
372 SHAFT; DRIVE,SPEED 8-97160-805-0 01 1 0803-0803 ● ●

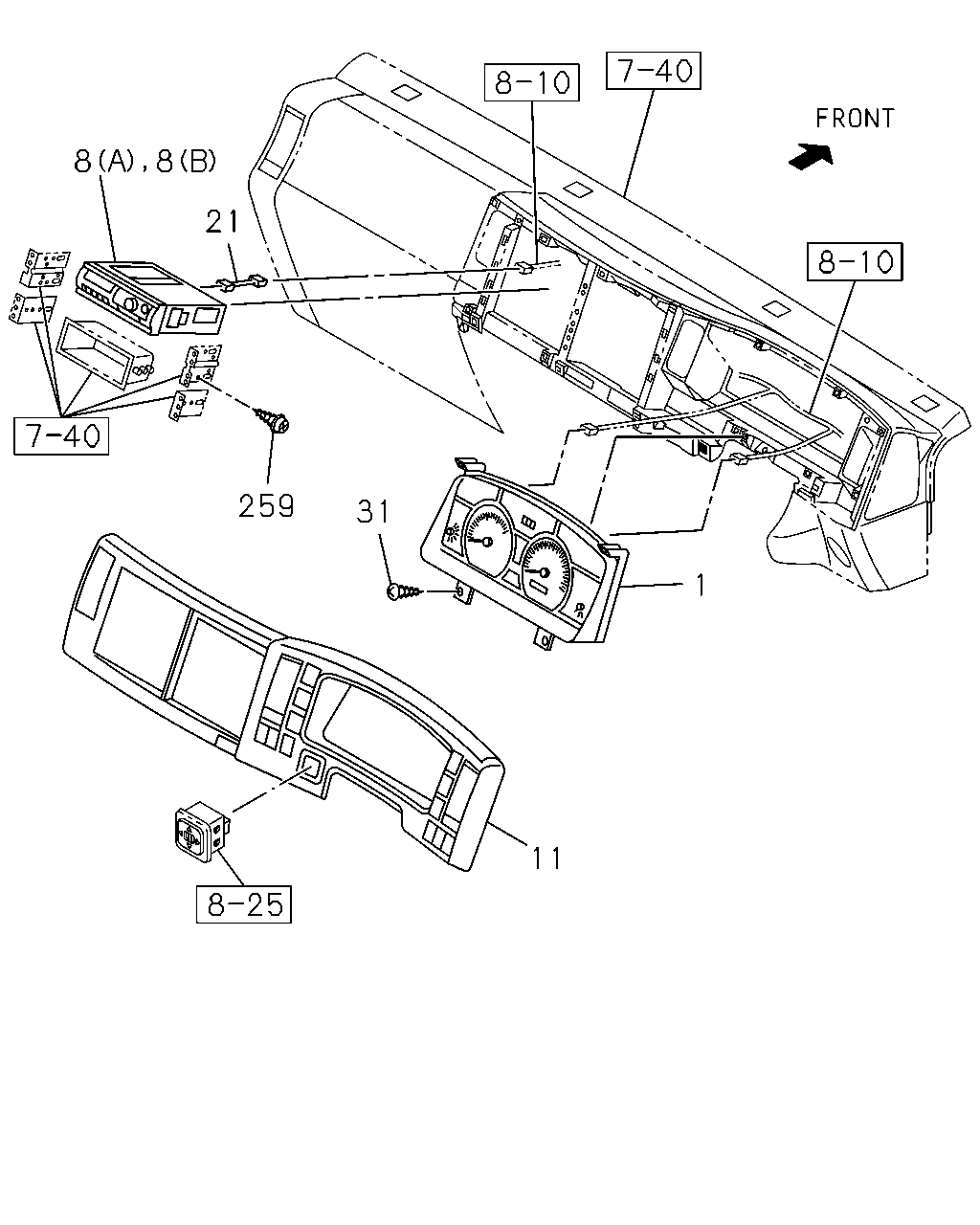

çizim 94960
8 8 21 259 31 1 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> 		8-98064-923-7 01 1 0803- ● ●
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> 		8-98064-915-6 01 1 0803- ● ●
8 TACHOGRAPH; CLUSTER METER
(A) 		8-98035-623-0 01 1 0803-0803 ● ●
8 TACHOGRAPH; CLUSTER METER
(B) 		8-98113-385-0 01 1 0804-1008 ● ●
8 TACHOGRAPH; CLUSTER METER
(B) 		8-98178-334-0 01 1 1009-1107 ● ●
8 TACHOGRAPH; CLUSTER METER
(B) 		8-98197-455-0 01 1 1108- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97414-681-3 01 1 0803- ● ●
21 HARNESS; TACHOGRAPH 8-98099-111-0 01 1 0803- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0803- ● ●
259 SCREW; TACHOGRAPH
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0803- ● ●

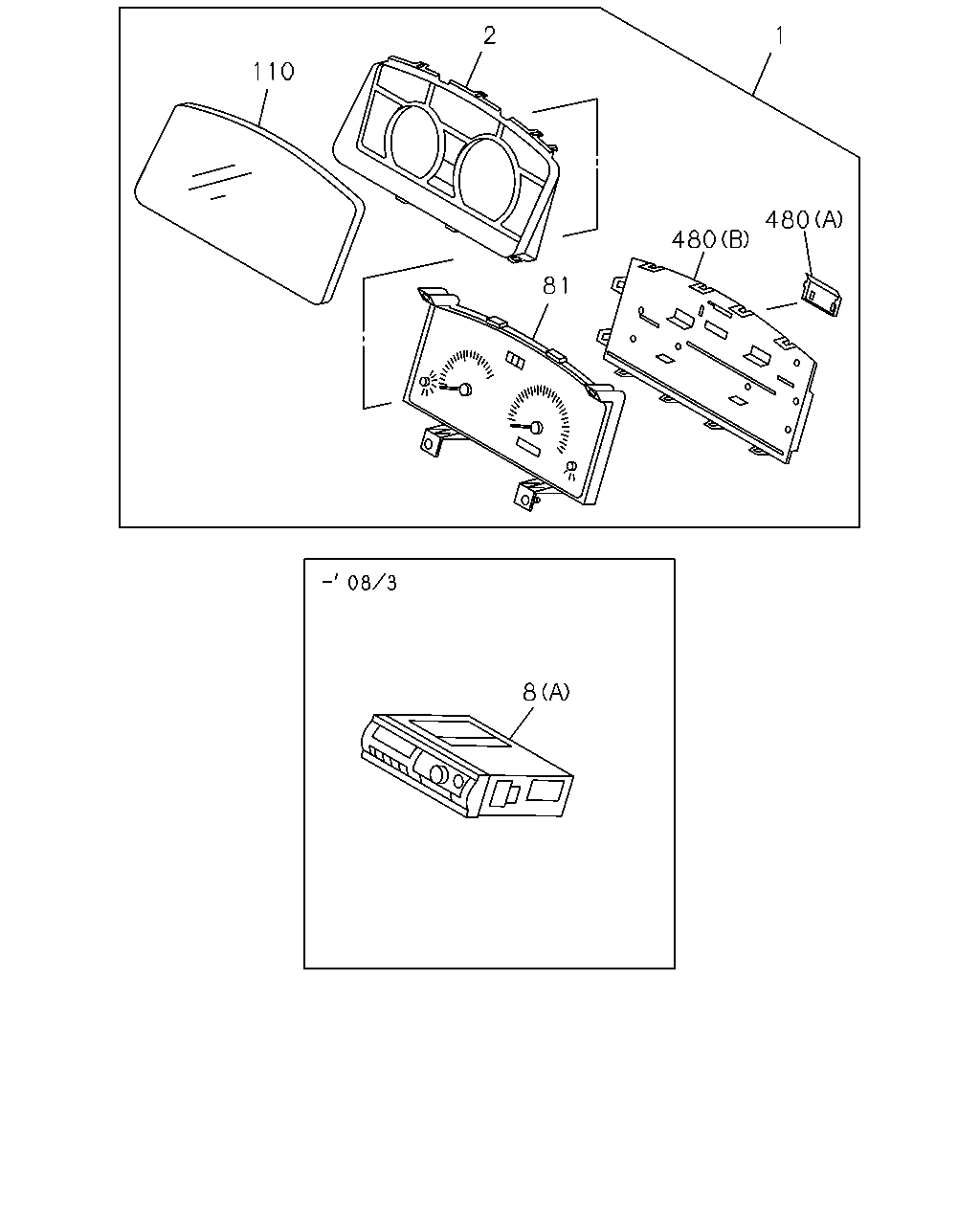

çizim 96215
2 1 110 480 480 81 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> 		8-98064-923-7 01 1 0803- ● ●
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> 		8-98064-915-6 01 1 0803- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0803- ● ●
8 TACHOGRAPH; CLUSTER METER
(A) 		8-98035-623-0 01 1 0803-0803 ● ●
8 TACHOGRAPH; CLUSTER METER
(B) 		8-98113-385-0 01 1 0804-1008 ● ●
8 TACHOGRAPH; CLUSTER METER
(B) 		8-98178-334-0 01 1 1009-1107 ● ●
8 TACHOGRAPH; CLUSTER METER
(B) 		8-98197-455-0 01 1 1108- ● ●
81 METER SUB ASM
MILE SPEEDOMETER<UC1> 		8-98079-702-0 01 1 0803- ● ●
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> 		8-98079-687-0 01 1 0803- ● ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 0803- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0803- ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
