◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#24630) — 416 parça
çizim 28880
16 306 16 305 16 183
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0803- ●
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 02 1 0803- ● ●
16 CLIP; HARNESS
(N) ID=11 L=60 		0-95235-096-0 01 1 0803-0807 ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0803- ● ●
16 CLIP; HARNESS
(G) ID=26 L=26 		1-09701-236-0 01 1 0803- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0803-0911 ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(H) ID=10 & 12 		1-09709-278-1 01 1 0803- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0803- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803- ● ●
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6 		1-09709-178-0 01 1 0803-0805 ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
183 CLIP; CONNECTOR
L=175 		1-09707-178-0 01 1 0803-0803 ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0803- ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(K) ID=22 L=35 		8-97375-643-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0803- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0803- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0803- ● ●

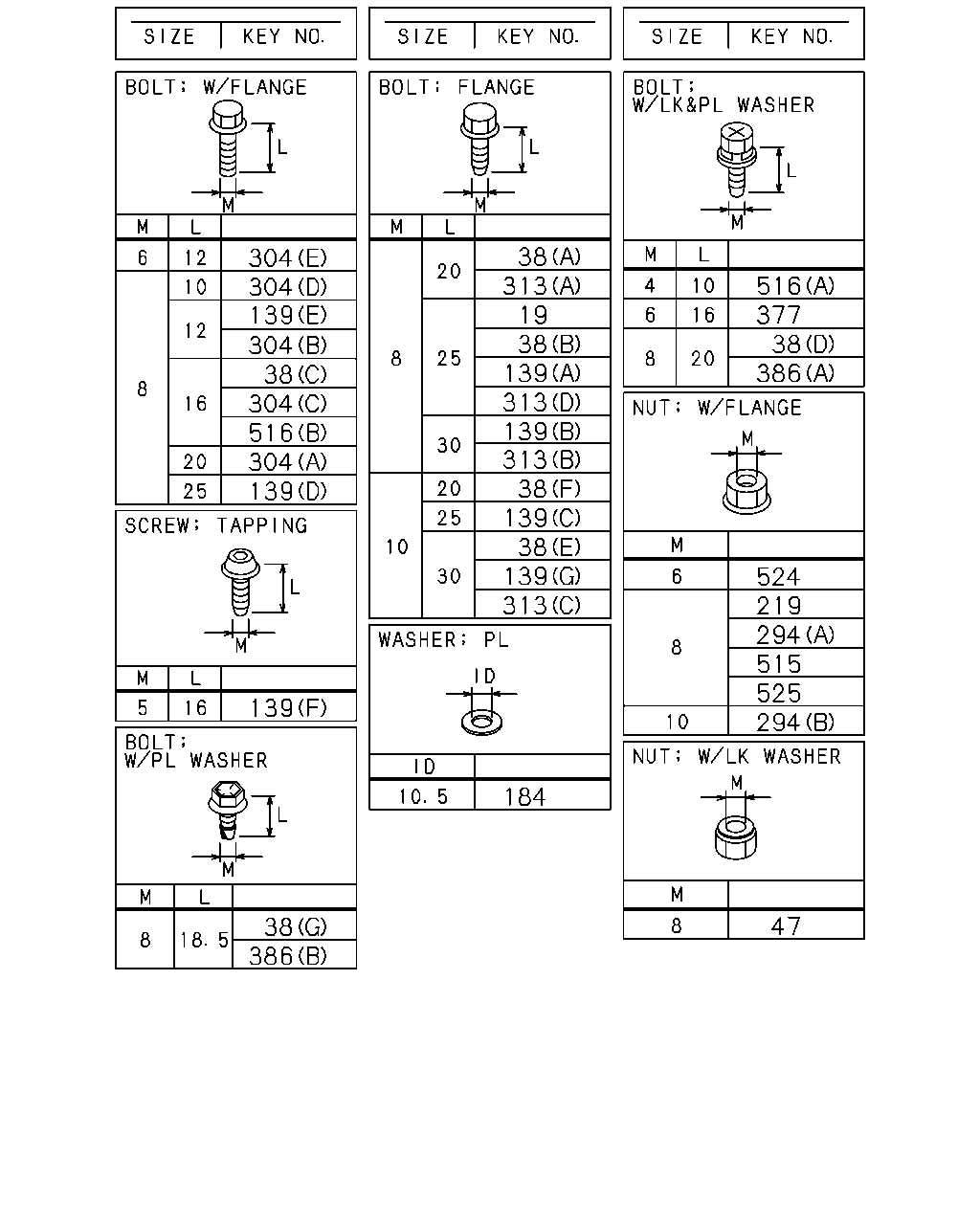

çizim 28883
304 139 304 304 304 38 516 139 304 38 19 313 38 313 139 139 38 313 139 139 313 38 516 38 377 386 524 219 294 515 525 294 47 184 38 386 139
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0807 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0803- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0803- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0803- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 0803- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0803-1201 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
MLD6W M/T(Y2C) (F) M10X20 FLANGE 		0-28751-020-0 01 1 0807- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0901 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803- ●
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0803- ● ●
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0803- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0803- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0803- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0807 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0803- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0803- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0803- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0803-0901 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0803-0901 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0803-0901 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0902- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0902- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803-0901 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0902 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0912 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0912 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0912 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1001- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1001- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1001- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1001- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0803-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0803-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-0912 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-0912 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-0912 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1001- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1001- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0902- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0803-1010 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0803-1010 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0803- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0803-1010 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0803- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0803- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0803- ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0803- ●
313 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0803- ● ●
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0803- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0803- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0803-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803- ●
516 BOLT; HARNESS
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0803- ● ●
516 BOLT; HARNESS
MLD6W M/T(Y2C) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0807- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0803- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0803- ● ●

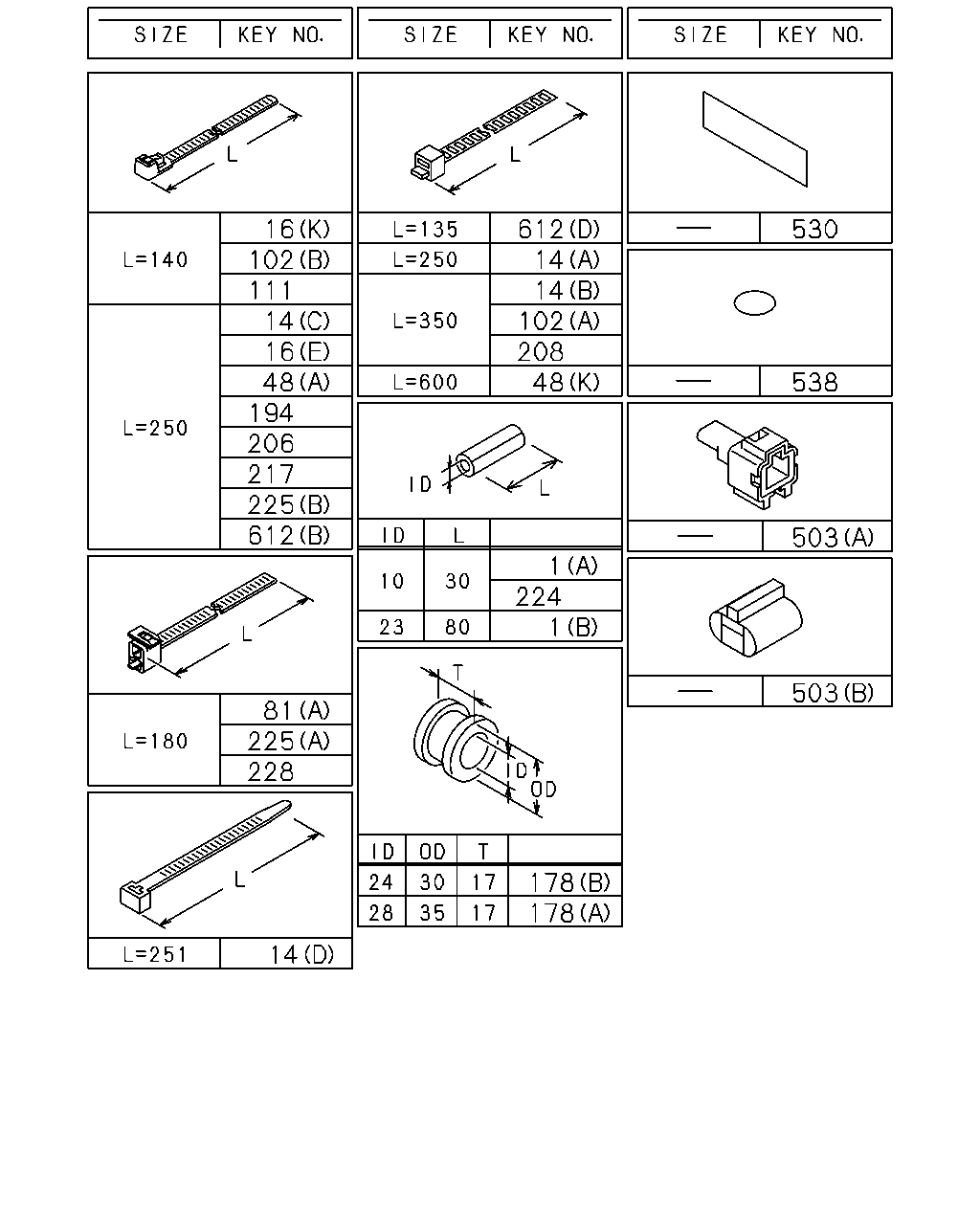

çizim 94997
16 102 111 14 16 48 194 206 217 225 612 612 14 14 102 208 48 530 538 503 1 224 1 503 81 225 228 178 178 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0803- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0803- ● ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0910- ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 30 1 0901- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0803- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0803- ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 15 1 0803-0812 ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 15 1 0803-0812 ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 15 1 0901-0909 ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 14 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		8-98216-430-0 14 1 1206- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0803- ●
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 02 1 0803- ● ●
16 CLIP; HARNESS
(N) ID=11 L=60 		0-95235-096-0 01 1 0803-0807 ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0803- ● ●
16 CLIP; HARNESS
(G) ID=26 L=26 		1-09701-236-0 01 1 0803- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0803-0911 ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(H) ID=10 & 12 		1-09709-278-1 01 1 0803- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0803- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803- ● ●
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6 		1-09709-178-0 01 1 0803-0805 ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (O) ID=14 L=44 		9-09917-427-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0803-0908 ●
48 CLIP; FRAME HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 0909- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0803- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0803- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0803-0905 ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0803- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0803-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0803-0901 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0902-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=14 L=44 		9-09917-427-0 01 1 1202- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0803- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 07 1 0803-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 08 1 0902-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (O) ID=14 L=44 		9-09917-427-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 0803-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 14 1 0902-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (O) ID=14 L=44 		9-09917-427-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 0803-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 13 1 0805-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 15 1 0810-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 16 1 0902-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (M) ID=18-24 L=22 		1-09709-295-0 01 1 0805-0808 ●
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1012- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) L=180 		1-09707-162-1 01 1 0803-0805 ● ●
81 CLIP; HARNESS
(B) ID=6.35 & 15 		1-09709-276-1 01 1 0803- ● ●
102 CLIP; BAND
(A) L=350 		1-09707-183-0 01 1 0803-0911 ● ●
102 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0803-0811 ● ●
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 03 1 0803-0807 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0803- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0803- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0803- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0803- ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0803-0901 ●
194 CLIP; BAND
WHEEL BASE 4900MM(49W) L=250 		5-09707-030-1 02 1 0902- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0803-0810 ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 0811- ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0803- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1101- ● ●
217 CLIP; RR BODY HARNESS
EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 0812- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0803-0901 ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0803-0803 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0803- ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0803-0811 ● ●
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0803-0807 ● ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0803-0805 ● ●
503 CONNECTOR
(A) 		1-82691-191-0 01 1 0806- ● ●
503 CONNECTOR
HEATER & DEFROSTER(C41) (B) 		1-82690-668-0 01 1 0803- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0803-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0803-1305 ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0803- ● ●
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0803-0804 ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0803- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0803- ● ●

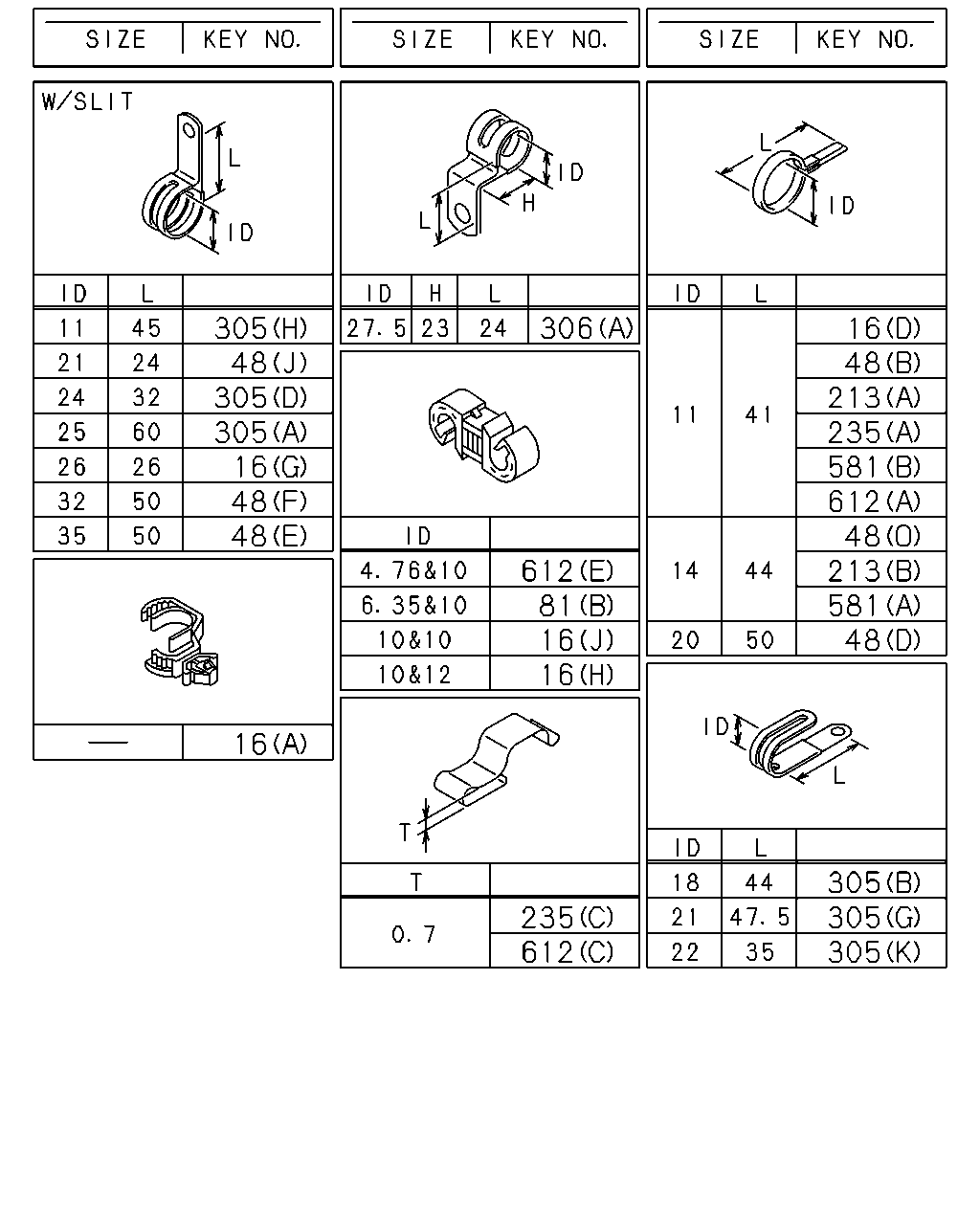

çizim 95308
305 48 305 305 16 48 48 306 16 48 213 235 581 612 48 213 581 48 612 81 16 16 16 305 305 305 235 612
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0803- ●
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 02 1 0803- ● ●
16 CLIP; HARNESS
(N) ID=11 L=60 		0-95235-096-0 01 1 0803-0807 ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0803- ● ●
16 CLIP; HARNESS
(G) ID=26 L=26 		1-09701-236-0 01 1 0803- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0803-0911 ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(H) ID=10 & 12 		1-09709-278-1 01 1 0803- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0803- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803- ● ●
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6 		1-09709-178-0 01 1 0803-0805 ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (O) ID=14 L=44 		9-09917-427-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0803-0908 ●
48 CLIP; FRAME HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 0909- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0803- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0803- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0803-0905 ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0803- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0803-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0803-0901 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0902-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=14 L=44 		9-09917-427-0 01 1 1202- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0803- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 07 1 0803-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 08 1 0902-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (O) ID=14 L=44 		9-09917-427-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 0803-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 14 1 0902-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (O) ID=14 L=44 		9-09917-427-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 0803-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 13 1 0805-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 15 1 0810-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 16 1 0902-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (M) ID=18-24 L=22 		1-09709-295-0 01 1 0805-0808 ●
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1012- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) L=180 		1-09707-162-1 01 1 0803-0805 ● ●
81 CLIP; HARNESS
(B) ID=6.35 & 15 		1-09709-276-1 01 1 0803- ● ●
213 CLIP; END CROSS HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0902- ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 09 1 0803-0901 ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 07 1 0902- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(E) ID=5-12 L=18 		1-09709-287-0 02 1 0809- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0809- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=41 		1-09700-403-0 02 1 0803-0901 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 01 1 0803- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) T=9 & 10.5 		8-97371-949-0 01 1 0803-0807 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (D) ID=12 L=35 		5-09700-206-0 01 1 0807- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0803- ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(K) ID=22 L=35 		8-97375-643-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0803- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0803- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0803- ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=14 L=44 		9-09917-427-0 03 1 0803-0908 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=41 		1-09700-403-0 03 1 0909-0910 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=41 		1-09700-403-0 02 1 0911- ●
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0803-0804 ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0803- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0803- ● ●

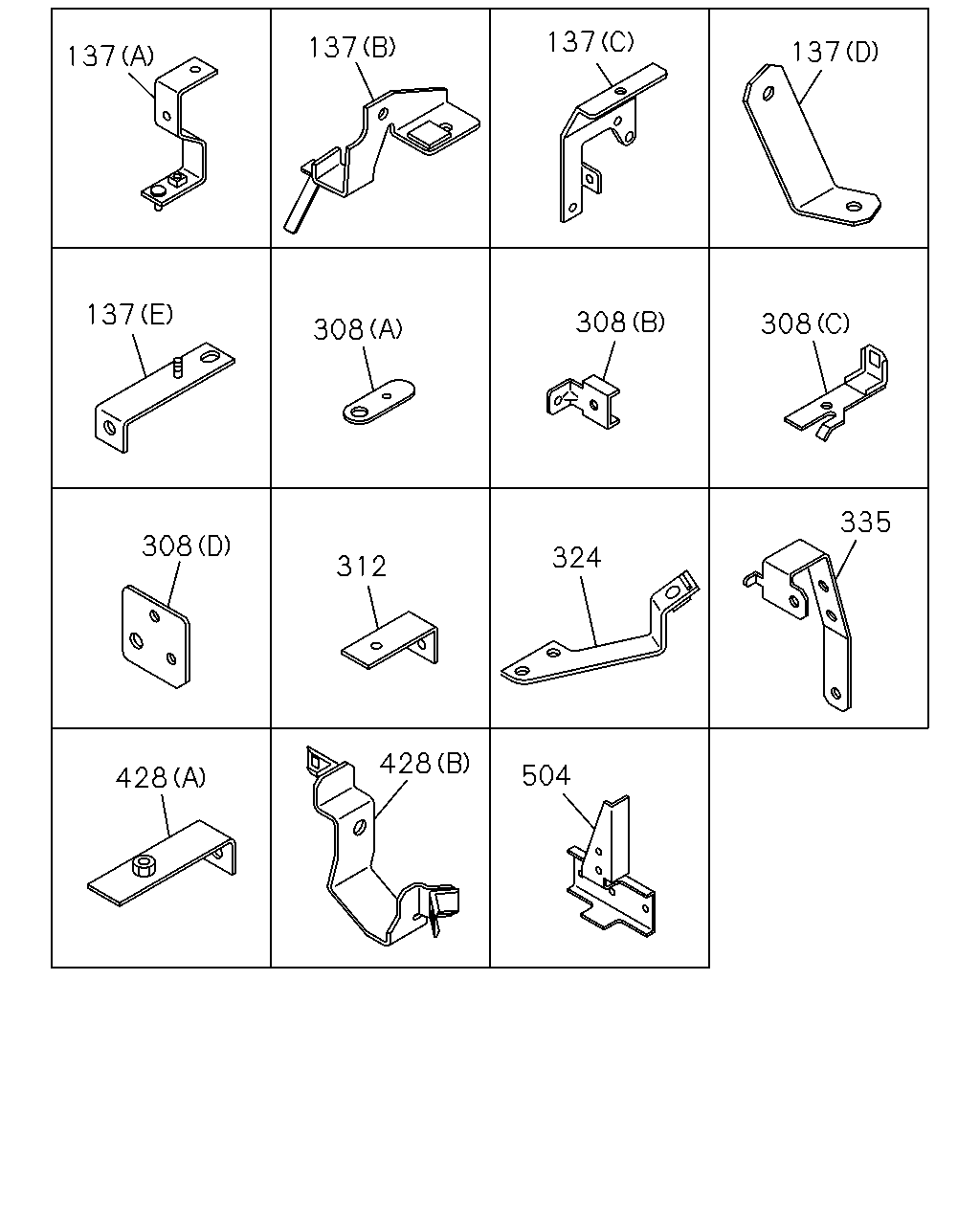

çizim 96023
137 137 137 137 137 308 308 308 335 308 324 312 428 504 428
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(D) 		8-97614-728-1 01 1 0803- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 0803- ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-013-0 01 1 0803- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-98047-324-0 01 1 0803- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0803- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0803-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0803- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0803- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0803- ● ●
312 BRACKET; CLIP HARNESS
L=55 		1-47475-304-0 01 1 0803- ● ●
324 BRACKET; CLIP 8-98051-648-1 01 1 0803- ● ●
324 BRACKET; CLIP 8-98051-649-1 01 1 0803- ● ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0803- ● ●
428 BRACKET
(A) 		1-47475-519-0 01 1 0803- ● ●
428 BRACKET
(B) 		8-98090-952-0 01 1 0803- ● ●
504 PROTECTOR; HARNESS 8-98042-155-0 01 1 0803-0807 ●

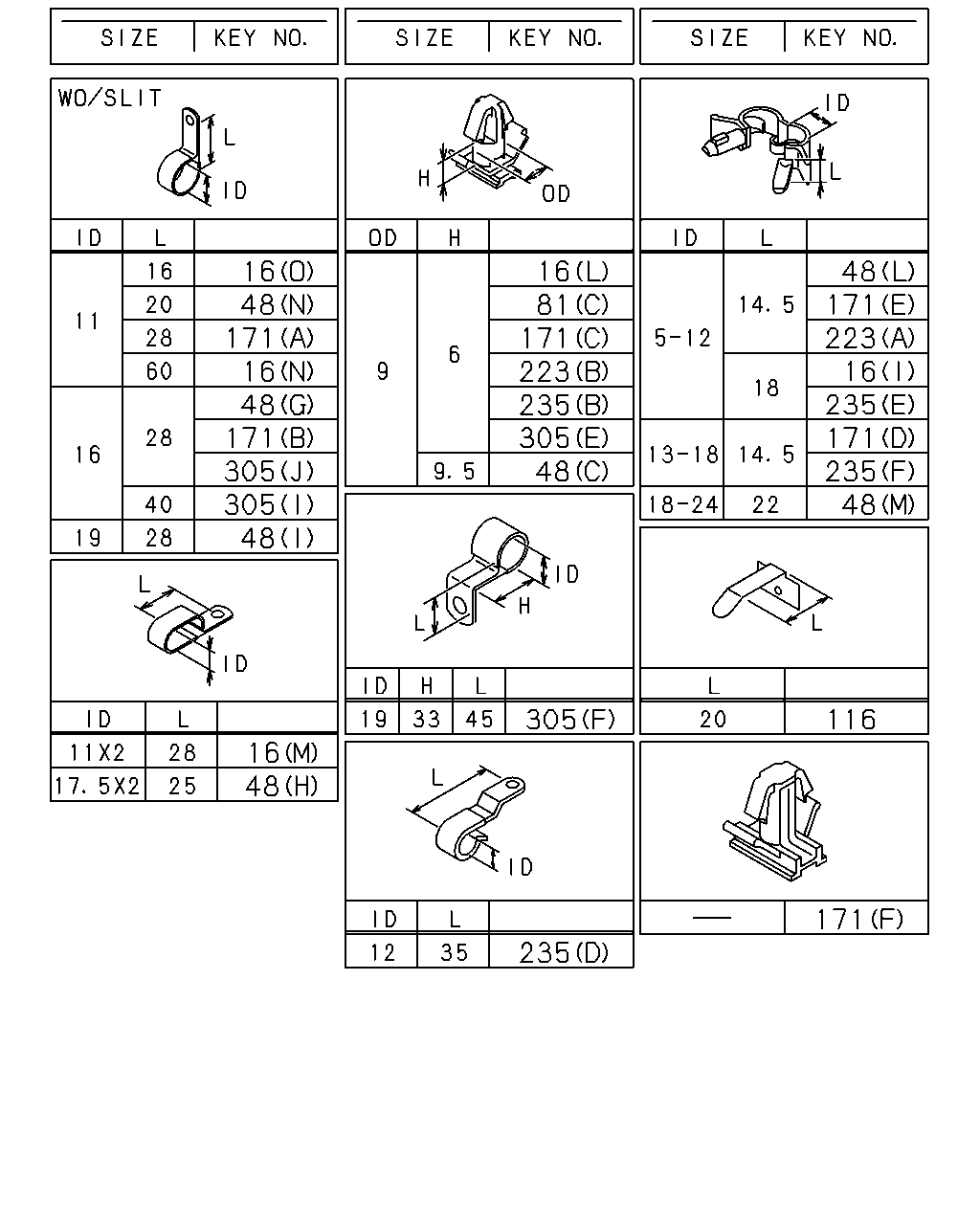

çizim 96177
16 48 171 16 48 171 305 305 48 16 81 171 223 235 305 48 48 171 223 16 235 171 235 48 305 116 16 48 171 235
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0803- ●
16 CLIP; HARNESS
(O) ID=11 L=16 		0-95235-025-0 02 1 0803- ● ●
16 CLIP; HARNESS
(N) ID=11 L=60 		0-95235-096-0 01 1 0803-0807 ● ●
16 CLIP; HARNESS
(M) ID=11X2 L=16 		1-09700-734-0 01 1 0803- ● ●
16 CLIP; HARNESS
(G) ID=26 L=26 		1-09701-236-0 01 1 0803- ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 03 1 0803-0911 ● ●
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(H) ID=10 & 12 		1-09709-278-1 01 1 0803- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 03 1 0803- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0803- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0803- ● ●
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0803- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6 		1-09709-178-0 01 1 0803-0805 ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (O) ID=14 L=44 		9-09917-427-0 02 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0803-0908 ●
48 CLIP; FRAME HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 0909- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0803- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0803- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0803-0905 ●
48 CLIP; FRAME HARNESS
(J) ID=21 L=24 		8-94176-807-1 03 1 0803- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0803-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0803- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0803-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0803-0901 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0902-1201 ● ●
48 CLIP; FRAME HARNESS
(O) ID=14 L=44 		9-09917-427-0 01 1 1202- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 0803- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 07 1 0803-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 08 1 0902-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (O) ID=14 L=44 		9-09917-427-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 0803-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 14 1 0902-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (O) ID=14 L=44 		9-09917-427-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 0803-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 13 1 0805-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 0809-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 15 1 0810-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 16 1 0902-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (D) ID=20 L=50 		9-09917-430-0 14 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM(49W) (M) ID=18-24 L=22 		1-09709-295-0 01 1 0805-0808 ●
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1012- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) L=180 		1-09707-162-1 01 1 0803-0805 ● ●
81 CLIP; HARNESS
(B) ID=6.35 & 15 		1-09709-276-1 01 1 0803- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0803- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0807- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0807- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0807- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0807- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0807- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0807-0809 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1002- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0803- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(E) ID=5-12 L=18 		1-09709-287-0 02 1 0809- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0809- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=41 		1-09700-403-0 02 1 0803-0901 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 01 1 0803- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) T=9 & 10.5 		8-97371-949-0 01 1 0803-0807 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (D) ID=12 L=35 		5-09700-206-0 01 1 0807- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0803- ● ●
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0803- ● ●
305 CLIP; ENG HARNESS
(K) ID=22 L=35 		8-97375-643-0 01 1 0803- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0803- ● ●

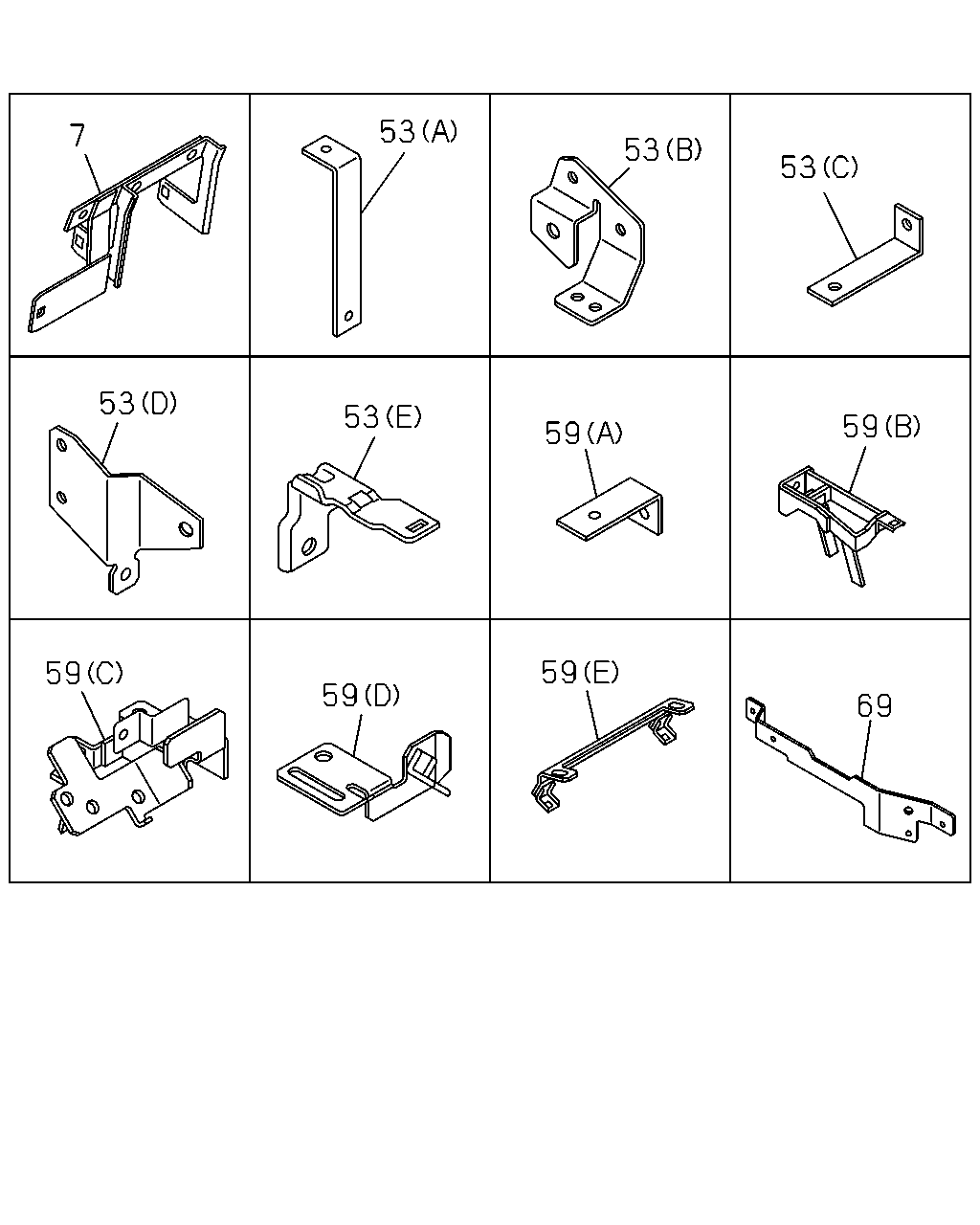

çizim 96305
53 7 53 53 53 53 59 59 59 59 59 69
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0803- ● ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 01 1 0803- ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0803- ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0803- ●
53 BRACKET; HARNESS
(D) 		8-98047-890-0 01 1 0803- ● ●
53 BRACKET; HARNESS
(D) 		8-98047-891-0 01 1 0803- ● ●
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 0803- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98084-590-0 01 1 0803- ● ●
59 BRACKET; FRAME HARNESS
(A) L=55 		1-47475-304-0 01 1 0812-0901 ● ●
59 BRACKET; FRAME HARNESS
(A) L=55 		1-47475-304-0 01 1 0803-0807 ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0803- ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 0803- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97619-534-0 01 1 0803- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 0803-0804 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW) (B) 		8-97609-264-2 01 1 0805- ● ●
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (B) 		8-97627-325-0 01 1 0807-0901 ● ●
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (B) 		8-97627-325-0 01 1 0807-0901 ● ●
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (B) 		8-97627-325-0 01 1 0902- ● ●
69 BRACKET; CLIP 8-97614-738-0 01 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
