Isuzu WW
▶
TRUCKS
▶
FSR
▶
11140 - FSR-RHD(EU)SPACE EU4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

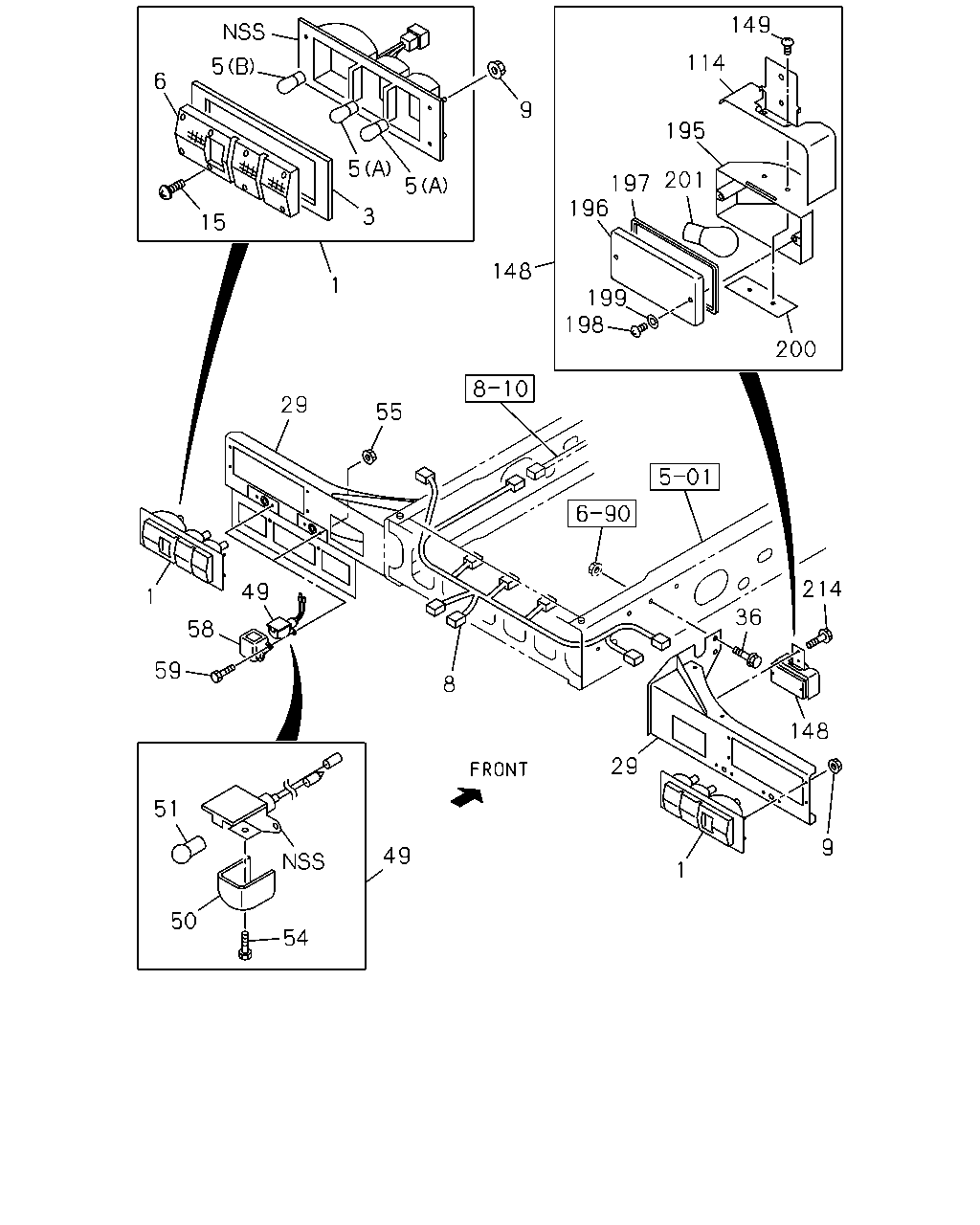

8-03 — LAMP; REAR AND REAR SIDE
(#24627) — 39 parça
Tümü
A - FCD5CS
B - FCR5CS
149
114
5
6
9
195
5
201
197
196
5
3
15
148
1
199
198
200
29
55
214
49
1
36
58
59
8
148
29
51
9
49
1
50
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; RR COMB
8-98020-845-2
01
1
0803-1207
●
●
1
LAMP ASM; RR COMB
8-98223-615-0
01
1
1208-
●
●
1
LAMP ASM; RR COMB
8-98020-846-2
01
1
0803-1207
●
●
1
LAMP ASM; RR COMB
8-98223-616-0
01
1
1208-
●
●
3
GASKET; RR COMB LAMP
5-82236-001-0
01
1
0803-
●
●
3
GASKET; RR COMB LAMP
5-82236-002-0
01
1
0803-
●
●
5
BULB; RR COMB LAMP
(A) 24V 21W
8-98017-972-0
04
1
0803-
●
●
5
BULB; RR COMB LAMP
(B) 24V 21/5W
8-98017-973-0
02
1
0803-
●
●
6
LENS; RR COMB LAMP
5-82235-001-0
01
1
0803-
●
●
6
LENS; RR COMB LAMP
5-82235-002-0
01
1
0803-
●
●
8
HARNESS; RR COMB LAMP
8-98115-347-3
01
1
0803-1201
●
●
8
HARNESS; RR COMB LAMP
8-98203-884-0
01
1
1202-
●
●
9
NUT; LAMP,RR COMB
M5 FLANGE
5-09440-003-0
08
1
0803-0804
●
●
9
NUT; LAMP,RR COMB
M5 FLANGE
1-09984-170-0
08
1
0805-
●
●
15
SCREW; RR COMB LAMP
8-97017-759-0
16
1
0803-
●
●
29
BRACKET; LAMP,RR COMB
8-98112-146-2
01
1
0803-
●
●
29
BRACKET; LAMP,RR COMB
8-98112-148-2
01
1
0803-
●
●
36
BOLT; BRKT,RR COMB
M10X30 FLANGE
0-28651-030-0
06
1
0803-0804
●
●
36
BOLT; BRKT,RR COMB
M10X30 FLANGE
0-28651-030-0
04
1
0805-
●
●
49
LAMP; LICENSE PLATE
24V 5W
8-97105-380-0
02
1
0803-
●
●
50
LENS; LICENSE PLATE LAMP
8-97108-212-0
02
1
0803-
●
●
51
BULB; LICENSE PLATE LAMP
24V 5W
1-82194-039-0
02
1
0803-
●
●
54
SCREW; LICENSE PLATE LAMP
M4X8
8-94419-312-0
02
1
0803-
●
●
55
NUT; LICENSE PLATE LAMP
M5 FLANGE
8-94153-039-0
04
1
0803-0806
●
●
55
NUT; LICENSE PLATE LAMP
M5 FLANGE
1-09984-170-0
04
1
0807-
●
●
58
COVER; LICENSE PLATE LAMP
8-97076-590-1
02
1
0803-
●
●
59
SCREW; TAP,LICENSE LAMP BODY
M5X20
9-93490-520-0
04
1
0803-
●
●
114
BRACKET; RR FOG LAMP
8-97108-583-0
01
1
0803-
●
●
148
LAMP ASM; RR FOG
8-97181-000-0
01
1
0803-
●
●
149
SCREW; BRKT TO LAMP BODY
8-94336-372-0
02
1
0803-
●
●
195
LAMP UNIT; RR FOG
8-94336-322-0
01
1
0803-
●
●
196
LENS; RR FOG LAMP
8-94336-325-0
01
1
0803-
●
●
197
GASKET; RR FOG LAMP
8-94336-324-0
01
1
0803-
●
●
198
SCREW; LENS TO BODY
0-71190-416-0
02
1
0803-
●
●
199
WASHER; LENS,RR FOG LAMP
8-94336-326-0
02
1
0803-
●
●
200
PLATE; SET,RR FOG LAMP
8-94336-323-0
01
1
0803-
●
●
201
BULB; RR FOG LAMP
24V 21W
1-82194-036-0
01
1
0803-
●
●
214
BOLT; RR FOG LAMP
M6X20 FLANGE
0-28650-620-0
01
1
0803-0804
●
●
214
BOLT; RR FOG LAMP
M6X16 FLANGE
0-28650-616-0
01
1
0805-
●
●
