8-01 — LAMP; FRONT AND FRONT SIDE (#24626) — 113 parça
çizim 28998
1 4 338 339 408 420 20 5 5 457 23 382
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98098-479-1 01 1 0803-1208 ●
1 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-480-1 01 1 0803-1208 ●
1 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-477-1 01 1 0803-1208 ●
1 LAMP ASM; HEAD 8-98225-591-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-634-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-319-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-478-1 01 1 0803-1208 ●
1 LAMP ASM; HEAD 8-98225-592-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-635-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-320-0 01 1 1306- ●
4 HEADLAMP UNIT 8-98051-400-0 01 1 0803-1301 ●
4 HEADLAMP UNIT 8-98226-182-0 01 1 1302- ●
4 HEADLAMP UNIT 8-98051-401-0 01 1 0803-1301 ●
4 HEADLAMP UNIT 8-98226-183-0 01 1 1302- ●
4 HEADLAMP UNIT 8-98051-398-0 01 1 0803-1301 ●
4 HEADLAMP UNIT 8-98226-180-0 01 1 1302- ●
4 HEADLAMP UNIT 8-98051-399-0 01 1 0803-1301 ●
4 HEADLAMP UNIT 8-98226-181-0 01 1 1302- ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0803- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0803- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0803- ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0803- ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1209- ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1209- ●
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0803-1208 ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0803- ● ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0803-1301 ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ●

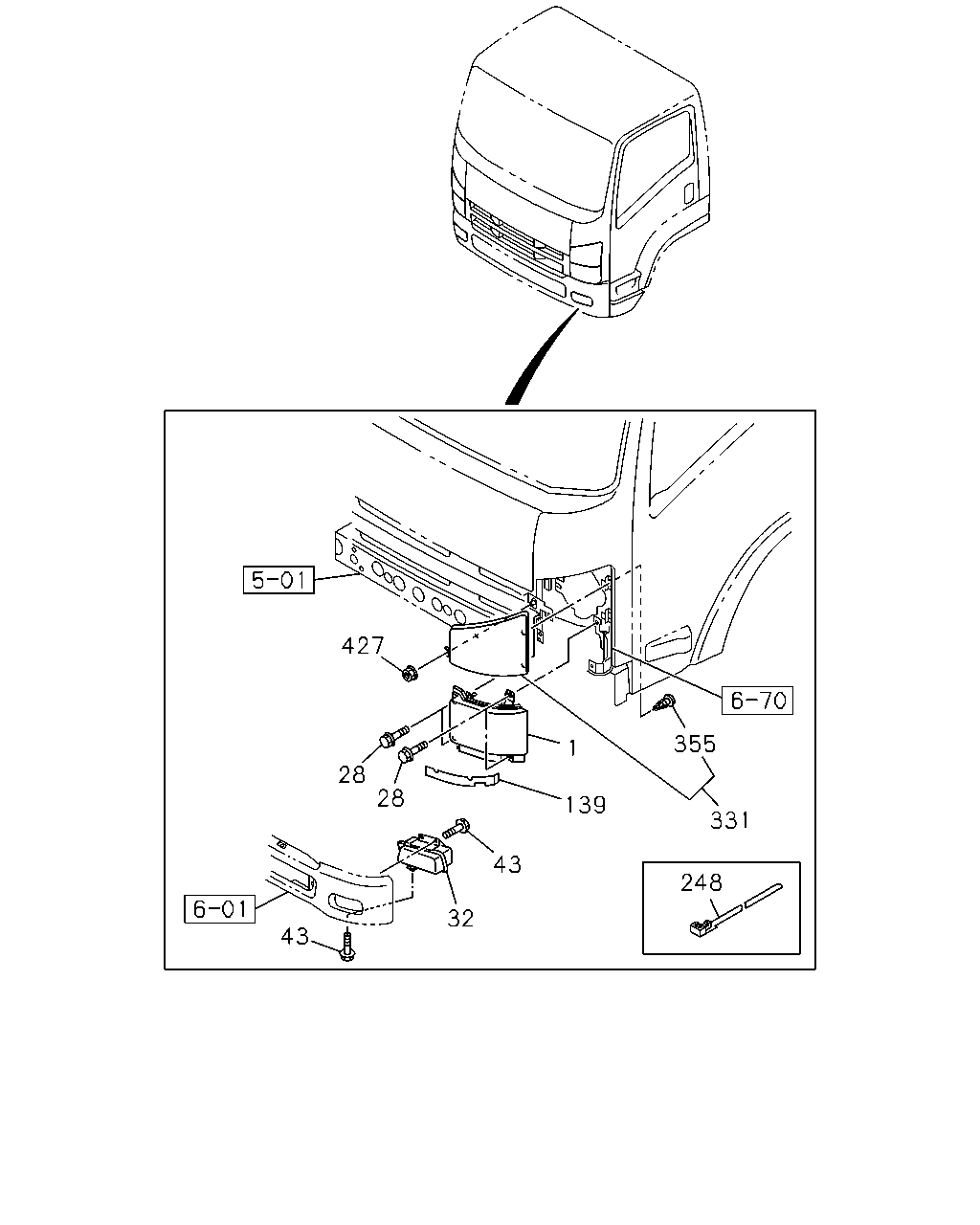

çizim 95274
427 1 28 28 139 331 43 248 32 43 355
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98098-479-1 01 1 0803-1208 ●
1 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-480-1 01 1 0803-1208 ●
1 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-477-1 01 1 0803-1208 ●
1 LAMP ASM; HEAD 8-98225-591-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-634-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-319-0 01 1 1306- ●
1 LAMP ASM; HEAD 8-98098-478-1 01 1 0803-1208 ●
1 LAMP ASM; HEAD 8-98225-592-0 01 1 1209-1301 ●
1 LAMP ASM; HEAD 8-98225-635-0 01 1 1302-1305 ●
1 LAMP ASM; HEAD 8-98241-320-0 01 1 1306- ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0803-1005 ● ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0803-0906 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-0 01 1 1302- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0803-0906 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-0 01 1 1302- ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 0803- ● ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 0803- ● ●
248 CLIP; HARNESS
EXC. FOG LAMP<T96> L=140 		5-09707-031-1 02 1 0803- ● ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0803-0911 ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0803-0911 ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0803- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0803-0807 ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0808- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0808- ● ●
çizim 95978
331 431 357 399 355 432 32 44 47 49 15 36 421 448
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0803- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0803-0906 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-0 01 1 1302- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0803-0906 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-0 01 1 1302- ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0803- ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0803- ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1205- ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1205- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0803- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0803- ● ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0803-0911 ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0803-0911 ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0803- ● ●
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0803- ● ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0803- ● ●
421 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97025-128-0 02 1 0803-0906 ● ●
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0803- ● ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0803- ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0907- ● ●

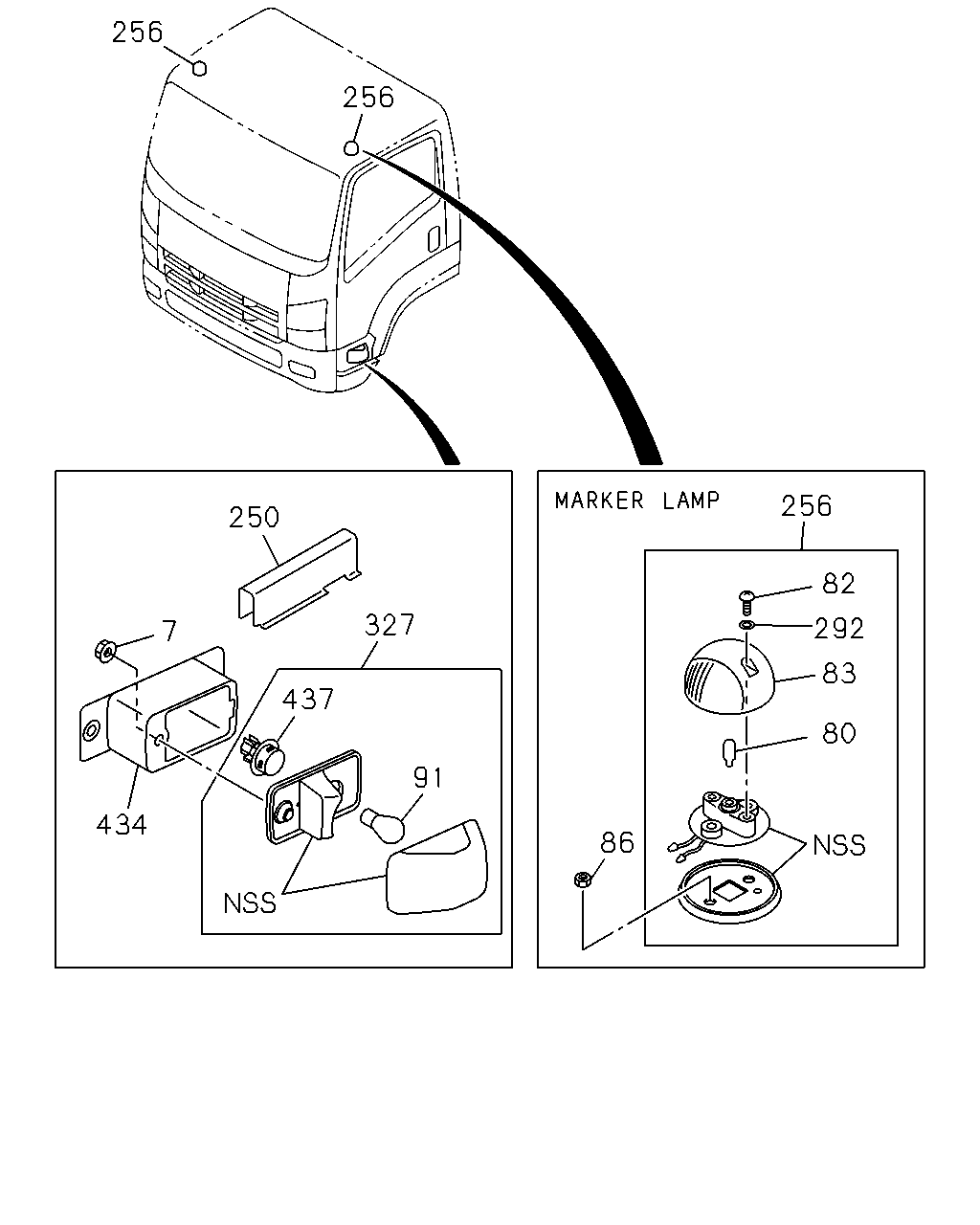

çizim 95985
256 256 256 250 82 327 292 7 83 437 80 91 434 86
BalonParca AdiParca NoAdetTipApplied Date A B
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 02 1 0803-0807 ● ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0803- ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0803- ● ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0803- ● ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 0803- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0803- ● ●
250 BRACKET ASM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98113-164-0 01 1 0803- ● ●
250 BRACKET ASM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98113-165-0 01 1 0803- ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 0803- ● ●
256 LAMP; MARKER 8-98097-467-3 01 1 0803- ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0803- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0803- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0803- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-354-0 01 1 0803- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-355-0 01 1 0803- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-726-1 01 1 0803- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-727-1 01 1 0803- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0803- ● ●
