◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#24609) — 75 parça

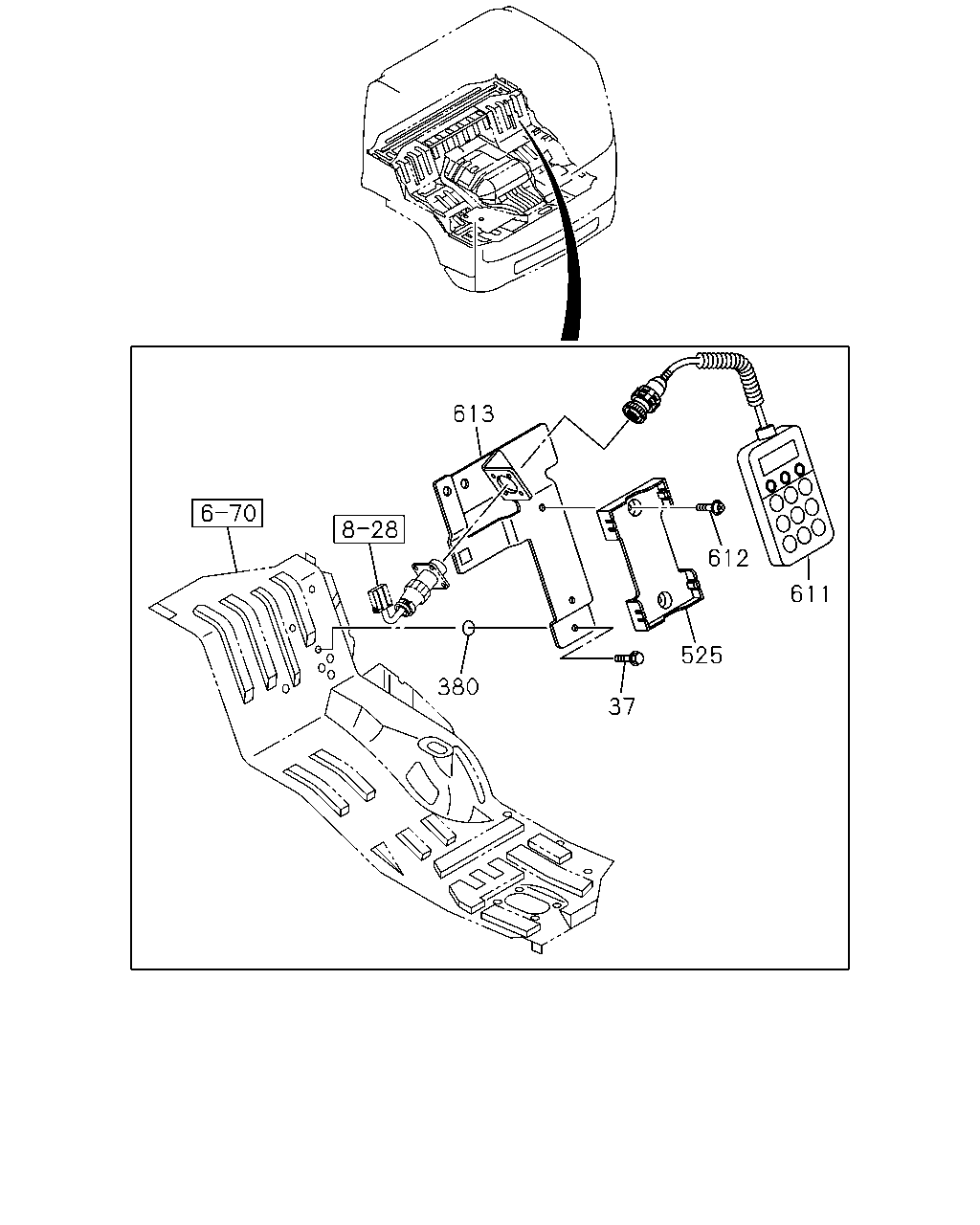

çizim 60545
613 612 611 525 380 37
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; BRKT FIX
M6X25 FLANGE 		0-28650-625-0 02 1 0809-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0809-
525 HOLDER; SW 1-82389-018-0 01 1 0809-
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 0809-
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 0809-
613 BRACKET; HOLDER,SW 8-97619-255-3 01 1 0809-

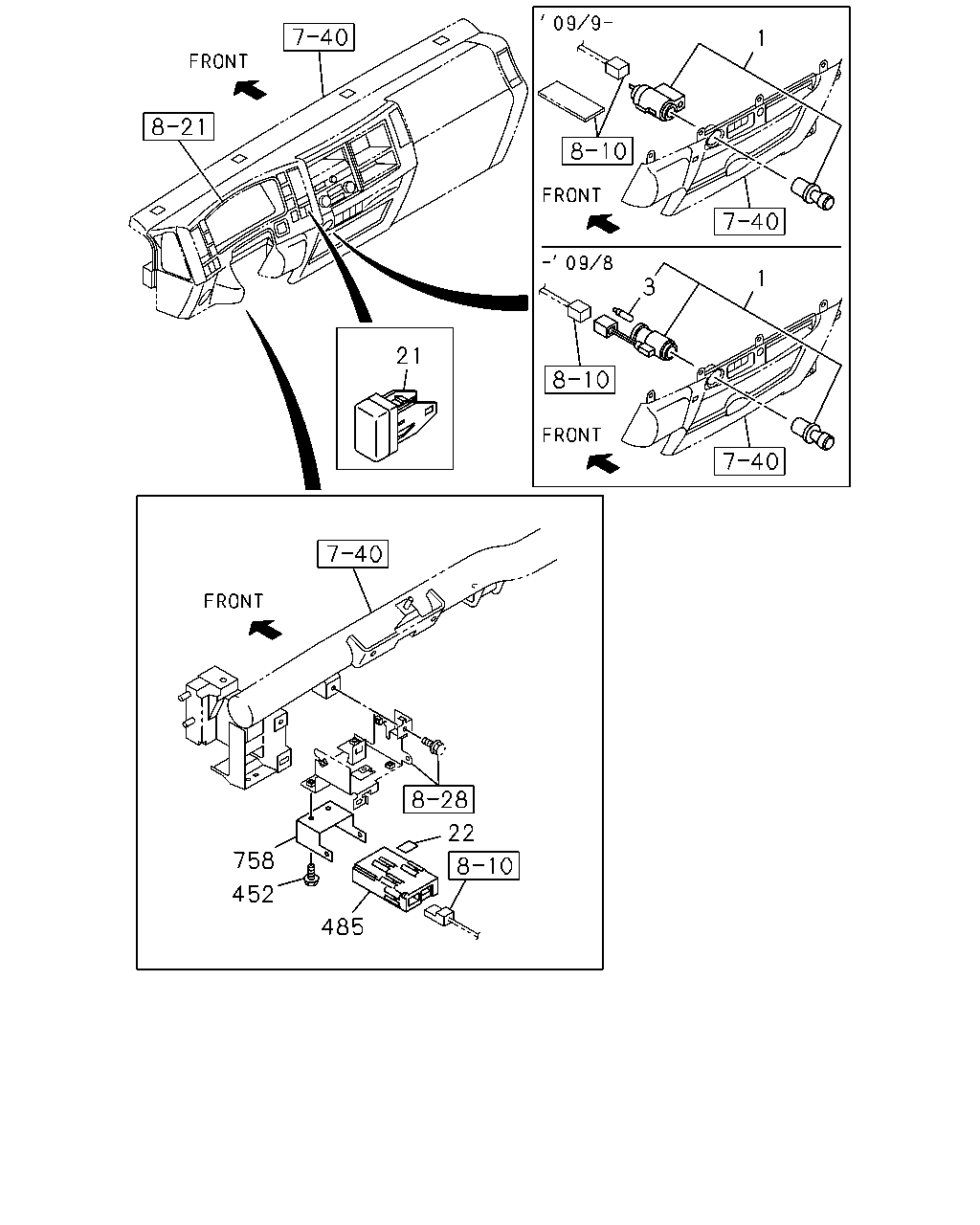

çizim 60562
1 1 3 21 22 758 452 485
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0809-0908
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909-
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0809-0908
21 COVER; HOLE 8-98025-954-1 01 1 0809-
22 SEAL; TAPE 1-80199-006-0 01 1 0809-0811
22 SEAL; TAPE 1-80199-006-0 02 1 0812-1212
22 SEAL; TAPE 8-98166-639-0 02 1 1301-
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 0809-
485 CONTROL UNIT; SPEED SENSOR 1-80190-061-0 01 1 0809-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0809-

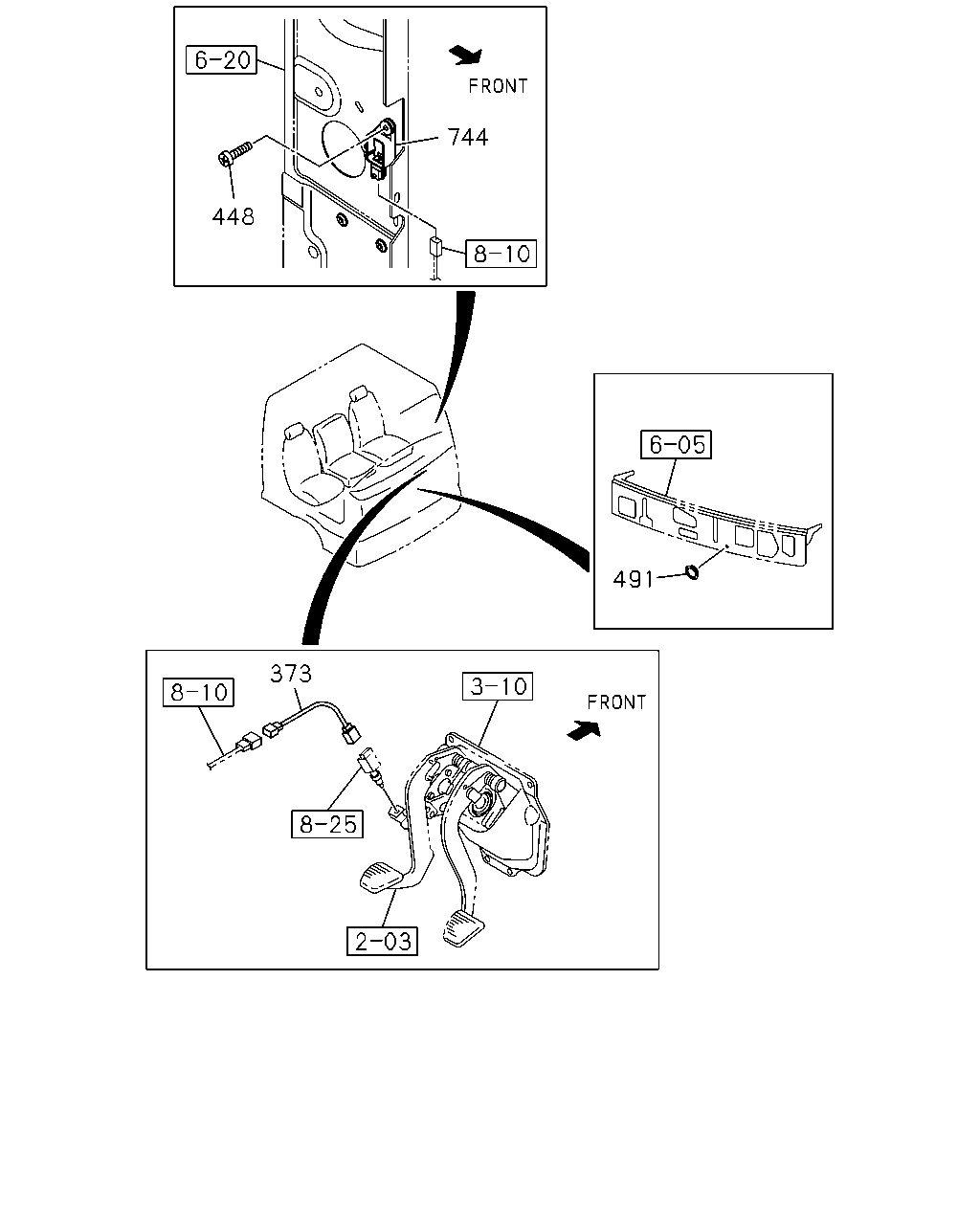

çizim 60930
744 448 491 373
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH
FULLER FSO5206B OD M/T(Y4V) 		8-98110-720-0 01 1 0809-
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98110-720-0 01 1 0809-
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98110-722-0 01 1 0809-
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0809-
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 0809-
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0809-

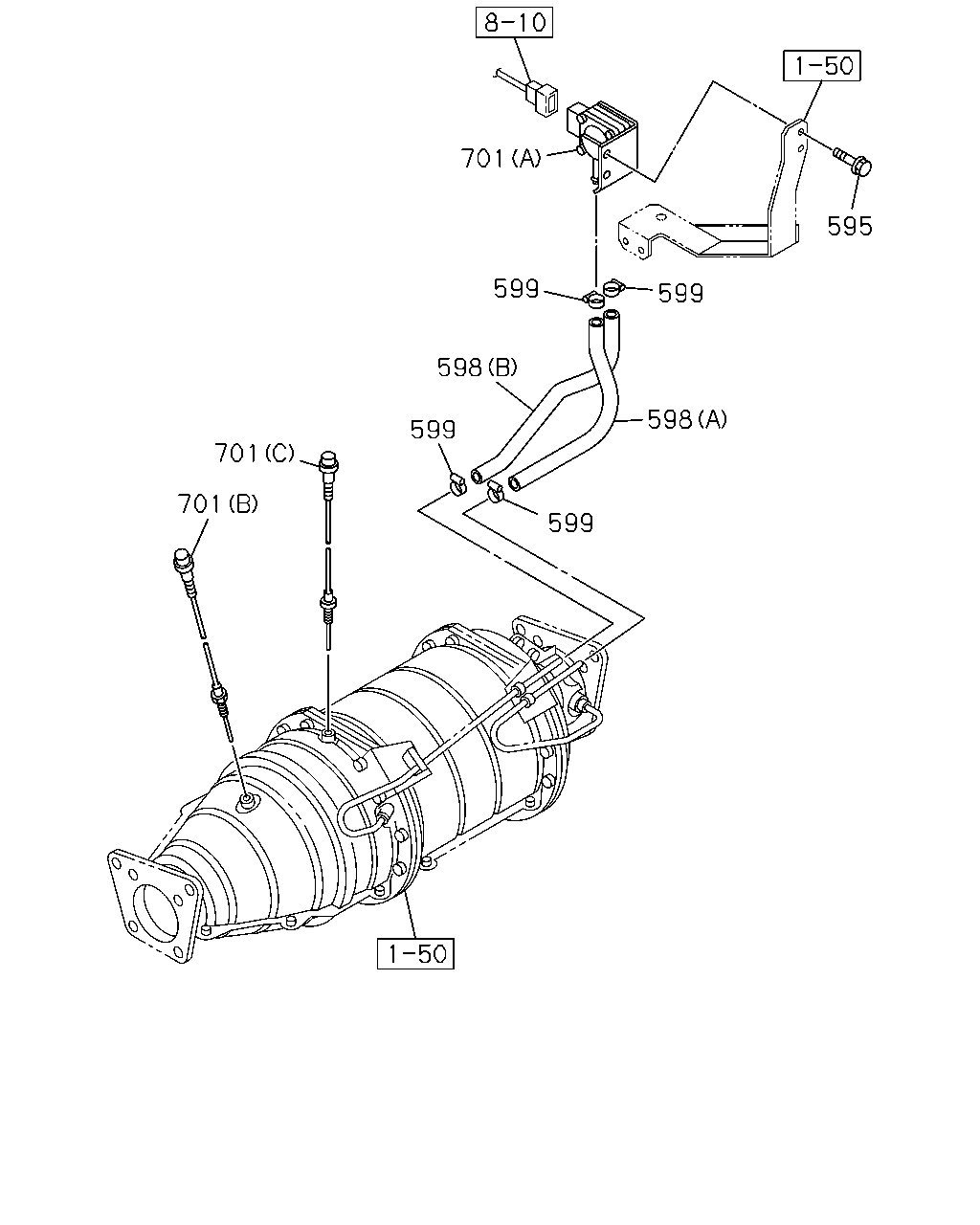

çizim 60938
701 595 599 599 598 598 599 701 701 599
BalonParca AdiParca NoAdetTipApplied Date
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) (B) 		8-98088-940-0 01 1 0809-
598 HOSE; RUBBER,SENSOR
6HK1-TCS ENG(80L) (A) 		8-98088-941-0 01 1 0809-
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) (A) 		8-98075-388-0 01 1 0809-
598 HOSE; RUBBER,SENSOR
6HK1-TCC ENG(81L) (B) 		8-98075-389-0 01 1 0809-
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0809-
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0809-
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0809-
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0809-

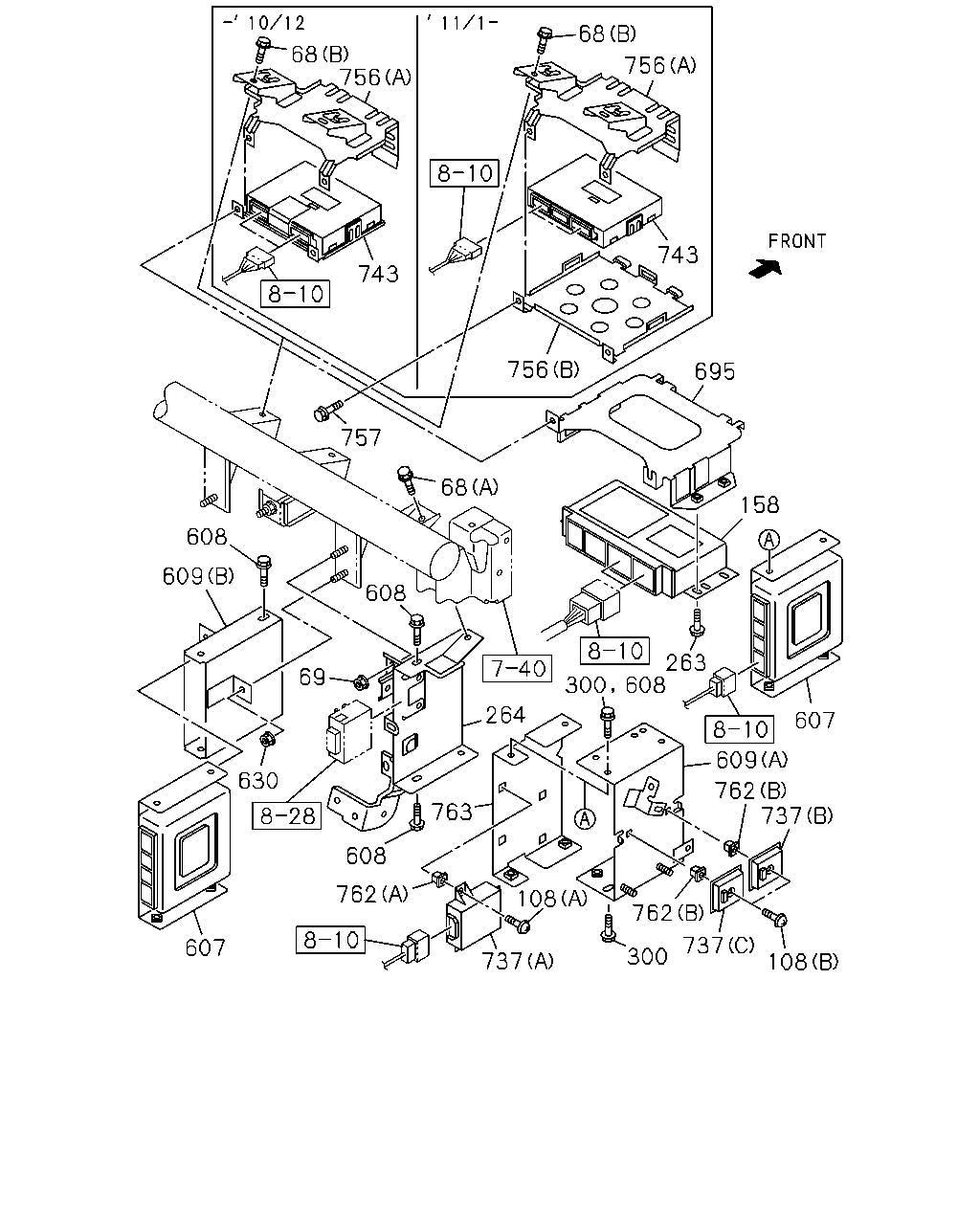

çizim 101818
68 68 756 756 743 743 756 695 757 68 158 608 609 608 263 608 69 300 264 607 609 630 762 737 763 608 762 108 762 737 607 300 737 108
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0809-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0809-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0809-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M5X16 TAPPING 		0-72180-516-0 03 1 0809-
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) M4X25 TAPPING 		0-74160-425-0 02 1 0809-
158 CONTROLLER; ABS
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		8-98170-647-0 01 1 1006-1007
158 CONTROLLER; ABS
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		1-80119-229-2 01 1 1008-1201
158 CONTROLLER; ABS
TIRE 275/70R22.5-148/145M RIB EEC(5L4) 		8-98170-647-0 01 1 1202-
158 CONTROLLER; ABS
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		1-80119-261-0 01 1 0809-0810
158 CONTROLLER; ABS 1-80119-261-0 01 1 0811-1005
158 CONTROLLER; ABS
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		8-98170-648-0 01 1 1006-1007
158 CONTROLLER; ABS
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		1-80119-261-0 01 1 1008-1201
158 CONTROLLER; ABS
TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P) 		8-98170-648-0 01 1 1202-
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0809-
264 BRACKET; CONT UNIT 8-97616-354-5 01 1 0809-
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 04 1 0809-
607 CONTROL UNIT; AIR SUSPENSION 8-98101-097-1 01 1 0809-
608 BOLT; CONT UNIT,AIR SUS
FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0809-
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 0809-
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 04 1 0809-
609 BRACKET ASM; ELEC UNIT,AIR SUS
FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98095-336-0 01 1 0809-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98095-336-0 01 1 0809-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
FULLER FSO5206B OD M/T(Y4V) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98226-231-1 01 1 1309-
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98226-231-1 01 1 1309-
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98084-470-1 01 1 0809-
630 NUT; CONT UNIT,AIR SUSP
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6 FLANGE 		0-91180-106-0 02 1 0809-
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0809-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-80111-271-0 01 1 0809-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98095-040-0 01 1 0809-
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98095-041-0 01 1 0809-
743 CONTROL UNIT; BCM 8-98102-484-0 01 1 0809-0901
743 CONTROL UNIT; BCM 8-98125-904-0 01 1 0902-1005
743 CONTROL UNIT; BCM 8-98155-169-1 01 1 1006-1007
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1008-1012
743 CONTROL UNIT; BCM 8-98182-026-2 01 1 1101-
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101-
756 BRACKET; ECU,BCM
(A) 		8-98052-797-3 01 1 0809-
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0809-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0809-
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0809-
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-587-0 01 1 0809-
çizim 101832
726 497 726 497 507
BalonParca AdiParca NoAdetTipApplied Date
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0809-
507 CONNECTOR 1-82690-666-0 01 1 1011-1102
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0809-
