◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#24607) — 15 parça

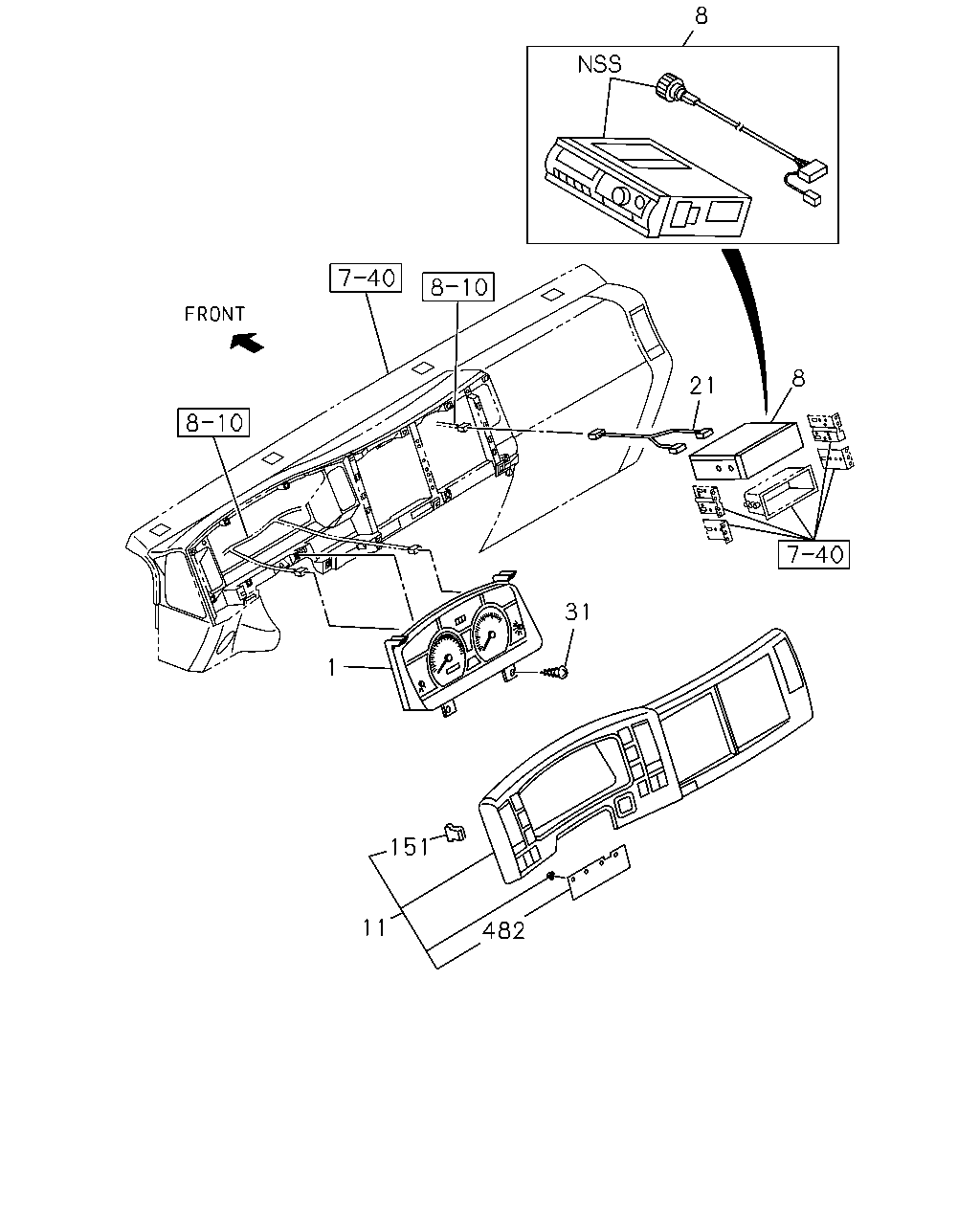

çizim 60927
8 8 21 31 1 151 11 482
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-98064-916-7 01 1 0809-
8 TACHOGRAPH; CLUSTER METER 8-98113-386-0 01 1 0809-1008
8 TACHOGRAPH; CLUSTER METER 8-98178-335-0 01 1 1009-1107
8 TACHOGRAPH; CLUSTER METER 8-98197-456-0 01 1 1108-
11 CLUSTER ASM; METER
DARK GRAY 		8-97414-682-3 01 1 0809-
21 HARNESS; TACHOGRAPH 8-98099-111-0 01 1 0809-
31 SCREW; METER,INST PANEL
M5X16 TAPPING 		0-72180-516-0 04 1 0809-
151 CLIP; METER CLUSTER 8-98021-271-0 13 1 0809-
482 SEAL; CLUSTER METER 8-98116-843-0 01 1 0809-

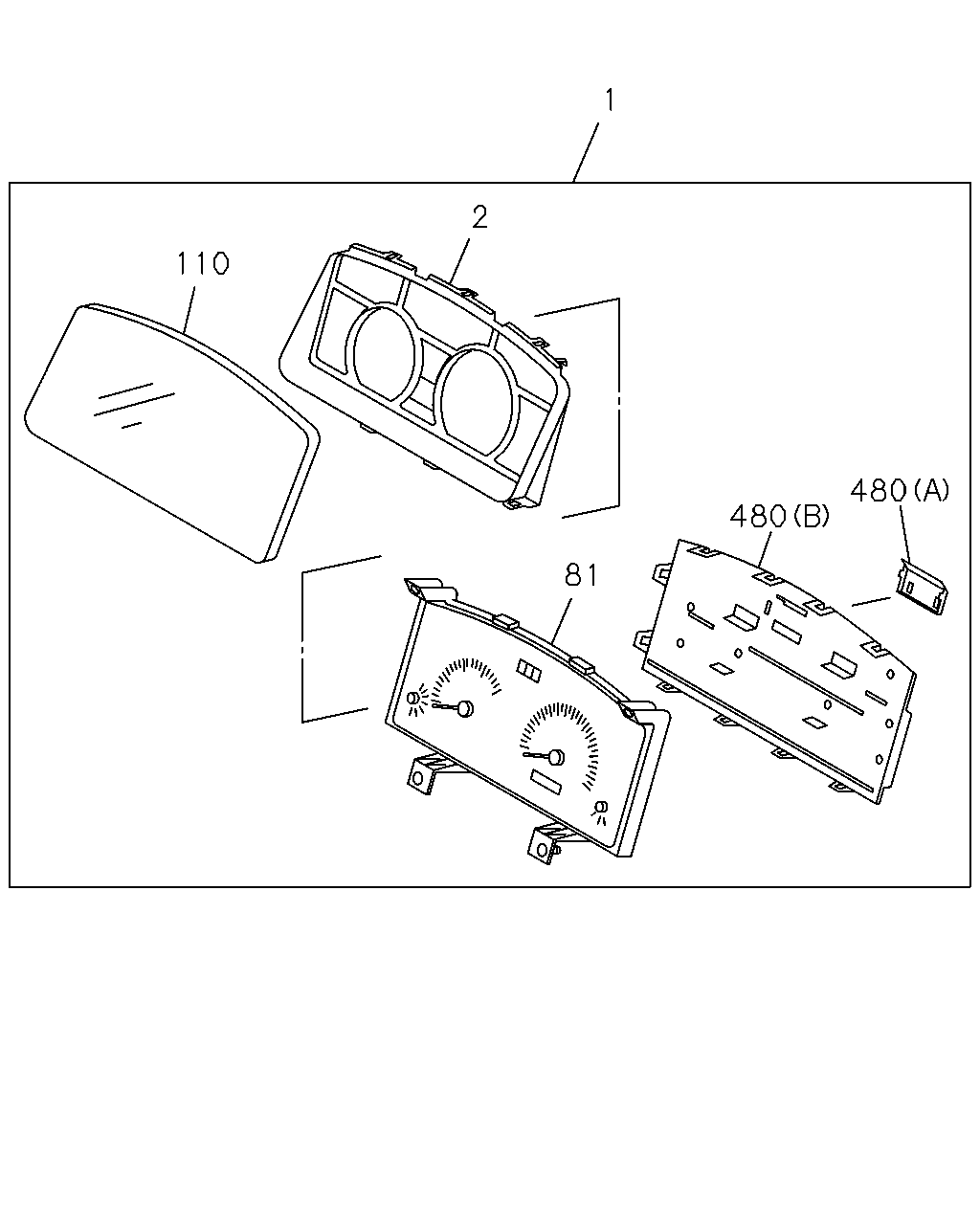

çizim 60943
1 2 110 480 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-98064-916-7 01 1 0809-
2 PANEL; CLUSTER 8-98054-432-0 01 1 0809-
81 METER SUB ASM 8-98079-688-0 01 1 0809-
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 0809-
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0809-
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0809-
