Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#24605) — 476 parça

7 53 53 53 53 59 59 59 59 59 59 53 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

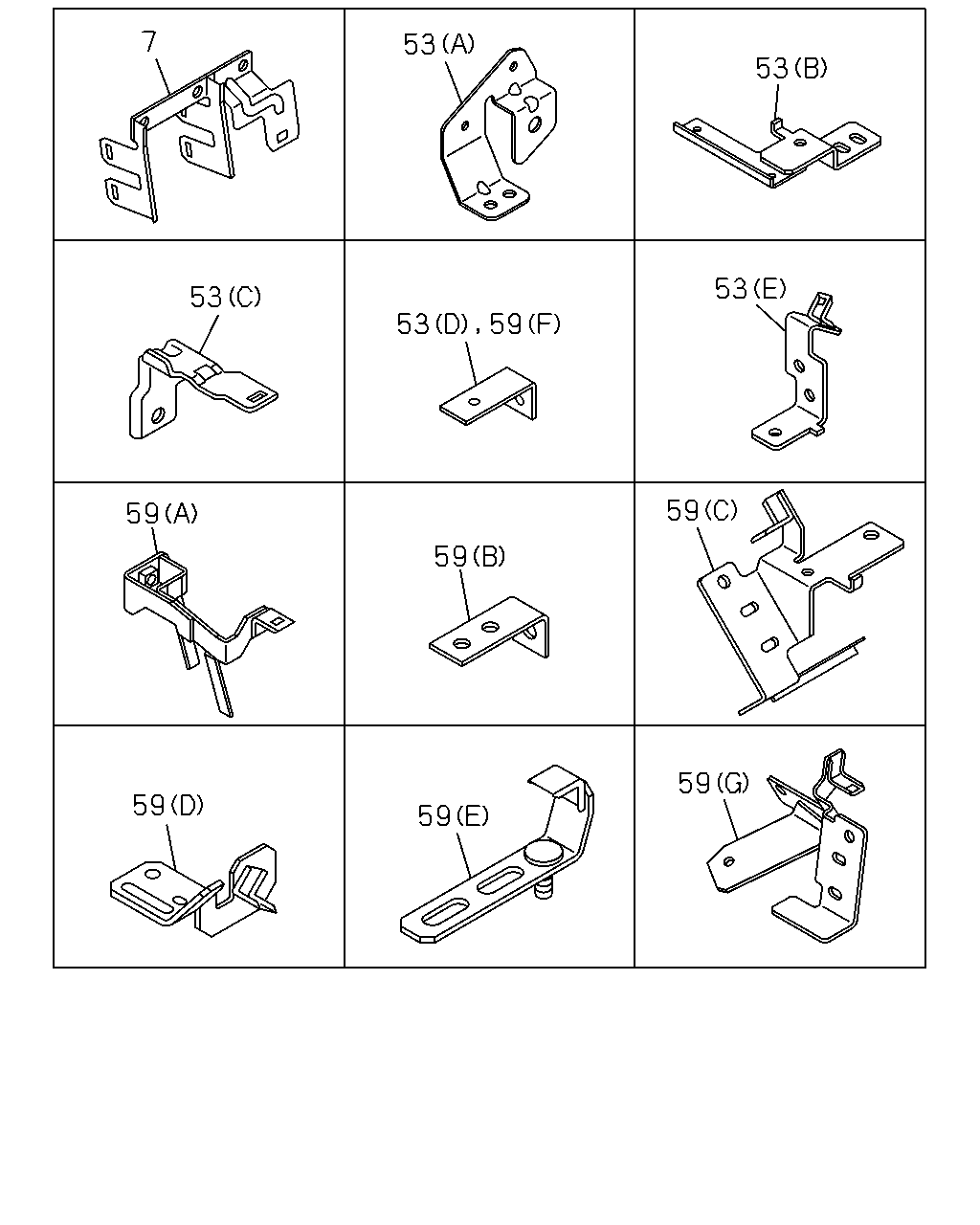

7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0809-
53	BRACKET; HARNESS FULLER FSO5206B OD M/T(Y4V) (E)	8-98129-543-0	01	1	0810-
53	BRACKET; HARNESS ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	8-98129-543-0	01	1	0810-
53	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) L=95	1-82699-085-0	04	1	0809-
53	BRACKET; HARNESS (B)	8-97620-485-0	01	1	0809-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	0809-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)	8-98084-699-0	01	1	0809-
59	BRACKET; FRAME HARNESS (F) L=75	1-47478-323-0	01	1	0904-
59	BRACKET; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B)	1-21464-170-2	01	1	0809-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	0809-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0809-
59	BRACKET; FRAME HARNESS (C)	8-97620-482-1	01	1	0809-0905
59	BRACKET; FRAME HARNESS (G)	8-98107-611-0	01	1	0906-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	0809-

235 305 48 305 16 37 48 81 183 223 305 470 48 81 116 37 223 16 48 48 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

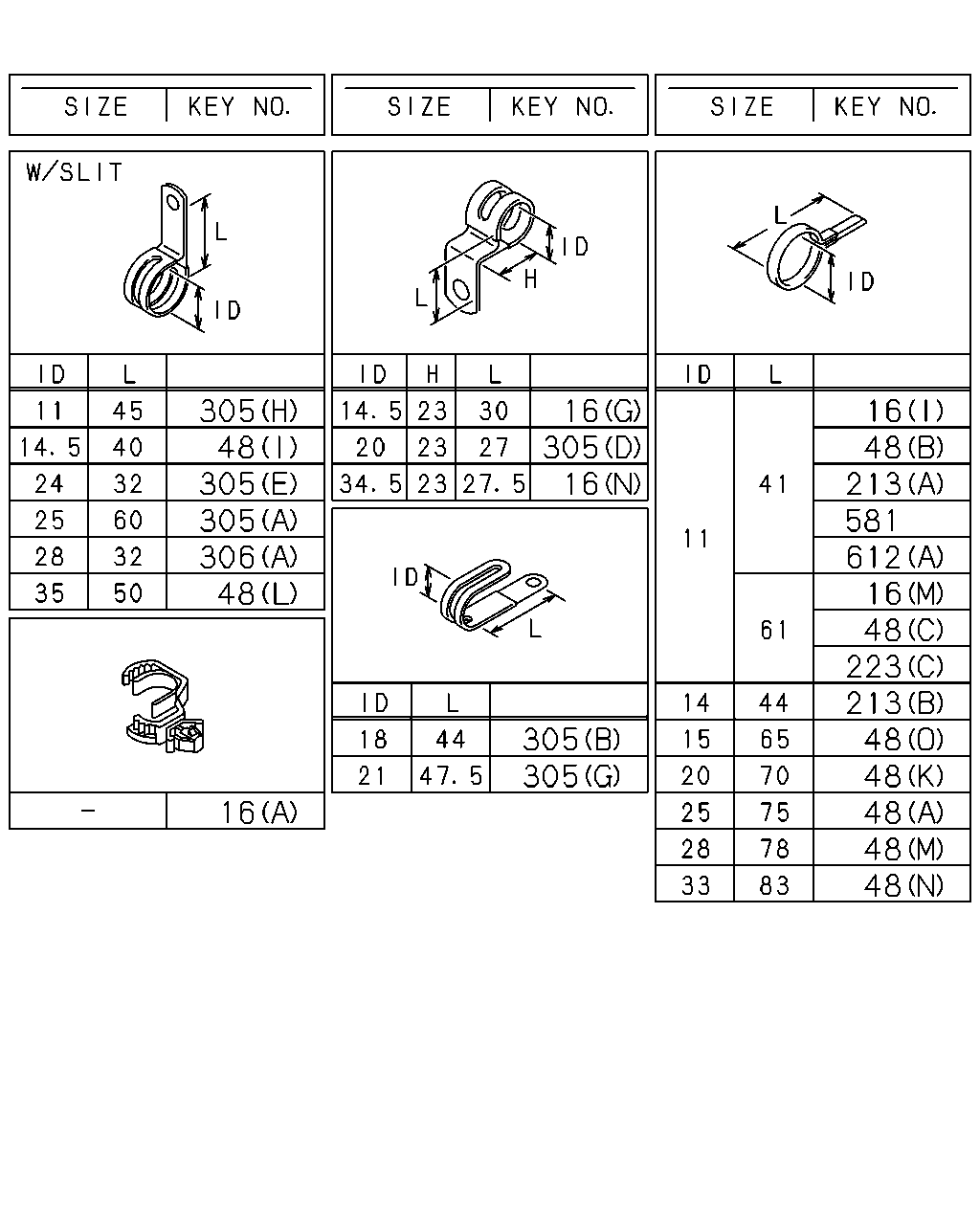

16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	1103-
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0809-0811
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	02	1	0809-
16	CLIP; HARNESS (M) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (K) ID=22X11 L=20	1-09700-871-0	02	1	0809-
16	CLIP; HARNESS (N) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	01	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	02	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	06	1	0809-
16	CLIP; HARNESS (L) ID=13-18 L=14.5	1-09709-290-0	02	1	0809-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-
37	CLIP; HARNESS,POWER TILT (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	0809-0809
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	0810-
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	0810-
37	CLIP; HARNESS,POWER TILT (C) OD=9 H=6	8-97368-793-0	02	1	0809-
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (Q) L=250	5-09707-030-1	01	1	0811-
48	CLIP; FRAME HARNESS (Q) L=250	5-09707-030-1	02	1	0811-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	06	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	11	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	15	1	0810-0811
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	04	1	0812-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	03	1	0809-1102
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	02	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	14	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	13	1	0812-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (K) ID=20 L=70	1-09700-485-0	24	1	0809-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0811
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0811
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	08	1	0812-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	07	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	01	1	0810-1102
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (C) ID=11 L=61	1-09700-484-0	01	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	01	1	1103-
48	CLIP; FRAME HARNESS (P) ID=13-18 L=22	1-09709-292-0	01	1	0810-1005
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (P) ID=13-18 L=22	1-09709-292-0	01	1	1006-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40	0-95235-576-0	03	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) L=180	1-09707-162-1	01	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	0809-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50	0-95325-586-0	01	1	0809-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40	1-09701-014-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65	1-09700-466-0	01	1	0809-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) ID=11 L=41	1-09700-403-0	01	1	0812-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	15	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	20	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	21	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	05	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=11 L=61	1-09700-484-0	09	1	0812-1102
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=11 L=61	1-09700-484-0	08	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (O) ID=15 L=65	1-09700-466-0	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (O) ID=15 L=65	1-09700-466-0	06	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=25 L=75	1-09701-275-0	02	1	0809-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	09	1	0809-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	05	1	0810-
48	CLIP; FRAME HARNESS (M) ID=28 L=78	1-09700-858-0	02	1	0809-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	03	1	0809-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-0811
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0812-
81	CLIP; HARNESS FULLER FSO5206B OD M/T(Y4V) (A) OD=9 H=6	1-09709-178-0	01	1	1011-1102
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (B) OD=9 H=13.5	1-09709-180-0	01	1	1011-1102
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	04	1	0809-
183	CLIP; CONNECTOR OD=9 H=6	1-09709-178-0	01	1	0809-0810
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	01	1	0809-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0811
223	CLIP; AIR TANK HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0811
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0812-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0809-

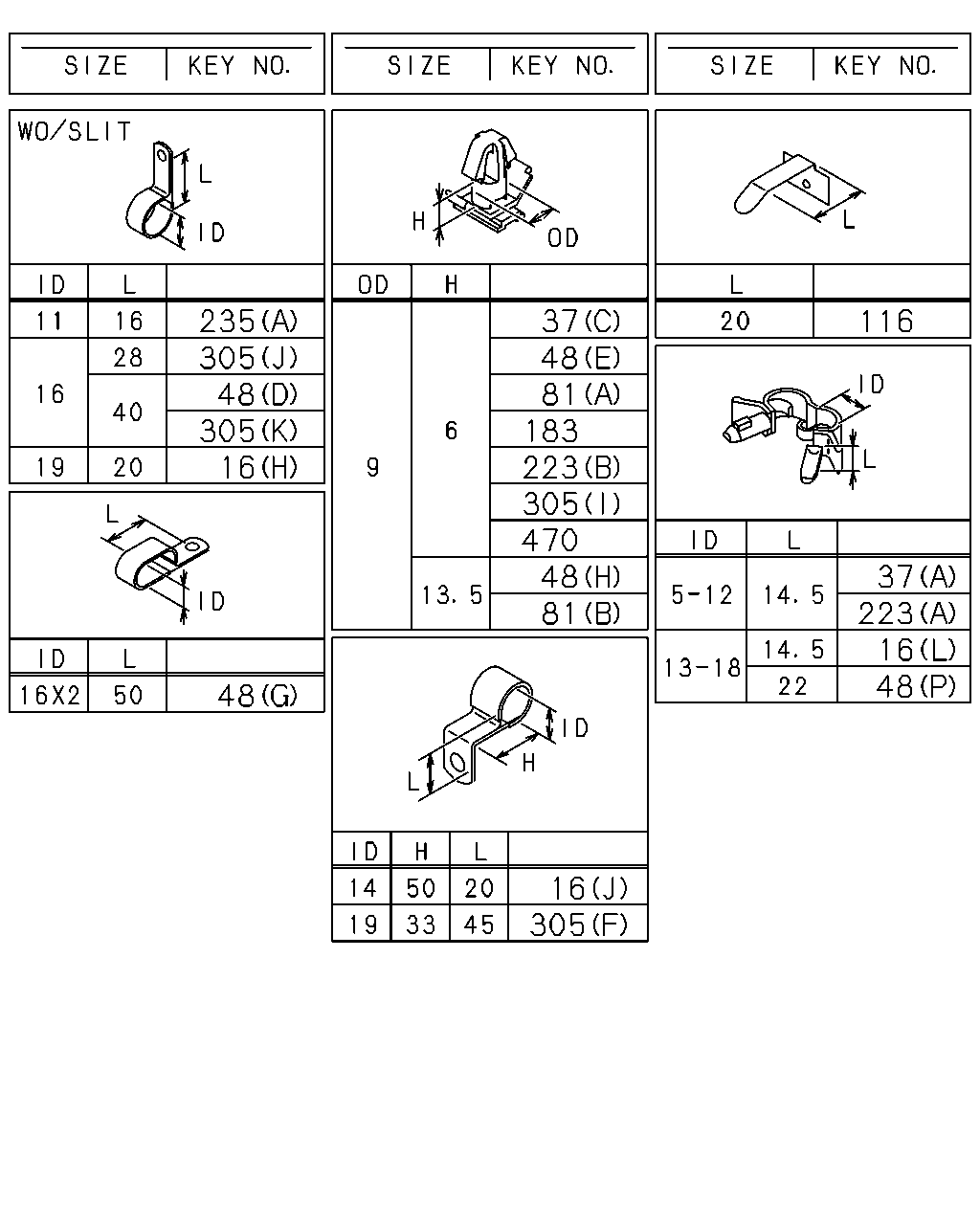

235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0809-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0809-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0809-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0809-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0809-0811

305 48 305 305 306 48 16 305 16 16 48 213 581 612 16 48 223 213 48 48 48 48 48 305 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	1103-
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0809-0811
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	02	1	0809-
16	CLIP; HARNESS (M) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (K) ID=22X11 L=20	1-09700-871-0	02	1	0809-
16	CLIP; HARNESS (N) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	01	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	02	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	06	1	0809-
16	CLIP; HARNESS (L) ID=13-18 L=14.5	1-09709-290-0	02	1	0809-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (Q) L=250	5-09707-030-1	01	1	0811-
48	CLIP; FRAME HARNESS (Q) L=250	5-09707-030-1	02	1	0811-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	06	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	11	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	15	1	0810-0811
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	04	1	0812-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	03	1	0809-1102
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	02	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	14	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	13	1	0812-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (K) ID=20 L=70	1-09700-485-0	24	1	0809-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0811
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0811
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	08	1	0812-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	07	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	01	1	0810-1102
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (C) ID=11 L=61	1-09700-484-0	01	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	01	1	1103-
48	CLIP; FRAME HARNESS (P) ID=13-18 L=22	1-09709-292-0	01	1	0810-1005
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (P) ID=13-18 L=22	1-09709-292-0	01	1	1006-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40	0-95235-576-0	03	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) L=180	1-09707-162-1	01	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	0809-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50	0-95325-586-0	01	1	0809-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40	1-09701-014-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65	1-09700-466-0	01	1	0809-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) ID=11 L=41	1-09700-403-0	01	1	0812-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	15	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	20	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	21	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	05	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=11 L=61	1-09700-484-0	09	1	0812-1102
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=11 L=61	1-09700-484-0	08	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (O) ID=15 L=65	1-09700-466-0	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (O) ID=15 L=65	1-09700-466-0	06	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=25 L=75	1-09701-275-0	02	1	0809-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	09	1	0809-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	05	1	0810-
48	CLIP; FRAME HARNESS (M) ID=28 L=78	1-09700-858-0	02	1	0809-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	03	1	0809-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-0811
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0812-
213	CLIP; END CROSS HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0809-
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	03	1	0809-0811
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	07	1	0812-
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	06	1	0809-0811
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	01	1	0809-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0811
223	CLIP; AIR TANK HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0811
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0812-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0809-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0809-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0809-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=11 L=41	1-09700-403-0	01	1	0809-0809
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=11 L=41	1-09700-403-0	09	1	0809-0811
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=11 L=41	1-09700-403-0	08	1	0812-1102
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	1103-
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=11 L=41	1-09700-403-0	04	1	0809-0809
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=11 L=41	1-09700-403-0	12	1	0809-0811
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=11 L=41	1-09700-403-0	11	1	0812-1102
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	07	1	1103-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0810-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0810-
612	CLIP; HARNESS DPD (C) L=135	1-09987-143-1	02	1	0809-

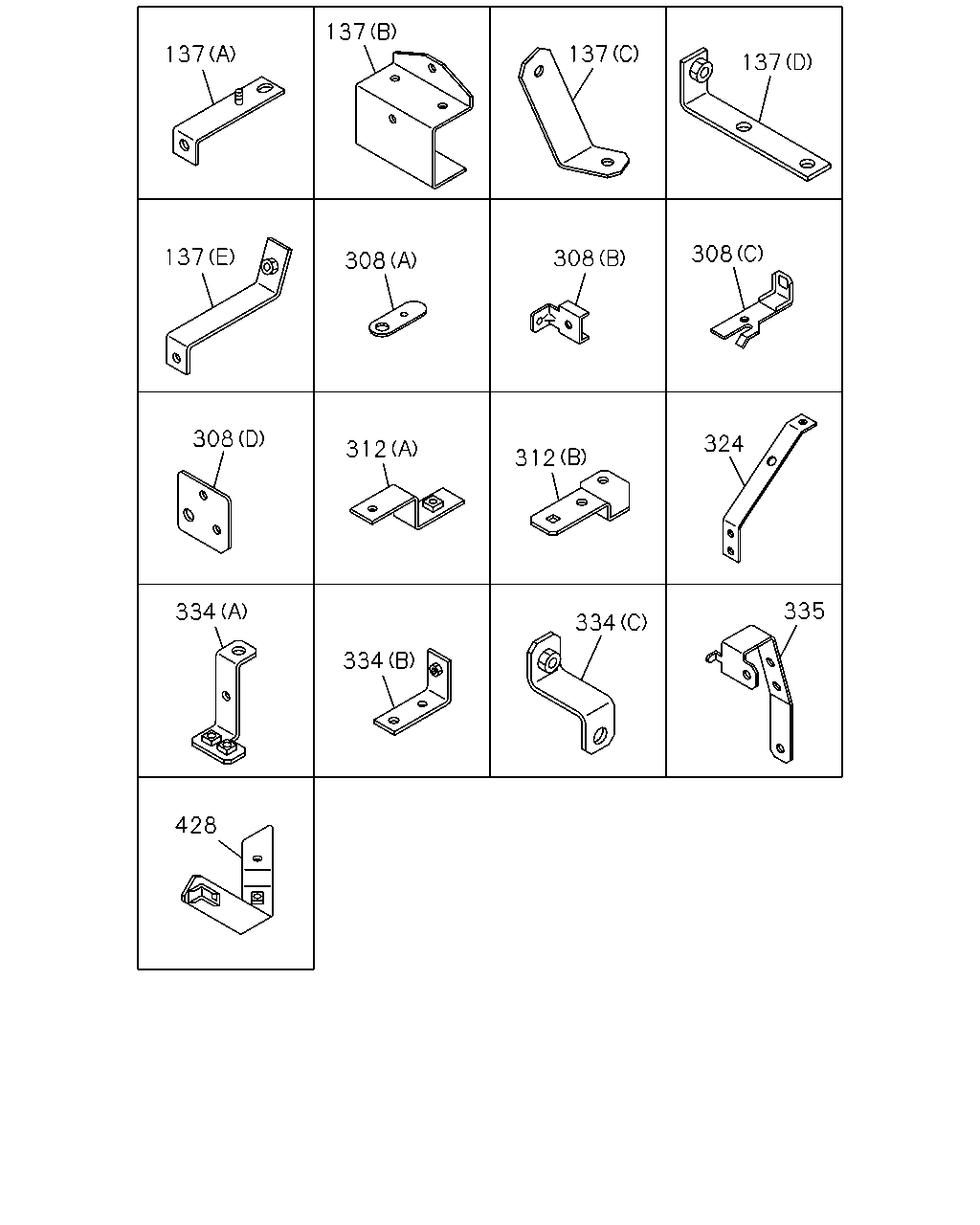

137 137 137 137 308 137 308 308 308 324 312 335 334 334 334 428 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (E)	1-82698-233-0	01	1	0812-
137	BRACKET; HARNESS CLAMP (D)	1-82698-140-0	01	1	0809-
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	0809-
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	0809-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0809-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0809-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	0809-
312	BRACKET; CLIP HARNESS (B)	8-97620-519-0	01	1	0809-
324	BRACKET; CLIP	1-47479-430-0	02	1	0809-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (C)	1-47475-868-0	02	1	0809-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (B)	1-47477-698-0	02	1	0809-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (A)	1-82699-639-1	01	1	0809-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0809-
428	BRACKET	8-97620-514-0	01	1	0809-

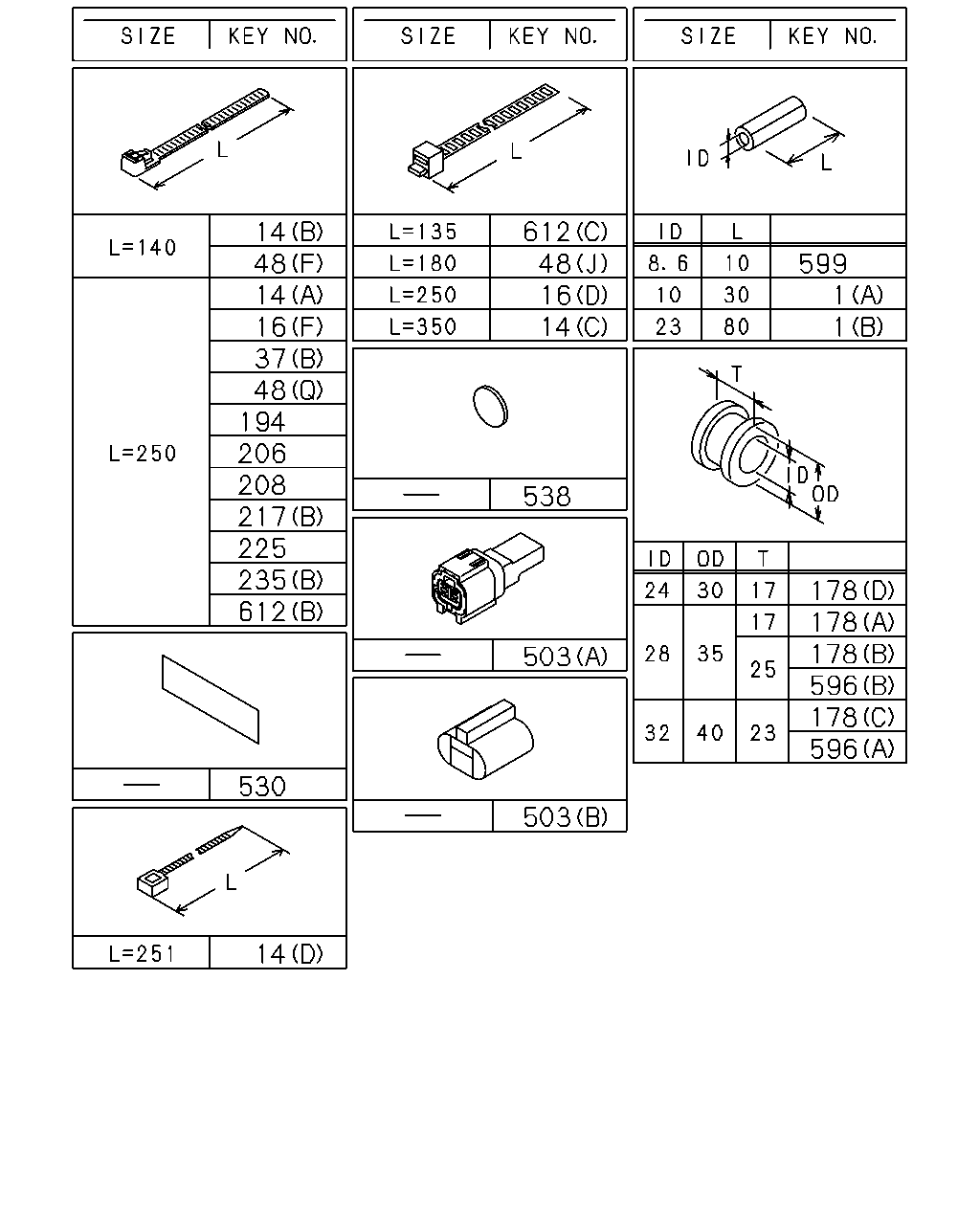

14 48 14 16 37 48 194 206 208 217 225 235 612 612 48 16 14 599 1 1 538 178 178 178 596 178 596 503 530 503 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0809-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-
14	CLIP; BAND,HARNESS WHEEL BASE 5500MM(55W) (A) L=250	5-09707-030-1	01	1	1201-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	0910-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	14	1	0809-0909
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	13	1	0910-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	0809-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	15	1	0809-0812
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	30	1	0901-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	0809-1109
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	1103-
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0809-0811
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	02	1	0809-
16	CLIP; HARNESS (M) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (K) ID=22X11 L=20	1-09700-871-0	02	1	0809-
16	CLIP; HARNESS (N) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	01	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	02	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	06	1	0809-
16	CLIP; HARNESS (L) ID=13-18 L=14.5	1-09709-290-0	02	1	0809-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-
37	CLIP; HARNESS,POWER TILT (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	0809-0809
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	0810-
37	CLIP; HARNESS,POWER TILT (B) L=250	5-09707-030-1	01	1	0810-
37	CLIP; HARNESS,POWER TILT (C) OD=9 H=6	8-97368-793-0	02	1	0809-
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (Q) L=250	5-09707-030-1	01	1	0811-
48	CLIP; FRAME HARNESS (Q) L=250	5-09707-030-1	02	1	0811-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	06	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	11	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	15	1	0810-0811
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	04	1	0812-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	03	1	0809-1102
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	02	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	14	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	13	1	0812-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (K) ID=20 L=70	1-09700-485-0	24	1	0809-
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0811
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0811
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	08	1	0812-1102
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (C) ID=11 L=61	1-09700-484-0	07	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	01	1	0810-1102
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (C) ID=11 L=61	1-09700-484-0	01	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61	1-09700-484-0	01	1	1103-
48	CLIP; FRAME HARNESS (P) ID=13-18 L=22	1-09709-292-0	01	1	0810-1005
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (P) ID=13-18 L=22	1-09709-292-0	01	1	1006-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40	0-95235-576-0	03	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) L=180	1-09707-162-1	01	1	0809-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	0809-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50	0-95325-586-0	01	1	0809-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40	1-09701-014-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65	1-09700-466-0	01	1	0809-
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) ID=11 L=41	1-09700-403-0	01	1	0812-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	15	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	20	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	21	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	05	1	0809-0811
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=11 L=61	1-09700-484-0	09	1	0812-1102
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (C) ID=11 L=61	1-09700-484-0	08	1	1103-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (O) ID=15 L=65	1-09700-466-0	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (O) ID=15 L=65	1-09700-466-0	06	1	0810-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=25 L=75	1-09701-275-0	02	1	0809-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS 6HK1-TCS ENG(80L) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	09	1	0809-
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	05	1	0810-
48	CLIP; FRAME HARNESS (M) ID=28 L=78	1-09700-858-0	02	1	0809-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	03	1	0809-
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-0811
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0812-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0810-
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0810-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	0809-
178	GROMMET; HARNESS (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	0809-0809
178	GROMMET; HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 6000MM(60W) (D) ID=24 OD=30 T=17	9-09956-092-1	02	1	0810-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-0809
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0810-
194	CLIP; BAND L=250	5-09707-030-1	03	1	0810-
194	CLIP; BAND L=250	5-09707-030-1	02	1	0809-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0809-
208	CLIP; HARNESS,MAG VLV WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=250	5-09707-030-1	01	1	0809-0811
217	CLIP; RR BODY HARNESS (A) L=170.3	1-09987-182-0	02	1	0809-0811
217	CLIP; RR BODY HARNESS EXC. REVERSING WARNING BUZZER<YM9> (B) L=250	5-09707-030-1	01	1	0812-
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	0809-1012
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	1101-
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	1101-
225	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=250	5-09707-030-1	04	1	0809-0809
225	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=250	5-09707-030-1	06	1	0810-
225	CLIP; AIR TANK HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=250	5-09707-030-1	01	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0809-
503	CONNECTOR HEATER & DEFROSTER(C41) (B)	1-82690-668-0	01	1	0809-
503	CONNECTOR (A)	1-82691-191-0	01	1	0809-0810
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0809-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0809-1305
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0809-
596	GROMMET (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	0809-0809
596	GROMMET (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0810-
599	TUBE; DISTANCE ID=8.5 L=10	5-13642-077-0	04	1	0809-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0810-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0810-
612	CLIP; HARNESS DPD (C) L=135	1-09987-143-1	02	1	0809-

16 16 305 16 16 306 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	1103-
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (I) ID=11 L=41	1-09700-403-0	03	1	0809-0811
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	02	1	0809-
16	CLIP; HARNESS (M) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (K) ID=22X11 L=20	1-09700-871-0	02	1	0809-
16	CLIP; HARNESS (N) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	01	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	02	1	0809-
16	CLIP; HARNESS (D) L=250	1-09707-126-0	06	1	0809-
16	CLIP; HARNESS (L) ID=13-18 L=14.5	1-09709-290-0	02	1	0809-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0809-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-
217	CLIP; RR BODY HARNESS (A) L=170.3	1-09987-182-0	02	1	0809-0811
217	CLIP; RR BODY HARNESS EXC. REVERSING WARNING BUZZER<YM9> (B) L=250	5-09707-030-1	01	1	0812-
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	0809-1012
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	1101-
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	1101-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0809-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0809-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0809-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-

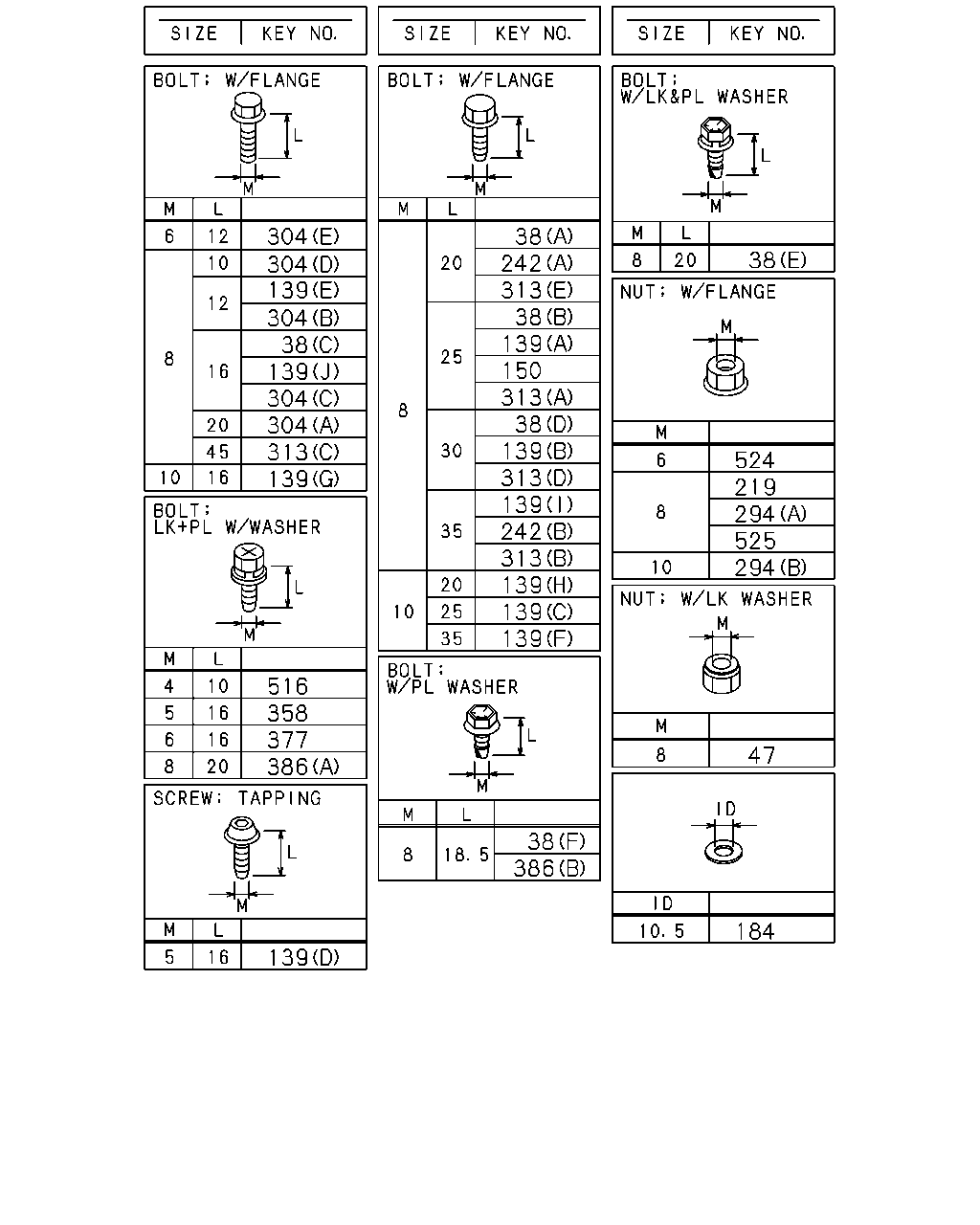

304 139 304 304 139 38 304 313 304 139 38 242 38 313 139 313 150 38 139 139 313 242 313 139 139 139 38 524 294 525 219 294 47 38 386 516 358 377 386 184 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS FULLER FSO5206B OD M/T(Y4V) (C) M8X16 FLANGE	0-28050-816-0	03	1	0809-
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	0809-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0809-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0809-
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0809-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0811-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (G) M10X16 FLANGE	0-28051-016-0	03	1	0809-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (H) M10X20 FLANGE	0-28751-020-0	01	1	0809-
139	BOLT; BRKT WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (I) M8X35 FLANGE	0-28650-835-0	01	1	0809-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0809-
139	BOLT; BRKT (J) M8X16 FLANGE	0-28050-816-0	02	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-0903
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0904-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0904-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-0809
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0810-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0809-0809
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0811-0811
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0812-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0812-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) M5X16 TAPPING	0-72180-516-0	01	1	0809-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0809-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0809-
219	NUT M8 FLANGE	0-91180-108-0	04	1	0809-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0809-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0809-
242	BOLT; BRKT,HARNESS FULLER FSO5206B OD M/T(Y4V) (A) M8X20 FLANGE	0-28650-820-0	01	1	0810-
242	BOLT; BRKT,HARNESS ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	01	1	0810-
242	BOLT; BRKT,HARNESS (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
294	NUT FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE	0-91180-210-0	01	1	0809-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809
294	NUT WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0810-0811
294	NUT WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8 FLANGE	0-91180-108-0	01	1	0810-0811
294	NUT FULLER FSO5206B OD M/T(Y4V) (A) M8 FLANGE	0-91180-108-0	01	1	0810-0811
294	NUT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91180-108-0	01	1	0810-0811
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0812-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0812-
294	NUT WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8 FLANGE	0-91180-108-0	01	1	0812-
294	NUT FULLER FSO5206B OD M/T(Y4V) (A) M8 FLANGE	0-91180-108-0	01	1	0812-
294	NUT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91180-108-0	01	1	0812-
294	NUT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8 FLANGE	0-91180-108-0	04	1	0809-0809
294	NUT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8 FLANGE	0-91180-108-0	04	1	0810-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0810-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0809-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0902-0905
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0809-0809
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0810-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0809-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0809-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0809-1010
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	03	1	0809-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0809-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0809-
313	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) M8X30 FLANGE	0-28650-830-0	04	1	0809-
313	BOLT; BRKT (C) M8X45 FLANGE	0-28050-845-0	01	1	0809-
313	BOLT; BRKT (E) M8X20 FLANGE	0-28650-820-0	01	1	0809-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0809-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0809-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0809-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0809-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0809-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0809-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
