◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#24594) — 162 parça

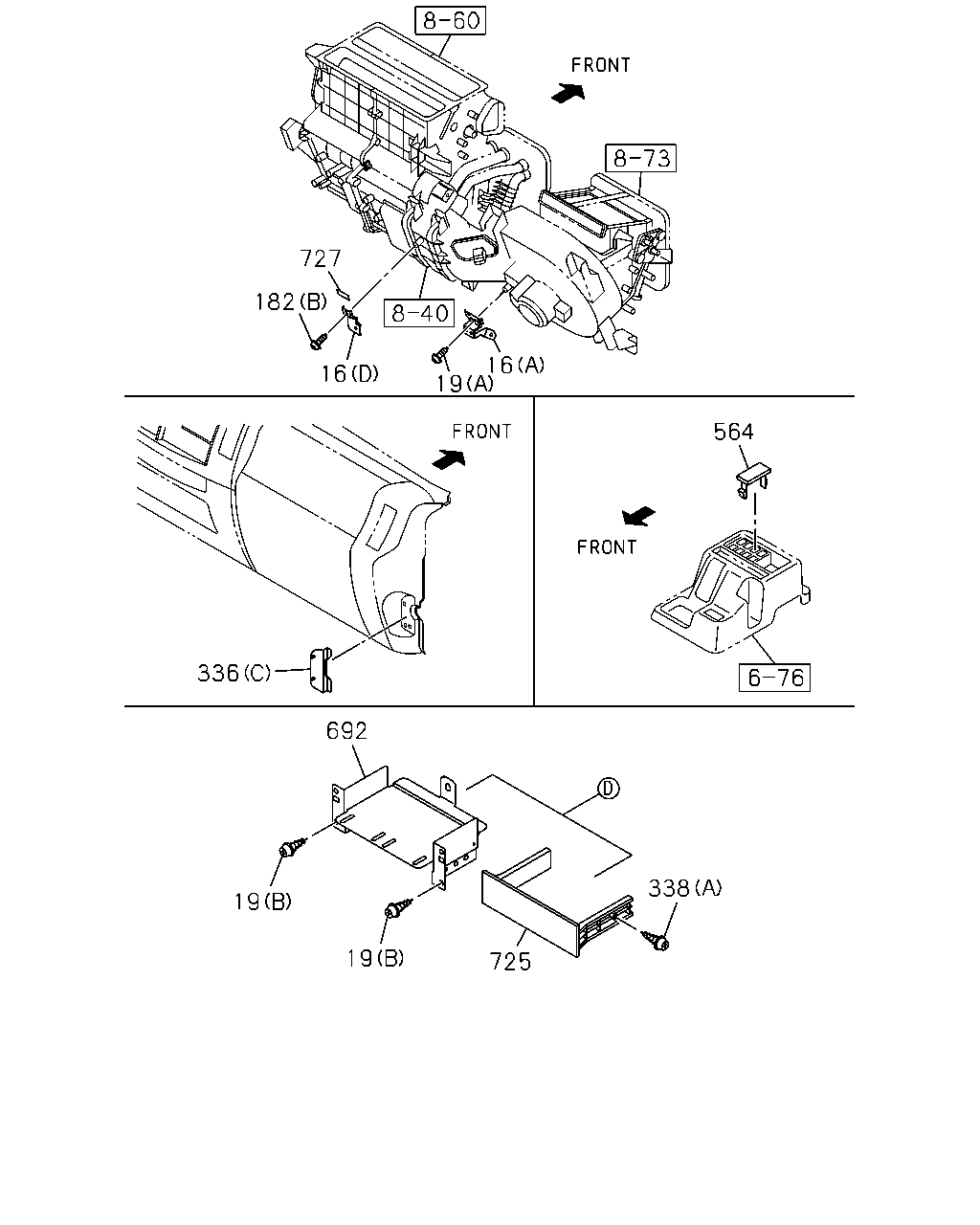

çizim 60909
727 182 16 19 16 564 338 725 19 19 692 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0809-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0809-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING 		0-72180-516-0 01 1 0809-
19 SCREW; BRKT
(B) M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 0809-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0809-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0809-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0809-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0809-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0809-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0809-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0809-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0809-
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0809-
338 SCREW; COVER
(A) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0809-
564 COVER; SW 8-97043-732-1 06 1 0809-
692 BRACKET; TACHOGRAPH 8-98094-272-0 01 1 0809-
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-1 01 1 0809-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98186-934-0 01 1 1209-

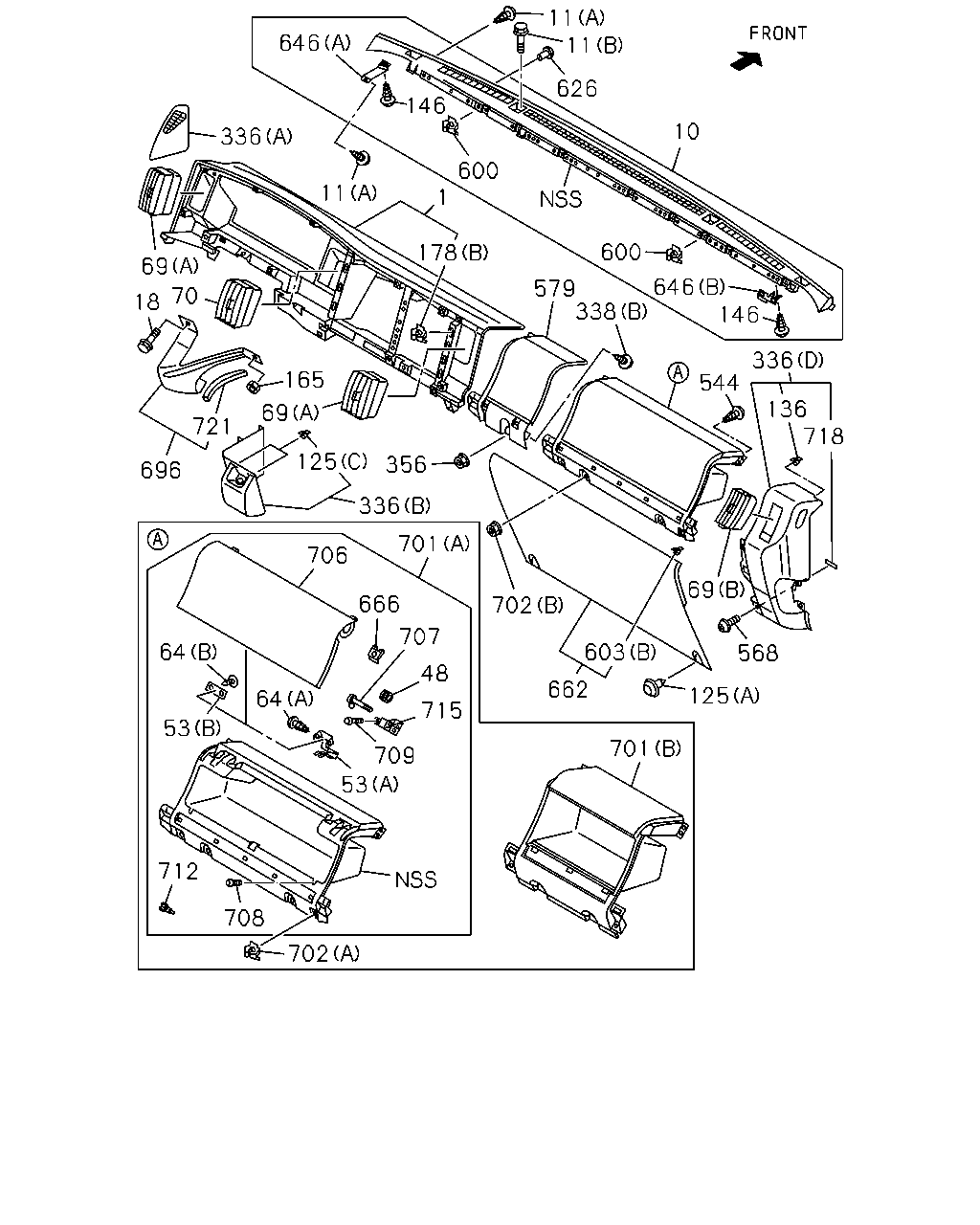

çizim 101734
646 146 600 11 11 626 10 600 646 338 579 178 11 336 69 18 70 721 165 69 696 125 356 336 701 702 603 662 125 568 69 136 718 336 544 146 1 64 53 64 706 666 707 48 715 709 53 708 712 701 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 0809-
10 PANEL ASM; GARNISH
GRAY 		8-97411-559-6 01 1 0809-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-0 01 1 1009-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING 		0-72180-516-0 08 1 0809-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0809-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0809-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0809-1005
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1006-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0809-1005
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1006-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0809-1005
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1006-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0809-1005
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1006-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0809-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 0809-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 0809-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0809-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0809-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0809-
136 CLIP; INST COVER 8-98076-254-0 02 1 0809-
146 SCREW; TAP
M5X16 TAPPING 		0-72180-516-0 03 1 0809-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0809-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0809-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0809-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0809-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0809-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0809-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0809-
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0809-
338 SCREW; COVER
(A) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0809-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0809-
544 SCREW; TRAY
M5X16 TAPPING 		0-72180-516-0 03 1 0809-
568 BOLT; COVER
M5X16 TAPPING 		0-72180-516-0 01 1 0809-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 0809-
600 NUT; PANEL 8-98037-629-0 02 1 0809-1008
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0809-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0809-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 0809-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 0809-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0809-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0809-1005
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1006-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98057-569-0 01 1 0809-1109
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0809-0905
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1005
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-1 01 1 1006-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0809-1005
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1006-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-0 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0809-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0809-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0809-1005
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1006-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0809-1005
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1006-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0809-1005
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1006-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0809-1005
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1006-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0809-1005
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1006-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0809-1005
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1006-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0809-1005
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1006-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312-
718 SEAL; COVER 8-98185-153-0 01 1 1209-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0809-1109

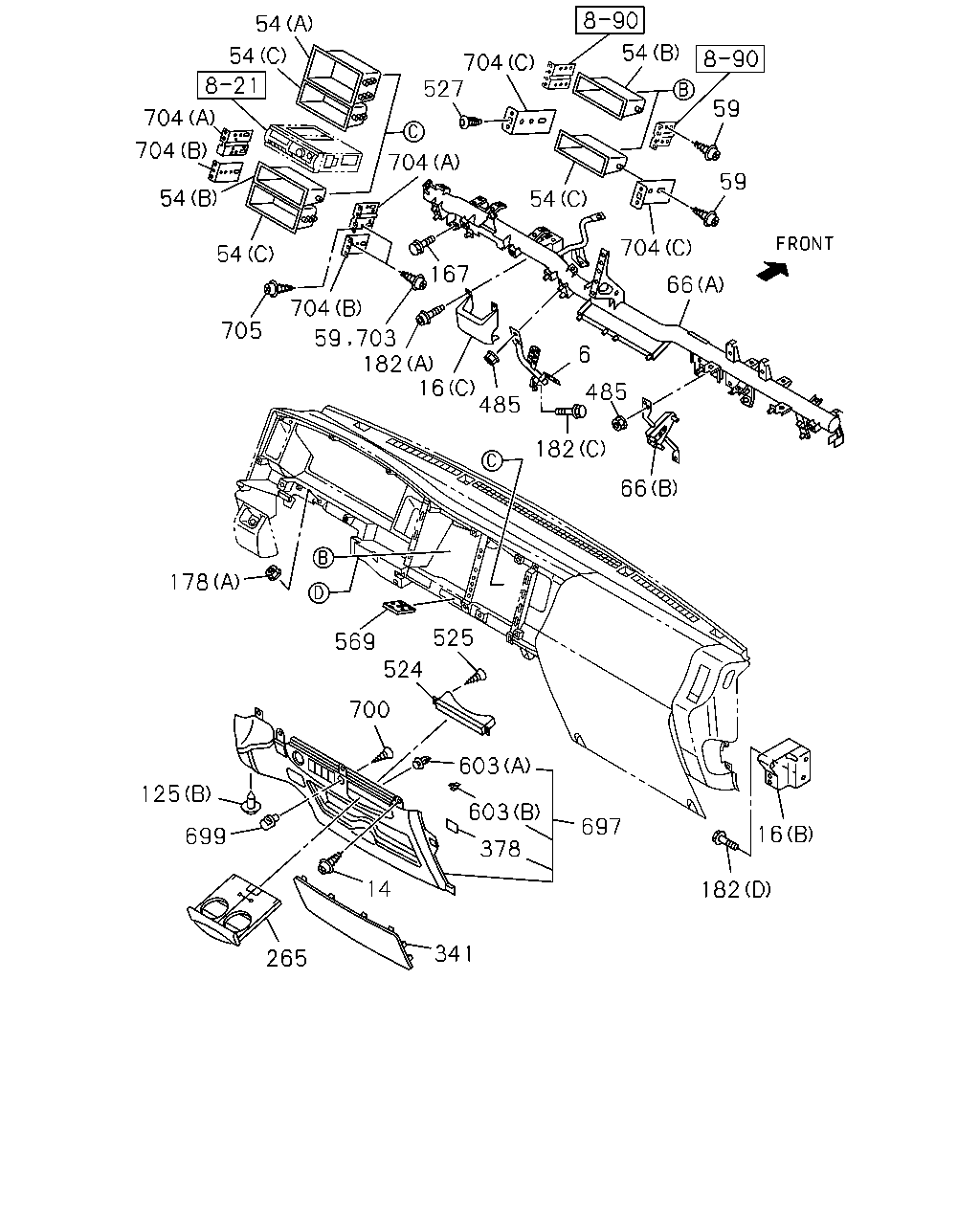

çizim 101764
54 54 704 704 54 54 705 704 59 703 182 16 485 182 66 485 6 66 704 54 167 704 527 704 54 59 59 16 182 697 603 603 378 700 524 525 569 178 125 699 265 14 341
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 0809-
14 SCREW; INST PNL
M5X16 TAPPING 		0-72180-516-0 04 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0809-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0809-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-2 01 1 0809-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0809-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-2 01 1 0809-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0809-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0809-
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0809-
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0809-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 0809-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-420-7 01 1 0809-1406
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98241-975-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 0809-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-419-7 01 1 0809-1406
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-611-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0809-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0809-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0809-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0809-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0809-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0809-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0809-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0809-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0809-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0809-
265 HOLDER; CUP
GRAY 		8-97407-897-3 01 1 0809-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0809-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0809-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0809-
525 SCREW; CUP STAND
M5X16 TAPPING 		0-72180-516-0 03 1 0809-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 0809-
569 HOLDER; CARD 8-97410-276-0 01 1 0809-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0809-
697 PANEL; INST CENTER
GRAY 		8-97409-781-2 01 1 0809-1010
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0809-
700 BOLT; HOOK
SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0809-
703 SCREW; CENTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 04 1 0809-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0809-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0809-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) 		8-98107-549-0 02 1 0809-
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 08 1 0809-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
