◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11141 - FVR-LHD(EUROPE)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#24591) — 30 parça

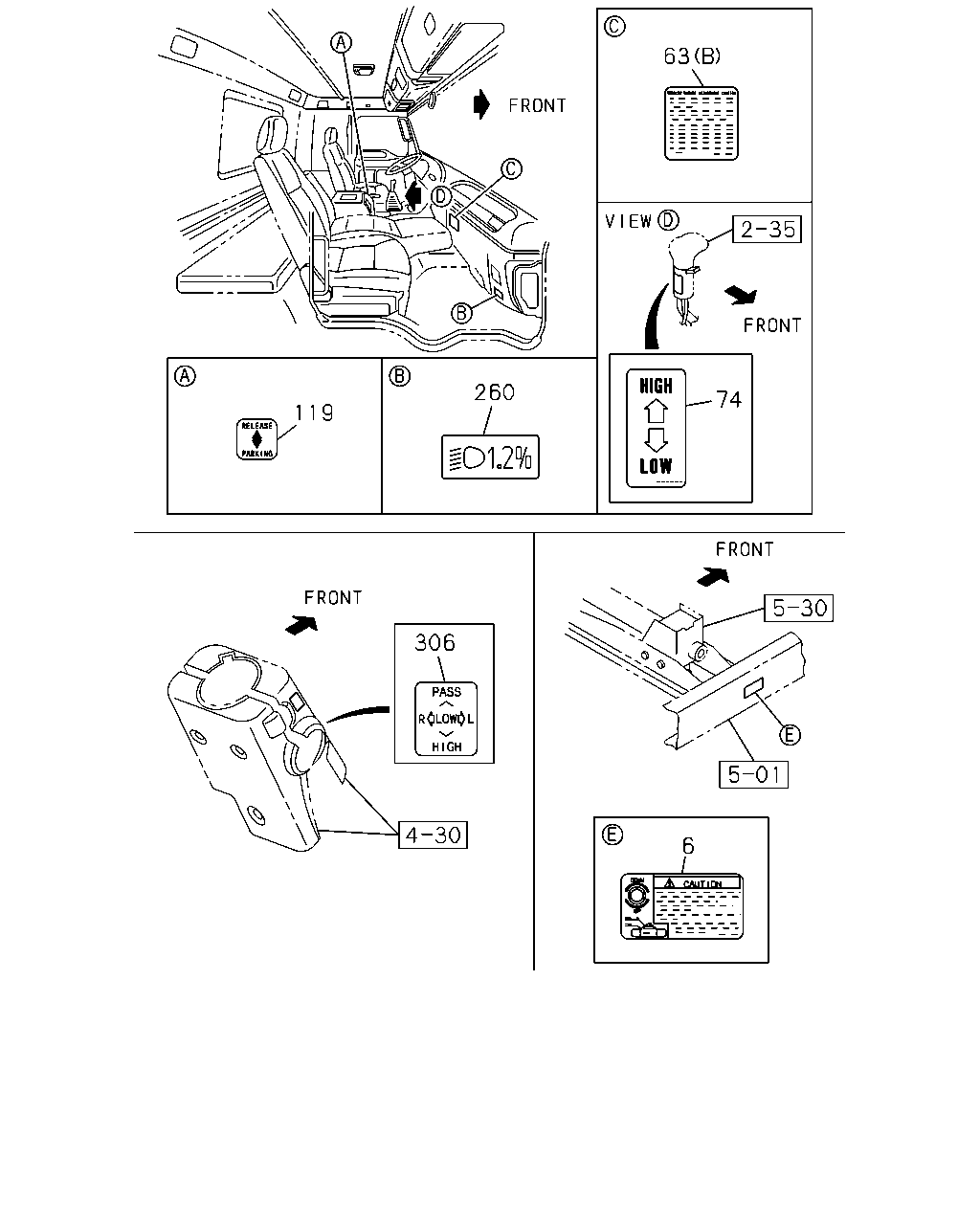

çizim 60538
63 260 74 119 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-437-0 01 1 0809-
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-823-0 01 1 0809-
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-861-0 01 1 0809-
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 0809-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0809-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0809-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0809-

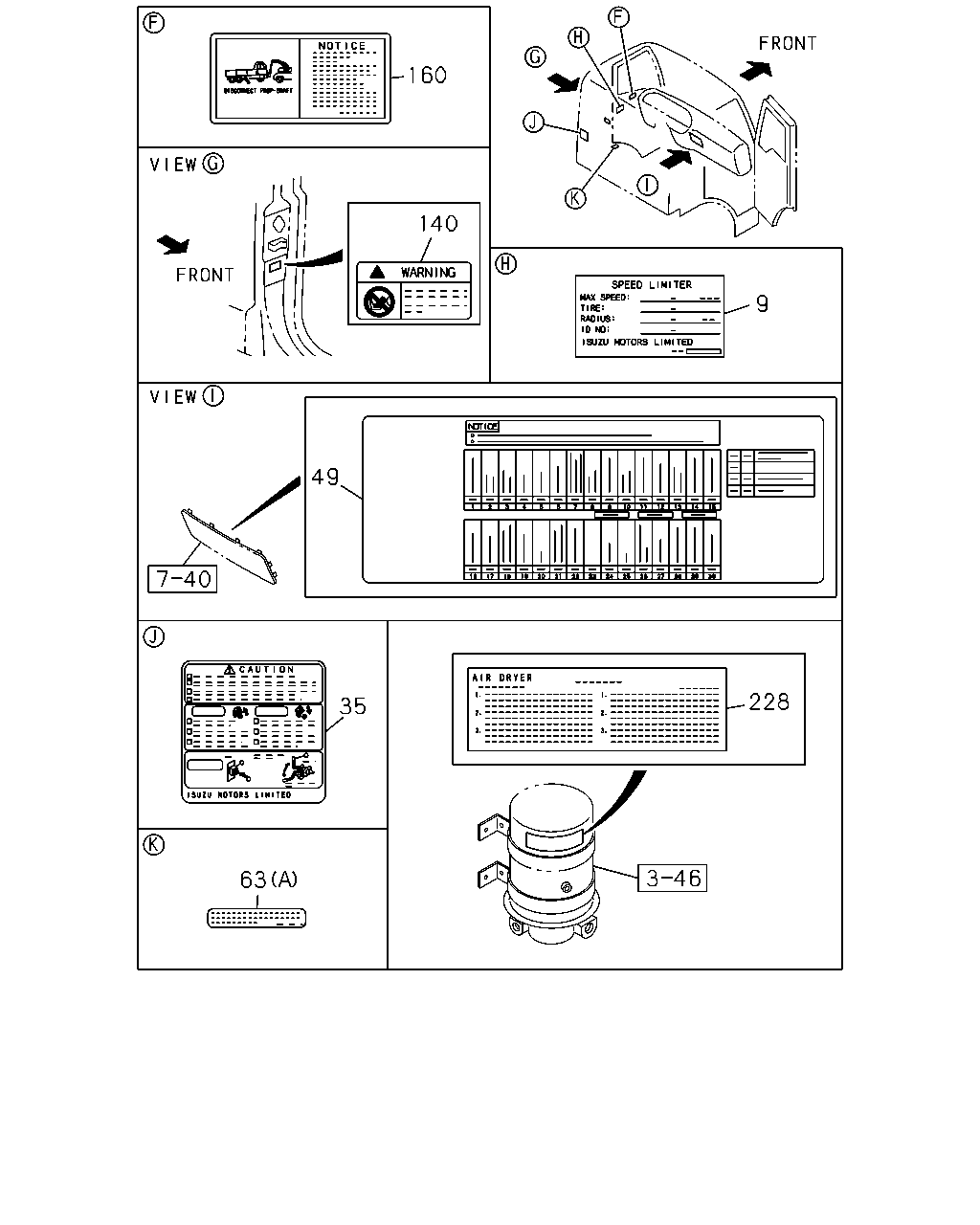

çizim 101801
160 140 9 49 228 35 63
BalonParca AdiParca NoAdetTipApplied Date
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 11R22.5-148/145K RIB EEC(5K4) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-634-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 11R22.5-148/145K RIB EEC(5K4) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-633-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 12R22.5-152/148K RIB EEC(5K5) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-636-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 12R22.5-152/148K RIB EEC(5K5) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-635-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 275/70R22.5-148/145M RIB EEC(5L4) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-638-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 275/70R22.5-148/145M RIB EEC(5L4) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-637-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 295/80R22.5-152/148M RIB EEC(55P) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-632-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 295/80R22.5-152/148M RIB EEC(55P) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-631-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 11R22.5-148/145K RIB EEC(5K4) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-626-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 11R22.5-148/145K RIB EEC(5K4) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-625-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 12R22.5-152/148K RIB EEC(5K5) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-628-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 12R22.5-152/148K RIB EEC(5K5) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-627-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 275/70R22.5-148/145M RIB EEC(5L4) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-630-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 275/70R22.5-148/145M RIB EEC(5L4) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-629-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 295/80R22.5-152/148M RIB EEC(55P) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-624-1 01 1 0809-
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 295/80R22.5-152/148M RIB EEC(55P) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98115-623-1 01 1 0809-
35 PLATE; CAUTION,CAB 8-98017-667-1 01 1 0809-
49 PLATE; CAUTION,FUSE BOX 8-98122-354-0 01 1 0809-
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-823-0 01 1 0809-
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-861-0 01 1 0809-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0809-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) 		1-85888-737-1 01 1 0809-
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0809-1001
