◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11027 - FRR RHD EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#24578) — 69 parça

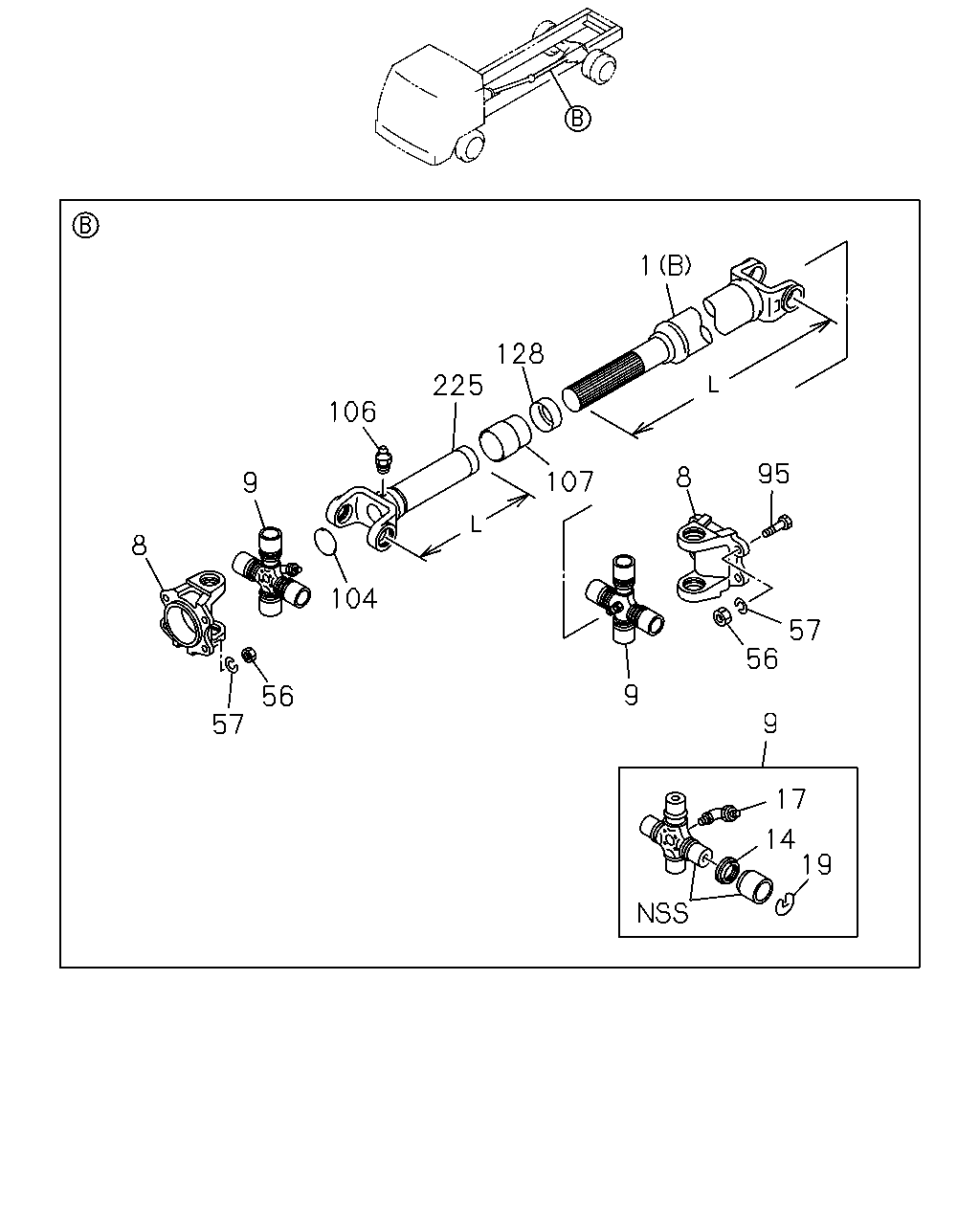

çizim 83440
1 128 225 106 95 8 107 9 8 104 57 56 9 56 9 57 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(B) L=951 		1-37123-764-1 01 1 0609- ●
1 SHAFT; PROP
(A) L=1006 		1-37152-770-0 01 1 0609- ●
1 SHAFT; PROP
(B) L=1256 		1-37123-393-3 01 1 0609- ●
1 SHAFT; PROP
(A) L=1296 		1-37151-265-1 01 1 0609- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0609- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0609- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0609- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0609- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0609-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0609-1505 ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0609- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0609- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0609- ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0609- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0609- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0609- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0609- ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0609- ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0609- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0609- ● ●

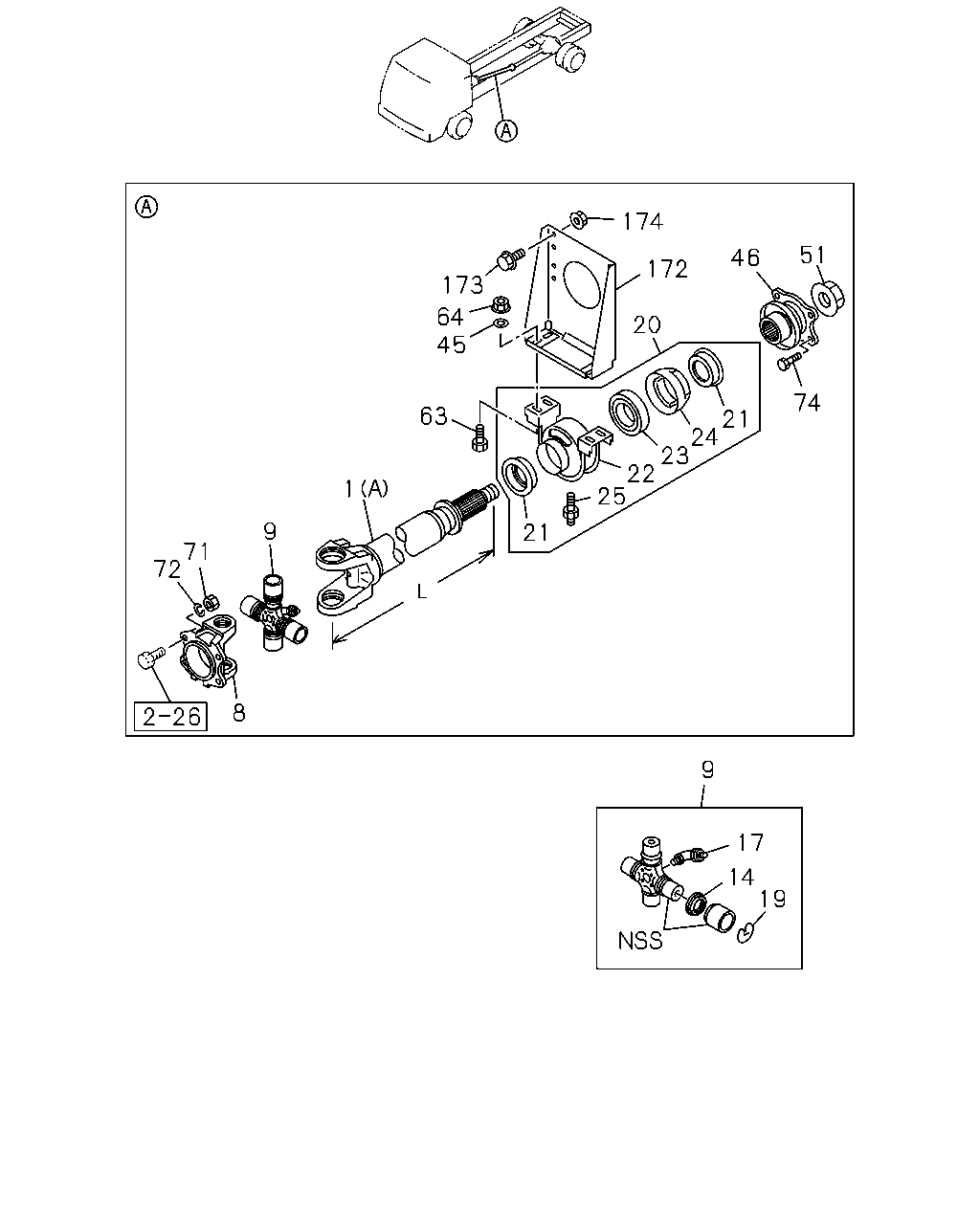

çizim 88136
174 51 46 172 173 64 45 20 74 63 21 24 23 22 25 1 9 21 71 72 8 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(B) L=951 		1-37123-764-1 01 1 0609- ●
1 SHAFT; PROP
(A) L=1006 		1-37152-770-0 01 1 0609- ●
1 SHAFT; PROP
(B) L=1256 		1-37123-393-3 01 1 0609- ●
1 SHAFT; PROP
(A) L=1296 		1-37151-265-1 01 1 0609- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 0609- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0609- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0609- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0609- ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0609-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0609-1505 ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0609- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0609- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0609- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0609- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0609- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0609- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0609- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0609- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0609- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0609- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0609- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0609- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0609- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0609- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0609- ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0609- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0609- ● ●
172 BRACKET; CENTER BRG 1-37515-118-0 01 1 0609- ●
172 BRACKET; CENTER BRG 1-37515-122-0 01 1 0609-0706 ●
172 BRACKET; CENTER BRG 1-37515-120-0 01 1 0707- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0609- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0609- ● ●
