3-70 — BRAKE PIPING; AIR,AIR MASTER (#24574) — 72 parça

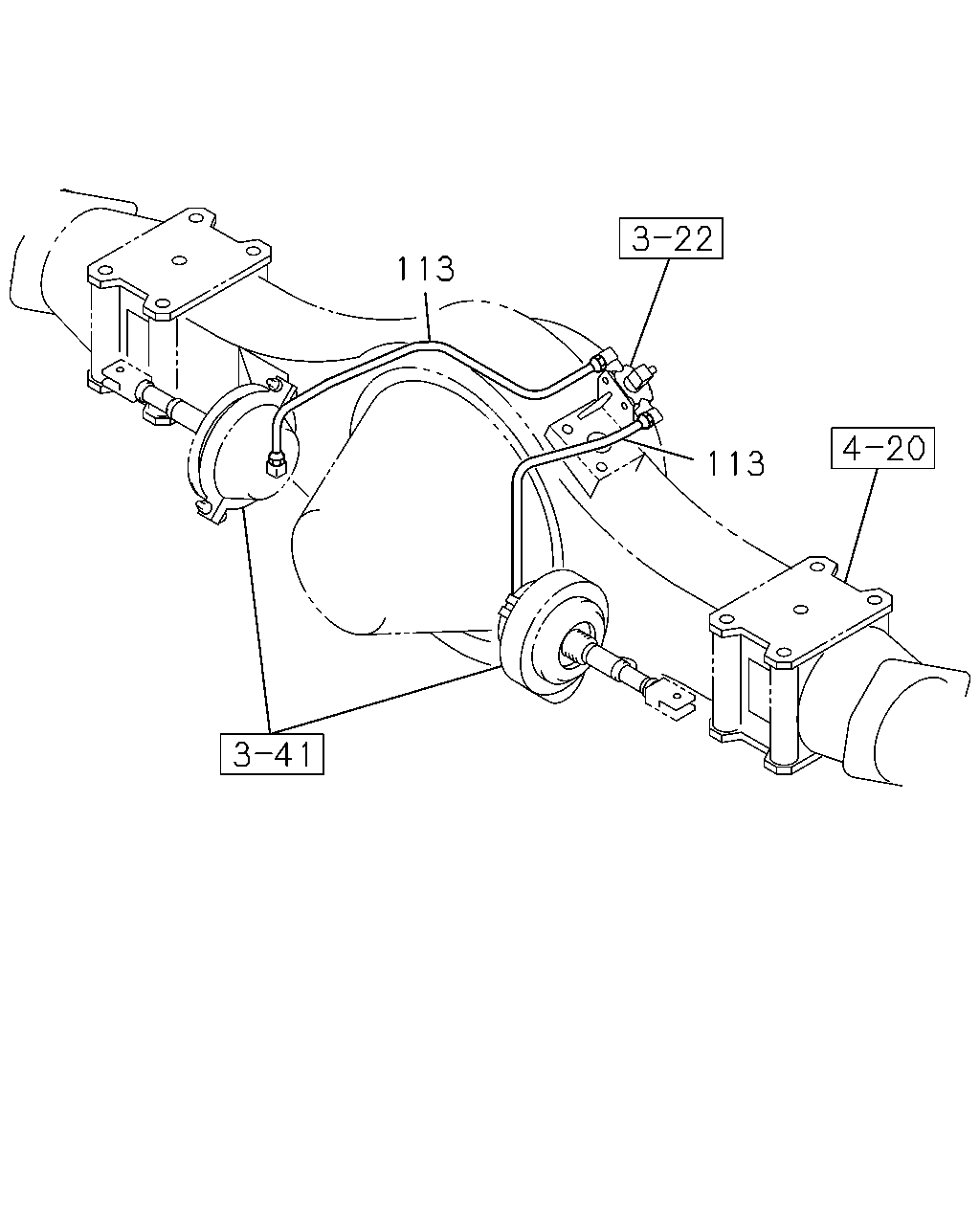

çizim 25401
113 113
BalonParca AdiParca NoAdetTipApplied Date
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=409 SERVICED BY L=600 		1-47426-379-0 01 1 0609-0711
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=324 		1-49112-659-0 01 1 0712-
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
L=635 		1-49112-658-0 01 1 0609-
çizim 86310

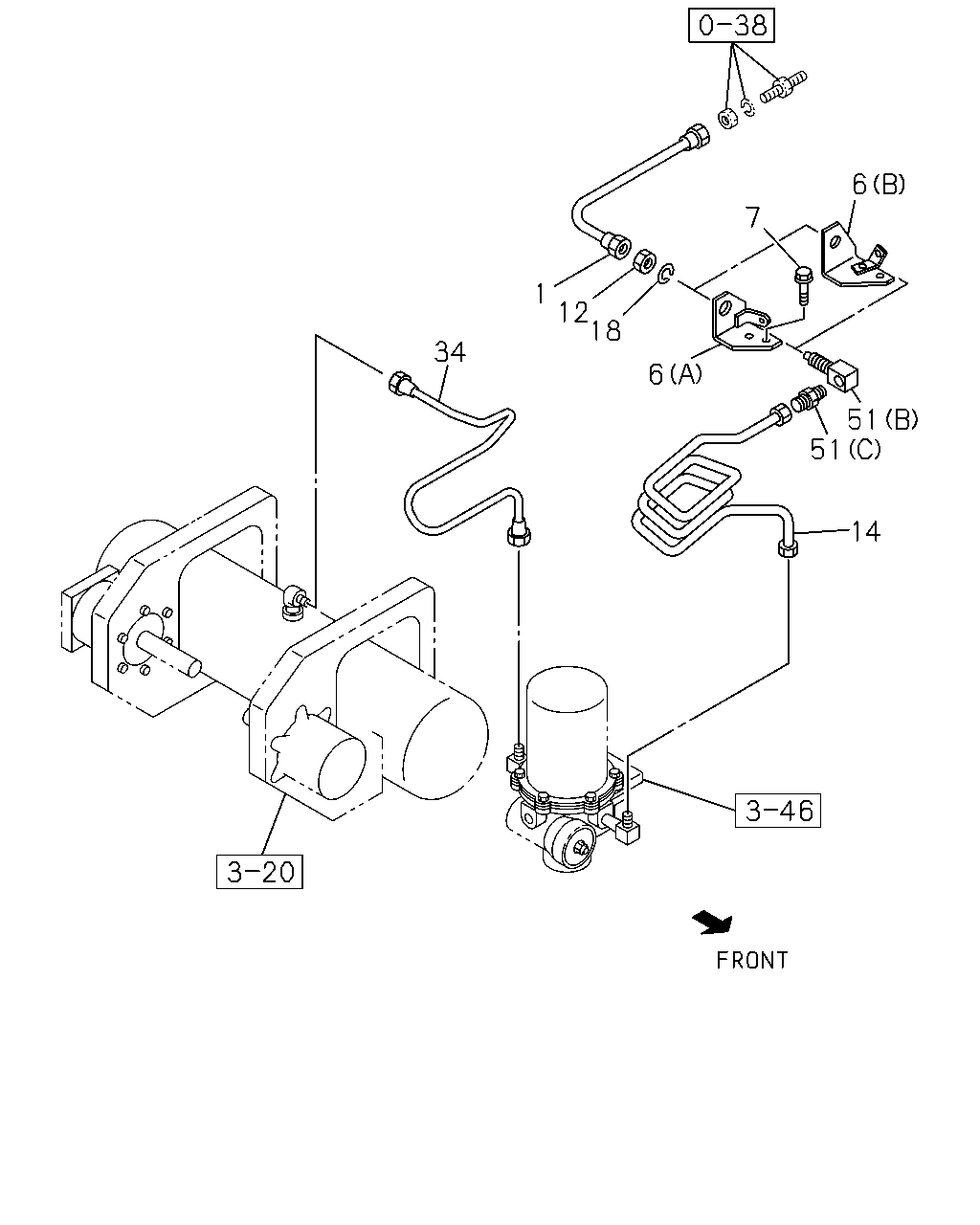

6 7 1 12 18 34 6 51 51 14
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 0609-
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-463-0 01 1 0609-0703
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47471-472-0 01 1 0704-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0609-
12 NUT; UNION
M22 		0-91111-522-0 01 1 0609-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=2009 		1-49124-955-0 01 1 0609-
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0609-
34 PIPE; AIR
L=830 		1-49124-956-0 01 1 0609-0612
34 PIPE; AIR
L=837 SERVICED BY L=900 		1-49115-461-0 01 1 0701-
51 UNION
(B) 		1-09654-433-0 01 1 0609-
51 UNION
(C) 		1-09661-810-0 01 1 0609-
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0609-
çizim 86346

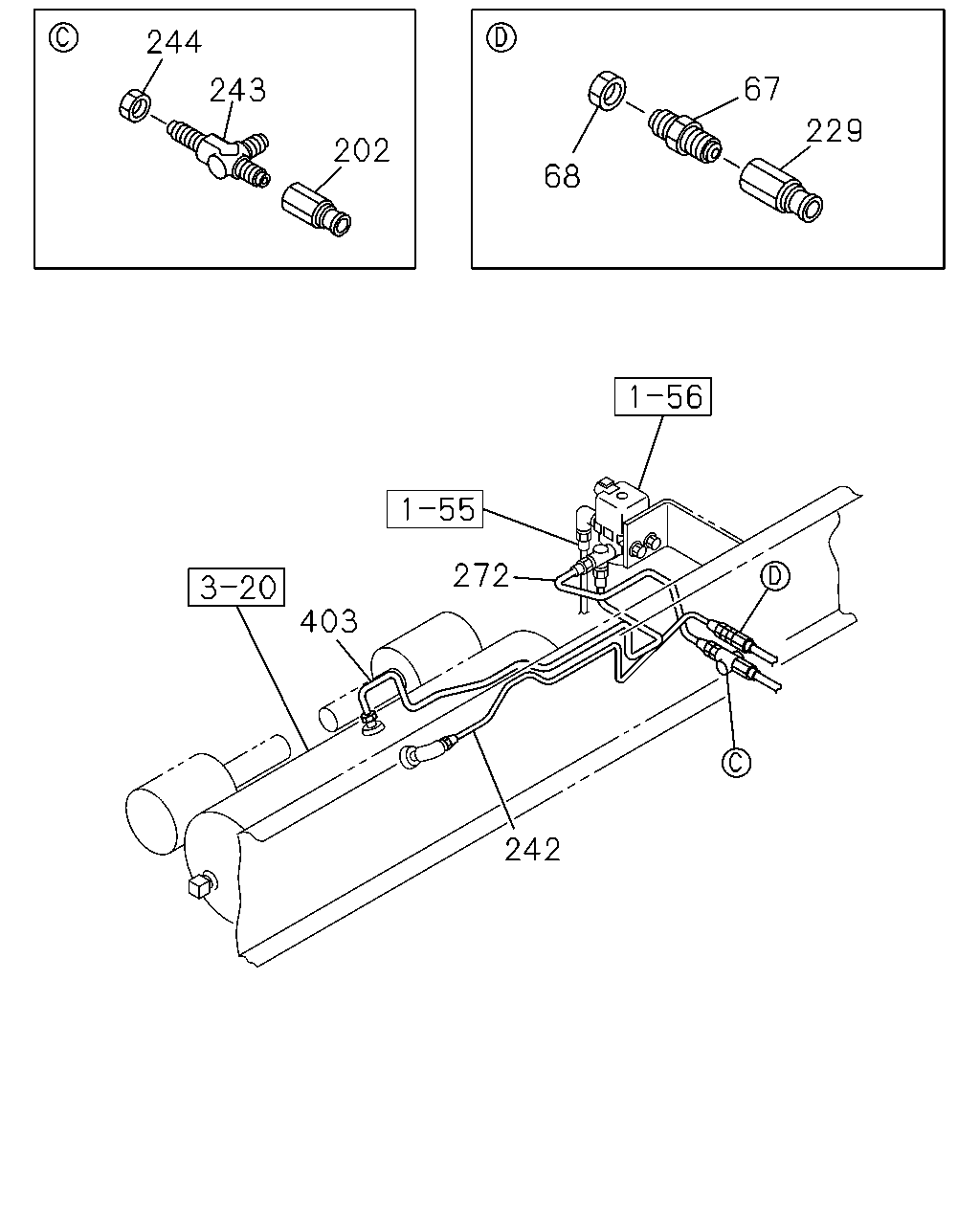

244 67 243 229 202 68 272 403 242
BalonParca AdiParca NoAdetTipApplied Date
67 JOINT; AIR PIPE
M16 L=74 		0-92123-310-0 01 1 0609-
68 NUT; JOINT
M16 		0-91111-516-0 01 1 0609-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0609-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0609-
229 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0609-
242 PIPE; AIR,AIR TANK TO UNION 1-49118-536-0 01 1 0609-
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0609-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0609-
272 PIPE; AIR,MAG VLV TO UNION
L=374 		1-49124-854-0 01 1 0609-
403 PIPE; AIR,AIR TANK TO MAG VLV
L=760 SERVICED BY L=800 		1-47428-812-0 01 1 0609-
çizim 88095

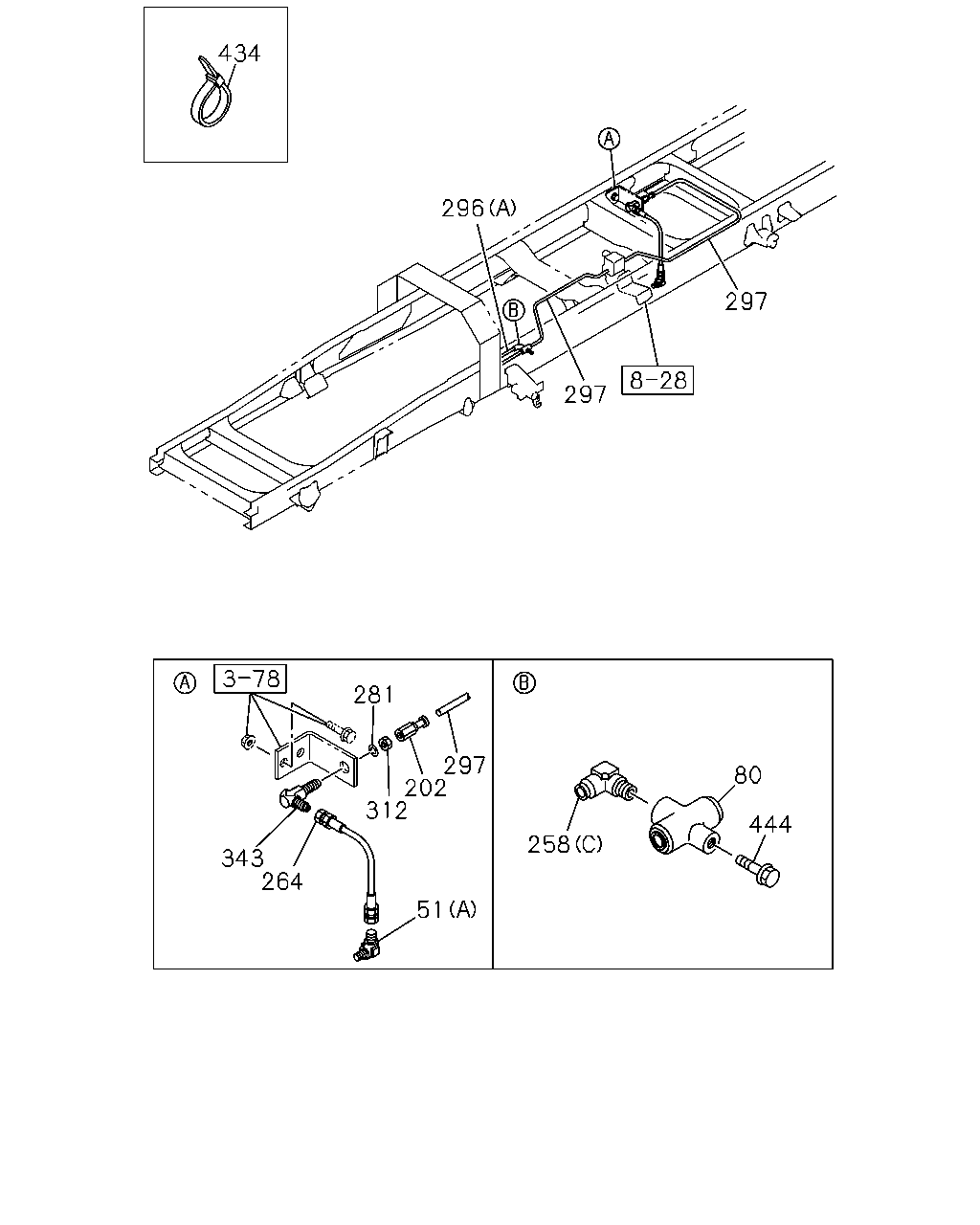

434 296 297 297 281 297 202 312 80 444 258 343 264 51
BalonParca AdiParca NoAdetTipApplied Date
51 UNION
(B) 		1-09654-433-0 01 1 0609-
51 UNION
(C) 		1-09661-810-0 01 1 0609-
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0609-
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0609-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0609-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0609-
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0609-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0609-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0609-
264 HOSE; FLEX
L=320 		1-09363-625-0 01 1 0609-0609
264 HOSE; FLEX
L=300 		1-09363-611-0 01 1 0610-
281 WASHER; LK UNION
ID=12.2 		0-91510-512-0 01 1 0609-
296 TUBE; NYLON
(B) L=1200 OD=6 		1-09366-256-1 01 1 0609-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0609-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0609-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0609-
312 NUT; UNION
M12 		9-09840-280-0 01 1 0609-
343 UNION; NYLON TUBE
M12 ELBOW 		0-92125-206-0 01 1 0609-
434 CLIP
WHEEL BASE 4200MM(42W) L=250 		1-09707-126-0 02 1 0609-
434 CLIP
WHEEL BASE 4800MM(48W) L=250 		1-09707-126-0 04 1 0609-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0609-
çizim 88214

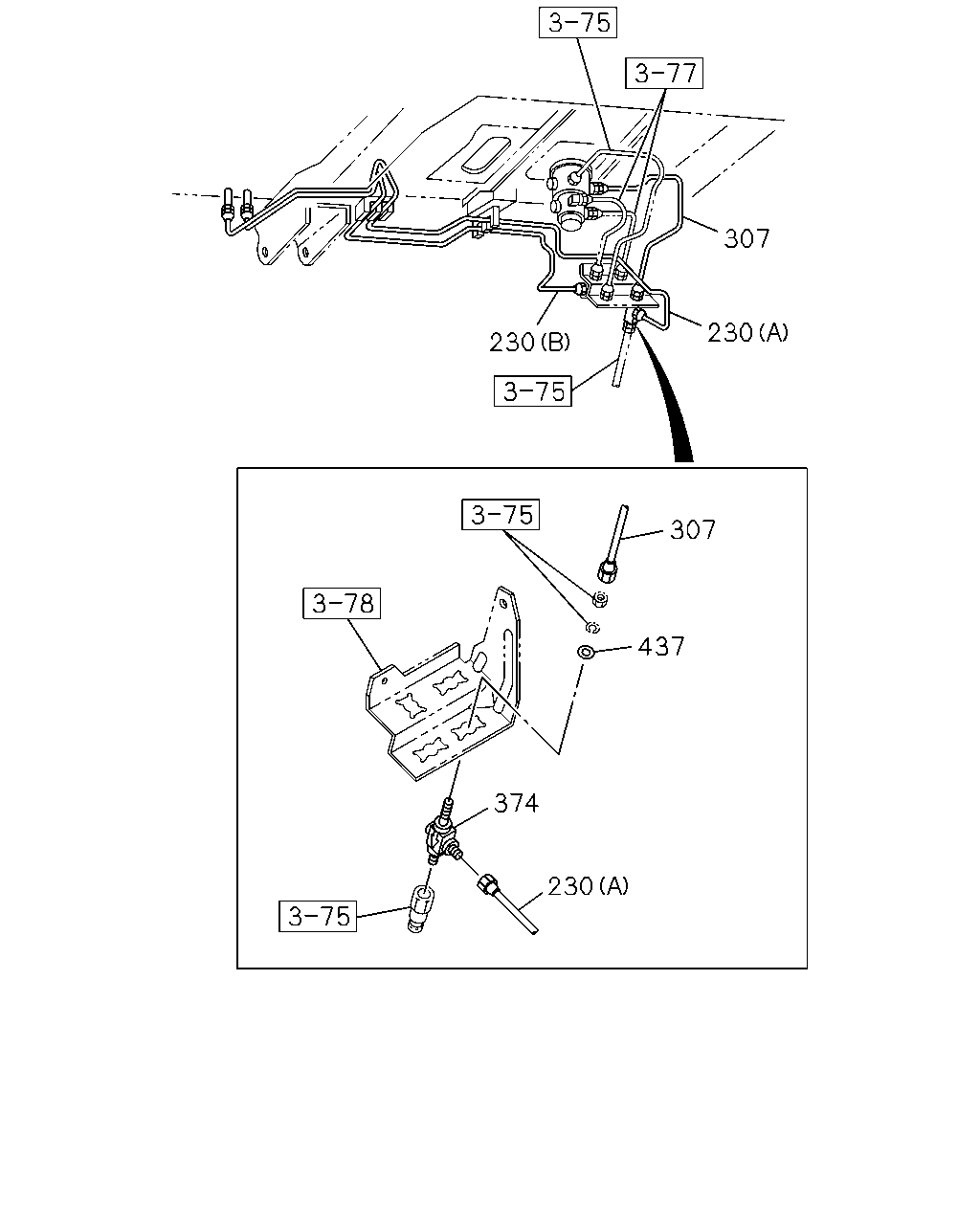

307 230 230 307 437 374 230
BalonParca AdiParca NoAdetTipApplied Date
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0701-
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0609-
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0609-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0609-
374 CONNECTOR 1-09656-754-0 01 1 0609-
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0609-
çizim 88425

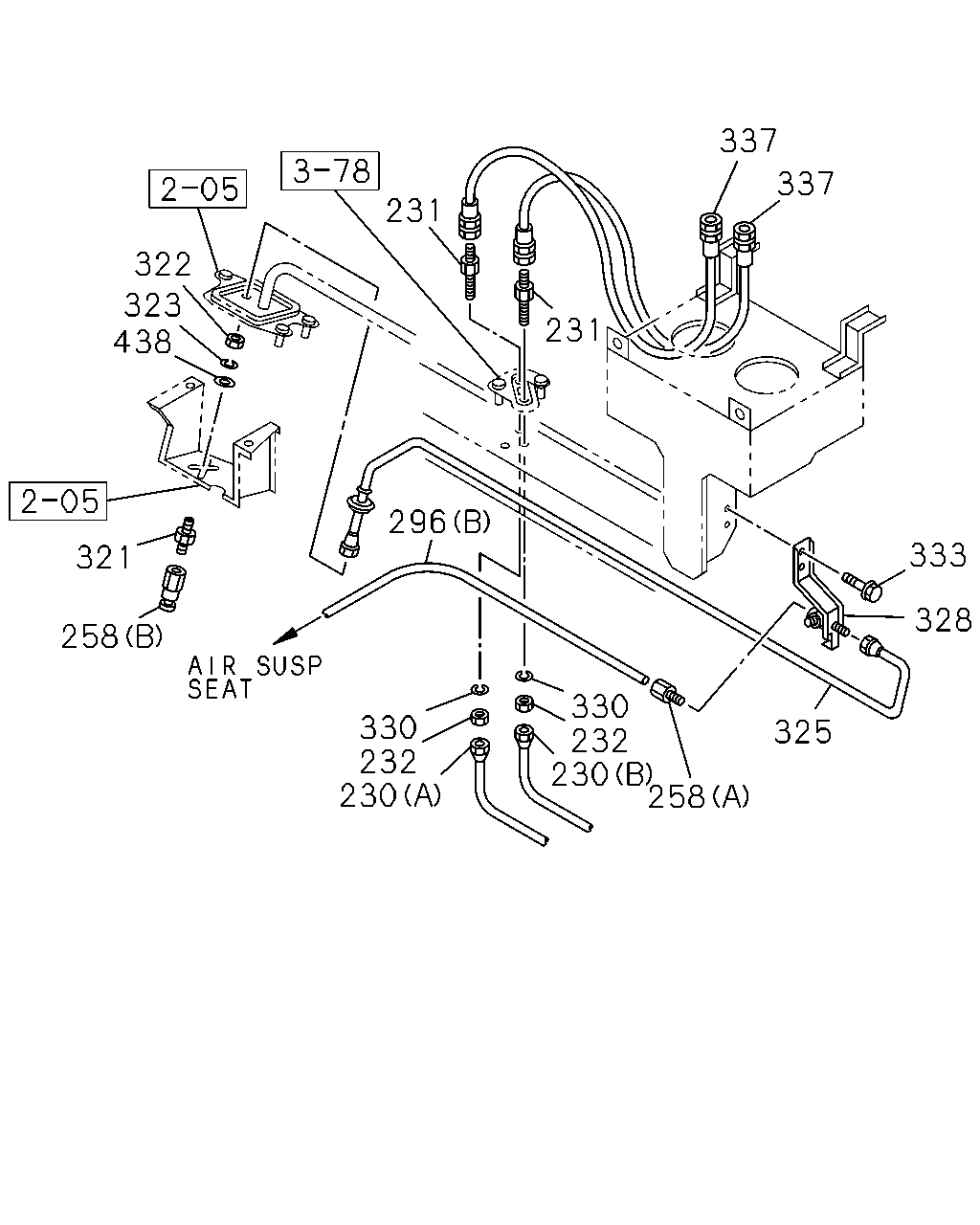

337 337 231 322 323 438 231 296 333 321 328 258 330 232 230 258 330 232 230 325
BalonParca AdiParca NoAdetTipApplied Date
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0701-
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0609-
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0609-
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0609-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0609-
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0609-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0609-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0609-
296 TUBE; NYLON
(B) L=1200 OD=6 		1-09366-256-1 01 1 0609-
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0609-
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0609-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0609-
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0609-
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0609-
328 UNION; AIR PIPE 1-47470-392-0 01 1 0609-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0609-
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0609-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0609-0609
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0609-
