Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

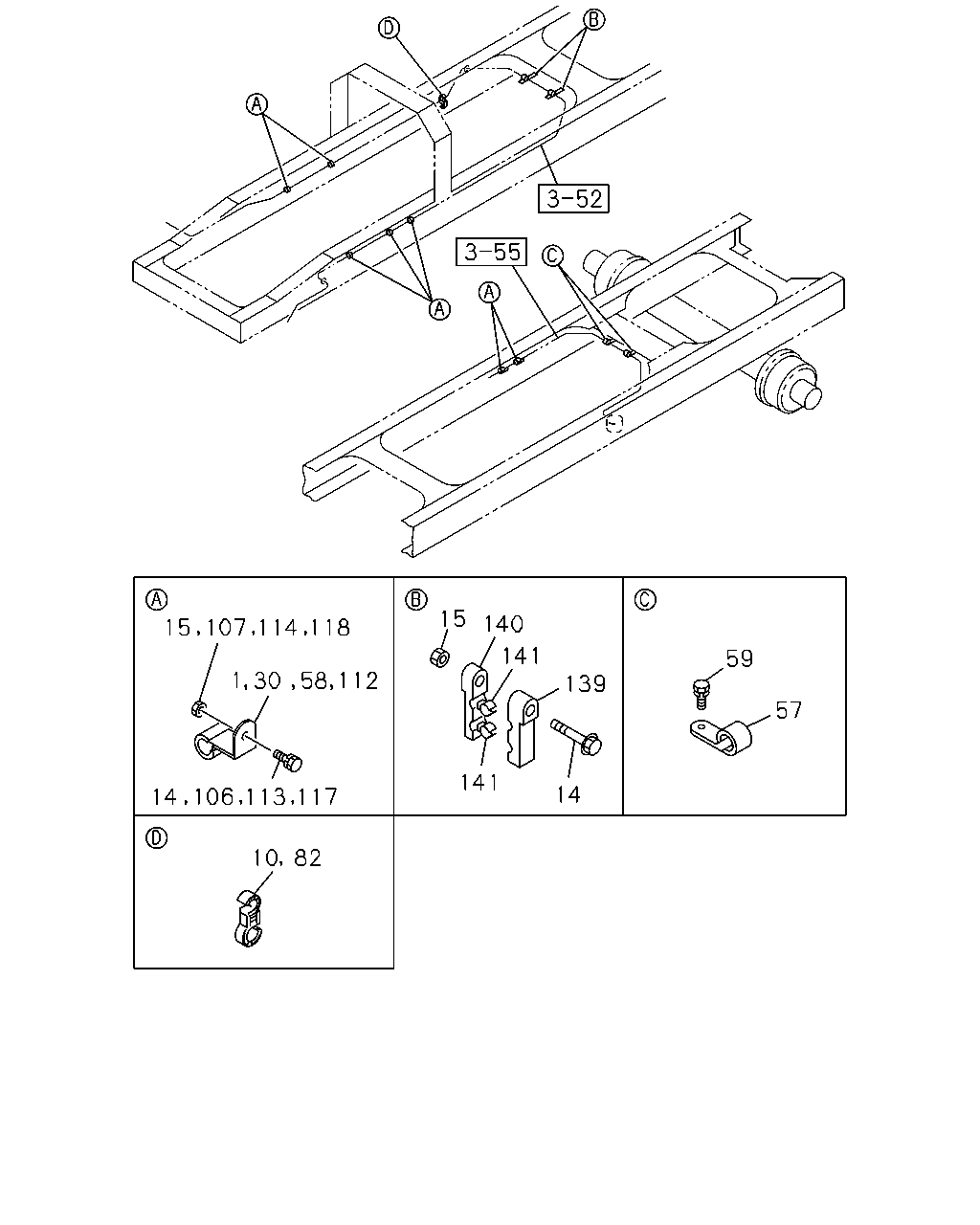

3-58 — FIXING PARTS; OIL PIPING
(#24573) — 26 parça
15
140
141
59
139
57
141
14
10
82
15
107
114
118
112
58
30
1
14
106
113
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
ID=6 H=20 L=20
1-09700-603-0
01
1
0609-
10
CLIP; OIL PIPE
ID=6.35 & 12
1-09709-275-1
01
1
0609-
14
BOLT; CLIP,OIL PIPE
M8X50 FLANGE
0-28050-850-0
02
1
0609-0610
14
BOLT; CLIP,OIL PIPE
M8X60 FLANGE
0-28050-860-0
02
1
0611-
14
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28650-830-0
01
1
0609-
15
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
03
1
0609-
30
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
06
1
0609-
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
04
1
0609-
58
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
04
1
0609-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
04
1
0609-
82
CLIP; OIL PIPE
ID=6.35 & 6.35
1-09709-273-1
03
1
0609-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0609-
106
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28650-830-0
04
1
0609-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
06
1
0609-
112
CLIP; OIL PIPE
WHEEL BASE 4200MM(42W) ID=6 H=20 L=20
1-09700-603-0
03
1
0609-
112
CLIP; OIL PIPE
WHEEL BASE 4800MM(48W) ID=6 H=20 L=20
1-09700-603-0
04
1
0609-
113
BOLT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W) M8X25 FLANGE
0-28650-825-0
03
1
0609-
113
BOLT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W) M8X25 FLANGE
0-28650-825-0
04
1
0609-
114
NUT; CLIP,OIL PIPE
WHEEL BASE 4200MM(42W) M8 FLANGE
0-91180-108-0
03
1
0609-
114
NUT; CLIP,OIL PIPE
WHEEL BASE 4800MM(48W) M8 FLANGE
0-91180-108-0
04
1
0609-
117
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
0609-
118
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
04
1
0609-
139
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
0609-
140
CLIP; LWR
ID=10 & 10
1-09709-243-0
04
1
0609-
141
COLLAR
ID=6
1-47459-010-0
04
1
0609-
141
COLLAR
ID=8
1-47459-011-0
04
1
0609-
