11027 - FRR RHD EURO4
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#24566) — 31 parça
◀

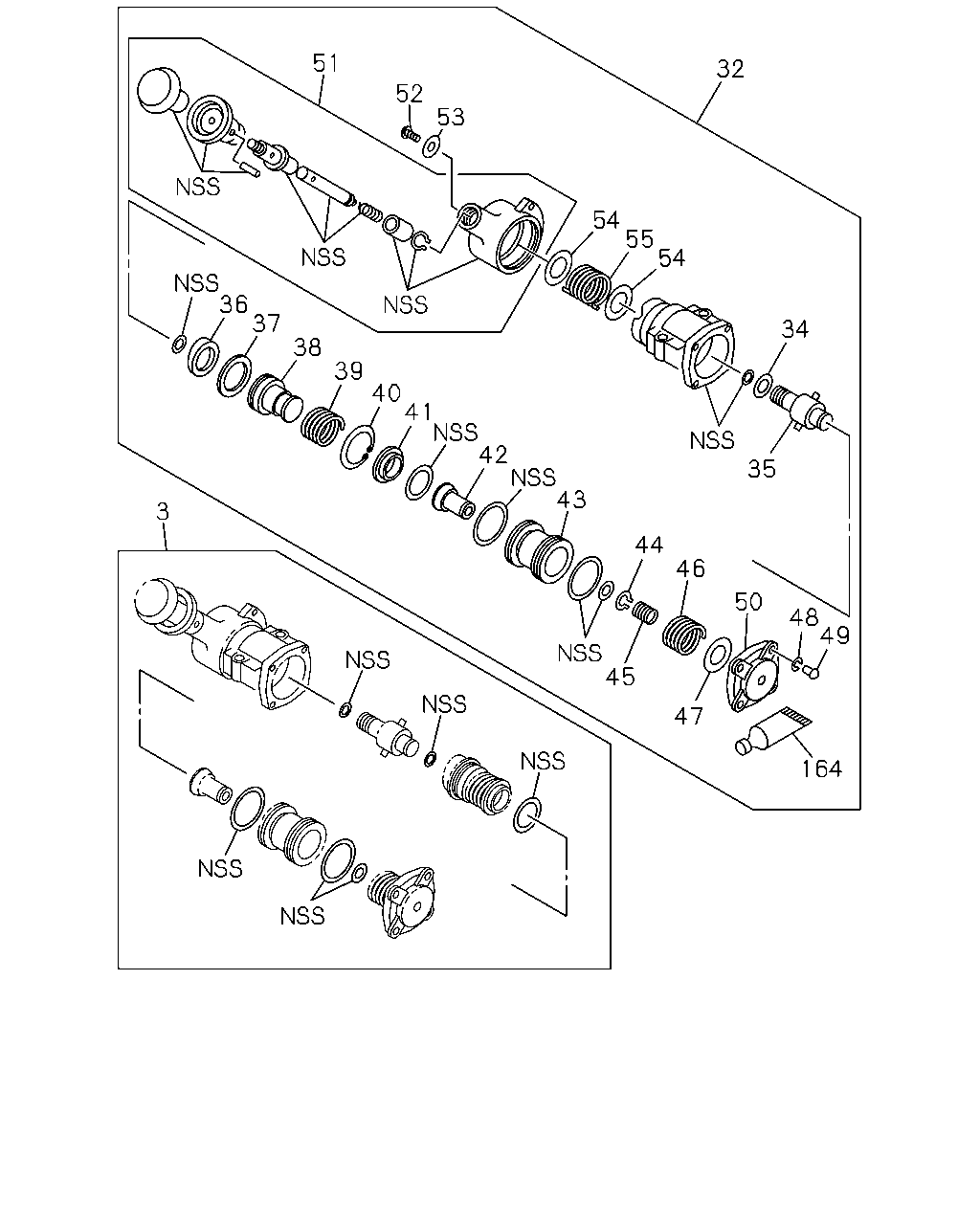

[326A] COMPONENT AND REPAIR KIT;HAND BRK VALVE (25 parça)

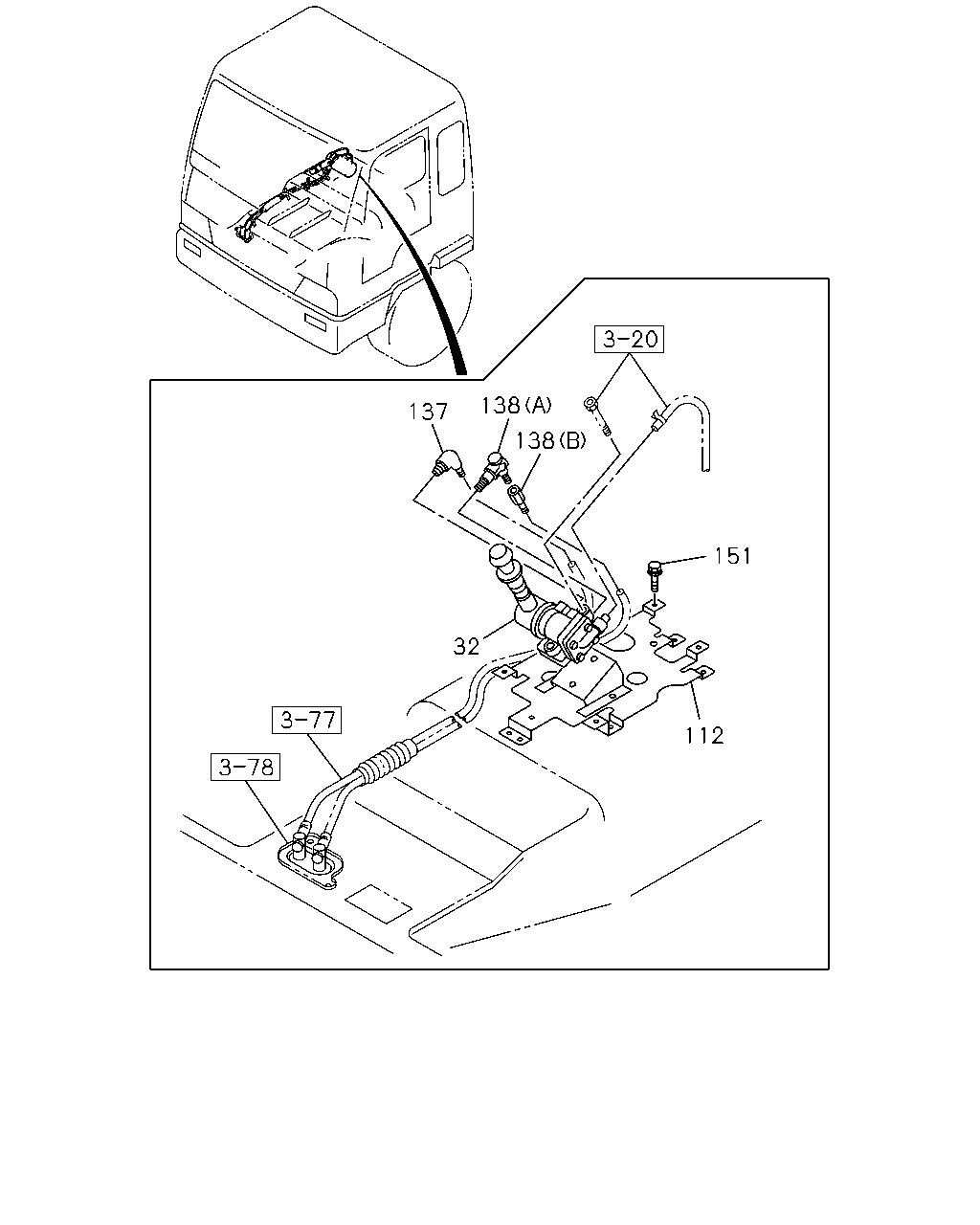

[326A] HAND BRK VALVE AND CONNECTOR (6 parça)
▶
51
32
52
53
54
55
54
36
37
34
38
39
40
41
42
43
35
3
44
46
50
48
49
45
47
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
0609-
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0609-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0609-
35
HOLDER; CAM
1-48469-054-0
01
1
0609-
36
RING; CAM
1-48469-056-0
01
1
0609-
37
GUIDE; CAM RING
1-48469-058-0
01
1
0609-
38
SEAT; EXH VLV
1-48469-057-0
01
1
0609-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
0609-
40
RING; SNAP
1-48469-067-0
01
1
0609-
41
SEAT; FEED VLV
1-48469-066-0
01
1
0609-
42
VALVE; FEED
1-48469-065-0
01
1
0609-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
0609-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
0609-
45
SPRING; FEED VLV
1-48469-070-0
01
1
0609-
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
0609-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0609-
48
WASHER; COVER
1-48469-091-0
04
1
0609-
49
SCREW; COVER
1-48469-092-0
04
1
0609-
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
0609-
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
0609-
52
SCREW; HANDLE
1-48469-062-0
01
1
0609-
53
WASHER; HANDLE
1-48469-061-0
01
1
0609-
54
SEAT; SPRING
1-48469-082-0
02
1
0609-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
0609-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
0609-
138
137
138
151
32
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0609-
112
BRACKET; CONT VLV
1-73908-054-7
01
1
0609-
137
CONNECTOR; SUPPLY
DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0609-
138
CONNECTOR; DELIVERY
(A)
1-09650-240-1
01
1
0609-
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0609-
151
BOLT; VLV BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0609-
