◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11027 - FRR RHD EURO4 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#24565) — 31 parça
çizim 26589
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-85576-304-1 01 1 0609-
204 PIPE ASM; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-194-0 01 1 0609-

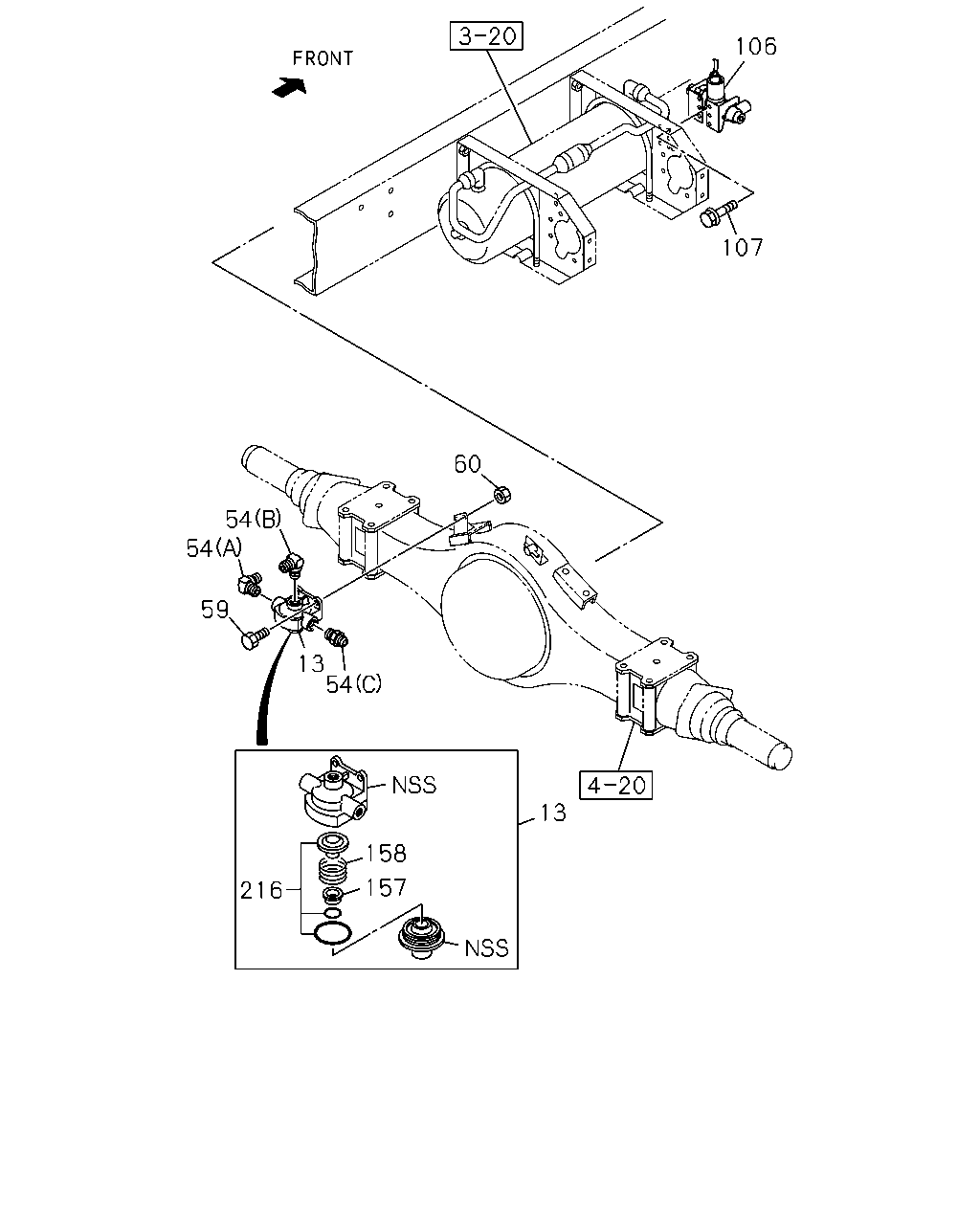

çizim 88097
106 107 60 54 54 59 13 54 13 158 157 216
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE 1-48410-659-0 01 1 0609-
54 CONNECTOR; QUICK RELEASE VLV
(C) M14 & PT3/8 STRAIGHT 		1-09650-085-1 01 1 0609-
54 CONNECTOR; QUICK RELEASE VLV
(A) M14 & PT3/8 ELBOW 		1-09650-437-0 01 1 0609-
54 CONNECTOR; QUICK RELEASE VLV
(B) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0609-
59 BOLT; RELEASE VALVE FIX
M8X20 W/LK WASHER 		0-50040-820-0 02 1 0609-0906
59 BOLT; RELEASE VALVE FIX
M8X20 W/LK WASHER 		0-50540-820-0 02 1 0907-
60 NUT; RELEASE VALVE FIX
M8 		0-91110-508-0 02 1 0609-
106 VALVE; HSA
BRAKE SYSTEM HSA<SLD> 		1-46362-123-1 01 1 0609-
107 BOLT; VLV
BRAKE SYSTEM HSA<SLD> M8X20 FLANGE 		0-28650-820-0 04 1 0609-
157 RETAINER; VALVE 1-48419-020-0 01 1 0609-
158 SPRING; VALVE 9-48419-003-0 01 1 0609-
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-235-0 01 1 0609-

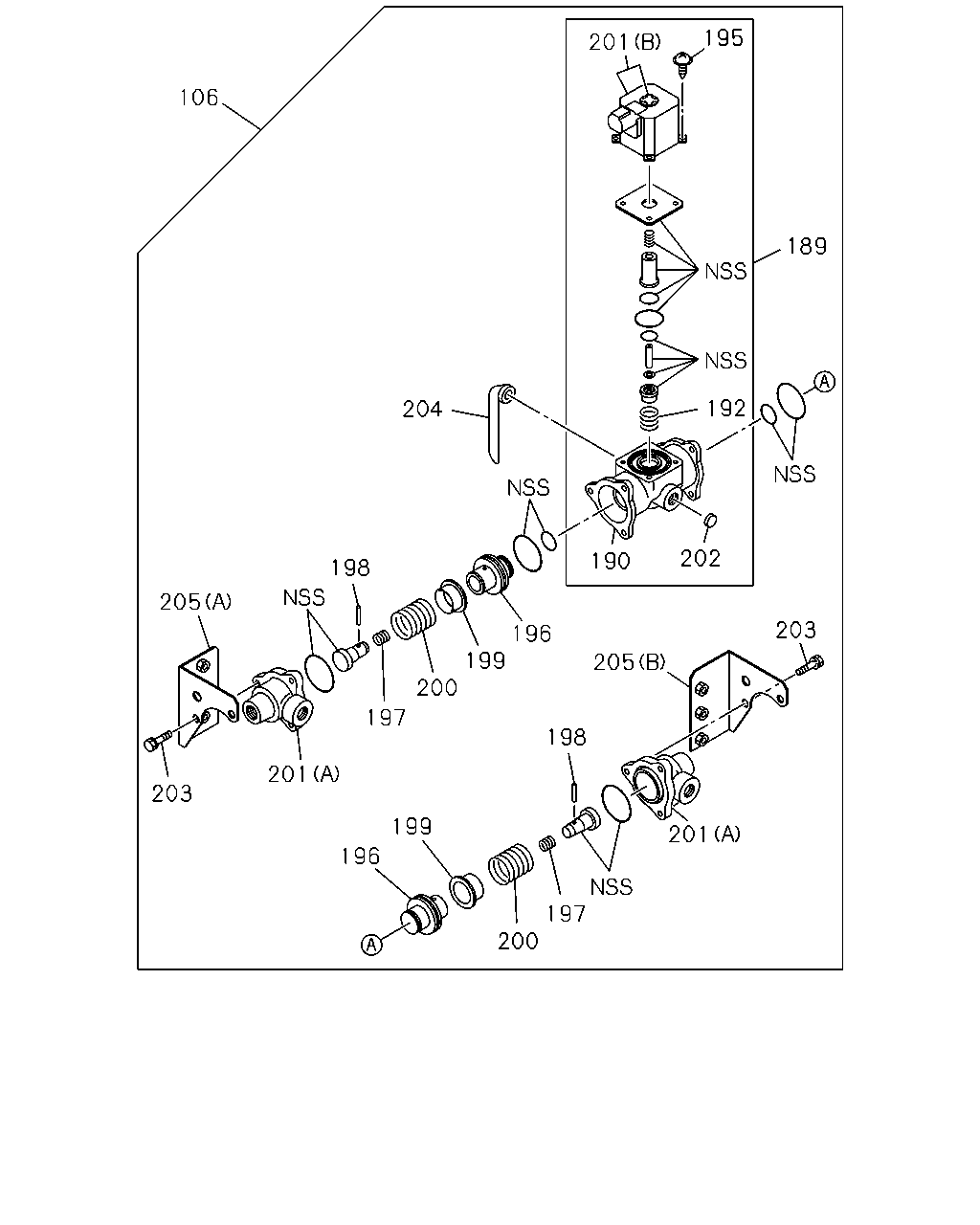

çizim 88348
195 201 106 189 192 204 202 190 198 205 203 196 199 200 205 197 198 201 201 203 199 196 197 200
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
BRAKE SYSTEM HSA<SLD> 		1-46362-123-1 01 1 0609-
189 VALVE ASM; SOLENOID,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-247-0 01 1 0609-
190 BODY; SOLENOID VLV,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-234-0 01 1 0609-
192 SPRING; SOLENOID VLV,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-181-0 01 1 0609-
195 SCREW; SOLENOID VLV,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-191-0 04 1 0609-
196 PISTON; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-232-0 02 1 0609-
197 SPRING; INNER,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-161-0 02 1 0609-
198 PIN; STRAIGHT,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-122-0 02 1 0609-
199 RETAINER; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-121-0 02 1 0609-
200 SPRING; OUTER,HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-120-0 02 1 0609-
201 COVER; HSA VLV
BRAKE SYSTEM HSA<SLD> (A) 		1-46366-118-1 02 1 0609-
201 COVER; HSA VLV
BRAKE SYSTEM HSA<SLD> (B) 		1-46366-241-0 01 1 0609-
202 FILTER; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-117-1 02 1 0609-
203 SCREW; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-116-1 06 1 0609-
204 PIPE ASM; HSA VLV
BRAKE SYSTEM HSA<SLD> 		1-46366-194-0 01 1 0609-
205 BRACKET; HSA VLV
BRAKE SYSTEM HSA<SLD> (A) 		1-46366-149-0 01 1 0609-
205 BRACKET; HSA VLV
BRAKE SYSTEM HSA<SLD> (B) 		1-46366-150-0 01 1 0609-
