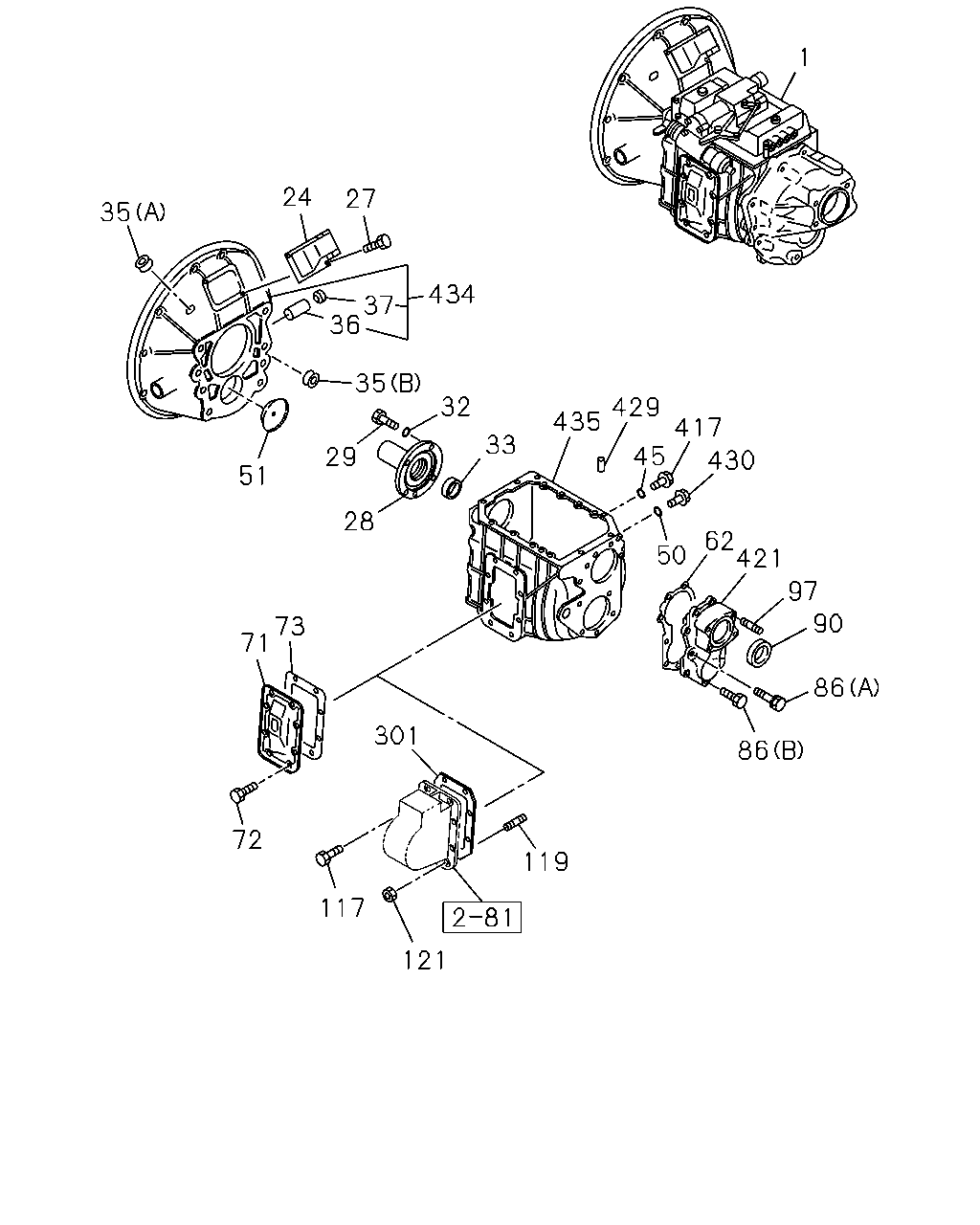

1 |
TRANSMISSION ASM; MANUAL
PTO CONTROL<SV6>
|
1-33043-977-0 |
01 |
1 |
0609- |
| |
1 |
TRANSMISSION ASM; MANUAL
EXC. PTO CONTROL<SV6>
|
1-33043-977-0 |
01 |
1 |
0609- |
| |
24 |
COVER; CHECK HOLE,DUST
|
1-31131-041-0 |
01 |
1 |
0609-1410 |
| |
24 |
COVER; CHECK HOLE,DUST
|
8-98284-107-0 |
01 |
1 |
1411- |
| |
27 |
BOLT; COVER TO CLU HSG
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0609- |
| |
28 |
COVER; FRT,TRANS CASE
|
1-33121-108-1 |
01 |
1 |
0609- |
| |
29 |
BOLT; FRT COVER
M10X28 FLANGE REAMER
|
1-09040-089-1 |
04 |
1 |
0609-0805 |
| |
29 |
BOLT; FRT COVER
M10X28 FLANGE REAMER
|
8-97365-375-0 |
04 |
1 |
0806- |
| |
32 |
GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T).
ID=10
|
1-09623-369-0 |
04 |
1 |
0609- |
| |
33 |
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-497-0 |
01 |
1 |
0609- |
| |
35 |
GROMMET; CLU HSG
(A)
|
9-09575-796-0 |
01 |
1 |
0609- |
| |
35 |
GROMMET; CLU HSG
(B)
OD=15 T=6.6
|
8-97037-246-0 |
01 |
1 |
0609- |
| |
36 |
BEARING; NEEDLE,CLU HSG
NTN
|
1-09811-002-1 |
02 |
1 |
0609- |
| |
37 |
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
|
1-09625-002-0 |
02 |
1 |
0609- |
| |
45 |
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
0609- |
| |
50 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
0609- |
| |
51 |
COVER; SEAL,COUNTER,FRT
|
1-33319-107-1 |
01 |
1 |
0609- |
| |
62 |
GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
|
1-33132-045-2 |
01 |
1 |
0609- |
| |
71 |
COVER; SIDE,TRANS CASE
EXC. PTO CONTROL<SV6>
|
1-33141-033-0 |
01 |
1 |
0609- |
| |
72 |
BOLT; SIDE COVER
EXC. PTO CONTROL<SV6>
M10X16 FLANGE
|
0-28151-016-0 |
08 |
1 |
0609- |
| |
73 |
GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
EXC. PTO CONTROL<SV6>
|
1-33142-036-0 |
01 |
1 |
0609- |
| |
86 |
BOLT; RR COVER
(B)
M17X35
|
1-09044-076-0 |
08 |
1 |
0609- |
| |
86 |
BOLT; RR COVER
(A)
M12X60
|
1-09044-084-0 |
01 |
1 |
0609- |
| |
90 |
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
NOK
|
1-09625-513-0 |
01 |
1 |
0609- |
| |
97 |
STUD; PARKING BRK
M14X27 L=49
|
1-09302-099-1 |
01 |
1 |
0609- |
| |
117 |
BOLT; PTO FIX
PTO CONTROL<SV6>
M10X28 FLANGE
|
0-28181-028-0 |
06 |
1 |
0609-0805 |
| |
117 |
BOLT; PTO FIX
PTO CONTROL<SV6>
M10X28 FLANGE
|
8-98044-944-0 |
06 |
1 |
0806- |
| |
119 |
STUD; PTO FIX
PTO CONTROL<SV6>
M10X30 L=45
|
0-44011-030-0 |
02 |
1 |
0609- |
| |
121 |
NUT; PTO FIX
PTO CONTROL<SV6>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0609- |
| |
301 |
PLATE; DIST,PTO TO TRANS
PTO CONTROL<SV6>
|
1-38119-037-0 |
01 |
1 |
0609- |
| |
417 |
PLUG; OIL FILLER,TRANS
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0609- |
| |
421 |
COVER; RR,TRANS
|
1-33131-177-1 |
01 |
1 |
0609- |
| |
429 |
PIN; STRAIGHT
OD=10 L=18
|
9-08151-018-0 |
02 |
1 |
0609- |
| |
430 |
PLUG; OIL DRAIN
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0609- |
| |
434 |
HOUSING; CLU
|
1-31110-169-0 |
01 |
1 |
0609- |
| |
435 |
CASE; TRANS
|
8-97381-568-0 |
01 |
1 |
0609-0802 |
