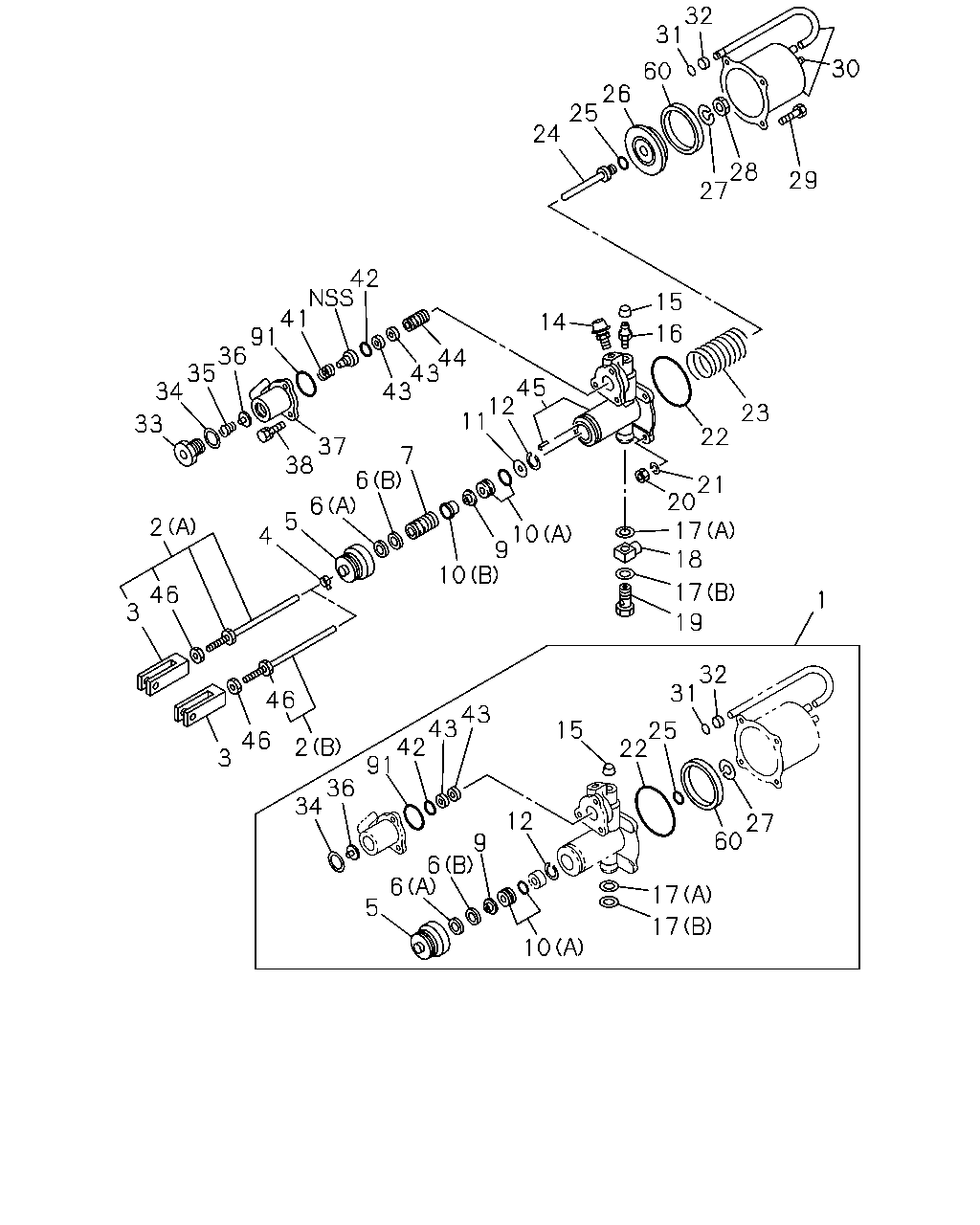

2-07 — CLUTCH BOOSTER; MINIPACK (#2455) — 100 parça

32 31 30 60 26 25 24 28 27 29 42 41 91 36 35 34 15 14 16 44 43 43 45 12 11 23 33 22 37 38 7 6 21 20 17 18 6 5 2 10 9 10 4 17 46 3 1 19 32 31 46 43 43 42 91 15 25 22 46 3 2 36 34 12 27 60 9 6 6 17 5 17 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	REPAIR KIT; CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-326-0	01	1	9002-	●	●	●
1	REPAIR KIT; CLU BOOSTER 6RB1TC-N ENG(29L)	1-31829-297-0	01	1	9012-		●
1	REPAIR KIT; CLU BOOSTER	1-31829-183-0	01	1	9002-9006				●	●	●
1	REPAIR KIT; CLU BOOSTER	1-85579-013-0	01	1	9007-				●	●	●	●
2	ROD; PUSH,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A)	1-31824-147-0	01	1	9002-9306	●	●	●
2	ROD; PUSH,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B)	1-31824-163-0	01	1	9307-	●	●	●
2	ROD; PUSH,CLU BOOSTER 6RB1TC-N ENG(29L) (A)	1-31824-116-0	01	1	9012-		●
2	ROD; PUSH,CLU BOOSTER (A)	1-31824-066-0	01	1	9002-				●	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	9002-	●	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-189-0	01	1	9002-				●	●	●	●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	9002-	●	●	●	●	●	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	9002-	●	●	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9002-	●	●	●	●	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9002-	●	●	●	●	●	●	●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	9002-9006	●	●	●	●	●	●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	9007-	●		●	●	●	●	●
7	PISTON; CLU BOOSTER 6RB1 STD ENG(07L)	1-31821-013-0	01	1	9007-		●
7	PISTON; CLU BOOSTER 6RB1TC-N ENG(29L)	1-31821-048-0	01	1	9012-		●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	9002-	●	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-107-0	01	1	9002-	●	●	●	●	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-108-0	01	1	9002-	●	●	●	●	●	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	9002-	●	●	●	●	●	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9002-	●	●	●	●	●	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-102-0	01	1	9002-	●	●	●	●	●	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9002-	●	●	●	●	●	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9002-	●	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	9002-	●	●	●	●	●	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	9002-	●	●	●	●	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9002-	●	●	●	●	●	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9002-	●	●	●	●	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-09111-410-0	04	1	9002-	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	9002-				●	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	9002-				●	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-09623-322-0	01	1	9002-	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31829-281-0	01	1	9012-		●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	9002-				●	●	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-110-0	01	1	9002-	●		●	●	●	●	●
23	SPRING; SHELL,CLU BOOSTER 6RB1 STD ENG(07L)	1-31829-110-0	01	1	9002-		●
23	SPRING; SHELL,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31829-289-0	01	1	9012-9303		●
23	SPRING; SHELL,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31829-350-0	01	1	9304-		●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	9002-	●		●	●	●	●	●
24	ROD; PUSH,CLU BOOSTER 6RB1 STD ENG(07L)	1-31829-112-0	01	1	9002-		●
24	ROD; PUSH,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31824-122-0	01	1	9012-9303		●
24	ROD; PUSH,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31824-154-0	01	1	9304-		●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	9002-	●		●	●	●	●	●
25	GASKET; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L)	1-09623-321-0	01	1	9002-		●
25	GASKET; PUSH ROD,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31829-277-0	01	1	9012-		●
26	PISTON; SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31821-017-0	01	1	9002-	●	●	●
26	PISTON; SHELL,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31821-050-0	01	1	9012-9303		●
26	PISTON; SHELL,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31821-060-0	01	1	9304-		●
26	PISTON; SHELL,CLU BOOSTER	1-31821-057-0	01	1	9002-				●	●	●	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	9002-	●		●	●	●	●	●
27	SPRING; CLU BOOSTER 6RB1 STD ENG(07L)	1-31829-111-0	01	1	9002-		●
27	SPRING; CLU BOOSTER 6RB1TC-N ENG(29L)	1-31829-291-0	01	1	9012-		●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	9002-	●		●	●	●	●	●
28	NUT; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L)	9-88510-365-0	01	1	9002-		●
28	NUT; PUSH ROD,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31829-290-0	01	1	9012-		●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	9002-	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	9002-				●	●	●	●
30	SHELL; CYL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31811-061-0	01	1	9002-	●	●	●
30	SHELL; CYL,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31811-051-0	01	1	9012-9303		●
30	SHELL; CYL,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31811-076-0	01	1	9304-		●
30	SHELL; CYL,CLU BOOSTER	1-31811-026-0	01	1	9002-				●	●	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	9002-	●	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	9002-				●	●	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	9002-	●	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	9002-				●	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	9002-	●	●	●	●	●	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9002-	●	●	●	●	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9002-	●	●	●	●	●	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9002-	●	●	●	●	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-053-0	01	1	9002-	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-018-0	01	1	9002-9006				●	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-014-0	01	1	9007-				●	●	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9002-	●	●	●	●	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	9002-9306	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-422-0	01	1	9307-	●	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-104-0	01	1	9002-				●	●	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	9002-	●	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	9002-				●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9007-	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9002-9006	●	●	●	●	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-083-0	02	1	9007-				●	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	9002-	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-019-0	01	1	9002-9006				●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-030-0	01	1	9007-				●	●	●	●
45	PLATE; END,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31811-060-0	01	1	9002-	●	●	●
45	PLATE; END,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31811-055-0	01	1	9012-9303		●
45	PLATE; END,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31811-078-0	01	1	9304-		●
45	PLATE; END,CLU BOOSTER	1-31811-019-0	01	1	9002-9006				●	●	●
45	PLATE; END,CLU BOOSTER	1-31811-064-0	01	1	9007-				●	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31824-126-0	02	1	9307-	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31824-126-0	01	1	9002-9306	●	●	●
46	NUT; PUSH ROD,CLU BOOSTER 6RB1TC-N ENG(29L) M10	9-09111-410-0	01	1	9002-		●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	01	1	9002-				●	●	●	●
60	GASKET; SHELL,CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31829-058-0	01	1	9002-	●	●	●
60	GASKET; SHELL,CLU BOOSTER 6RB1TC-N ENG(29L)	1-31829-292-0	01	1	9012-		●
60	GASKET; SHELL,CLU BOOSTER	1-31829-066-0	01	1	9002-				●	●	●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	9002-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
