2-05 — CLUTCH PIPING (#24546) — 62 parça

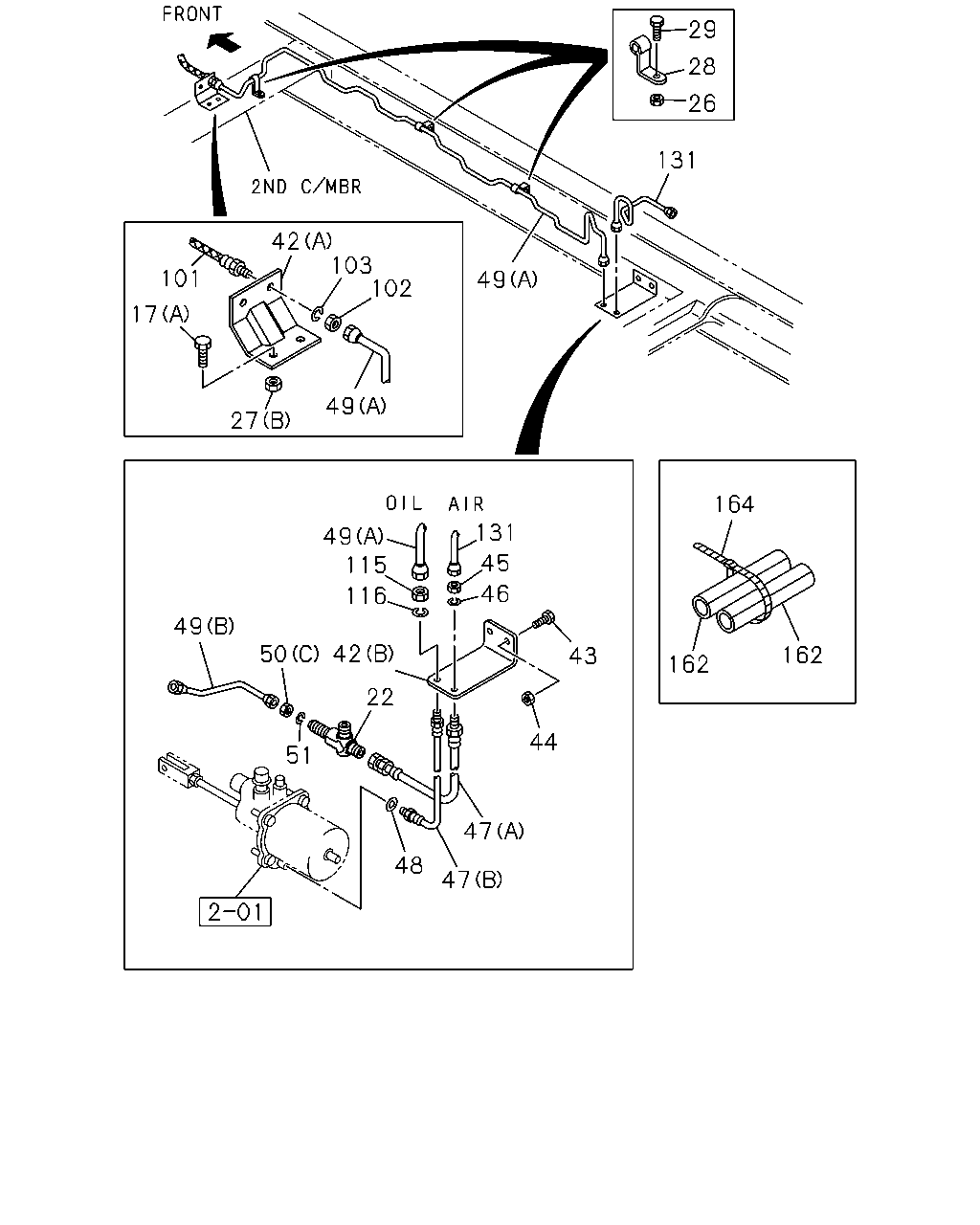

29 28 26 131 42 103 102 101 49 17 49 27 164 131 49 115 45 46 116 49 42 50 162 43 162 22 44 51 47 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0609-
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	0609-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0609-
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0609-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0609-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0609-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0609-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0609-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0609-
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0609-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0609-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0609-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0609-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0609-
47	HOSE; FLEX,CLU CONT (A) L=470	1-09363-682-0	01	1	0609-
47	HOSE; FLEX,CLU CONT (B) L=470	1-09364-692-0	01	1	0609-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0609-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0609-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=3110 SERVICED BY L=3300	1-47426-398-0	01	1	0609-
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0609-
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0609-
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0609-
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0609-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0609-0703
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0609-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0609-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0609-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0609-
131	PIPE; AIR,UNION TO FLEX HOSE	1-49119-152-0	01	1	0609-
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0609-
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0609-
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0609-

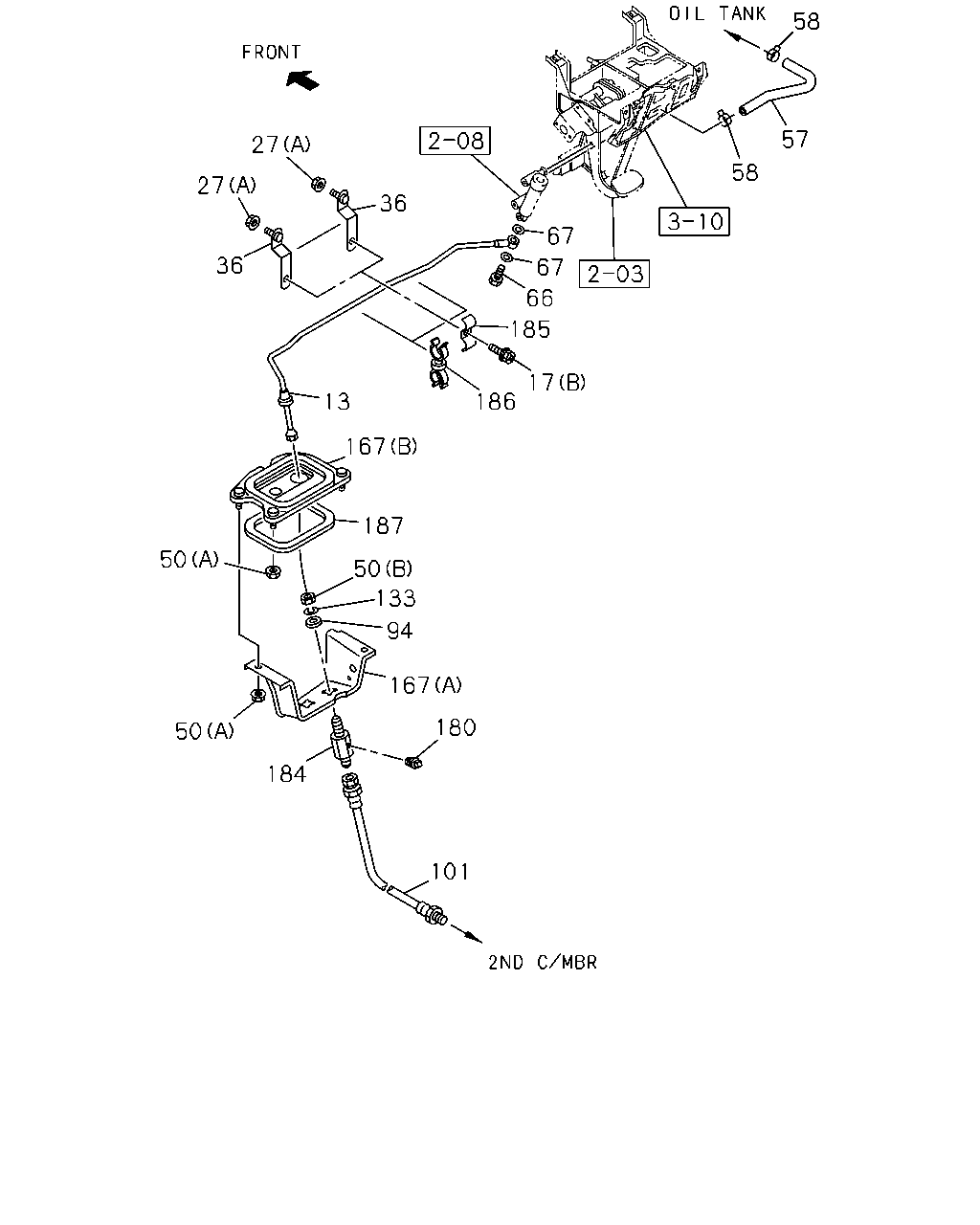

58 57 27 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 180 50 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0609-
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0609-
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0609-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0609-
36	BRACKET; CLIP	1-79738-186-1	02	1	0609-
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0609-
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0609-
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0609-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0609-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0609-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0609-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0609-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0609-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0609-0703
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0609-
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0609-
167	BRACKET; UNION (A)	1-79738-847-2	01	1	0609-
180	PLUG; PIPE EXC. BRAKE SYSTEM HSA<SLD>	9-09204-510-0	01	1	0609-0804
184	UNION; FLEX HOSE EXC. BRAKE SYSTEM HSA<SLD> STRAIGHT	1-09654-435-0	01	1	0805-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0609-0804
184	UNION; FLEX HOSE BRAKE SYSTEM HSA<SLD> 3WAY	1-09656-679-0	01	1	0805-
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0609-
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0609-
187	SEAL; BRKT	1-79738-190-0	01	1	0609-
