Sayfa 1-50 - Isuzu EPC

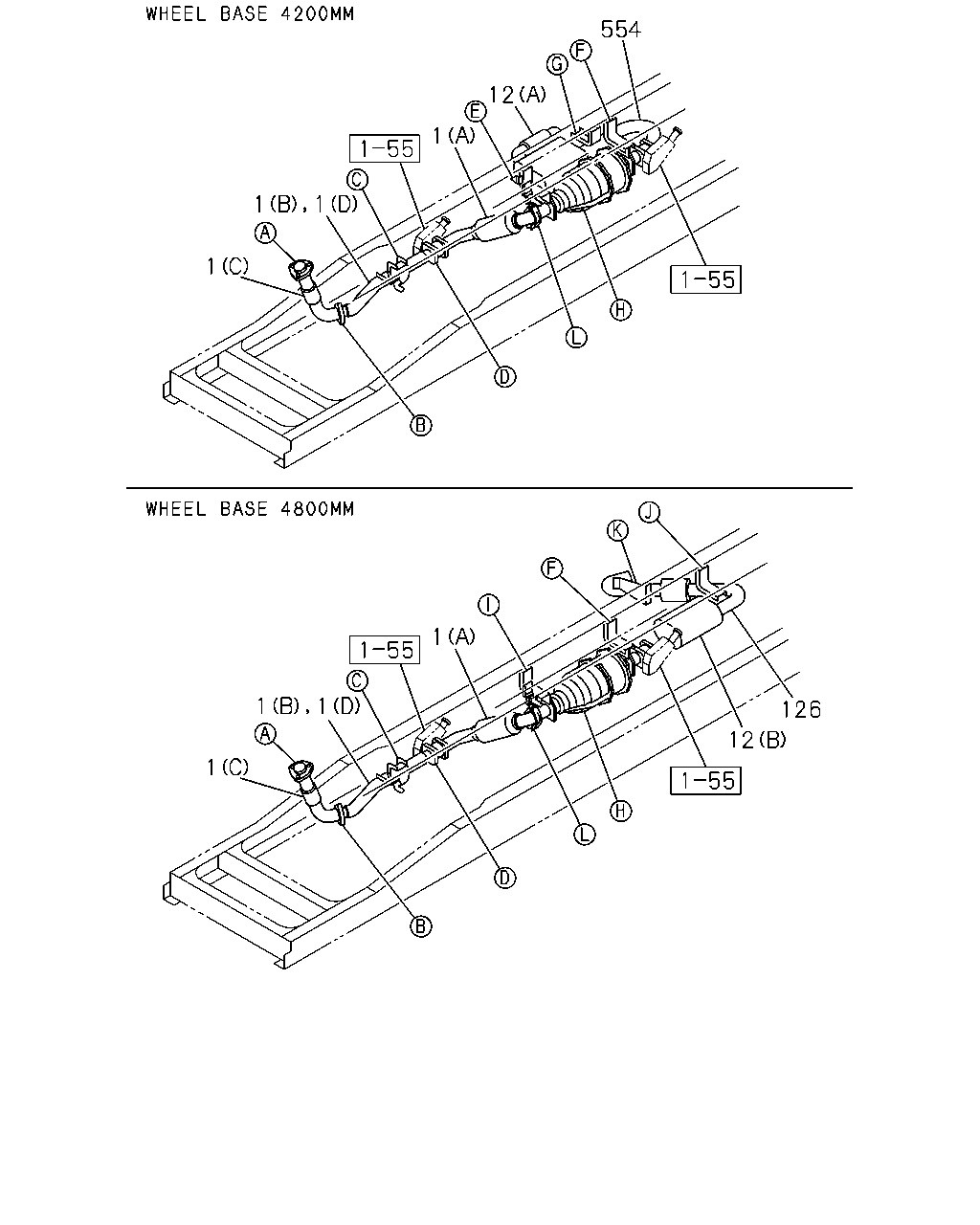

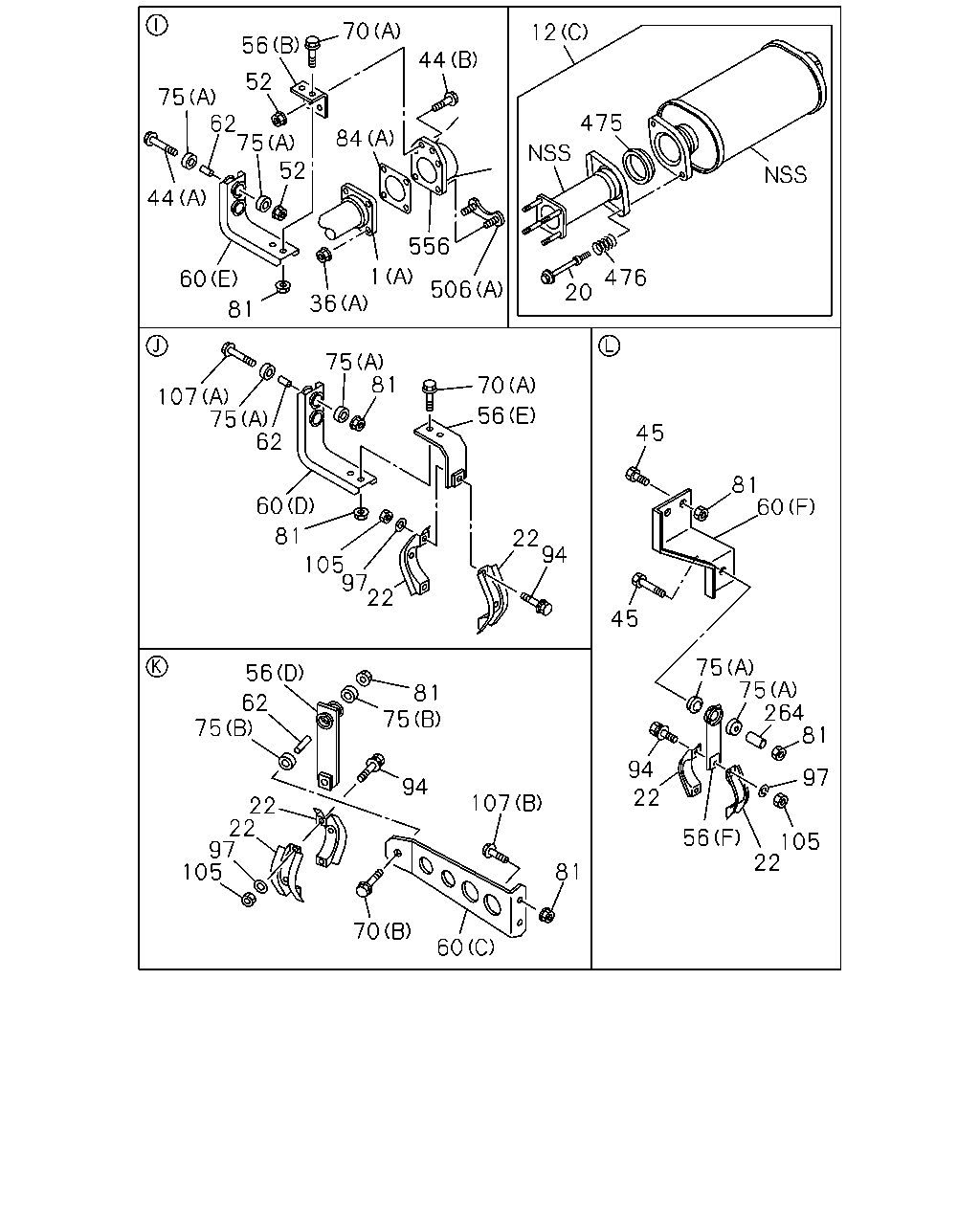

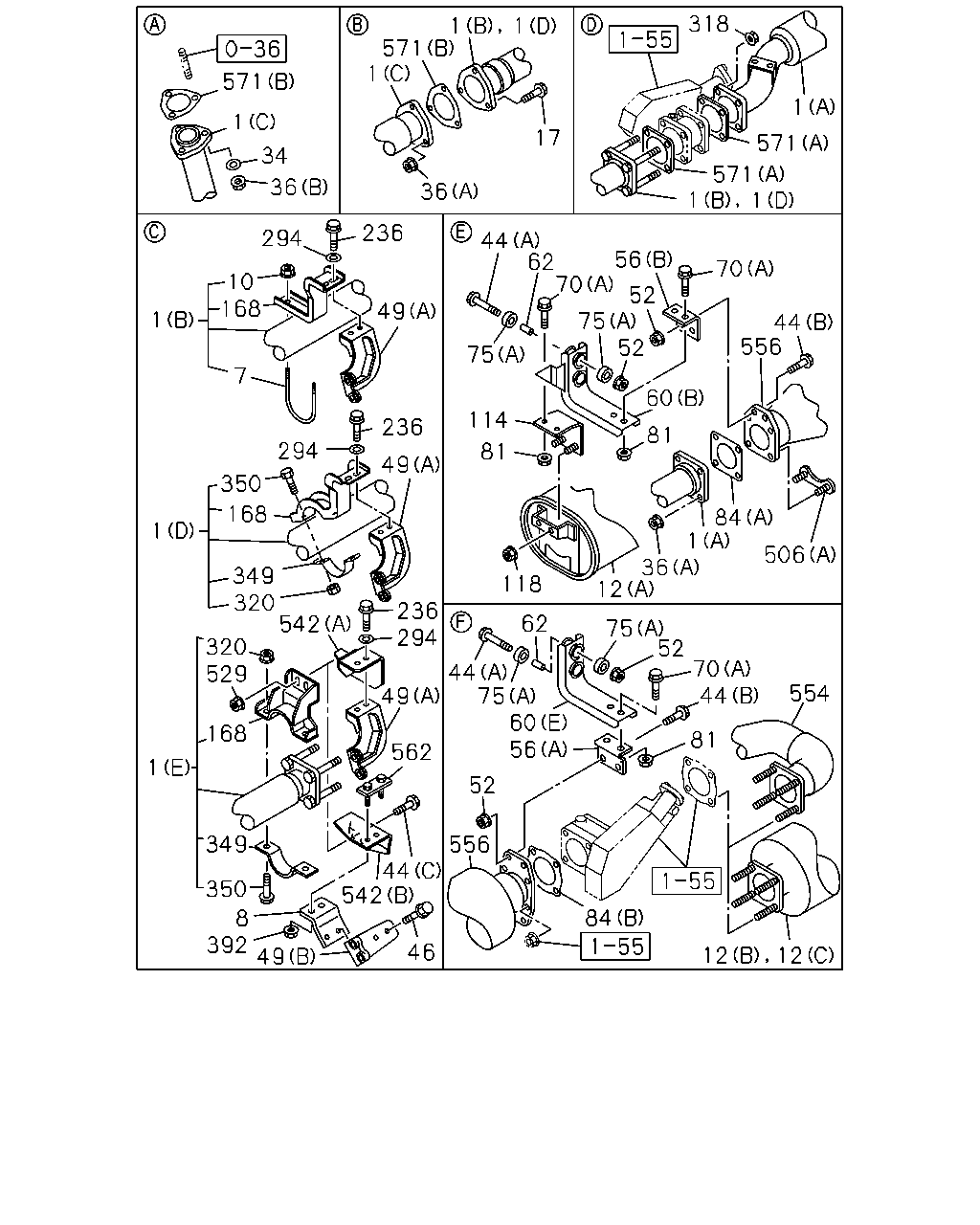

1-50 — EXHAUST PIPE AND SILENCER (#24541) — 298 parça

105 22 56 22 94 97 81 264 75 75 45 60 81 45 56 70 22 94 22 97 105 81 60 62 75 75 107 81 56 62 75 22 22 97 105 70 60 81 107 94 75 81 12 475 476 20 506 36 81 60 44 75 75 62 52 84 556 1 44 70 56 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (C)	8-98050-133-2	01	1	0609-1304
1	PIPE; EXH (C)	8-98234-509-1	01	1	1305-
1	PIPE; EXH (B)	8-98050-134-0	01	1	0609-0609
1	PIPE; EXH (D)	8-98058-339-0	01	1	0609-0609
1	PIPE; EXH (D)	8-98063-856-0	01	1	0610-0712
1	PIPE; EXH (E)	8-98079-292-0	01	1	0801-1304
1	PIPE; EXH (E)	8-98234-512-0	01	1	1305-
1	PIPE; EXH (A)	8-98050-533-0	01	1	0609-0609
1	PIPE; EXH (A)	8-98058-341-0	01	1	0609-
12	SILENCER ASM; EXH WHEEL BASE 4200MM(42W) (A)	8-98043-317-2	01	1	0609-
12	SILENCER ASM; EXH WHEEL BASE 4800MM(48W) (B)	8-98041-925-1	01	1	0609-1301
12	SILENCER ASM; EXH WHEEL BASE 4800MM(48W) (C)	8-98234-507-0	01	1	1302-
20	BOLT; FLANGE,EXH PIPE WHEEL BASE 4800MM(48W)	8-98233-481-0	02	1	1302-
22	CLAMP; EXH PIPE WHEEL BASE 4800MM(48W) ID=80-84	1-22133-233-0	02	1	0609-0609
22	CLAMP; EXH PIPE WHEEL BASE 4800MM(48W) ID=80-84	1-22133-233-0	02	1	0609-0609
22	CLAMP; EXH PIPE WHEEL BASE 4800MM(48W) ID=80-84	1-22133-233-0	02	1	0609-
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	0609-
22	CLAMP; EXH PIPE WHEEL BASE 4800MM(48W) ID=80-84	1-22133-233-0	02	1	0609-
36	NUT; EXH PIPE WHEEL BASE 4200MM(42W) (A) M12 FLANGE	0-91180-212-0	04	1	0609-
36	NUT; EXH PIPE (A) M12 FLANGE	0-91180-212-0	07	1	0609-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0609-
44	BOLT; BRKT (C) M10X30 FLANGE	0-28051-030-0	02	1	1305-
44	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	04	1	0609-
44	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0609-0610
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0611-
45	BOLT; BRKT M10X50	0-10856-050-0	01	1	0609-
45	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0609-
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0609-0609
52	NUT; BRKT M10 FLANGE	0-91180-210-0	11	1	0609-
56	BRACKET; CLAMP,EXH PIPE (F) L=94	1-22131-575-0	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (C)	1-22139-280-0	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (D)	1-22131-528-1	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (E)	1-22139-283-0	01	1	0609-1301
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (E)	8-98234-332-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-278-0	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE (B)	8-98039-772-0	01	1	0609-
60	BRACKET; FRAME TO BRKT (F)	8-98059-536-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	1-22152-072-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (B)	8-98043-449-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (C)	1-22134-279-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (D)	1-22152-053-0	01	1	0609-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (D)	8-98234-331-0	01	1	1302-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (E)	1-22152-065-0	01	1	0609-
60	BRACKET; FRAME TO BRKT (E)	1-22152-065-0	01	1	0609-
62	TUBE; DIST,BRKT WHEEL BASE 4800MM(48W) L=25	1-14234-083-0	02	1	1302-
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W) L=22	9-22159-024-0	04	1	0609-
62	TUBE; DIST,BRKT WHEEL BASE 4800MM(48W) L=22	9-22159-024-0	02	1	0609-1301
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	0609-1301
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	1302-
62	TUBE; DIST,BRKT WHEEL BASE 4800MM(48W) L=22	9-22159-024-0	03	1	0609-
70	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M10X30 FLANGE	0-28651-030-0	06	1	0609-
70	BOLT; BRKT WHEEL BASE 4800MM(48W) (B) M10X50	0-10856-050-0	01	1	0609-
70	BOLT; BRKT WHEEL BASE 4800MM(48W) (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
70	BOLT; BRKT WHEEL BASE 4800MM(48W) (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W) (A) OD=40	1-22159-094-0	08	1	0609-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	02	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4800MM(48W) (B) OD=40	1-22159-193-0	02	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4800MM(48W) (A) OD=40	1-22159-094-0	04	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4800MM(48W) (A) OD=40	1-22159-094-0	04	1	0609-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	04	1	0609-
81	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	06	1	0609-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0609-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0609-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0609-
81	NUT; BRKT WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	04	1	0609-
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0609-
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	0609-
94	BOLT; CLAMP WHEEL BASE 4800MM(48W) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0609-0609
94	BOLT; CLAMP WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0609-0609
94	BOLT; CLAMP WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0609-0805
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0609-0805
94	BOLT; CLAMP WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0609-0805
94	BOLT; CLAMP WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-1301
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-1301
94	BOLT; CLAMP WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-1301
94	BOLT; CLAMP WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
97	WASHER; PL,CLAMP WHEEL BASE 4800MM(48W) ID=10.5	9-09164-510-0	02	1	0609-0609
97	WASHER; PL,CLAMP WHEEL BASE 4800MM(48W) ID=10.5	9-09164-510-0	02	1	0609-0609
97	WASHER; PL,CLAMP WHEEL BASE 4800MM(48W) ID=10.5	9-09164-510-0	02	1	0609-1301
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0609-1301
97	WASHER; PL,CLAMP WHEEL BASE 4800MM(48W) ID=10.5	9-09164-510-0	02	1	0609-1301
97	WASHER; PL,CLAMP WHEEL BASE 4800MM(48W) ID=10.5	9-09164-510-0	02	1	1302-
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	1302-
105	NUT; CLAMP WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP WHEEL BASE 4800MM(48W) M10	0-91110-510-0	02	1	0609-0609
105	NUT; CLAMP WHEEL BASE 4800MM(48W) M10	0-91110-510-0	02	1	0609-0609
105	NUT; CLAMP WHEEL BASE 4800MM(48W) M10	0-91110-510-0	02	1	0609-1301
105	NUT; CLAMP M10	0-91110-510-0	02	1	0609-1301
105	NUT; CLAMP WHEEL BASE 4800MM(48W) M10	0-91110-510-0	02	1	0609-1301
105	NUT; CLAMP WHEEL BASE 4800MM(48W) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP M10	0-91110-510-0	02	1	1302-
107	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M10X60 FLANGE	0-28051-060-0	02	1	0609-
107	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0609-
107	BOLT; BRKT WHEEL BASE 4800MM(48W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0609-
264	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0609-
475	BEARING; SEAL,VIBNON,EXH PIPE WHEEL BASE 4800MM(48W)	8-98233-479-0	01	1	1302-
476	SPRING; VIBNON,EXH PIPE WHEEL BASE 4800MM(48W)	8-98233-482-0	02	1	1302-
506	BRACKET; STUD WHEEL BASE 4200MM(42W) (B)	1-22134-214-0	02	1	0609-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0609-
556	DPD ASM	8-97613-331-6	01	1	0609-1010
556	DPD ASM	8-97622-883-3	01	1	1011-

107 75 70 60 62 75 81 506 506 81 56 81 36 36 116 554 14 12 558 556 467 5 5 559 5 557 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550

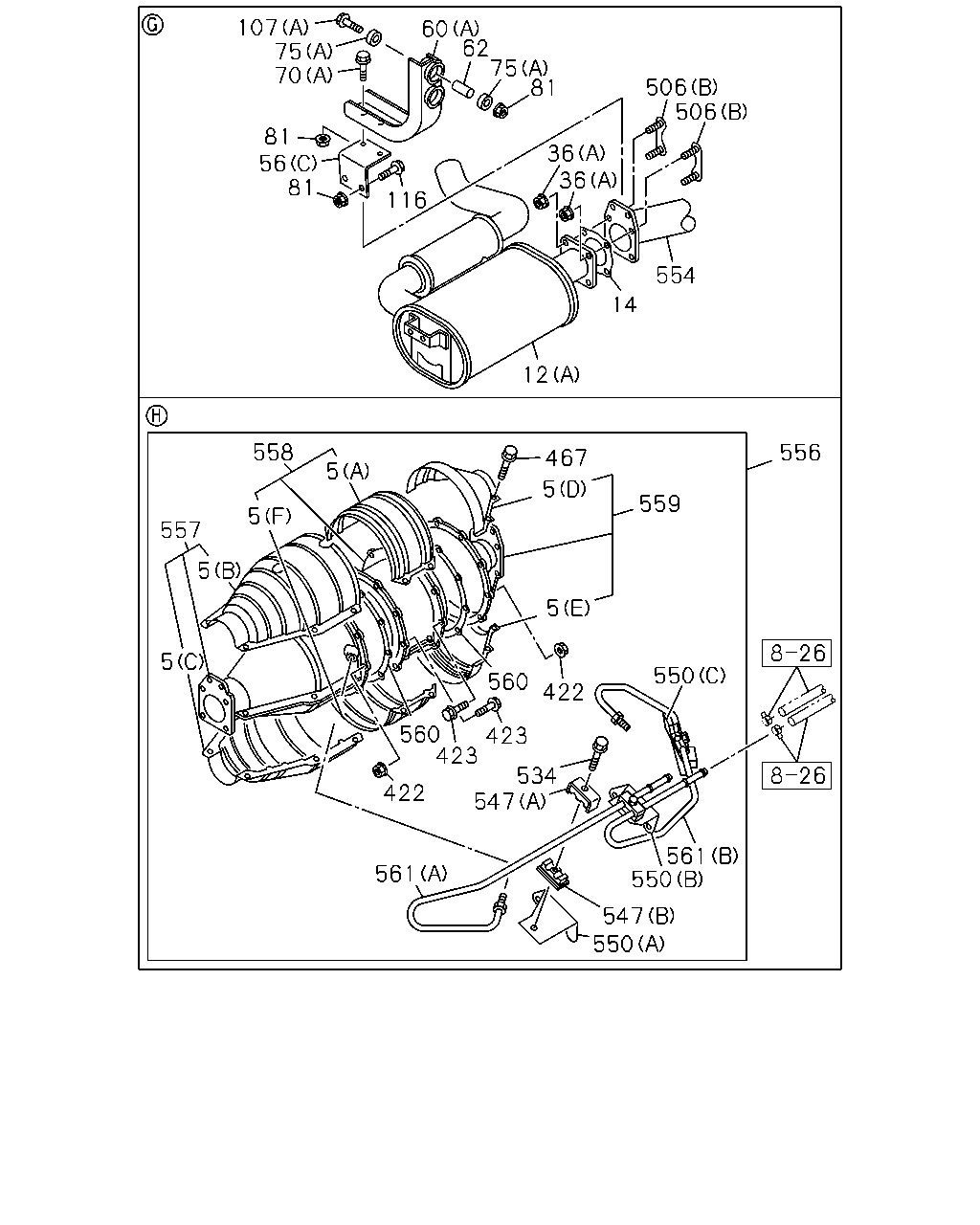

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0609-
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0609-
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0609-
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0609-
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0609-
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0609-
12	SILENCER ASM; EXH WHEEL BASE 4200MM(42W) (A)	8-98043-317-2	01	1	0609-
12	SILENCER ASM; EXH WHEEL BASE 4800MM(48W) (B)	8-98041-925-1	01	1	0609-1301
12	SILENCER ASM; EXH WHEEL BASE 4800MM(48W) (C)	8-98234-507-0	01	1	1302-
14	GASKET; SILENCER TO EXH PIPE WHEEL BASE 4200MM(42W)	1-22116-042-0	01	1	0609-
36	NUT; EXH PIPE WHEEL BASE 4200MM(42W) (A) M12 FLANGE	0-91180-212-0	04	1	0609-
36	NUT; EXH PIPE (A) M12 FLANGE	0-91180-212-0	07	1	0609-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0609-
56	BRACKET; CLAMP,EXH PIPE (F) L=94	1-22131-575-0	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (C)	1-22139-280-0	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (D)	1-22131-528-1	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (E)	1-22139-283-0	01	1	0609-1301
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (E)	8-98234-332-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-278-0	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE (B)	8-98039-772-0	01	1	0609-
60	BRACKET; FRAME TO BRKT (F)	8-98059-536-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	1-22152-072-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (B)	8-98043-449-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (C)	1-22134-279-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (D)	1-22152-053-0	01	1	0609-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (D)	8-98234-331-0	01	1	1302-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (E)	1-22152-065-0	01	1	0609-
60	BRACKET; FRAME TO BRKT (E)	1-22152-065-0	01	1	0609-
62	TUBE; DIST,BRKT WHEEL BASE 4800MM(48W) L=25	1-14234-083-0	02	1	1302-
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W) L=22	9-22159-024-0	04	1	0609-
62	TUBE; DIST,BRKT WHEEL BASE 4800MM(48W) L=22	9-22159-024-0	02	1	0609-1301
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	0609-1301
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	1302-
62	TUBE; DIST,BRKT WHEEL BASE 4800MM(48W) L=22	9-22159-024-0	03	1	0609-
70	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M10X30 FLANGE	0-28651-030-0	06	1	0609-
70	BOLT; BRKT WHEEL BASE 4800MM(48W) (B) M10X50	0-10856-050-0	01	1	0609-
70	BOLT; BRKT WHEEL BASE 4800MM(48W) (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
70	BOLT; BRKT WHEEL BASE 4800MM(48W) (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W) (A) OD=40	1-22159-094-0	08	1	0609-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	02	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4800MM(48W) (B) OD=40	1-22159-193-0	02	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4800MM(48W) (A) OD=40	1-22159-094-0	04	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4800MM(48W) (A) OD=40	1-22159-094-0	04	1	0609-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	04	1	0609-
81	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	06	1	0609-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0609-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0609-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0609-
81	NUT; BRKT WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	04	1	0609-
107	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M10X60 FLANGE	0-28051-060-0	02	1	0609-
107	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0609-
107	BOLT; BRKT WHEEL BASE 4800MM(48W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0609-
116	BOLT; BRKT WHEEL BASE 4200MM(42W) M10X30 FLANGE	0-28651-030-0	02	1	0609-0612
116	BOLT; BRKT WHEEL BASE 4200MM(42W) M10X35 FLANGE	0-28651-035-0	02	1	0701-
422	NUT; PIPE M8 FLANGE	0-91180-208-0	20	1	0609-0702
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0703-
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0609-
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0609-
506	BRACKET; STUD WHEEL BASE 4200MM(42W) (B)	1-22134-214-0	02	1	0609-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0609-
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0609-
547	CLIP; PIPE (A)	8-97381-635-0	03	1	0609-
547	CLIP; PIPE (B)	8-97381-636-0	03	1	0609-
550	BRACKET; DPD (A)	8-97611-083-0	01	1	0609-
550	BRACKET; DPD (B)	8-97611-084-0	01	1	0609-
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0609-
554	PIPE; EXH,SILENCER WHEEL BASE 4200MM(42W)	8-98043-308-0	01	1	0609-
556	DPD ASM	8-97613-331-6	01	1	0609-1010
556	DPD ASM	8-97622-883-3	01	1	1011-
557	CATALYST ASM	8-97608-055-7	01	1	0609-
558	FILTER ASM	8-97608-057-3	01	1	0609-
559	COVER; RR	8-97611-078-0	01	1	0609-1010
559	COVER; RR	8-97622-887-0	01	1	1011-
560	GASKET; DPD	8-97611-080-0	02	1	0609-
561	PIPE; DPD (A)	8-97611-081-0	01	1	0609-1010
561	PIPE; DPD (A)	8-97622-888-0	01	1	1011-
561	PIPE; DPD (B)	8-97611-082-0	01	1	0609-1010
561	PIPE; DPD (B)	8-97622-889-0	01	1	1011-

571 1 34 36 571 1 17 1 1 36 318 1 571 571 1 1 294 236 10 49 236 294 350 1 1 7 49 168 168 349 320 542 236 294 320 529 49 562 168 1 349 350 8 392 44 542 46 49 44 75 114 118 81 56 70 52 75 62 70 44 556 60 84 506 36 12 52 81 1 62 44 75 60 56 52 556 84 81 554 44 52 75 70 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (C)	8-98050-133-2	01	1	0609-1304
1	PIPE; EXH (C)	8-98234-509-1	01	1	1305-
1	PIPE; EXH (B)	8-98050-134-0	01	1	0609-0609
1	PIPE; EXH (D)	8-98058-339-0	01	1	0609-0609
1	PIPE; EXH (D)	8-98063-856-0	01	1	0610-0712
1	PIPE; EXH (E)	8-98079-292-0	01	1	0801-1304
1	PIPE; EXH (E)	8-98234-512-0	01	1	1305-
1	PIPE; EXH (A)	8-98050-533-0	01	1	0609-0609
1	PIPE; EXH (A)	8-98058-341-0	01	1	0609-
7	U-BOLT; EXH PIPE,FRT	1-22113-009-0	01	1	0609-0609
8	BRACKET; EXH PIPE	8-98233-345-0	01	1	1305-1310
8	BRACKET; EXH PIPE	8-98259-873-0	01	1	1311-
10	NUT; U BOLT M8 FLANGE	0-91180-108-0	02	1	0609-0609
12	SILENCER ASM; EXH WHEEL BASE 4200MM(42W) (A)	8-98043-317-2	01	1	0609-
12	SILENCER ASM; EXH WHEEL BASE 4800MM(48W) (B)	8-98041-925-1	01	1	0609-1301
12	SILENCER ASM; EXH WHEEL BASE 4800MM(48W) (C)	8-98234-507-0	01	1	1302-
17	BOLT; EXH PIPE M12X40 FLANGE	0-28051-240-0	03	1	0609-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0609-
36	NUT; EXH PIPE WHEEL BASE 4200MM(42W) (A) M12 FLANGE	0-91180-212-0	04	1	0609-
36	NUT; EXH PIPE (A) M12 FLANGE	0-91180-212-0	07	1	0609-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0609-
44	BOLT; BRKT (C) M10X30 FLANGE	0-28051-030-0	02	1	1305-
44	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	04	1	0609-
44	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0609-0610
44	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0611-
46	BOLT; BRKT,EXH PIPE M10X25 FLANGE	0-28051-025-0	02	1	1305-
49	BRACKET; EXH PIPE TO TRANS (A)	8-98049-830-0	01	1	0609-0609
49	BRACKET; EXH PIPE TO TRANS (A)	8-98058-347-0	01	1	0609-0712
49	BRACKET; EXH PIPE TO TRANS (A)	8-98079-288-0	01	1	0801-1304
49	BRACKET; EXH PIPE TO TRANS (B)	8-98113-008-0	01	1	1305-
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0609-0609
52	NUT; BRKT M10 FLANGE	0-91180-210-0	11	1	0609-
56	BRACKET; CLAMP,EXH PIPE (F) L=94	1-22131-575-0	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W) (C)	1-22139-280-0	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (D)	1-22131-528-1	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (E)	1-22139-283-0	01	1	0609-1301
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (E)	8-98234-332-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-278-0	01	1	0609-
56	BRACKET; CLAMP,EXH PIPE (B)	8-98039-772-0	01	1	0609-
60	BRACKET; FRAME TO BRKT (F)	8-98059-536-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (A)	1-22152-072-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W) (B)	8-98043-449-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (C)	1-22134-279-0	01	1	0609-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (D)	1-22152-053-0	01	1	0609-1301
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (D)	8-98234-331-0	01	1	1302-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4800MM(48W) (E)	1-22152-065-0	01	1	0609-
60	BRACKET; FRAME TO BRKT (E)	1-22152-065-0	01	1	0609-
62	TUBE; DIST,BRKT WHEEL BASE 4800MM(48W) L=25	1-14234-083-0	02	1	1302-
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W) L=22	9-22159-024-0	04	1	0609-
62	TUBE; DIST,BRKT WHEEL BASE 4800MM(48W) L=22	9-22159-024-0	02	1	0609-1301
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	0609-1301
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	1302-
62	TUBE; DIST,BRKT WHEEL BASE 4800MM(48W) L=22	9-22159-024-0	03	1	0609-
70	BOLT; BRKT WHEEL BASE 4200MM(42W) (A) M10X30 FLANGE	0-28651-030-0	06	1	0609-
70	BOLT; BRKT WHEEL BASE 4800MM(48W) (B) M10X50	0-10856-050-0	01	1	0609-
70	BOLT; BRKT WHEEL BASE 4800MM(48W) (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
70	BOLT; BRKT WHEEL BASE 4800MM(48W) (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W) (A) OD=40	1-22159-094-0	08	1	0609-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	02	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4800MM(48W) (B) OD=40	1-22159-193-0	02	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4800MM(48W) (A) OD=40	1-22159-094-0	04	1	0609-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4800MM(48W) (A) OD=40	1-22159-094-0	04	1	0609-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	04	1	0609-
81	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	06	1	0609-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0609-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0609-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0609-
81	NUT; BRKT WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	04	1	0609-
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	0609-
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	0609-
114	BRACKET; EXH SILENCER WHEEL BASE 4200MM(42W)	1-22139-328-0	01	1	0609-
118	NUT; SILENCER MTG BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	02	1	0609-
168	BRACKET; EXH PIPE,FRT	8-98049-833-0	01	1	0609-0609
168	BRACKET; EXH PIPE,FRT	8-98058-349-0	01	1	0609-0609
168	BRACKET; EXH PIPE,FRT	8-98063-858-0	01	1	0610-0712
168	BRACKET; EXH PIPE,FRT	8-98079-294-0	01	1	0801-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0609-0712
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	0801-1304
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0609-0712
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	0801-
318	NUT; EXH PIPE,FRT M10	0-91110-510-0	04	1	0609-0712
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	0801-
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	0609-
349	CLAMP; EXH PIPE	8-98058-351-0	01	1	0609-1304
349	CLAMP; EXH PIPE	8-98115-162-0	01	1	1305-
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE	0-28651-030-0	02	1	0609-
392	NUT; CLAMP BRKT M10 FLANGE	0-91180-210-0	02	1	1305-
506	BRACKET; STUD WHEEL BASE 4200MM(42W) (B)	1-22134-214-0	02	1	0609-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	0609-
529	NUT; BRKT,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	0801-
542	BRACKET (A)	8-98079-290-0	01	1	0801-1304
542	BRACKET (B)	8-98234-524-0	01	1	1305-
554	PIPE; EXH,SILENCER WHEEL BASE 4200MM(42W)	8-98043-308-0	01	1	0609-
556	DPD ASM	8-97613-331-6	01	1	0609-1010
556	DPD ASM	8-97622-883-3	01	1	1011-
562	PLATE; STUD,BOLT	8-98233-625-0	01	1	1305-1311
562	PLATE; STUD,BOLT	8-98259-983-0	01	1	1312-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	0609-
571	GASKET (B)	8-98043-481-0	02	1	0609-

554 12 1 1 1 1 1 1 1 126 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (C)	8-98050-133-2	01	1	0609-1304
1	PIPE; EXH (C)	8-98234-509-1	01	1	1305-
1	PIPE; EXH (B)	8-98050-134-0	01	1	0609-0609
1	PIPE; EXH (D)	8-98058-339-0	01	1	0609-0609
1	PIPE; EXH (D)	8-98063-856-0	01	1	0610-0712
1	PIPE; EXH (E)	8-98079-292-0	01	1	0801-1304
1	PIPE; EXH (E)	8-98234-512-0	01	1	1305-
1	PIPE; EXH (A)	8-98050-533-0	01	1	0609-0609
1	PIPE; EXH (A)	8-98058-341-0	01	1	0609-
12	SILENCER ASM; EXH WHEEL BASE 4200MM(42W) (A)	8-98043-317-2	01	1	0609-
12	SILENCER ASM; EXH WHEEL BASE 4800MM(48W) (B)	8-98041-925-1	01	1	0609-1301
12	SILENCER ASM; EXH WHEEL BASE 4800MM(48W) (C)	8-98234-507-0	01	1	1302-
126	PIPE; EXH,RR WHEEL BASE 4800MM(48W)	8-98043-365-2	01	1	0609-1301
126	PIPE; EXH,RR WHEEL BASE 4800MM(48W)	8-98233-516-0	01	1	1302-
554	PIPE; EXH,SILENCER WHEEL BASE 4200MM(42W)	8-98043-308-0	01	1	0609-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
