Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#2454) — 321 parça

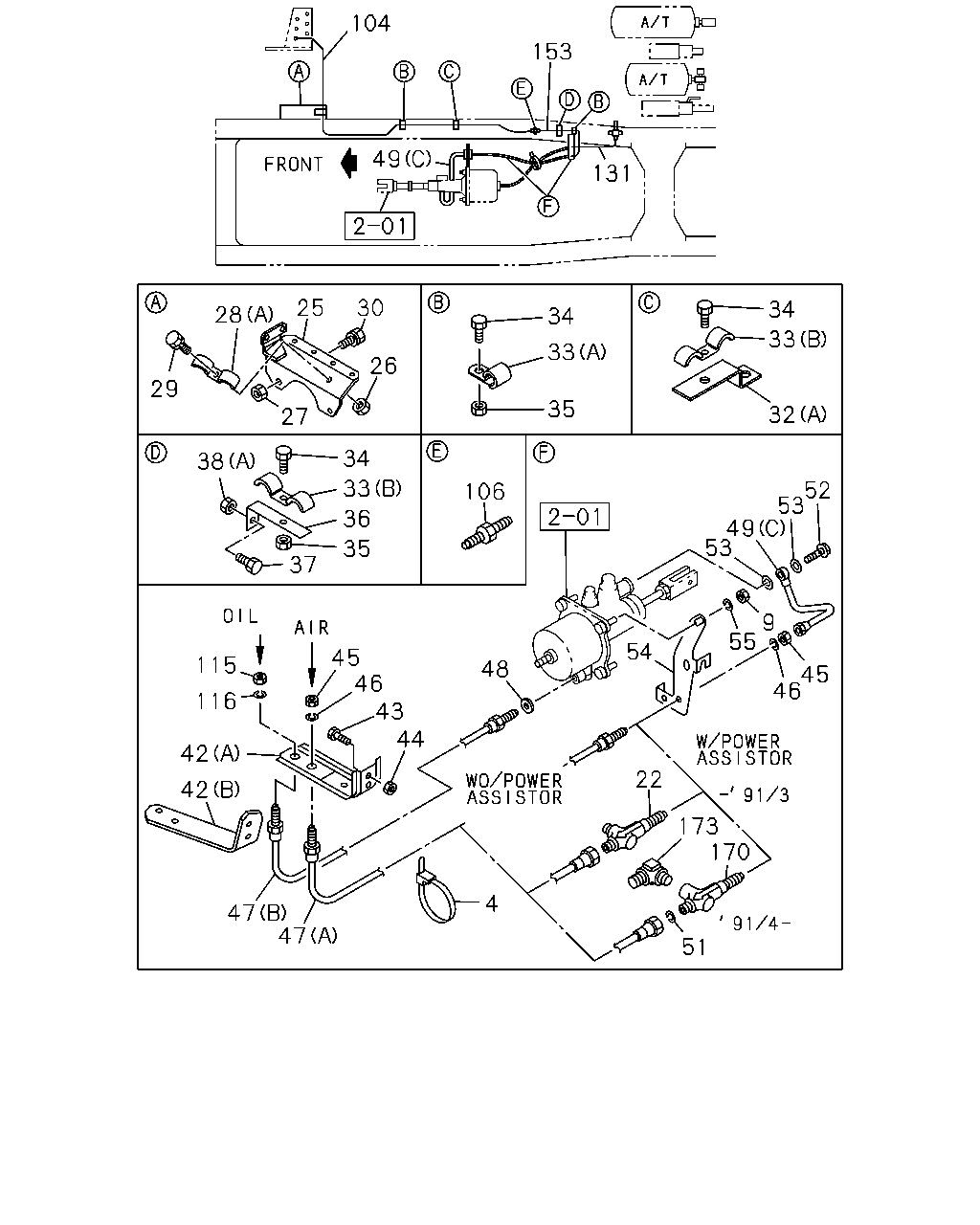

104 153 49 131 25 30 34 28 34 33 33 26 29 35 32 27 34 38 33 52 53 49 53 106 36 35 37 9 55 54 45 46 43 44 115 48 45 46 116 42 22 42 173 170 4 47 47 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
4	CLIP; FLEX HOSE,CLU CONT L=250	5-09707-030-1	01	1	9002-	●	●	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-1	01	1	9002-	●	●	●				●
9	NUT; BRKT,FLEX HOSE M10	9-09110-410-0	02	1	9002-9205				●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9206-				●	●	●
9	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	9002-	●	●	●				●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8>	1-09656-459-0	01	1	9002-9103				●	●	●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-894-0	01	1	9002-9306	●	●	●	●	●	●	●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47476-835-0	01	1	9307-	●			●	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
27	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●	●	●	●	●	●	●
27	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●			●	●	●	●
28	CLIP; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09700-655-0	01	1	9002-9009	●		●				●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (B)	9-09525-035-0	01	1	9010-	●		●				●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●	●	●	●	●	●
30	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●			●	●	●	●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-774-0	01	1	9002-	●	●	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-47476-055-2	01	1	9002-9306	●		●				●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9307	●	●	●	●	●	●	●
33	CLIP; OIL PIPE EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9009	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE DRIVER SEAT AIR SUSP W/ARM REST(SGP) L TYPE ENG<90L> (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9308-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9010-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L) DRIVER SEAT AIR SUSP W/ARM REST(SGP) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9308-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9002-9009	●		●
33	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9010-	●		●				●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●				●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●				●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-9307	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP DRIVER SEAT AIR SUSP W/ARM REST(SGP) L TYPE ENG<90L> M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) DRIVER SEAT AIR SUSP W/ARM REST(SGP) M8X16 W/LK WASHER	0-50040-816-0	03	1	9308-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	02	1	9002-9009	●		●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	03	1	9010-9204	●		●				●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9205-	●		●				●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9009	●	●	●	●	●	●
35	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9010-	●	●	●	●	●	●	●
35	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9307	●		●				●
36	BRACKET; CLIP L=55	1-47475-304-0	01	1	9002-9009	●	●	●	●	●	●
36	BRACKET; CLIP EXC. NYLON TUBE AIR PIPING<Z29> L=55	1-47475-304-0	01	1	9010-	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9009	●	●	●	●	●	●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9010-9204	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●	●	●	●	●
38	NUT; CLIP BRKT (A) M8	9-09110-408-0	01	1	9002-9009	●	●	●	●	●	●
38	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> (A) M8	9-09110-408-0	01	1	9010-	●	●	●	●	●	●	●
38	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> (B) M12	9-09840-280-0	01	1	9002-	●	●	●				●
42	BRACKET; FLEX HOSE,CLU CONT L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-47475-815-3	01	1	9002-				●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 10PD1 STD ENG(40L) (A)	1-47475-815-3	01	1	9002-				●		●
42	BRACKET; FLEX HOSE,CLU CONT 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> (B)	1-47476-453-0	01	1	9002-					●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47475-592-2	01	1	9002-	●	●	●				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-	●	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9002-				●	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	02	1	9002-	●	●	●				●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-				●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9307-9312				●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9002-	●	●	●				●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9307-9312	●	●	●				●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=500	1-09364-329-0	01	1	9002-				●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) ASSISTOR SHIFT CONTROL<WX8> (A) AIR L=460	0-07472-460-1	01	1	9002-				●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) AIR L=590	0-07424-590-0	01	1	9002-				●		●
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OIL L=390	1-09364-475-0	01	1	9002-				●	●	●
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8>,NYLON TUBE AIR PIPING<Z29> (A) AIR L=460	0-07424-460-0	01	1	9002-				●	●	●
47	HOSE; FLEX,CLU CONT 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> (A) AIR L=500	0-07472-500-1	01	1	9002-					●
47	HOSE; FLEX,CLU CONT 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> (B) OIL L=450	1-09364-369-0	01	1	9002-9110					●
47	HOSE; FLEX,CLU CONT 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> (B) OIL L=600	1-09364-705-0	01	1	9111-					●
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> (B) OIL L=320	1-09364-477-0	01	1	9002-	●		●				●
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (A) AIR L=320	0-07030-320-0	01	1	9002-	●		●				●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (A) AIR L=450	0-07030-450-0	01	1	9002-	●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=445	1-09364-478-0	01	1	9002-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-				●	●	●
48	GASKET; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9501-				●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=254	1-47487-082-0	01	1	9002-9212				●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=254	1-47498-136-0	01	1	9301-9306				●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) L=254	1-47496-282-0	01	1	9307-				●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=275	1-47487-119-0	01	1	9010-9212					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=275	1-47498-236-0	01	1	9301-9306					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=275	1-47496-283-0	01	1	9307-					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	9002-9306	●	●	●				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. NYLON TUBE AIR PIPING<Z29> (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9307-9404	●	●	●				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9405-	●	●	●				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=206	1-47439-426-1	01	1	9002-	●	●	●				●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=16.2	9-09150-516-0	01	1	9307-9312				●	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=16.2	9-09150-516-0	01	1	9311-				●	●	●
52	BOLT; EYE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●	●	●	●	●
53	GASKET; JOINT BOLT EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-304-0	01	1	9002-9306				●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-801-0	01	1	9307-				●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	9002-	●	●	●				●
55	WASHER; LK,BRKT,FLEX HOSE ID=10.2	9-09150-510-0	02	1	9002-9205				●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=8.2	9-09150-508-0	02	1	9002-	●	●	●				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●		●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1986 SERVICED BY L=2150	1-47426-394-0	01	1	9307-	●		●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2489 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306	●	●		●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2537 SERVICED BY L=2700	1-47426-396-0	01	1	9307-	●			●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1826 SERVICED BY L=1950	1-47434-414-0	01	1	9002-9306	●		●				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1818 SERVICED BY L=1950	1-47426-393-0	01	1	9307-	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-	●	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9002-				●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●				●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9307-9312				●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9405-				●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9307-9312	●	●	●				●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9405-	●	●	●				●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=632 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306				●		●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=660 SERVICED BY L=700	1-47426-410-0	01	1	9307-				●		●
131	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8>,NYLON TUBE AIR PIPING<Z29> L=561 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306				●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8>,NYLON TUBE AIR PIPING<Z29> L=561 SERVICED BY L=600	1-47426-408-0	01	1	9307-				●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> L=538	1-47491-710-0	01	1	9012-9306					●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> L=538 SERVICED BY L=600	1-47426-408-0	01	1	9307-					●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=306 SERVICED BY L=350	9-47415-348-0	01	1	9002-	●	●	●				●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=698 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306				●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=707 SERVICED BY L=730	1-47426-382-0	01	1	9307-9405				●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=717 SERVICED BY L=730	1-47426-382-0	01	1	9406-				●		●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8> L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306				●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8> L=1255 SERVICED BY L=1400	1-47426-389-0	01	1	9307-				●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> L=1300 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306					●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> L=1301 SERVICED BY L=1400	1-47426-389-0	01	1	9307-					●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306	●		●				●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> L=1023 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●						●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=528 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=533 SERVICED BY L=550	1-47426-377-0	01	1	9307-9405	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=538 SERVICED BY L=550	1-47426-377-0	01	1	9406-	●
170	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8>	1-09656-173-1	01	1	9104-				●	●	●
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8>	1-09660-137-0	01	1	9104-9302				●	●	●
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-				●	●	●

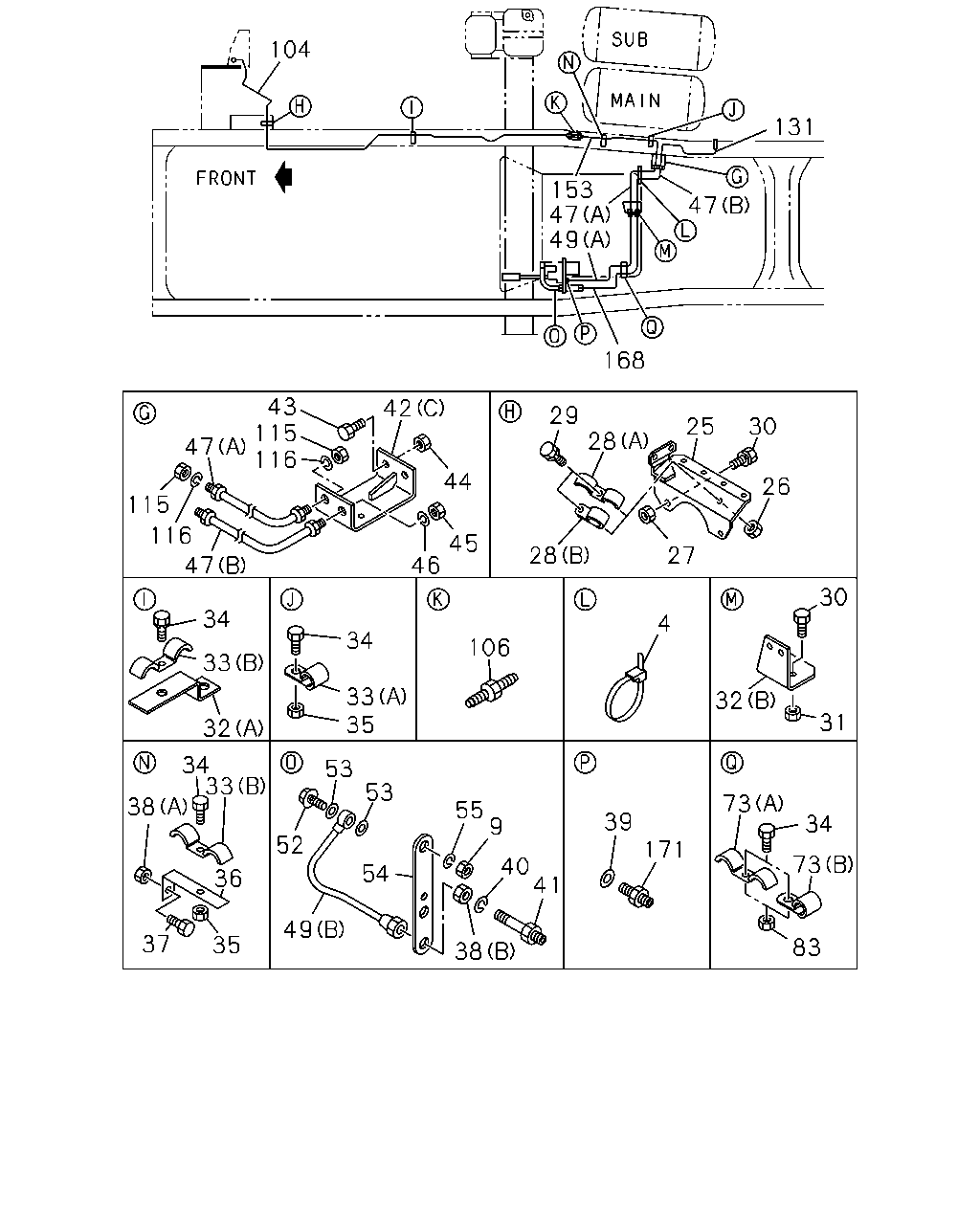

104 131 153 47 49 47 168 43 115 116 42 29 28 25 30 47 44 26 115 116 45 46 28 27 47 30 34 4 34 106 33 33 35 32 31 32 34 33 53 53 73 38 55 9 39 34 52 171 73 40 41 54 36 49 37 35 83 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
4	CLIP; FLEX HOSE,CLU CONT L=250	5-09707-030-1	01	1	9002-	●	●	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-1	01	1	9002-	●	●	●				●
9	NUT; BRKT,FLEX HOSE M10	9-09110-410-0	02	1	9002-9205				●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9206-				●	●	●
9	NUT; BRKT,FLEX HOSE M8	9-09110-408-0	02	1	9002-	●	●	●				●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-894-0	01	1	9002-9306	●	●	●	●	●	●	●
25	BRACKET; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-47476-835-0	01	1	9307-	●			●	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●	●	●	●	●	●	●
27	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●	●	●	●	●	●	●
27	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●			●	●	●	●
28	CLIP; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●	●	●	●	●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09700-655-0	01	1	9002-9009	●		●				●
28	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (B)	9-09525-035-0	01	1	9010-	●		●				●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●	●	●	●	●	●
30	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●			●	●	●	●
31	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306	●		●				●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-774-0	01	1	9002-	●	●	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-47476-055-2	01	1	9002-9306	●		●				●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9307	●	●	●	●	●	●	●
33	CLIP; OIL PIPE EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9009	●	●	●	●	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE DRIVER SEAT AIR SUSP W/ARM REST(SGP) L TYPE ENG<90L> (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9308-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9010-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE 10PD1 STD ENG(40L) DRIVER SEAT AIR SUSP W/ARM REST(SGP) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9308-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9002-9009	●		●
33	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9010-	●		●				●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●				●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●				●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●				●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9307-9307	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP DRIVER SEAT AIR SUSP W/ARM REST(SGP) L TYPE ENG<90L> M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L) DRIVER SEAT AIR SUSP W/ARM REST(SGP) M8X16 W/LK WASHER	0-50040-816-0	03	1	9308-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	02	1	9002-9009	●		●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28010-825-0	03	1	9010-9204	●		●				●
34	BOLT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9205-	●		●				●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9009	●	●	●	●	●	●
35	NUT; PIPE CLIP EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9010-	●	●	●	●	●	●	●
35	NUT; PIPE CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9307	●		●				●
36	BRACKET; CLIP L=55	1-47475-304-0	01	1	9002-9009	●	●	●	●	●	●
36	BRACKET; CLIP EXC. NYLON TUBE AIR PIPING<Z29> L=55	1-47475-304-0	01	1	9010-	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9009	●	●	●	●	●	●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	9010-9204	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●	●	●	●	●
37	BOLT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●	●	●	●	●
38	NUT; CLIP BRKT (A) M8	9-09110-408-0	01	1	9002-9009	●	●	●	●	●	●
38	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> (A) M8	9-09110-408-0	01	1	9010-	●	●	●	●	●	●	●
38	NUT; CLIP BRKT EXC. NYLON TUBE AIR PIPING<Z29> (B) M12	9-09840-280-0	01	1	9002-	●	●	●				●
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-	●	●	●				●
40	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●				●
40	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-	●	●	●				●
41	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12 L=62.5	9-09223-206-1	01	1	9002-	●	●	●				●
42	BRACKET; FLEX HOSE,CLU CONT L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-47475-815-3	01	1	9002-				●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 10PD1 STD ENG(40L) (A)	1-47475-815-3	01	1	9002-				●		●
42	BRACKET; FLEX HOSE,CLU CONT 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> (B)	1-47476-453-0	01	1	9002-					●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47475-592-2	01	1	9002-	●	●	●				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-	●	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9002-				●	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	02	1	9002-	●	●	●				●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-				●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9307-9312				●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9002-	●	●	●				●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9307-9312	●	●	●				●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=500	1-09364-329-0	01	1	9002-				●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) ASSISTOR SHIFT CONTROL<WX8> (A) AIR L=460	0-07472-460-1	01	1	9002-				●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) AIR L=590	0-07424-590-0	01	1	9002-				●		●
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OIL L=390	1-09364-475-0	01	1	9002-				●	●	●
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8>,NYLON TUBE AIR PIPING<Z29> (A) AIR L=460	0-07424-460-0	01	1	9002-				●	●	●
47	HOSE; FLEX,CLU CONT 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> (A) AIR L=500	0-07472-500-1	01	1	9002-					●
47	HOSE; FLEX,CLU CONT 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> (B) OIL L=450	1-09364-369-0	01	1	9002-9110					●
47	HOSE; FLEX,CLU CONT 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> (B) OIL L=600	1-09364-705-0	01	1	9111-					●
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> (B) OIL L=320	1-09364-477-0	01	1	9002-	●		●				●
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (A) AIR L=320	0-07030-320-0	01	1	9002-	●		●				●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (A) AIR L=450	0-07030-450-0	01	1	9002-	●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=445	1-09364-478-0	01	1	9002-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=254	1-47487-082-0	01	1	9002-9212				●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=254	1-47498-136-0	01	1	9301-9306				●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) L=254	1-47496-282-0	01	1	9307-				●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=275	1-47487-119-0	01	1	9010-9212					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=275	1-47498-236-0	01	1	9301-9306					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> (C) L=275	1-47496-283-0	01	1	9307-					●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	9002-9306	●	●	●				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. NYLON TUBE AIR PIPING<Z29> (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9307-9404	●	●	●				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=632 SERVICED BY L=660	1-47426-381-0	01	1	9405-	●	●	●				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=206	1-47439-426-1	01	1	9002-	●	●	●				●
52	BOLT; EYE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●	●	●	●	●
53	GASKET; JOINT BOLT EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-304-0	01	1	9002-9306				●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-801-0	01	1	9307-				●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	9002-	●	●	●				●
55	WASHER; LK,BRKT,FLEX HOSE ID=10.2	9-09150-510-0	02	1	9002-9205				●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=8.2	9-09150-508-0	02	1	9002-	●	●	●				●
73	CLIP; OIL PIPE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●				●
73	CLIP; OIL PIPE (B) ID=35 L=35 W/NUT	1-09700-684-0	01	1	9002-9208	●	●	●				●
73	CLIP; OIL PIPE (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9209-	●	●	●				●
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●		●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1986 SERVICED BY L=2150	1-47426-394-0	01	1	9307-	●		●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2489 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306	●	●		●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L) L=2537 SERVICED BY L=2700	1-47426-396-0	01	1	9307-	●			●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1826 SERVICED BY L=1950	1-47434-414-0	01	1	9002-9306	●		●				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NYLON TUBE AIR PIPING<Z29> L=1818 SERVICED BY L=1950	1-47426-393-0	01	1	9307-	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-	●	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9002-				●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●				●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9307-9312				●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9405-				●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9307-9312	●	●	●				●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9405-	●	●	●				●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=632 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306				●		●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=660 SERVICED BY L=700	1-47426-410-0	01	1	9307-				●		●
131	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8>,NYLON TUBE AIR PIPING<Z29> L=561 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306				●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8>,NYLON TUBE AIR PIPING<Z29> L=561 SERVICED BY L=600	1-47426-408-0	01	1	9307-				●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> L=538	1-47491-710-0	01	1	9012-9306					●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> L=538 SERVICED BY L=600	1-47426-408-0	01	1	9307-					●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=306 SERVICED BY L=350	9-47415-348-0	01	1	9002-	●	●	●				●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=698 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306				●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=707 SERVICED BY L=730	1-47426-382-0	01	1	9307-9405				●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=717 SERVICED BY L=730	1-47426-382-0	01	1	9406-				●		●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8> L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306				●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> EXC. ASSISTOR SHIFT CONTROL<WX8> L=1255 SERVICED BY L=1400	1-47426-389-0	01	1	9307-				●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> L=1300 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306					●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1TC-N ENG(29L) ASSISTOR SHIFT CONTROL<WX8> L=1301 SERVICED BY L=1400	1-47426-389-0	01	1	9307-					●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306	●		●				●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> L=1023 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●						●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=528 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=533 SERVICED BY L=550	1-47426-377-0	01	1	9307-9405	●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L) L=538 SERVICED BY L=550	1-47426-377-0	01	1	9406-	●
168	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=693 SERVICED BY L=700	1-47434-466-0	01	1	9002-	●	●	●				●
171	CONNECTOR; CLU BOOSTER	1-09650-256-1	01	1	9002-	●	●	●				●

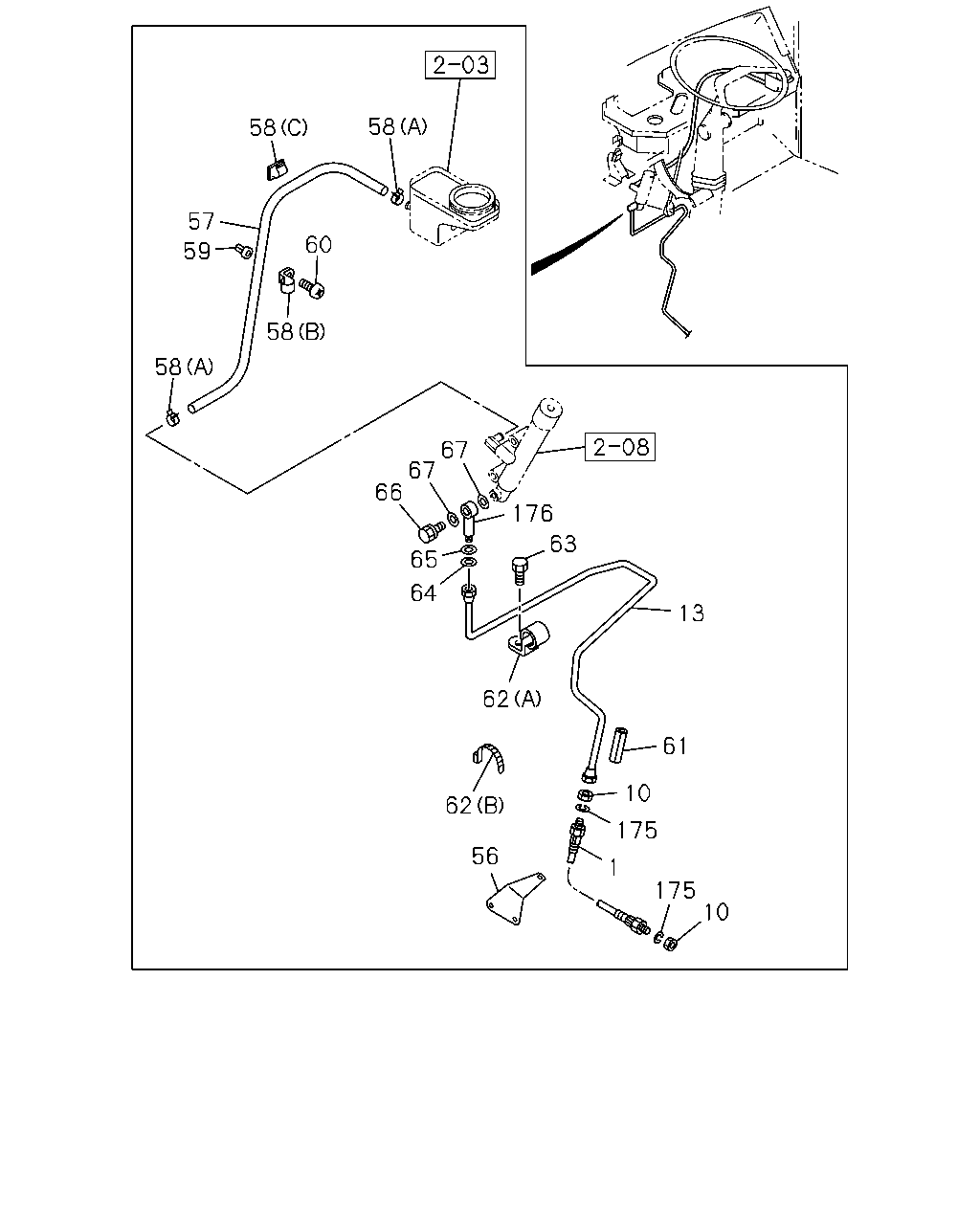

58 58 57 60 59 58 58 67 67 66 176 63 65 64 13 62 61 10 62 175 56 1 175 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	HOSE; FLEX,CLU CONT EXC. NYLON TUBE AIR PIPING<Z29> L=840	1-09364-466-0	01	1	9002-	●	●	●	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●	●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXC. NYLON TUBE AIR PIPING<Z29> L=716	1-47416-575-1	01	1	9002-9306	●	●	●	●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXC. NYLON TUBE AIR PIPING<Z29> L=716	1-47425-253-1	01	1	9307-	●			●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL NYLON TUBE AIR PIPING<Z29> L=717	1-47418-759-0	01	1	9002-9306	●		●				●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL NYLON TUBE AIR PIPING<Z29> L=717	1-47425-254-1	01	1	9307-	●
56	BRACKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29>	1-47475-919-0	01	1	9002-	●
57	HOSE; CLU M/CYL TO OIL TANK L=1800	1-09360-320-0	01	1	9002-	●	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=15	1-09704-018-1	02	1	9002-9006	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9007-	●	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (C) ID=15	1-09987-115-0	01	1	9002-	●	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9002-	●	●	●	●	●	●	●
59	GROMMET; SCREW,RUBBER HOSE CLIP,CLU	5-09983-012-0	01	1	9002-	●	●	●	●	●	●	●
60	SCREW; RUBBER HOSE CLIP,CLU CONT M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9002-	●	●	●	●	●	●	●
61	SLEEVE; RUBBER,CLU PIPE NYLON TUBE AIR PIPING<Z29> OD=16.8 L=50	1-09369-010-0	02	1	9002-9409	●		●				●
62	CLIP; CLU PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=30 L=20	8-94220-978-0	01	1	9002-	●	●	●	●	●	●	●
62	CLIP; CLU PIPE NYLON TUBE AIR PIPING<Z29> (B) L=140	5-09707-031-1	02	1	9002-	●		●				●
63	BOLT; CLIP,PIPE EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●	●	●	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9002-	●	●	●	●	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9002-	●	●	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9002-	●	●	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9002-	●	●	●	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9002-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
