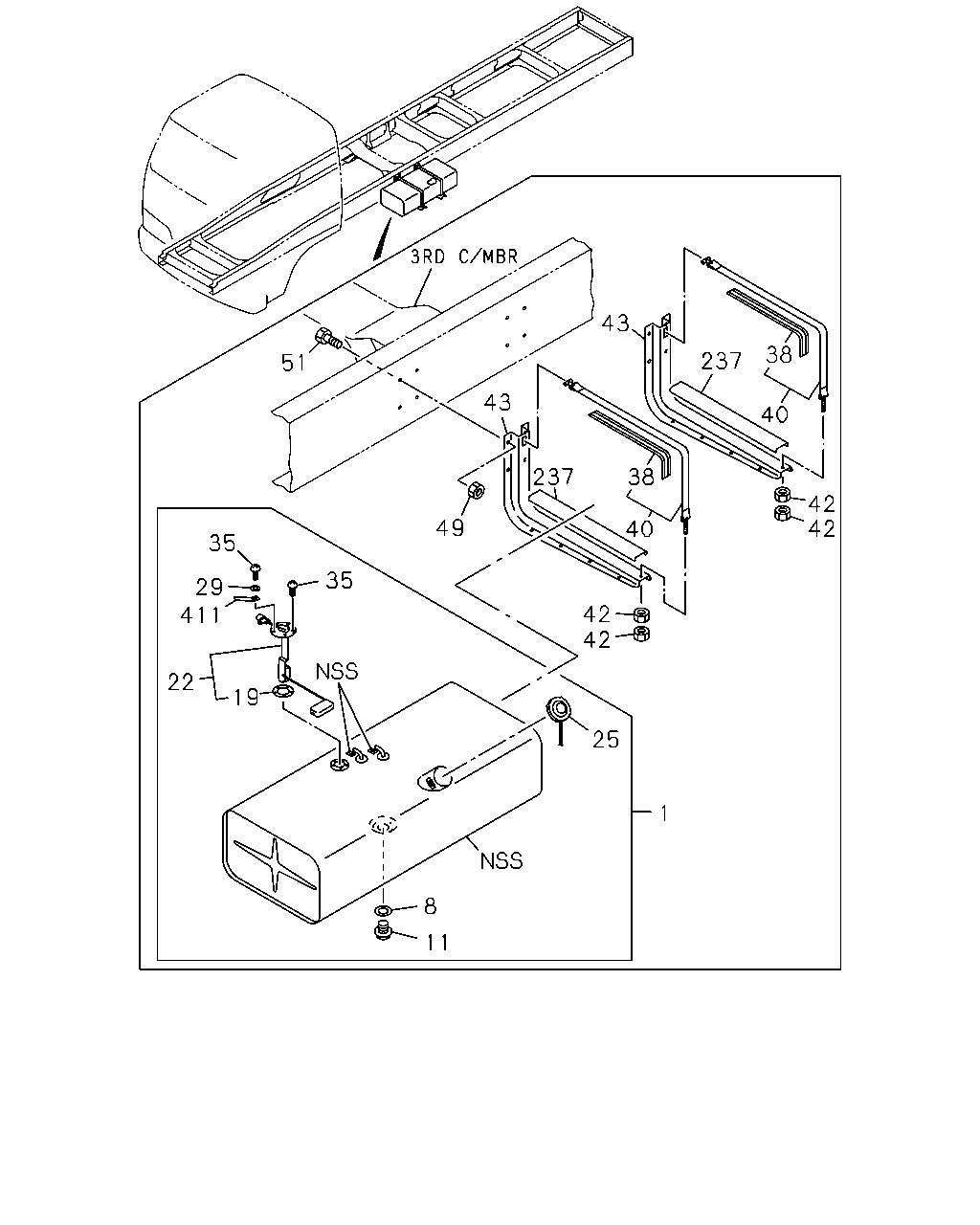

1-40 — FUEL TANK
(#24538) — 16 parça
43
38
237
51
43
40
237
38
42
42
49
40
35
35
29
42
42
411
22
19
25
1
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1220X533X323 200L
1-22400-995-2
01
1
0609-
8
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
8-98030-375-0
01
1
0609-
11
PLUG; DRAIN,FUEL TANK
M36
1-09604-052-0
01
1
0609-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0609-
22
UNIT; FUEL TANK
1-83141-084-1
01
1
0609-
25
CAP; FILLER,FUEL TANK
1-22440-028-0
01
1
0609-
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
0-91610-505-0
01
1
0609-
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
0-36220-510-0
05
1
0609-
38
INSULATION; SUPPORT BELT
L=540
1-22553-014-2
02
1
0802-
40
BELT; SUPPORT,FUEL TANK
L=790
1-22550-186-2
02
1
0609-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0609-
43
BRACKET; FUEL TANK
1-53461-206-1
02
1
0609-
49
NUT; BRKT
M12 FLANGE
0-91180-212-0
12
1
0609-
51
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28651-235-0
12
1
0609-
237
GASKET; BRKT TO FUEL TANK
L=480
1-22553-002-0
02
1
0609-
411
CLIP; FUEL TANK UNIT HARNESS
L=50
1-09700-416-0
01
1
0609-
