Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

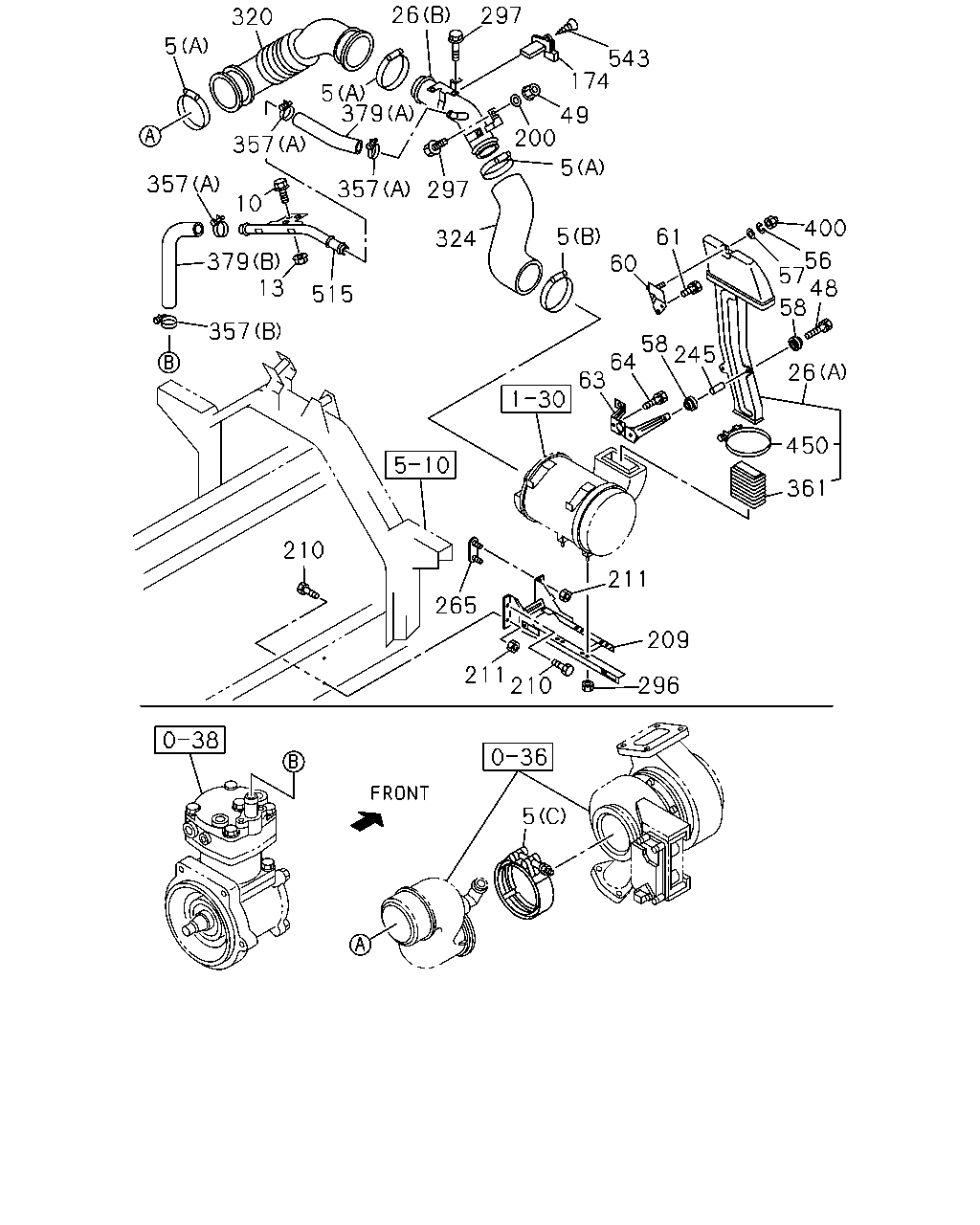

1-31 — AIR DUCT
(#24536) — 40 parça
26
297
320
5
543
174
5
379
49
200
357
5
357
357
297
10
400
5
61
324
56
57
48
58
379
13
60
515
357
58
245
64
63
26
450
361
210
211
265
209
211
210
296
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=100-120
8-98133-366-0
02
1
0901-
5
CLIP; AIR DUCT
(C) ID=114
8-15178-030-0
01
1
0609-
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
03
1
0609-0812
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
0901-
5
CLIP; AIR DUCT
(B) ID=130-165
1-09707-201-0
01
1
0609-0810
5
CLIP; AIR DUCT
(B) ID=130-150
8-98133-360-0
01
1
0811-
10
BOLT; BRKT FIX
M8X25 FLANGE
0-28060-825-0
01
1
0609-0701
10
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
01
1
0702-
13
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
0609-
26
DUCT; AIR INT
(A)
1-14230-173-2
01
1
0609-
26
DUCT; AIR INT
(B)
8-98030-607-3
01
1
0609-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
0609-
49
NUT; AIR DUCT
M8 FLANGE
0-91180-108-0
03
1
0609-
56
WASHER; LK,AIR INT DUCT
M10
1-09500-046-0
01
1
0609-
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0609-
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
0609-
60
BRACKET; AIR DUCT,UPR
1-79998-748-2
01
1
0609-
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0609-
63
BRACKET; AIR DUCT,LWR
1-79998-749-3
01
1
0609-
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0609-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
0609-
200
WASHER; PL,CLAMP
8-97023-268-0
02
1
0609-
209
BRACKET; ACL
1-53497-478-2
01
1
0609-
210
BOLT; ACL BRKT
M12X40 FLANGE
0-28651-240-0
02
1
0609-
211
NUT; BRKT
M12 FLANGE
0-91180-212-0
03
1
0609-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0609-
265
BRACKET; STUD,ACL
1-53497-477-0
01
1
0609-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0609-
297
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
04
1
0609-
320
HOSE; CONN,ACL
8-98023-216-2
01
1
0609-
324
HOSE; INT,ACL
8-98023-217-0
01
1
0609-
357
CLIP; RUBBER HOSE
(A) ID=36
1-09704-094-0
03
1
0609-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
0609-
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-1
01
1
0609-
379
HOSE; RUBBER
(B)
8-98041-307-0
01
1
0609-
379
HOSE; RUBBER
(A)
8-98043-670-0
01
1
0609-
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0609-
450
CLAMP; HOSE
9-09915-504-1
01
1
0609-
515
PIPE; AIR,SUCTION
8-98043-368-1
01
1
0609-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
0609-
