Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#24529) — 21 parça
◀
[061A] CLIP,BRKT AND CABLE FIX (11 parça)
[061A] OTHER PARTS (9 parça)
[061A] CABLE ROUTING (1 parça)
▶
114
11
1
10
115
8
112
2
13
23
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280
8-97230-719-2
01
1
0609-
2
CABLE; BATTERY
L=240
1-82650-403-1
01
1
0609-
8
CABLE; BATTERY,STARTER
1-82650-402-1
01
1
0609-
10
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
8-97087-205-0
01
1
0609-
11
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
1-09503-265-0
01
1
0609-
13
GROMMET; BATTERY CABLE
ID=28 OD=35 T=17
9-09956-256-2
01
1
0609-
23
BRACKET; CABLE CLIP TO FRAME
L=95
1-82699-085-0
05
1
0609-
33
CAP; INSULATOR
1-82699-431-0
01
1
0609-
112
TERMINAL; BATTERY
<+>
1-82695-169-1
01
1
0609-
114
NUT; CABLE,BATTERY TERMINAL
M8
0-91110-508-0
01
1
0609-
115
WASHER; LK,CABLE,BATTERY
ID=8.2
0-91510-508-0
01
1
0609-
25
79
107
80
26
24
71
27
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BOLT; BRKT TO FRAME
M8X30 FLANGE
0-28650-830-0
05
1
0609-
25
CLIP; BATTERY CABLE TO BRKT
ID=15 L=28
1-09701-216-0
05
1
0609-
26
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
0-28650-825-0
05
1
0609-
27
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
0-91180-108-0
05
1
0609-
28
NUT; BRKT TO FRAME
M8 FLANGE
0-91180-108-0
05
1
0609-
71
BOLT; BATTERY CABLE
M10X20 FLANGE
0-28051-020-0
01
1
0609-
79
CLIP; BATTERY CABLE
ID=16 L=28
1-09700-872-0
01
1
0609-
80
BOLT; BATTERY CABLE CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0609-
107
CLIP; BAND
L=140
5-09707-031-1
01
1
0609-0610

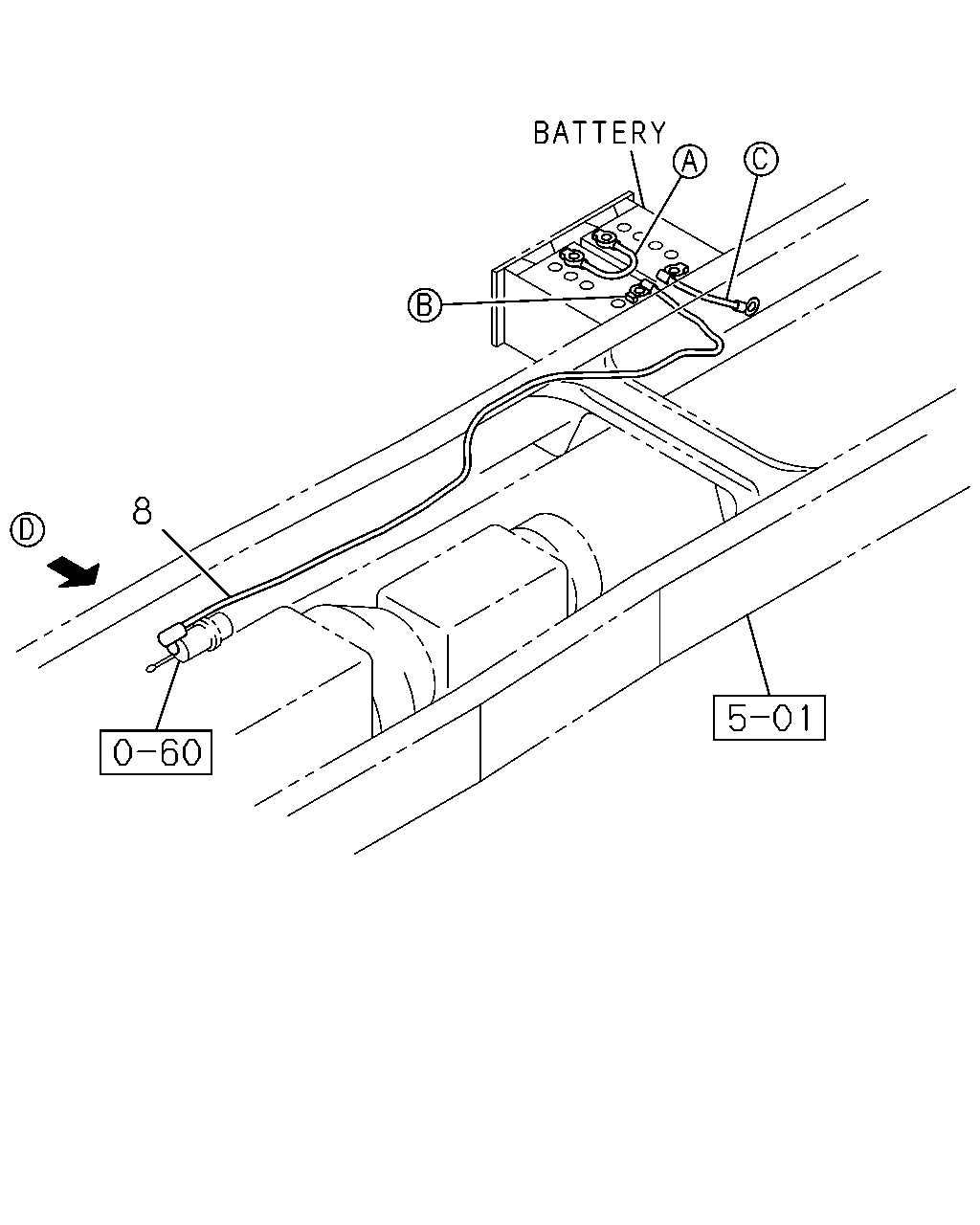

8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
CABLE; BATTERY,STARTER
1-82650-402-1
01
1
0609-
