Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

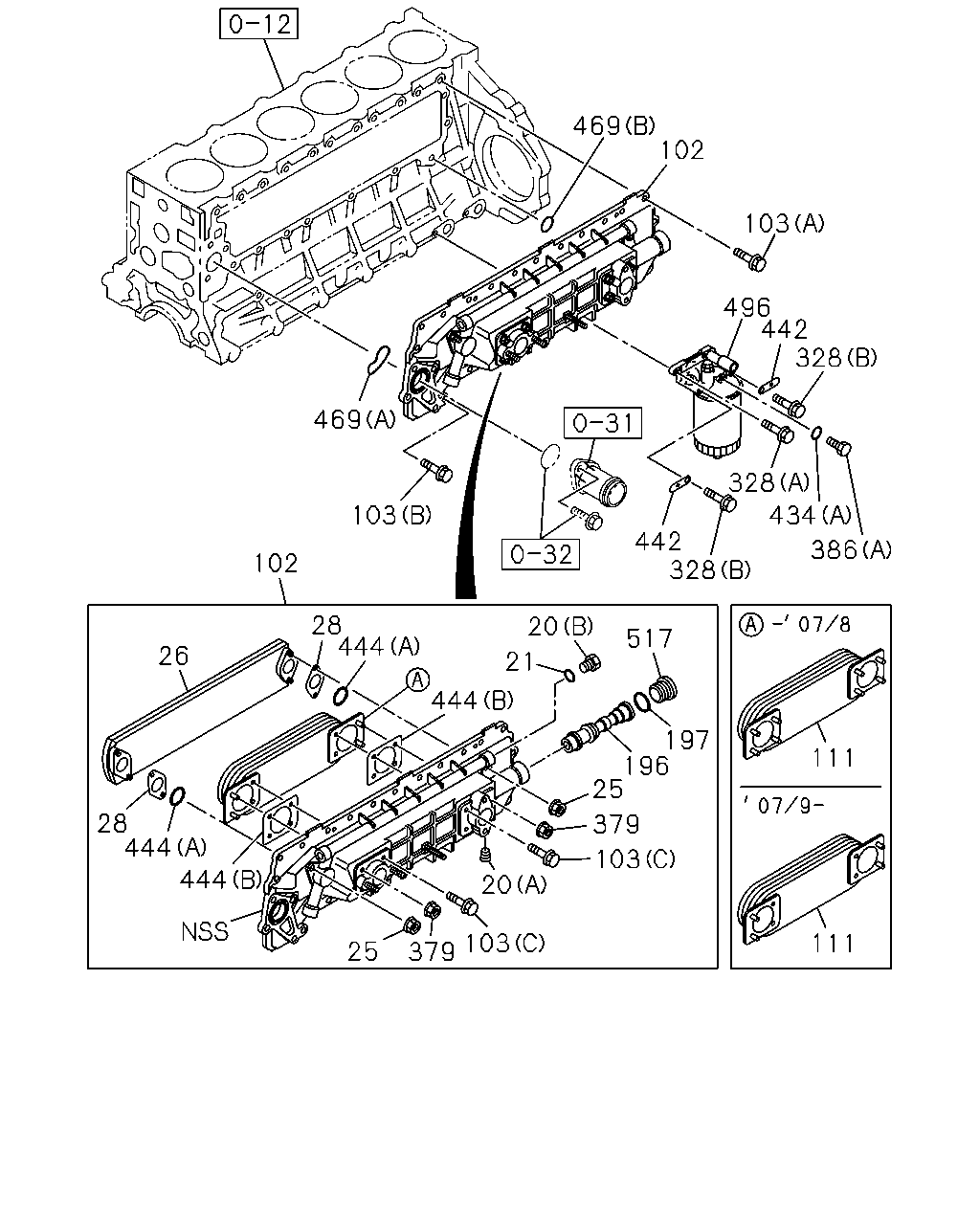

0-50 — OIL COOLER AND OIL FILTER
(#24524) — 55 parça
◀
[050A] OIL FILTER ASM (17 parça)
[050A] OIL COOLER ASM (38 parça)
▶
2
308
307
496
386
434
66
13
265
321
265
321
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
8-94391-049-4
01
1
0609-
2
ELEMENT; OIL FILTER
BEST VALUE PARTS
1-87610-011-1
01
1
0609-1110
2
ELEMENT; OIL FILTER
BEST VALUE PARTS
1-87610-064-0
01
1
1111-
13
VALVE; RELIEF
8-98238-944-0
01
1
1308-
66
SPRING; VLV
8-98238-943-0
01
1
1308-
265
BODY; OIL FILTER
8-94391-016-4
01
1
0609-1307
265
BODY; OIL FILTER
8-98238-939-0
01
1
1308-
307
VALVE; OVERFLOW
8-94395-700-0
01
1
0609-1307
308
GASKET; VLV,OVERFLOW
ID=15.8
1-09623-163-0
01
1
0609-1307
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8
8-94399-339-0
01
1
0609-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1
8-94399-399-0
02
1
0609-
386
PLUG; OIL FILTER
(B)
8-98238-941-0
01
1
1308-
386
PLUG; OIL FILTER
(A) M10X10
1-09604-074-0
01
1
0609-
434
GASKET; PLUG,OIL FILTER
(B)
8-98238-942-0
01
1
1308-
434
GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2
1-09630-083-0
01
1
0609-
496
FILTER ASM; OIL
8-94391-015-8
01
1
0609-1307
496
FILTER ASM; OIL
8-98236-649-0
01
1
1308-
469
103
102
496
442
328
328
386
328
442
469
103
102
28
444
444
20
21
517
26
28
444
444
25
379
103
20
103
196
197
25
379
111
111
434
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
PLUG; COOLER BODY
(A)
1-13219-240-0
02
1
0611-
20
PLUG; COOLER BODY
(B)
8-97608-567-0
02
1
0611-
21
GASKET; PLUG
8-97608-568-0
02
1
0611-
25
NUT; CORE TO BODY
M10 FLANGE
1-13219-324-0
04
1
0611-
26
CORE ASM; OIL COOLER
8-98062-207-0
01
1
0611-0708
26
CORE ASM; OIL COOLER
8-98063-861-0
01
1
0709-0709
26
CORE ASM; OIL COOLER
8-98062-207-0
01
1
0709-
28
GASKET; CORE TO BODY
8-94394-930-0
02
1
0611-0708
28
GASKET; CORE TO BODY
8-98063-865-0
02
1
0709-1004
28
GASKET; CORE TO BODY
8-94394-930-0
02
1
1005-
102
COOLER ASM; OIL
8-97606-322-0
01
1
0609-0708
102
COOLER ASM; OIL
8-98065-861-1
01
1
0709-0808
102
COOLER ASM; OIL
8-98130-995-0
01
1
0809-1307
102
COOLER ASM; OIL
8-98236-650-0
01
1
1308-
103
BOLT; OIL COOLER
(C)
8-98251-758-0
04
1
1309-
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28050-835-0
03
1
0609-
103
BOLT; OIL COOLER
(A) M8X30 FLANGE
0-28650-830-0
24
1
0609-
111
CORE; OIL COOLER
8-98063-863-0
01
1
1309-
111
CORE; OIL COOLER
8-97601-799-0
01
1
0609-0708
196
THERMOSTAT; OIL COOLER
90 CELSIUS
8-97600-936-0
01
1
0609-
197
GASKET; THERMOSTAT
8-94391-728-0
01
1
0611-
328
BOLT; OIL FILTER
(A) M10X30 FLANGE
0-28151-030-0
02
1
0609-
328
BOLT; OIL FILTER
(B) M10X90 FLANGE
0-28151-090-0
02
1
0609-
379
NUT; OIL COOLER
M8 FLANGE
0-91180-108-0
04
1
1309-
379
NUT; OIL COOLER
M8 FLANGE
0-91180-108-0
08
1
0609-0708
386
PLUG; OIL FILTER
(B)
8-98238-941-0
01
1
1308-
386
PLUG; OIL FILTER
(A) M10X10
1-09604-074-0
01
1
0609-
434
GASKET; PLUG,OIL FILTER
(B)
8-98238-942-0
01
1
1308-
434
GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2
1-09630-083-0
01
1
0609-
442
BRACKET; HARNESS,OIL FILTER
8-97601-310-0
02
1
0609-1011
444
GASKET; ELEMENT TO BODY
(B)
8-97601-801-0
02
1
1309-
444
GASKET; ELEMENT TO BODY
(A) ID=38.7
1-09623-299-0
02
1
0809-
444
GASKET; ELEMENT TO BODY
(A) ID=38.7
1-09623-299-0
02
1
0611-0708
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94399-002-0
01
1
0609-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20
8-98045-449-0
01
1
0609-
496
FILTER ASM; OIL
8-94391-015-8
01
1
0609-1307
496
FILTER ASM; OIL
8-98236-649-0
01
1
1308-
517
PLUG; THERMOSTAT,OIL COOLER
8-94391-731-0
01
1
0611-
