Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#24510) — 27 parça
◀

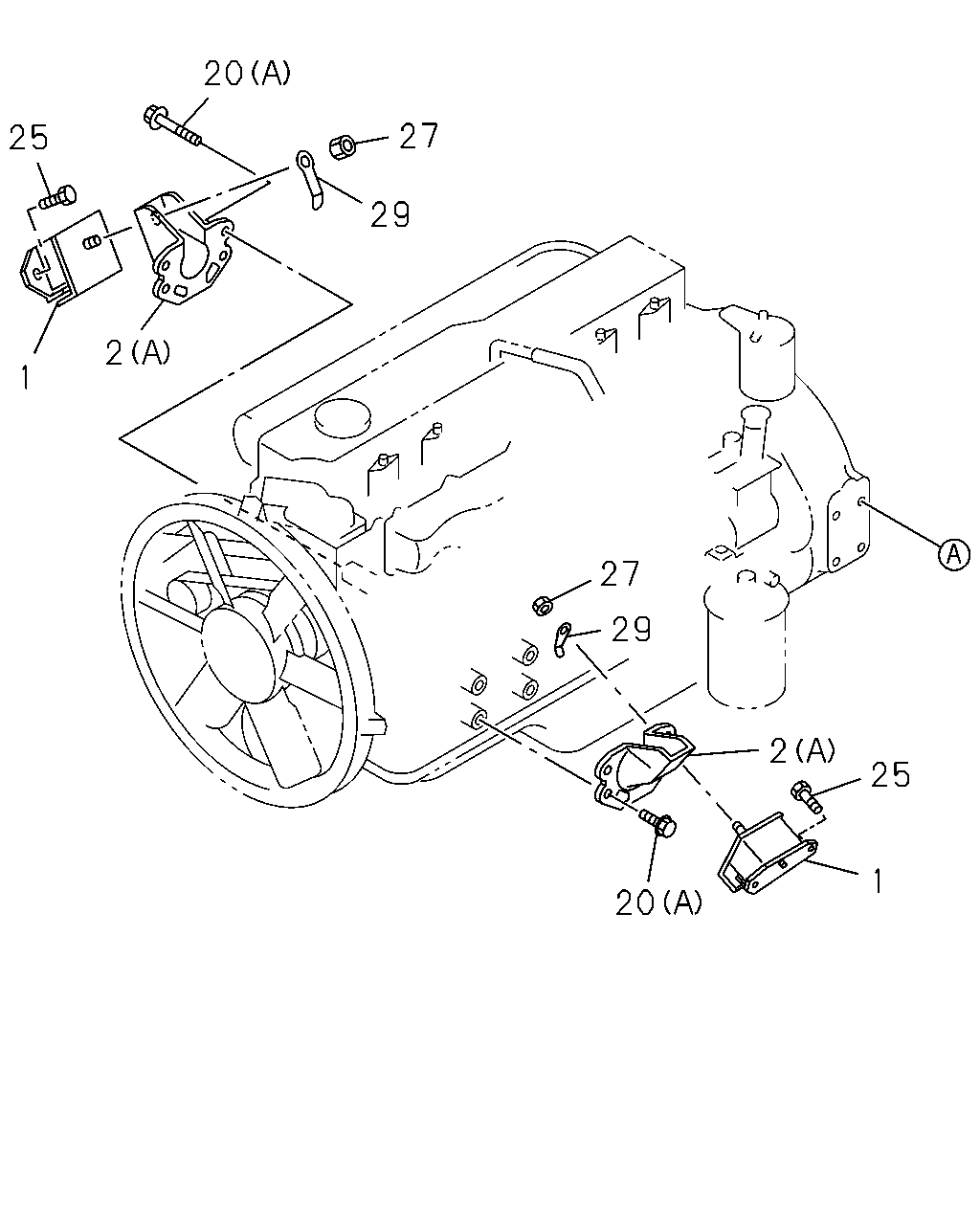

[022A] FRONT MTG (12 parça)

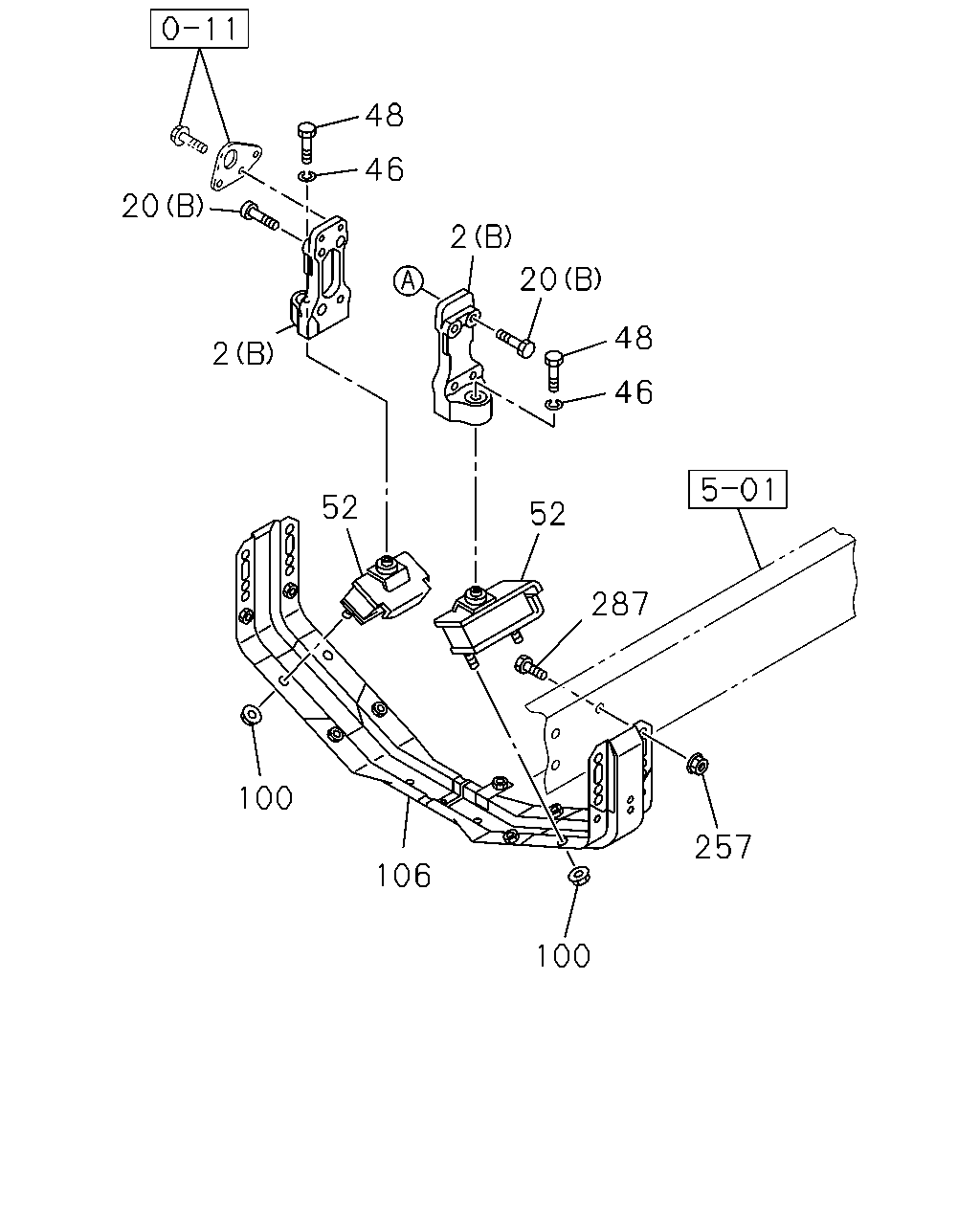

[022A] REAR MTG (15 parça)
▶
20
27
25
29
2
1
27
29
2
25
1
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
WHEEL BASE 4200MM(42W)
1-53215-173-0
02
1
0609-
1
RUBBER; ENG FOOT,FRT
WHEEL BASE 4800MM(48W)
1-53215-172-0
02
1
0609-
2
FOOT; ENG
(B)
8-94390-563-1
01
1
0609-
2
FOOT; ENG
(B)
8-94390-564-1
01
1
0609-
2
FOOT; ENG
(A)
8-94392-141-3
02
1
0609-1008
2
FOOT; ENG
(A)
8-97602-589-1
02
1
1009-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
0609-
20
BOLT; ENG FOOT
(A) M10X30
8-97011-732-0
08
1
0609-1008
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1009-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0609-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
0609-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-052-1
02
1
0609-
48
20
46
2
20
48
2
46
52
52
287
100
257
106
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
FOOT; ENG
(B)
8-94390-563-1
01
1
0609-
2
FOOT; ENG
(B)
8-94390-564-1
01
1
0609-
2
FOOT; ENG
(A)
8-94392-141-3
02
1
0609-1008
2
FOOT; ENG
(A)
8-97602-589-1
02
1
1009-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
0609-
20
BOLT; ENG FOOT
(A) M10X30
8-97011-732-0
08
1
0609-1008
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1009-
46
WASHER; PL,CUSHION TO ENG,RR
ID=17
9-09164-516-0
02
1
0609-
48
BOLT; CUSHION RUBBER TO ENG
M16X60
0-10956-660-0
02
1
0609-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-313-1
01
1
0609-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-314-1
01
1
0609-
100
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
0609-
106
MEMBER; MTG,RR
1-53221-191-0
01
1
0609-
257
NUT; MEMBER
M12 FLANGE
0-91180-212-0
08
1
0609-
287
BOLT; MEMBER
M12X40 FLANGE
0-28651-240-0
08
1
0609-
