◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56B - EXHAUST BRAKE SYSTEM ▶
1-56B — EXHAUST BRAKE SYSTEM (#2451) — 26 parça

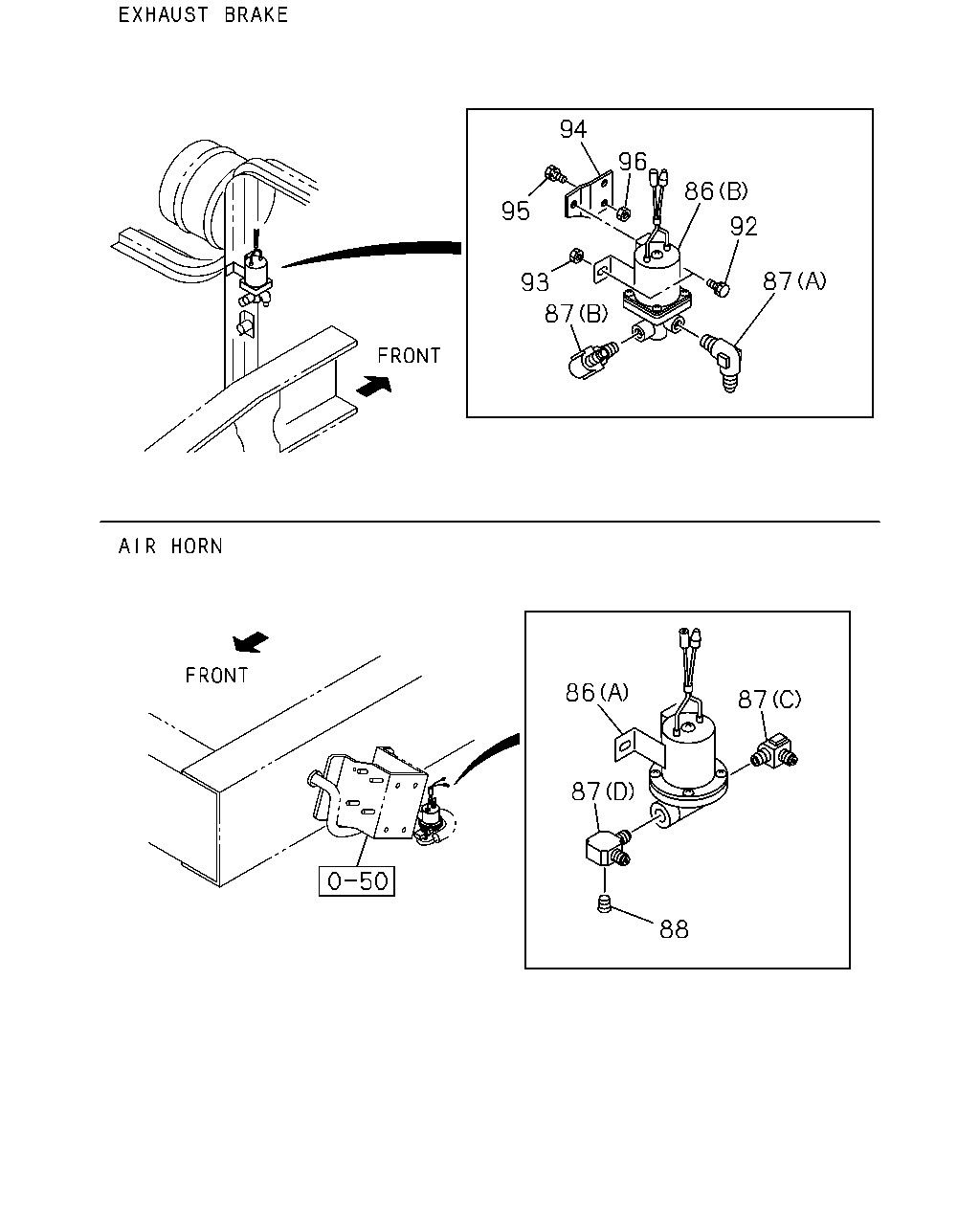

çizim 93622
94 96 86 95 92 87 93 87 86 87 87 88
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
(B) EXH BRAKE 		1-82563-094-0 01 1 9002-9006
86 VALVE; MAG,EXH BRK
(B) EXH BRAKE 		1-82563-172-0 01 1 9007-9012
86 VALVE; MAG,EXH BRK
(B) EXH BRAKE 		1-82563-158-0 01 1 9101-9306
86 VALVE; MAG,EXH BRK
(A) AIR HORN 		1-82563-299-1 01 1 9002-
86 VALVE; MAG,EXH BRK
(B) EXH BRAKE 		1-82563-402-0 01 1 9307-
87 CONNECTOR
(C) M14 		1-09650-031-0 01 1 9002-9103
87 CONNECTOR
(C) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 9104-9306
87 CONNECTOR
(D) 		1-09656-316-1 01 1 9002-9306
87 CONNECTOR
(B) M20 & PT1/4 ELBOW 		1-09660-137-0 01 1 9002-9302
87 CONNECTOR
(B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9303-
87 CONNECTOR
(C) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 9307-
87 CONNECTOR
(D) 		1-09656-316-1 01 1 9307-
87 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9002-
88 PLUG
PT3/8 		9-09204-517-0 01 1 9002-9306
88 PLUG
PT3/8 		9-09204-517-0 01 1 9307-
92 BOLT; MAG VLV
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204
92 BOLT; MAG VLV
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9307-
93 NUT; MAG VLV
M8 		9-09110-408-0 01 1 9002-
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-022-1 01 1 9002-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22 		9-01900-822-0 02 1 9002-9204
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22 W/LK WASHER 		0-50040-822-0 02 1 9205-9302
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28080-820-0 02 1 9307-
96 NUT; BRKT,MAG VLV,EXH BRAKE
M8 		9-09110-408-0 02 1 9002-
