8-73 — BLOWER UNIT (#24495) — 102 parça

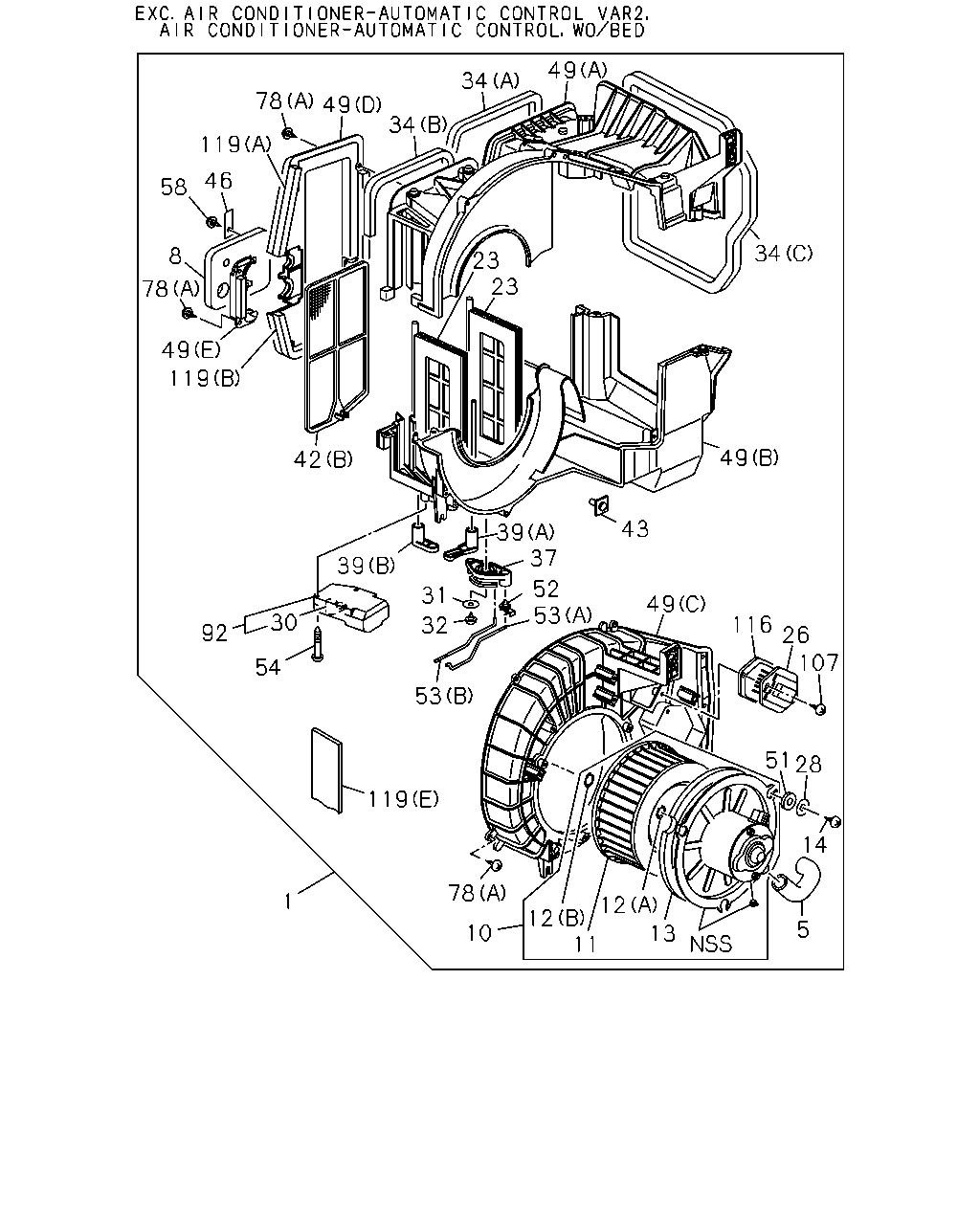

çizim 90359
49 34 78 49 34 119 46 58 34 8 23 23 78 49 119 49 42 39 37 43 39 52 53 31 49 30 116 32 92 26 107 54 53 51 28 119 14 78 1 12 13 12 11 5 10
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83561-154-5 01 1 0603-
1 BLOWER ASM
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83561-160-5 01 1 0603-
5 HOSE; AIR 1-83563-140-0 01 1 0603-
8 SEAL; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83539-261-1 01 1 0603-
8 SEAL; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-801-1 01 1 0603-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0603-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0603-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0603-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0603-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0603-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0603-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0603-
26 TRANSISTOR; BLOWER UNIT 1-83579-654-0 01 1 0603-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0603-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0603-
31 WASHER; LEVER 1-83579-095-0 01 1 0603-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0603-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0603-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0603-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0603-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0603-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0603-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0603-
42 FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-993-0 02 1 0603-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0603-
43 BOLT; CASE 1-83579-657-2 04 1 0603-
46 PLATE; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83571-870-1 01 1 0603-
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F) 		1-83564-340-1 01 1 0603-
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-406-1 01 1 0603-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0603-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0603-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0603-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0603-
49 CASE; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-352-5 01 1 0603-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0603-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0603-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0603-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0603-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0603-
58 SCREW; PLATE TO CASE
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16 		8-94324-850-0 01 1 0603-
78 SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 0603-
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 0603-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0603-
107 SCREW; TRANSISTOR
M4X16 		8-94324-850-0 02 1 0603-
116 SEAL; TRANSISTOR 1-83579-656-0 01 1 0603-
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83578-032-0 01 1 0603-
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83579-961-0 01 1 0603-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0603-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0603-
119 LINING; CASE
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83579-839-0 02 1 0603-

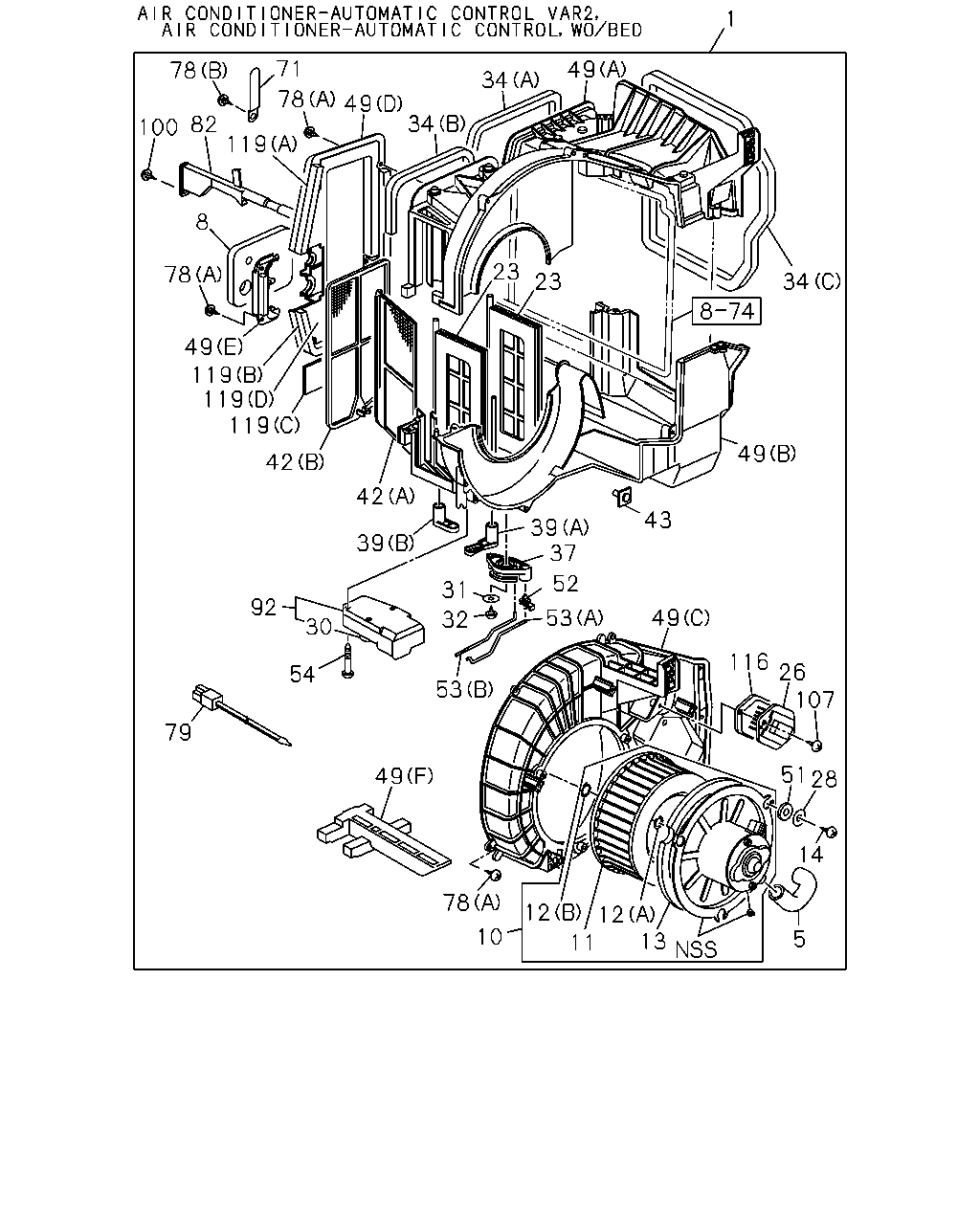

çizim 105661
1 71 49 78 34 78 49 34 82 100 119 8 23 78 23 34 49 119 119 119 49 42 42 43 39 37 39 52 31 92 49 53 32 30 116 26 107 54 53 79 51 28 49 14 78 12 12 13 10 5 11
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83561-154-5 01 1 0603-
1 BLOWER ASM
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83561-160-5 01 1 0603-
5 HOSE; AIR 1-83563-140-0 01 1 0603-
8 SEAL; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83539-261-1 01 1 0603-
8 SEAL; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83579-801-1 01 1 0603-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0603-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0603-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0603-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0603-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0603-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 0603-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0603-
26 TRANSISTOR; BLOWER UNIT 1-83579-654-0 01 1 0603-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0603-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0603-
31 WASHER; LEVER 1-83579-095-0 01 1 0603-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 0603-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0603-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0603-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0603-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0603-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0603-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0603-
42 FILTER; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83579-993-0 02 1 0603-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0603-
43 BOLT; CASE 1-83579-657-2 04 1 0603-
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F) 		1-83564-340-1 01 1 0603-
49 CASE; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-406-1 01 1 0603-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0603-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0603-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0603-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0603-
49 CASE; BLOWER UNIT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-352-5 01 1 0603-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0603-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0603-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0603-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0603-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0603-
71 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83574-080-0 01 1 0603-
78 SCREW; CASE TO CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 01 1 0603-
78 SCREW; CASE TO CASE
(A) M4X16 		8-94324-850-0 17 1 0603-
79 SENSOR; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83544-037-0 01 1 0603-
82 BRACKET; BLOWER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83571-871-1 01 1 0603-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0603-
100 SCREW; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16 		8-94324-850-0 01 1 0603-
107 SCREW; TRANSISTOR
M4X16 		8-94324-850-0 02 1 0603-
116 SEAL; TRANSISTOR 1-83579-656-0 01 1 0603-
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83578-032-0 01 1 0603-
119 LINING; CASE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83579-961-0 01 1 0603-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0603-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0603-
119 LINING; CASE
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83579-839-0 02 1 0603-
