Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#24491) — 22 parça
◀

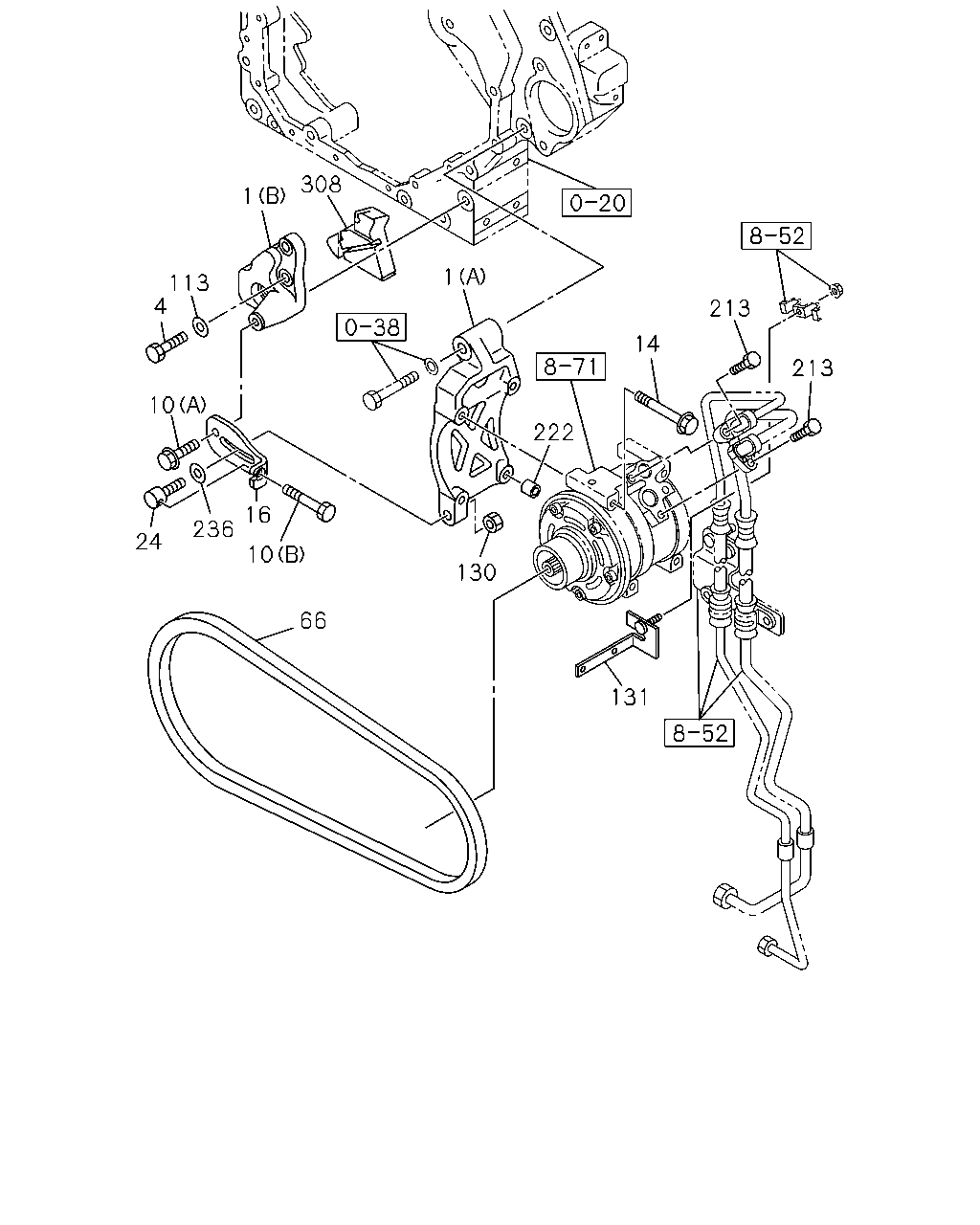

[850A] ENGINE SIDE (17 parça)

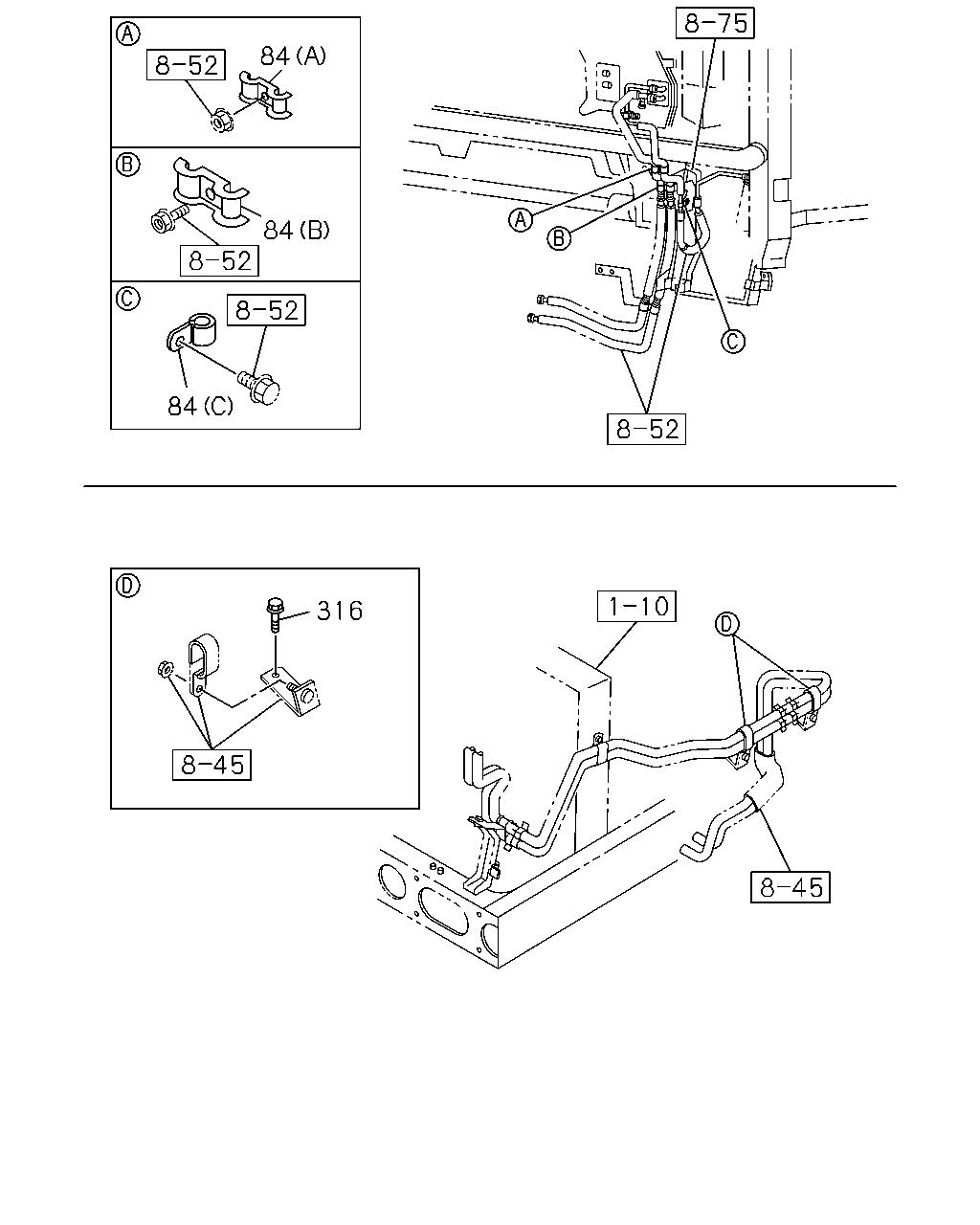

[850A] CAB SIDE (5 parça)
▶
308
1
1
113
4
213
14
213
10
222
16
236
24
10
130
66
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; A/C
(B)
1-83571-987-0
01
1
0603-
1
BRACKET; A/C
(A)
1-83573-001-0
01
1
0603-
4
BOLT; A/C CMPR BRKT
M14X130
9-09804-194-1
02
1
0603-
10
BOLT; ADJ PLATE
(A) M12X25 FLANGE
0-28151-225-0
01
1
0603-
10
BOLT; ADJ PLATE
(B) M10X90
1-09009-151-0
01
1
0603-
14
BOLT; CMPR
M8X80 FLANGE
0-28050-880-0
04
1
0603-
16
PLATE; ADJ,CMPR
1-13674-253-1
01
1
0603-
24
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
0603-
66
BELT; A/C CMPR
L=1131
1-13671-436-0
01
1
0603-
113
WASHER; PL,BRKT
ID=15 OD=26
9-09164-514-0
02
1
0603-
130
NUT; ADJ BRKT
M12 FLANGE
0-91150-112-0
01
1
0603-0603
130
NUT; ADJ BRKT
M12 FLANGE
0-91180-112-0
01
1
0603-
131
STAY; CMPR BRKT
1-83573-244-0
01
1
0603-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE
0-28050-625-0
02
1
0603-
222
GASKET; CONNECTOR
ID=8.4 OD=19
5-11779-001-0
02
1
0603-
236
WASHER; PL,ADJ BOLT
ID=12.5 OD=32
9-09160-712-0
01
1
0603-
308
INSULATOR; COOLER
1-19389-213-0
01
1
0603-
84
84
84
316
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
84
CLIP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=12.2 & 16.2
1-83574-190-0
01
1
0603-
84
CLIP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=20 & 20
1-83574-195-1
01
1
0603-
84
CLIP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) ID=9 L=20
9-09524-835-0
01
1
0603-0606
84
CLIP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) ID=9 L=20
0-95234-835-0
01
1
0607-
316
BOLT; BRKT FIX
M8X30 FLANGE
0-28650-830-0
02
1
0603-
