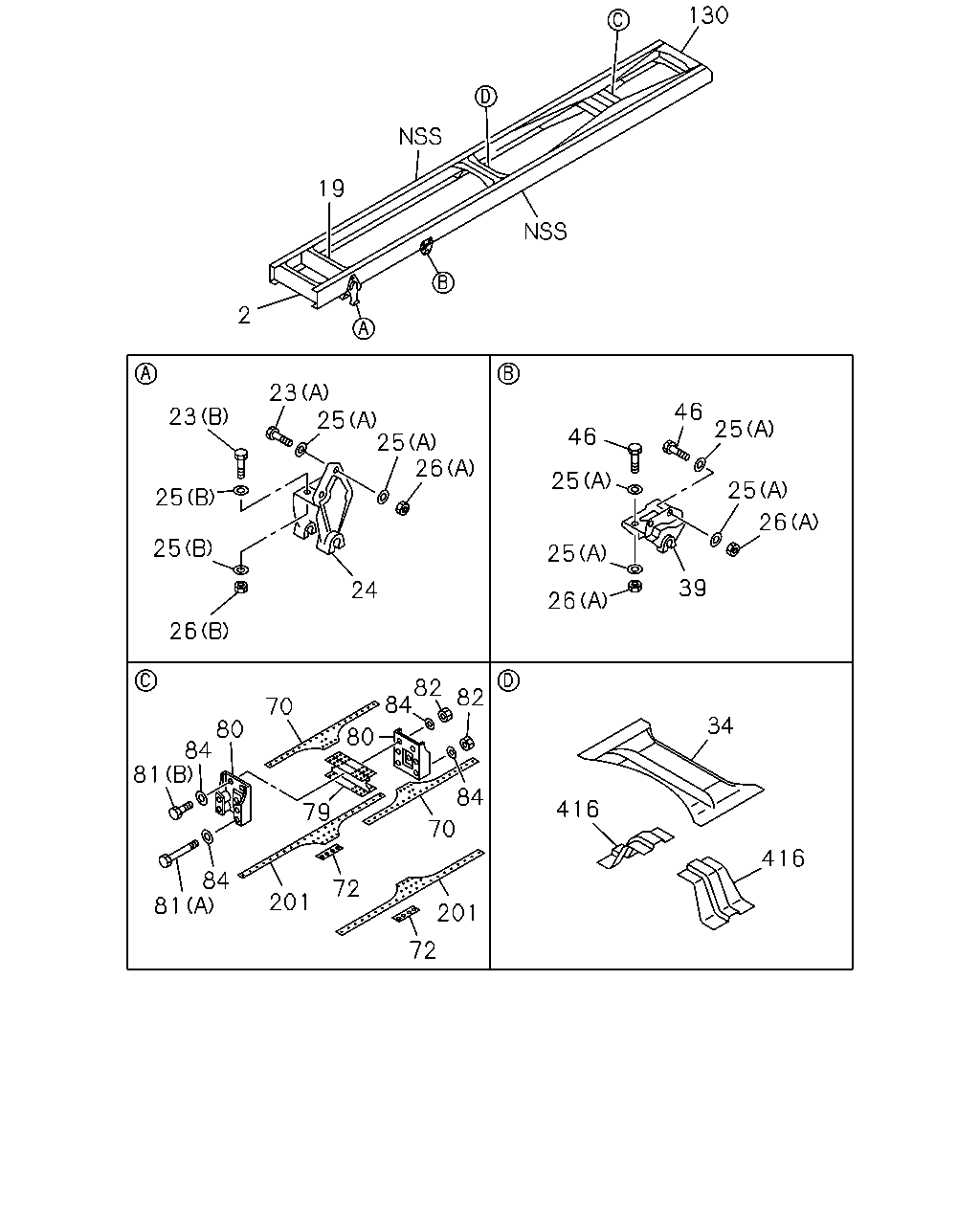

5-01 — FRAME AND OTHER PARTS
(#24487) — 36 parça
130
19
2
23
25
46
23
25
26
25
46
25
25
25
26
25
25
39
24
26
26
82
84
80
79
82
70
34
80
84
81
84
416
70
416
84
81
72
201
201
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
6SD1 TCN ENG<31L> THA
8-97912-224-3
01
1
0407-
2
MEMBER; CROSS,1ST
6SD1 TCS ENG<83L> THA
8-97922-163-3
01
1
0407-
19
MEMBER; CROSS,2ND
6SD1 TCN ENG<31L> THA
8-97913-977-1
01
1
0407-
19
MEMBER; CROSS,2ND
6SD1 TCS ENG<83L> THA
8-97922-164-2
01
1
0407-
23
BOLT; BRKT,SPR
(A) M14X50
9-92061-450-0
06
1
0407-0512
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
0601-
23
BOLT; BRKT,SPR
(B) M16X60
9-92061-660-0
04
1
0407-0512
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
0601-
24
BRACKET; FRT SPR,FRT
THA
8-97916-023-1
01
1
0407-
24
BRACKET; FRT SPR,FRT
THA
8-97916-024-1
01
1
0407-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0407-
25
WASHER; PL,BRKT
(A) ID=15 THA
9-09651-069-0
28
1
0407-
26
NUT; BRKT,SPR
(A) M14
9-99110-514-0
14
1
0407-0512
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
0601-
26
NUT; BRKT,SPR
(B) M16
9-99110-516-0
04
1
0407-0506
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
0507-
34
MEMBER; CROSS,3RD
THA
8-97917-349-0
01
1
0407-
39
BRACKET; FRT SPR,RR
THA
8-97916-025-1
01
1
0407-
39
BRACKET; FRT SPR,RR
THA
8-97916-043-1
01
1
0407-
46
BOLT; BRKT FIX
M14X50
9-92061-450-0
08
1
0407-0512
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
0601-
70
GUSSET; TRUNNION,UPR
1-53161-566-2
02
1
0407-
72
SPACER; TRUNNION
THA
8-97922-399-0
AR
1
0408-
79
MEMBER; CROSS,TRUNNION ASM
6SD1 TCN ENG<31L> THA
8-97913-978-1
01
1
0407-0609
79
MEMBER; CROSS,TRUNNION ASM
6SD1 TCS ENG<83L> THA
8-97922-185-0
01
1
0407-0609
79
MEMBER; CROSS,TRUNNION ASM
THA
8-97922-185-0
01
1
0610-
80
BRACKET; C/MBR
THA
8-97916-034-0
02
1
0407-
81
BOLT; BRKT
(A) M14X205
1-09000-147-0
02
1
0407-
81
BOLT; BRKT
(B) M14X50
9-92061-450-0
02
1
0407-0512
81
BOLT; BRKT
(B) M14X50
0-20951-450-0
02
1
0601-
82
NUT; BRKT
M14
9-99110-514-0
04
1
0407-0512
82
NUT; BRKT
M14 THA
0-91110-514-0
04
1
0601-
84
WASHER; PL,BRKT
ID=15 THA
9-09651-069-0
08
1
0407-
130
MEMBER; CROSS,END
THA
8-97916-030-0
01
1
0407-
201
GUSSET; C/MBR
1-53161-567-2
02
1
0407-
416
GUSSET; 3RD C/MBR
THA
8-97917-350-0
02
1
0407-
