◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 10945 - GXZ(THAI)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#24485) — 17 parça

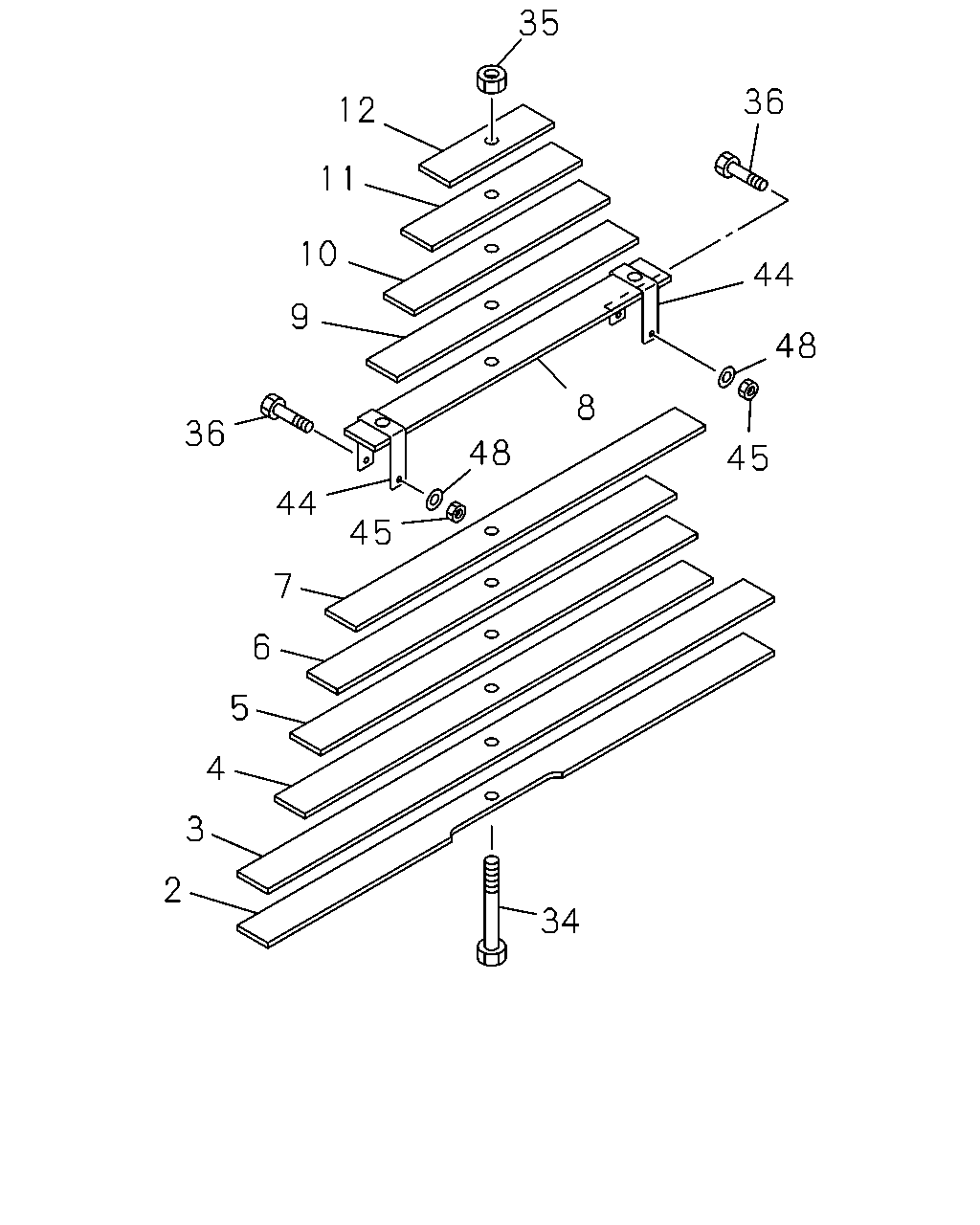

çizim 82342
35 36 12 11 10 44 9 48 8 36 48 45 44 45 7 6 5 4 3 2 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51411-269-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51412-269-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51413-269-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51414-269-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51415-269-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51416-269-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51417-269-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51418-269-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51419-269-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51421-269-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51422-269-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=225 ASM PART: A = 8-97922-084-0 		1-51356-362-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16, THA ASM PART: A = 8-97922-084-0 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 8-97922-084-0 		1-09000-751-0 02 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: A = 8-97922-084-0 		1-51353-015-0 02 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M10 ASM PART: A = 8-97922-084-0 		9-09110-010-0 02 1 -
48 WASHER; CLIP,LEAF SPR
ID=10.2 ASM PART: A = 8-97922-084-0 		9-09150-510-0 02 1 -
