Sayfa 1-55A - Isuzu EPC

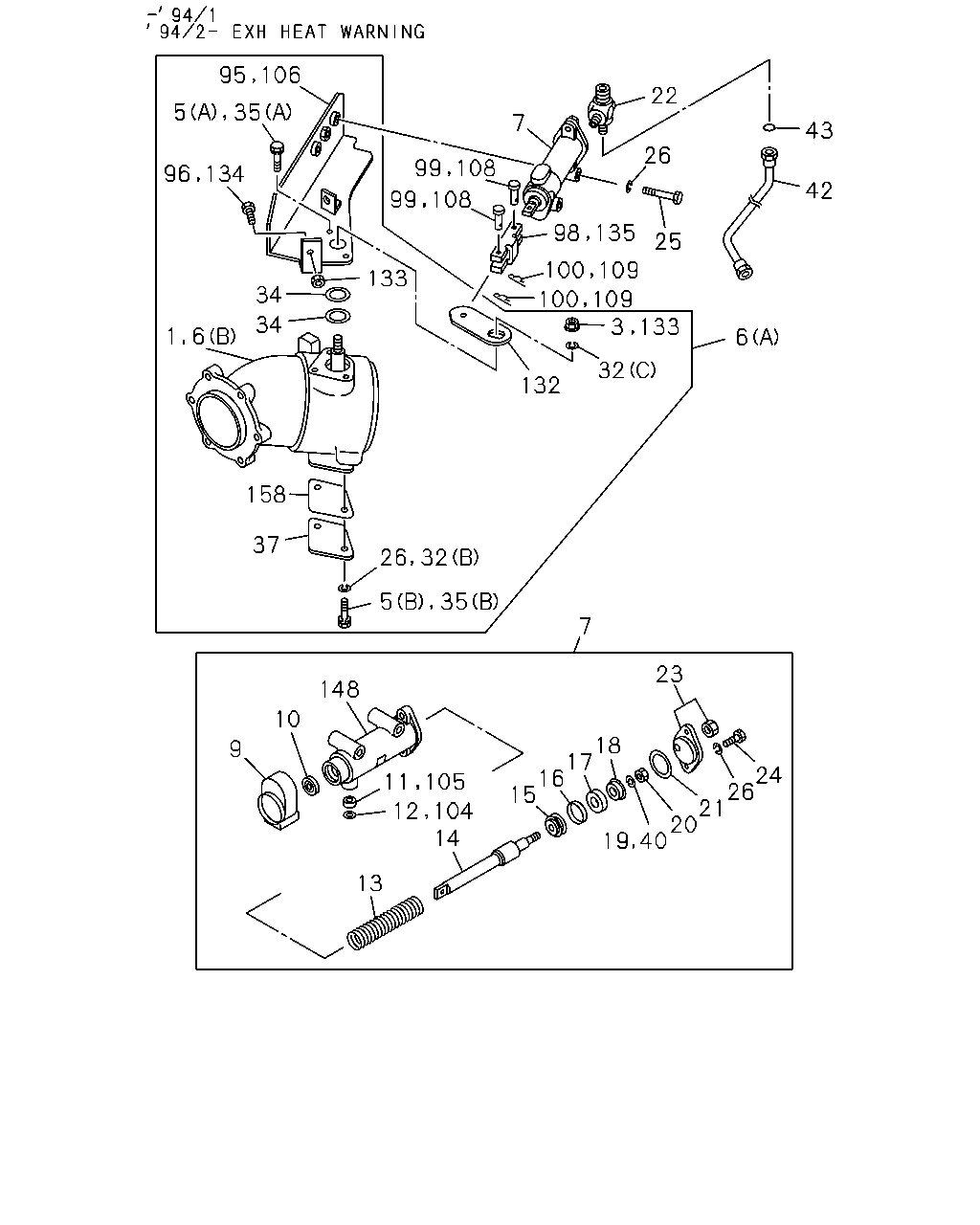

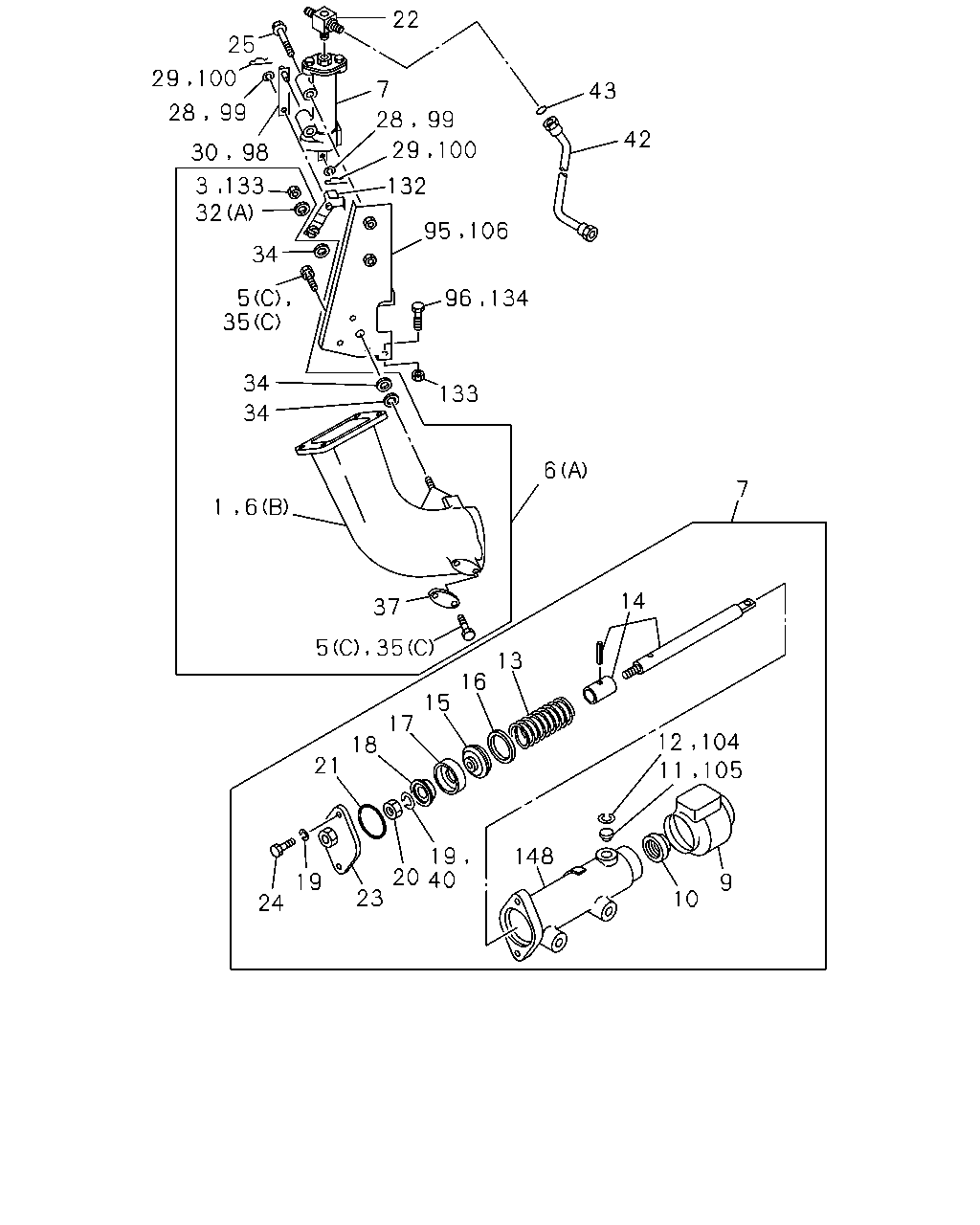

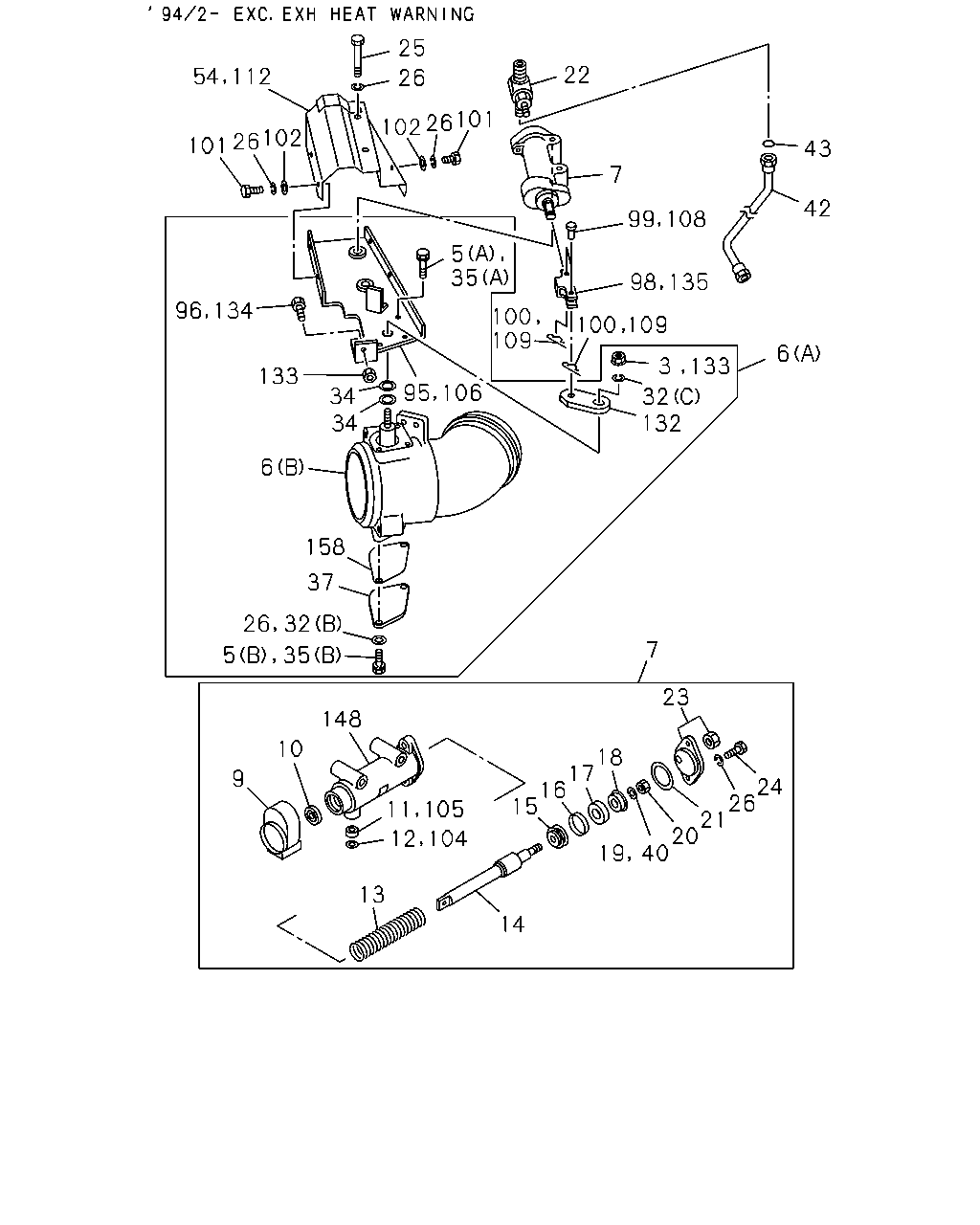

1-55A — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#2448) — 308 parça

25 22 26 102 26 101 26 102 43 7 42 5 35 100 109 6 3 133 133 34 34 32 132 6 158 37 7 23 148 10 18 17 16 15 9 24 26 21 20 11 105 13 14 54 112 101 99 108 98 135 100 109 95 106 96 134 26 32 5 35 12 104 19 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	NUT M10 FLANGE	0-91150-110-0	01	1	9002-9306	●	●
3	NUT M8	9-09110-408-0	01	1	9002-9306			●
5	BOLT; SHAFT TO VLV (A) M8X16	9-02050-816-0	03	1	9002-9005	●
5	BOLT; SHAFT TO VLV (A) M8X16	0-20800-816-0	03	1	9006-9306	●	●
5	BOLT; SHAFT TO VLV (B) M10X20	9-22189-033-0	02	1	9002-9306	●	●
5	BOLT; SHAFT TO VLV (C) M8X16 W/LK WASHER	9-01910-816-0	05	1	9002-9005			●
5	BOLT; SHAFT TO VLV (C) M8X16 W/LK WASHER	0-50040-816-0	05	1	9006-9306			●
6	VALVE; EXH BRAKE (B)	1-14144-465-1	01	1	9307-9401	●	●
6	VALVE; EXH BRAKE EXH HEAT WARNING<W50> (B)	1-14144-465-1	01	1	9402-		●
6	VALVE; EXH BRAKE (A)	1-14144-467-3	01	1	9307-9401	●	●
6	VALVE; EXH BRAKE EXH HEAT WARNING<W50> (A)	1-14144-467-3	01	1	9402-		●
6	VALVE; EXH BRAKE (B)	1-14144-369-1	01	1	9307-			●
6	VALVE; EXH BRAKE (A)	1-14144-453-3	01	1	9307-			●
6	VALVE; EXH BRAKE EXC. EXH HEAT WARNING<W50> (A)	1-14144-463-1	01	1	9402-		●
6	VALVE; EXH BRAKE EXC. EXH HEAT WARNING<W50> (B)	1-14144-466-1	01	1	9402-		●
7	CYLINDER ASM; CONT	1-22190-555-0	01	1	9002-	●	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9002-			●
9	COVER; CYL	1-22199-008-0	01	1	9002-	●	●	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-9306	●	●	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9307-	●	●
11	FILTER; CYL	9-88510-330-0	01	1	9002-9306	●	●	●
12	RING; RET	9-88510-331-0	01	1	9002-9306	●	●	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9002-	●	●	●
14	SHAFT; CONT CYL	1-22199-095-0	01	1	9002-9306	●	●
14	SHAFT; CONT CYL	1-22196-256-0	01	1	9307-	●	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9002-			●
15	PLATE; CONT CYL	1-22199-096-0	01	1	9002-	●	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9002-			●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9002-	●	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9002-9306			●
16	RING; WEAR,CONT CYL	1-22189-002-0	01	1	9307-			●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9002-	●	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9002-			●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9002-	●	●	●
19	WASHER; CONT,DUCT ID=8.2	9-09150-508-0	03	1	9002-9306	●	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9002-	●	●
20	NUT; CONT CYL	9-09110-408-0	01	1	9002-			●
21	GASKET; COVER	9-88510-372-0	01	1	9002-	●	●	●
22	CONNECTOR; CONT CYL	1-09656-450-1	01	1	9002-	●	●	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9002-	●	●	●
24	BOLT; COVER M8X16	9-02050-816-0	02	1	9002-	●	●
24	BOLT; COVER	9-88510-267-0	02	1	9002-			●
24	BOLT; COVER EXC. EXH HEAT WARNING<W50> M6X12 W/LK WASHER	9-01900-612-0	04	1	9402-		●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9002-9004	●	●	●
25	BOLT; CONT CYL M10X70	0-10806-070-0	02	1	9005-9306	●	●	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9307-	●	●	●
26	WASHER; LK,CONT CYL ID=8.2	9-09150-508-0	03	1	9002-	●	●
26	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9307-	●	●
26	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	02	1	9307-			●
32	WASHER; LK (B) ID=10.2	9-09150-510-0	02	1	9002-9410	●	●
32	WASHER; LK (B) ID=10.2	9-09150-510-0	02	1	9411-		●
32	WASHER; LK (C) ID=10.5 OD=26	9-09164-710-0	01	1	9307-	●	●
32	WASHER; LK (A) ID=8.4	9-09851-473-0	01	1	9307-			●
34	RING; SEAL ID=21	1-22189-147-0	01	1	9307-	●	●
34	RING; SEAL ID=18.8	1-22189-148-0	02	1	9307-	●	●
34	RING; SEAL ID=15	1-22189-025-0	02	1	9307-			●
34	RING; SEAL ID=14	9-22189-104-0	02	1	9307-			●
35	BOLT; PLATE FIX (A) M8X16	9-02050-816-0	03	1	9307-	●	●
35	BOLT; PLATE FIX (B) M10X20	9-22189-033-0	02	1	9307-	●	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	9-01910-816-0	05	1	9307-			●
37	COVER; BODY	1-22189-146-0	01	1	9307-	●	●
37	COVER; BODY	1-22189-106-0	01	1	9307-			●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	03	1	9307-	●	●	●
40	WASHER; LK,COVER EXC. EXH HEAT WARNING<W50> ID=6.1	9-09150-506-0	04	1	9402-		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=390	0-07150-390-0	01	1	9002-9004	●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=340	0-07150-340-0	01	1	9005-9306	●
42	HOSE; FLEX,EXH BRK L=340	0-07150-340-0	01	1	9005-9306		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=340	0-07150-340-0	01	1	9307-9410		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=340	0-07150-340-0	01	1	9411-		●
42	HOSE; FLEX,EXH BRK EXC. HONG KONG EQUIPMENT(PQ1) L=340	0-07150-340-0	01	1	9411-		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=230	0-07150-230-0	01	1	9002-9306			●
42	HOSE; FLEX,EXH BRK EXC. NYLON TUBE AIR PIPING<Z29> L=270	0-07150-270-0	01	1	9002-9410			●
42	HOSE; FLEX,EXH BRK L=270	0-07150-270-0	01	1	9411-			●
42	HOSE; FLEX,EXH BRK HONG KONG EQUIPMENT(PQ1) L=270	0-07150-270-0	01	1	9411-		●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●	●
54	PROTECTOR; HEAT EXC. EXH HEAT WARNING<W50>	1-22186-087-0	01	1	9402-		●
95	BRACKET; CONT CYL	1-22186-104-0	01	1	9002-9306	●	●
95	BRACKET; CONT CYL	1-22186-082-1	01	1	9002-9306			●
96	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9002-9306	●	●
96	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9002-9306			●
98	LINK	1-22196-229-0	01	1	9002-9306	●	●
98	LINK	1-22196-113-0	01	1	9002-9306			●
99	WASHER; SNAP PIN	1-22199-054-0	02	1	9002-9306	●	●
99	WASHER; SNAP PIN	9-09160-506-0	02	1	9002-9306			●
100	PIN; SNAP L=21.2	8-94157-840-0	02	1	9002-9306	●	●	●
101	BOLT; HEAT PROTECTOR EXC. EXH HEAT WARNING<W50> M6X12 W/LK WASHER	0-50040-612-0	04	1	9402-		●
102	WASHER; PL,HEAT PROTECTOR EXC. EXH HEAT WARNING<W50> ID=6.4	9-09160-506-0	04	1	9402-		●
104	RING; RET	9-88510-331-0	01	1	9307-	●	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9307-	●	●	●
106	BRACKET; CONT CYL	1-22186-104-0	01	1	9307-9401	●	●
106	BRACKET; CONT CYL EXH HEAT WARNING<W50>	1-22186-104-0	01	1	9402-		●
106	BRACKET; CONT CYL	1-22186-082-0	01	1	9307-			●
106	BRACKET; CONT CYL EXC. EXH HEAT WARNING<W50>	1-22186-105-0	01	1	9402-		●
108	PIN; CONT CYL	1-22199-054-0	02	1	9307-	●	●
109	PIN; SNAP,CONT CYL L=21.2	8-94157-840-0	02	1	9307-	●	●
112	COVER; CONT CYL EXC. EXH HEAT WARNING<W50>	1-22186-087-0	01	1	9402-		●
132	LEVER; BRK VLV	1-22196-249-0	01	1	9002-	●	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9002-			●
133	NUT; LK M8	9-09110-408-0	02	1	9307-	●	●	●
133	NUT; LK M10 FLANGE	0-91150-110-0	01	1	9307-	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9307-	●	●
134	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9307-			●
135	CLEVIS; CONT CYL	1-22196-229-0	01	1	9307-	●	●
148	CYLINDER; CONT,DUCT	1-22199-094-0	01	1	9002-9306	●	●
148	CYLINDER; CONT,DUCT	9-88510-329-0	01	1	9002-9306			●
158	GASKET; COVER	1-22189-145-0	01	1	9307-	●	●

22 25 7 43 28 99 28 99 42 30 98 32 132 34 5 35 34 133 34 6 7 6 1 14 37 13 16 15 17 105 18 21 11 19 20 40 23 148 19 9 10 24 3 133 29 100 29 100 95 106 96 134 5 35 12 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE ASM; EXH BRAKE	1-14144-465-1	01	1	9002-9306	●	●
1	VALVE ASM; EXH BRAKE	1-14144-369-1	01	1	9002-9306			●
3	NUT M10 FLANGE	0-91150-110-0	01	1	9002-9306	●	●
3	NUT M8	9-09110-408-0	01	1	9002-9306			●
5	BOLT; SHAFT TO VLV (A) M8X16	9-02050-816-0	03	1	9002-9005	●
5	BOLT; SHAFT TO VLV (A) M8X16	0-20800-816-0	03	1	9006-9306	●	●
5	BOLT; SHAFT TO VLV (B) M10X20	9-22189-033-0	02	1	9002-9306	●	●
5	BOLT; SHAFT TO VLV (C) M8X16 W/LK WASHER	9-01910-816-0	05	1	9002-9005			●
5	BOLT; SHAFT TO VLV (C) M8X16 W/LK WASHER	0-50040-816-0	05	1	9006-9306			●
6	VALVE; EXH BRAKE (B)	1-14144-465-1	01	1	9307-9401	●	●
6	VALVE; EXH BRAKE EXH HEAT WARNING<W50> (B)	1-14144-465-1	01	1	9402-		●
6	VALVE; EXH BRAKE (A)	1-14144-467-3	01	1	9307-9401	●	●
6	VALVE; EXH BRAKE EXH HEAT WARNING<W50> (A)	1-14144-467-3	01	1	9402-		●
6	VALVE; EXH BRAKE (B)	1-14144-369-1	01	1	9307-			●
6	VALVE; EXH BRAKE (A)	1-14144-453-3	01	1	9307-			●
6	VALVE; EXH BRAKE EXC. EXH HEAT WARNING<W50> (A)	1-14144-463-1	01	1	9402-		●
6	VALVE; EXH BRAKE EXC. EXH HEAT WARNING<W50> (B)	1-14144-466-1	01	1	9402-		●
7	CYLINDER ASM; CONT	1-22190-555-0	01	1	9002-	●	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9002-			●
9	COVER; CYL	1-22199-008-0	01	1	9002-	●	●	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-9306	●	●	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9307-	●	●
11	FILTER; CYL	9-88510-330-0	01	1	9002-9306	●	●	●
12	RING; RET	9-88510-331-0	01	1	9002-9306	●	●	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9002-	●	●	●
14	SHAFT; CONT CYL	1-22199-095-0	01	1	9002-9306	●	●
14	SHAFT; CONT CYL	1-22196-256-0	01	1	9307-	●	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9002-			●
15	PLATE; CONT CYL	1-22199-096-0	01	1	9002-	●	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9002-			●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9002-	●	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9002-9306			●
16	RING; WEAR,CONT CYL	1-22189-002-0	01	1	9307-			●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9002-	●	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9002-			●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9002-	●	●	●
19	WASHER; CONT,DUCT ID=8.2	9-09150-508-0	03	1	9002-9306	●	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9002-	●	●
20	NUT; CONT CYL	9-09110-408-0	01	1	9002-			●
21	GASKET; COVER	9-88510-372-0	01	1	9002-	●	●	●
22	CONNECTOR; CONT CYL	1-09656-450-1	01	1	9002-	●	●	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9002-	●	●	●
24	BOLT; COVER M8X16	9-02050-816-0	02	1	9002-	●	●
24	BOLT; COVER	9-88510-267-0	02	1	9002-			●
24	BOLT; COVER EXC. EXH HEAT WARNING<W50> M6X12 W/LK WASHER	9-01900-612-0	04	1	9402-		●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9002-9004	●	●	●
25	BOLT; CONT CYL M10X70	0-10806-070-0	02	1	9005-9306	●	●	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9307-	●	●	●
28	WASHER; PL,LINK ID=6.4	9-09160-506-0	02	1	9307-			●
29	PIN; SPLIT,LINK L=21.2	8-94157-840-0	02	1	9307-			●
30	ROD; LINK,CONT CYL	1-22196-113-0	01	1	9307-			●
32	WASHER; LK (B) ID=10.2	9-09150-510-0	02	1	9002-9410	●	●
32	WASHER; LK (B) ID=10.2	9-09150-510-0	02	1	9411-		●
32	WASHER; LK (C) ID=10.5 OD=26	9-09164-710-0	01	1	9307-	●	●
32	WASHER; LK (A) ID=8.4	9-09851-473-0	01	1	9307-			●
34	RING; SEAL ID=21	1-22189-147-0	01	1	9307-	●	●
34	RING; SEAL ID=18.8	1-22189-148-0	02	1	9307-	●	●
34	RING; SEAL ID=15	1-22189-025-0	02	1	9307-			●
34	RING; SEAL ID=14	9-22189-104-0	02	1	9307-			●
35	BOLT; PLATE FIX (A) M8X16	9-02050-816-0	03	1	9307-	●	●
35	BOLT; PLATE FIX (B) M10X20	9-22189-033-0	02	1	9307-	●	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	9-01910-816-0	05	1	9307-			●
37	COVER; BODY	1-22189-146-0	01	1	9307-	●	●
37	COVER; BODY	1-22189-106-0	01	1	9307-			●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	03	1	9307-	●	●	●
40	WASHER; LK,COVER EXC. EXH HEAT WARNING<W50> ID=6.1	9-09150-506-0	04	1	9402-		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=390	0-07150-390-0	01	1	9002-9004	●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=340	0-07150-340-0	01	1	9005-9306	●
42	HOSE; FLEX,EXH BRK L=340	0-07150-340-0	01	1	9005-9306		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=340	0-07150-340-0	01	1	9307-9410		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=340	0-07150-340-0	01	1	9411-		●
42	HOSE; FLEX,EXH BRK EXC. HONG KONG EQUIPMENT(PQ1) L=340	0-07150-340-0	01	1	9411-		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=230	0-07150-230-0	01	1	9002-9306			●
42	HOSE; FLEX,EXH BRK EXC. NYLON TUBE AIR PIPING<Z29> L=270	0-07150-270-0	01	1	9002-9410			●
42	HOSE; FLEX,EXH BRK L=270	0-07150-270-0	01	1	9411-			●
42	HOSE; FLEX,EXH BRK HONG KONG EQUIPMENT(PQ1) L=270	0-07150-270-0	01	1	9411-		●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●	●
95	BRACKET; CONT CYL	1-22186-104-0	01	1	9002-9306	●	●
95	BRACKET; CONT CYL	1-22186-082-1	01	1	9002-9306			●
96	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9002-9306	●	●
96	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9002-9306			●
98	LINK	1-22196-229-0	01	1	9002-9306	●	●
98	LINK	1-22196-113-0	01	1	9002-9306			●
99	WASHER; SNAP PIN	1-22199-054-0	02	1	9002-9306	●	●
99	WASHER; SNAP PIN	9-09160-506-0	02	1	9002-9306			●
100	PIN; SNAP L=21.2	8-94157-840-0	02	1	9002-9306	●	●	●
104	RING; RET	9-88510-331-0	01	1	9307-	●	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9307-	●	●	●
106	BRACKET; CONT CYL	1-22186-104-0	01	1	9307-9401	●	●
106	BRACKET; CONT CYL EXH HEAT WARNING<W50>	1-22186-104-0	01	1	9402-		●
106	BRACKET; CONT CYL	1-22186-082-0	01	1	9307-			●
106	BRACKET; CONT CYL EXC. EXH HEAT WARNING<W50>	1-22186-105-0	01	1	9402-		●
132	LEVER; BRK VLV	1-22196-249-0	01	1	9002-	●	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9002-			●
133	NUT; LK M8	9-09110-408-0	02	1	9307-	●	●	●
133	NUT; LK M10 FLANGE	0-91150-110-0	01	1	9307-	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9307-	●	●
134	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9307-			●
148	CYLINDER; CONT,DUCT	1-22199-094-0	01	1	9002-9306	●	●
148	CYLINDER; CONT,DUCT	9-88510-329-0	01	1	9002-9306			●

22 5 35 7 43 26 42 25 133 34 34 16 6 32 132 158 37 7 23 148 10 18 17 16 15 9 24 26 21 20 105 11 14 13 95 106 96 134 99 108 99 108 98 135 109 100 109 100 3 133 26 32 5 35 19 40 12 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	NUT M10 FLANGE	0-91150-110-0	01	1	9002-9306	●	●
3	NUT M8	9-09110-408-0	01	1	9002-9306			●
5	BOLT; SHAFT TO VLV (A) M8X16	9-02050-816-0	03	1	9002-9005	●
5	BOLT; SHAFT TO VLV (A) M8X16	0-20800-816-0	03	1	9006-9306	●	●
5	BOLT; SHAFT TO VLV (B) M10X20	9-22189-033-0	02	1	9002-9306	●	●
5	BOLT; SHAFT TO VLV (C) M8X16 W/LK WASHER	9-01910-816-0	05	1	9002-9005			●
5	BOLT; SHAFT TO VLV (C) M8X16 W/LK WASHER	0-50040-816-0	05	1	9006-9306			●
6	VALVE; EXH BRAKE (B)	1-14144-465-1	01	1	9307-9401	●	●
6	VALVE; EXH BRAKE EXH HEAT WARNING<W50> (B)	1-14144-465-1	01	1	9402-		●
6	VALVE; EXH BRAKE (A)	1-14144-467-3	01	1	9307-9401	●	●
6	VALVE; EXH BRAKE EXH HEAT WARNING<W50> (A)	1-14144-467-3	01	1	9402-		●
6	VALVE; EXH BRAKE (B)	1-14144-369-1	01	1	9307-			●
6	VALVE; EXH BRAKE (A)	1-14144-453-3	01	1	9307-			●
6	VALVE; EXH BRAKE EXC. EXH HEAT WARNING<W50> (A)	1-14144-463-1	01	1	9402-		●
6	VALVE; EXH BRAKE EXC. EXH HEAT WARNING<W50> (B)	1-14144-466-1	01	1	9402-		●
7	CYLINDER ASM; CONT	1-22190-555-0	01	1	9002-	●	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9002-			●
9	COVER; CYL	1-22199-008-0	01	1	9002-	●	●	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-9306	●	●	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9307-	●	●
11	FILTER; CYL	9-88510-330-0	01	1	9002-9306	●	●	●
12	RING; RET	9-88510-331-0	01	1	9002-9306	●	●	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9002-	●	●	●
14	SHAFT; CONT CYL	1-22199-095-0	01	1	9002-9306	●	●
14	SHAFT; CONT CYL	1-22196-256-0	01	1	9307-	●	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9002-			●
15	PLATE; CONT CYL	1-22199-096-0	01	1	9002-	●	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9002-			●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9002-	●	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9002-9306			●
16	RING; WEAR,CONT CYL	1-22189-002-0	01	1	9307-			●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9002-	●	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9002-			●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9002-	●	●	●
19	WASHER; CONT,DUCT ID=8.2	9-09150-508-0	03	1	9002-9306	●	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9002-	●	●
20	NUT; CONT CYL	9-09110-408-0	01	1	9002-			●
21	GASKET; COVER	9-88510-372-0	01	1	9002-	●	●	●
22	CONNECTOR; CONT CYL	1-09656-450-1	01	1	9002-	●	●	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9002-	●	●	●
24	BOLT; COVER M8X16	9-02050-816-0	02	1	9002-	●	●
24	BOLT; COVER	9-88510-267-0	02	1	9002-			●
24	BOLT; COVER EXC. EXH HEAT WARNING<W50> M6X12 W/LK WASHER	9-01900-612-0	04	1	9402-		●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9002-9004	●	●	●
25	BOLT; CONT CYL M10X70	0-10806-070-0	02	1	9005-9306	●	●	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9307-	●	●	●
26	WASHER; LK,CONT CYL ID=8.2	9-09150-508-0	03	1	9002-	●	●
26	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9307-	●	●
26	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	02	1	9307-			●
32	WASHER; LK (B) ID=10.2	9-09150-510-0	02	1	9002-9410	●	●
32	WASHER; LK (B) ID=10.2	9-09150-510-0	02	1	9411-		●
32	WASHER; LK (C) ID=10.5 OD=26	9-09164-710-0	01	1	9307-	●	●
32	WASHER; LK (A) ID=8.4	9-09851-473-0	01	1	9307-			●
34	RING; SEAL ID=21	1-22189-147-0	01	1	9307-	●	●
34	RING; SEAL ID=18.8	1-22189-148-0	02	1	9307-	●	●
34	RING; SEAL ID=15	1-22189-025-0	02	1	9307-			●
34	RING; SEAL ID=14	9-22189-104-0	02	1	9307-			●
35	BOLT; PLATE FIX (A) M8X16	9-02050-816-0	03	1	9307-	●	●
35	BOLT; PLATE FIX (B) M10X20	9-22189-033-0	02	1	9307-	●	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	9-01910-816-0	05	1	9307-			●
37	COVER; BODY	1-22189-146-0	01	1	9307-	●	●
37	COVER; BODY	1-22189-106-0	01	1	9307-			●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	03	1	9307-	●	●	●
40	WASHER; LK,COVER EXC. EXH HEAT WARNING<W50> ID=6.1	9-09150-506-0	04	1	9402-		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=390	0-07150-390-0	01	1	9002-9004	●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=340	0-07150-340-0	01	1	9005-9306	●
42	HOSE; FLEX,EXH BRK L=340	0-07150-340-0	01	1	9005-9306		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=340	0-07150-340-0	01	1	9307-9410		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=340	0-07150-340-0	01	1	9411-		●
42	HOSE; FLEX,EXH BRK EXC. HONG KONG EQUIPMENT(PQ1) L=340	0-07150-340-0	01	1	9411-		●
42	HOSE; FLEX,EXH BRK NYLON TUBE AIR PIPING<Z29> L=230	0-07150-230-0	01	1	9002-9306			●
42	HOSE; FLEX,EXH BRK EXC. NYLON TUBE AIR PIPING<Z29> L=270	0-07150-270-0	01	1	9002-9410			●
42	HOSE; FLEX,EXH BRK L=270	0-07150-270-0	01	1	9411-			●
42	HOSE; FLEX,EXH BRK HONG KONG EQUIPMENT(PQ1) L=270	0-07150-270-0	01	1	9411-		●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●	●
95	BRACKET; CONT CYL	1-22186-104-0	01	1	9002-9306	●	●
95	BRACKET; CONT CYL	1-22186-082-1	01	1	9002-9306			●
96	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9002-9306	●	●
96	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9002-9306			●
98	LINK	1-22196-229-0	01	1	9002-9306	●	●
98	LINK	1-22196-113-0	01	1	9002-9306			●
99	WASHER; SNAP PIN	1-22199-054-0	02	1	9002-9306	●	●
99	WASHER; SNAP PIN	9-09160-506-0	02	1	9002-9306			●
100	PIN; SNAP L=21.2	8-94157-840-0	02	1	9002-9306	●	●	●
104	RING; RET	9-88510-331-0	01	1	9307-	●	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9307-	●	●	●
106	BRACKET; CONT CYL	1-22186-104-0	01	1	9307-9401	●	●
106	BRACKET; CONT CYL EXH HEAT WARNING<W50>	1-22186-104-0	01	1	9402-		●
106	BRACKET; CONT CYL	1-22186-082-0	01	1	9307-			●
106	BRACKET; CONT CYL EXC. EXH HEAT WARNING<W50>	1-22186-105-0	01	1	9402-		●
108	PIN; CONT CYL	1-22199-054-0	02	1	9307-	●	●
109	PIN; SNAP,CONT CYL L=21.2	8-94157-840-0	02	1	9307-	●	●
132	LEVER; BRK VLV	1-22196-249-0	01	1	9002-	●	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9002-			●
133	NUT; LK M8	9-09110-408-0	02	1	9307-	●	●	●
133	NUT; LK M10 FLANGE	0-91150-110-0	01	1	9307-	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9307-	●	●
134	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9307-			●
135	CLEVIS; CONT CYL	1-22196-229-0	01	1	9307-	●	●
148	CYLINDER; CONT,DUCT	1-22199-094-0	01	1	9002-9306	●	●
148	CYLINDER; CONT,DUCT	9-88510-329-0	01	1	9002-9306			●
158	GASKET; COVER	1-22189-145-0	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
